RM-WF series Featured Image

RM-WF series

The RM-WF series WiFi smart switches deliver remote power control for residential and commercial use worldwide, compatible with 80–300V AC (50/60Hz) grids and 1–63A loads. Supporting both manual and APP-based operation, they come in three models for basic on/off control, high-accuracy energy metering, or full overload/overvoltage/undervoltage protection with energy tracking, and require no extra auxiliary power for easy installation in standard electrical cabinets — ideal for smart home upgrades, apartments, offices and retail spaces to cut energy waste and improve electrical safety.


Download as PDF
  • RM-WF series
  • RM-WF series
  • RM-WF series
  • RM-WF series

Product Detail

RM-101WF

RM-101WF

Rated supplyvoltage:AC80V~300V 50/60Hz

Rated current:1-40/63A

Output Contact:1NO

Conetrol method:manual\APP

Accuracy Class:±(1%FS+1 digit)

Auxiliary Power:no

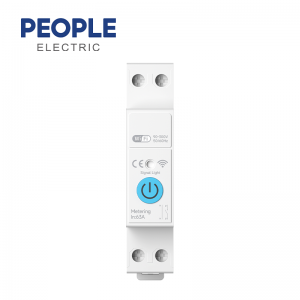

RM-102WF

RM-102WF

Rated supply voltage:AC80V~300V 50/60Hz

Rated current:1-40/63A

Power range:99999.99kWh

Output Contact:1NO

Conetrol method:manual\APP

Accuracy Class:±(1%FS+1 digit)

Auxiliary Power:no

RM-103WF

RM-103WF

Rated supplyvoltage:AC80V~300V 50/60Hz

Range Of Overcurrent Setting Parameters:1-63A

Range Of Overvoltage Setting Parameters:230-300V

Under Voltage Setting Parameter Range:110-210V

Power range:99999.99kWh

Output Contact:1NO

Conetrol method:manual\APP

Accuracy Class:±(1%FS+1 digit)

Auxiliary Power:no

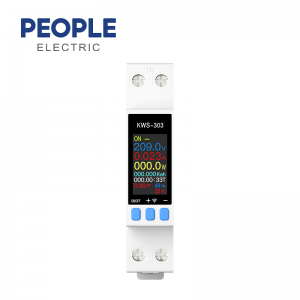

RM-303WF

RM-303WF

Rated supplyvoltage:AC80V~300V 50/60Hz

Range Of Overcurrent Setting Parameters:1-63A

Range Of Overvoltage Setting Parameters:230-300V

Under Voltage Setting Parameter Range:110-210V

Power range:99999.99kWh

Output Contact:1NO

Conetrol method:manual\APP

Accuracy Class:±(1%FS+1 digit)

Auxiliary Power:no
