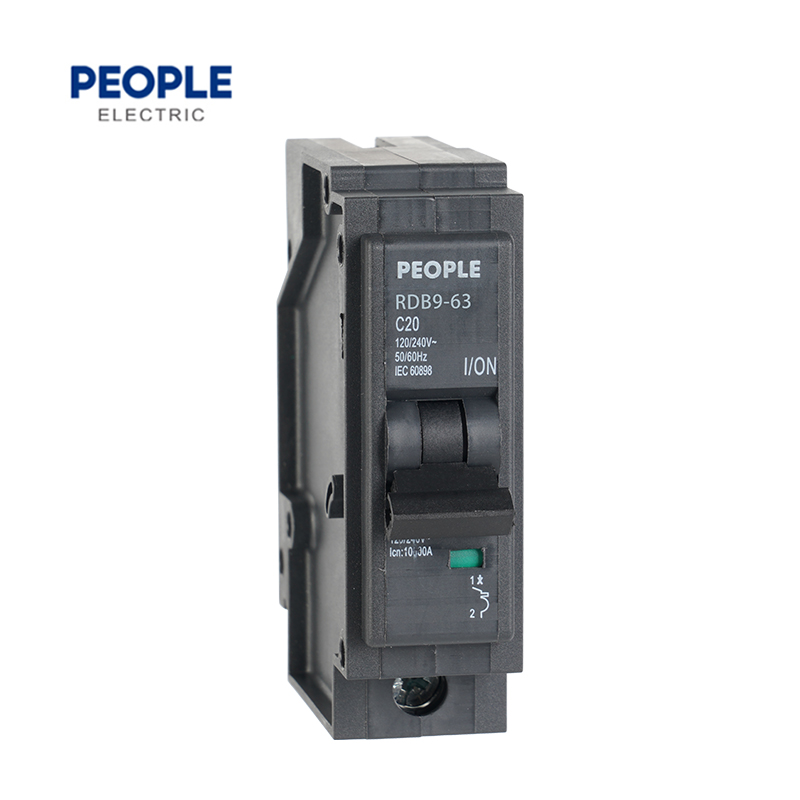

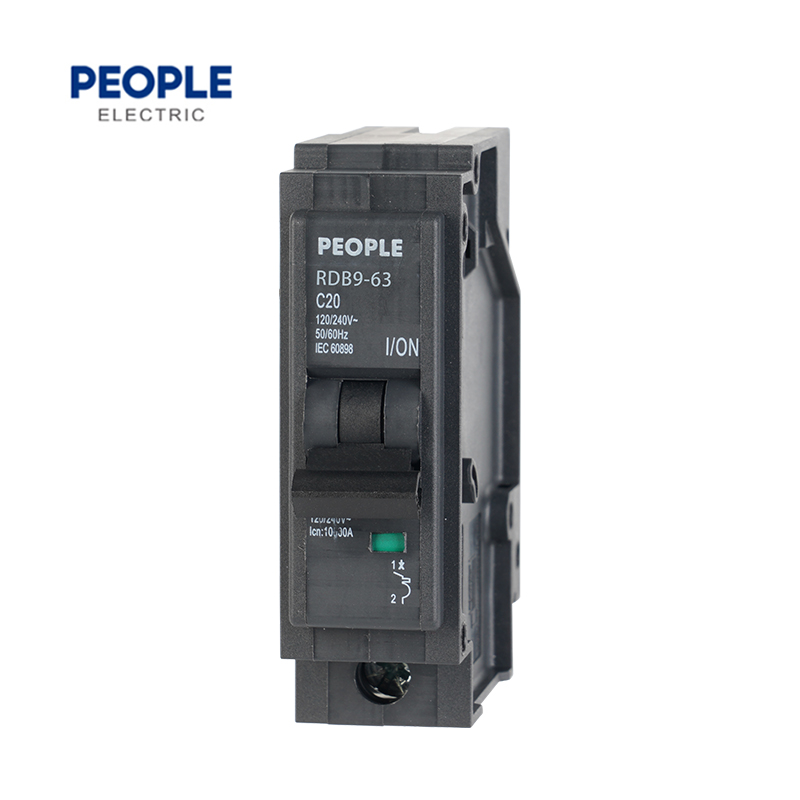

RDB9-63(MCB) 6KA/10KA

The RDB9-63 miniature circuit breaker is designed for residential wiring, commercial circuits and industrial power distribution systems. Compatible with AC 50/60Hz grids, it fits 1-pole (230V/240V) and 2/3-pole (400V) setups. It works as a switch for infrequent line switching, and automatically cuts power during overloads and short circuits to protect wiring and electrical devices, preventing equipment damage and electrical hazards.

Send email to us Download as PDF

Product Detail

Application

1.Rated current up to 63A

2.Good insulation between phases

3.Super-strong auxiliary function module

4.Protection of circuits against overload and short circuit currents

5.Scenarios:domestic installation,commercial and industrial electrical distribution systems

6.Standard：IEC/EN60898-1

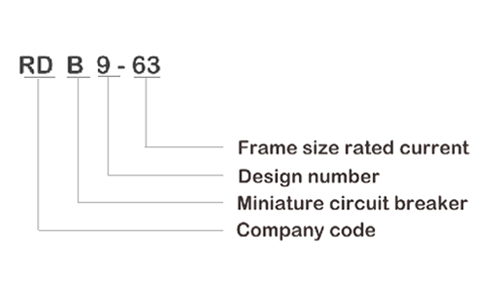

Model No.

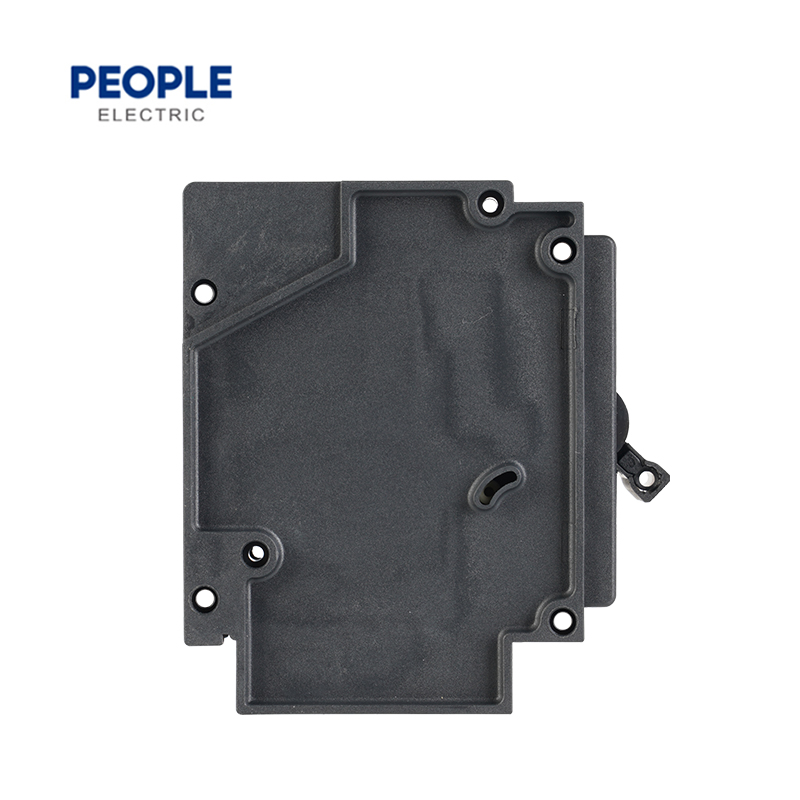

Samples&Structures

Parameters


Pole	1P, 2P, 3P
Rated voltage Ue (V)	230/400(1P),400(2,3P)
Insulation voltage Ui (V)	500
Rated frequency (Hz)	50/60
Rated current In (A)	63A
Type of instantaneous release	B, C, D
Protective grade	IP 20
Breaking capacity	240V-6000A , 110V-10000A
Mechanical life	10000 times
Electrical life	4000 times
Ambient temperature (℃)	-25~+40 (with daily average≤35)
Terminal connection type	Cable/ Pin type busbar/U type busbar
