RDX6-40 Series 1P+N Mini/ Miniature Circuit Breaker for overload & short circuit protection

RDX6-40 miniature circuit breaker(DPN) is applicable to a circuit of AC50/60Hz, 230V (single
phase), for overload and short circuit protection.Rated current up to 40A. It also can be used as a switch for an infrequent conversion line. It is mainly used in domestic installation, as well as in commercial and industrial electrical distribution systems.
It conforms with the standard of IEC/EN60898-1.


Download as PDF

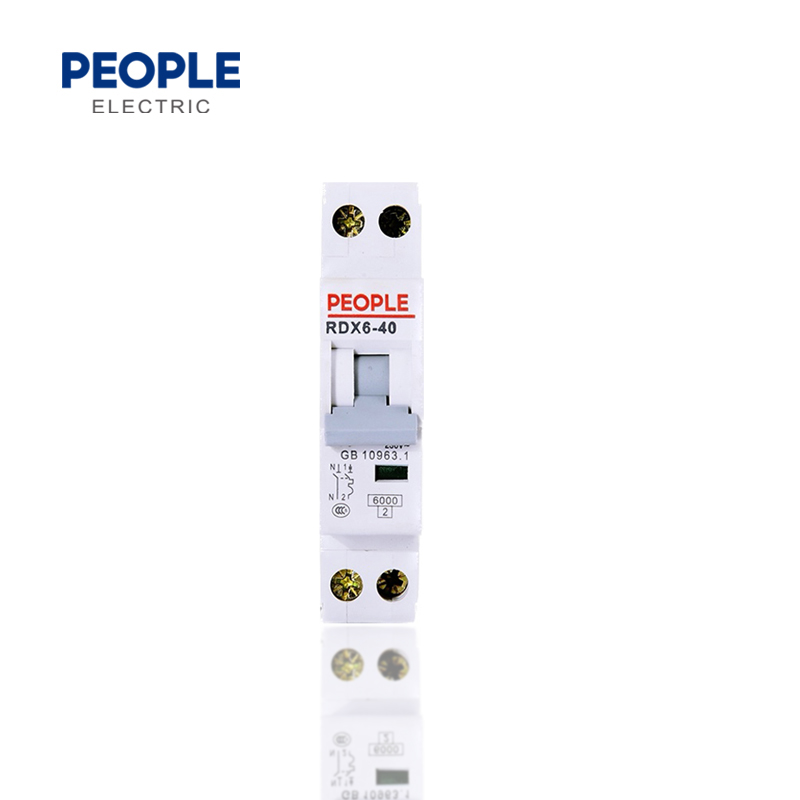

  • RDX6-40 Series 1P+N Mini/ Miniature Circuit Breaker for overload & short circuit protection

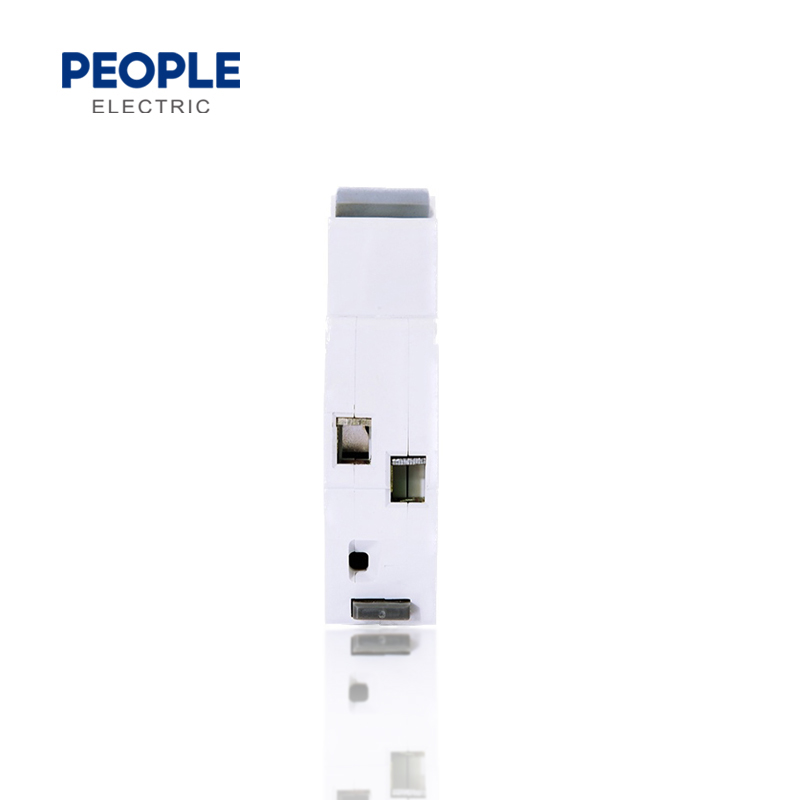

  • RDX6-40 Series 1P+N Mini/ Miniature Circuit Breaker for overload & short circuit protection

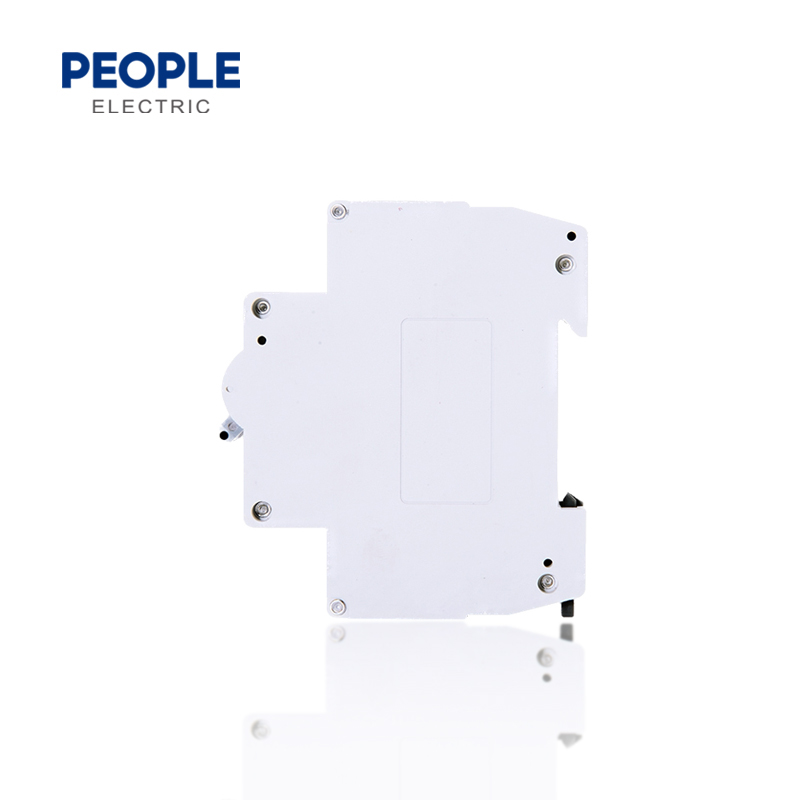

  • RDX6-40 Series 1P+N Mini/ Miniature Circuit Breaker for overload & short circuit protection
  • RDX6-40 Series 1P+N Mini/ Miniature Circuit Breaker for overload & short circuit protection

Product Detail

Application

Parameters

Samples & Structures

Dimensions

Product Introduction

RDX6-40 miniature circuit breaker(DPN) is applicable to a circuit of AC50/60Hz, 230V (single
phase), for overload and short circuit protection.Rated current up to 40A. It also can be used as a switch for an infrequent conversion line. It is mainly used in domestic installation, as well as in commercial and industrial electrical distribution systems.
It conforms with the standard of IEC/EN60898-1.

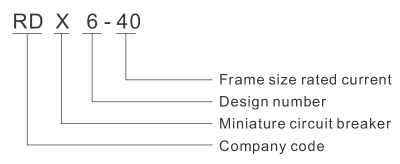

Model No.

13

Technical specifications


Pole 1P+N
Rated voltage Ue(V) 230/400
Insulation voltage Ui(V) 500
Rated frequency(Hz) 50/60
Rated current In(A) 1,2,3,4,6,10,16,25,32,40A
Type of instantaneous release B,C,D
Protective grade IP 20
Breaking capacity(A) 6000
Electrical life 8000 times
Mechanical life 20000 times
Ambient temperature(°C) -5~+40 (with daily average ≤35)
Terminal connection type Cable/Pin type busbar / U type busbar

1 2 4

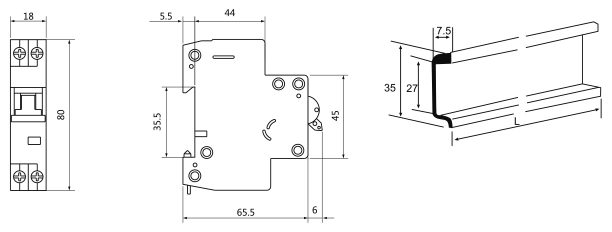

Dimension(mm)

14

Model No.

13

Technical specifications


Pole 1P+N
Rated voltage Ue(V) 230/400
Insulation voltage Ui(V) 500
Rated frequency(Hz) 50/60
Rated current In(A) 1,2,3,4,6,10,16,25,32,40A
Type of instantaneous release B,C,D
Protective grade IP 20
Breaking capacity(A) 6000
Electrical life 8000 times
Mechanical life 20000 times
Ambient temperature(°C) -5~+40 (with daily average ≤35)
Terminal connection type Cable/Pin type busbar / U type busbar

1 2 4

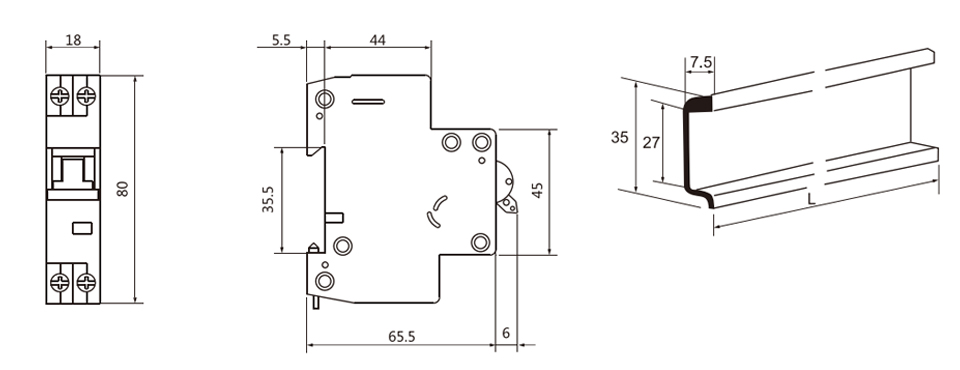

Dimension(mm)

14
