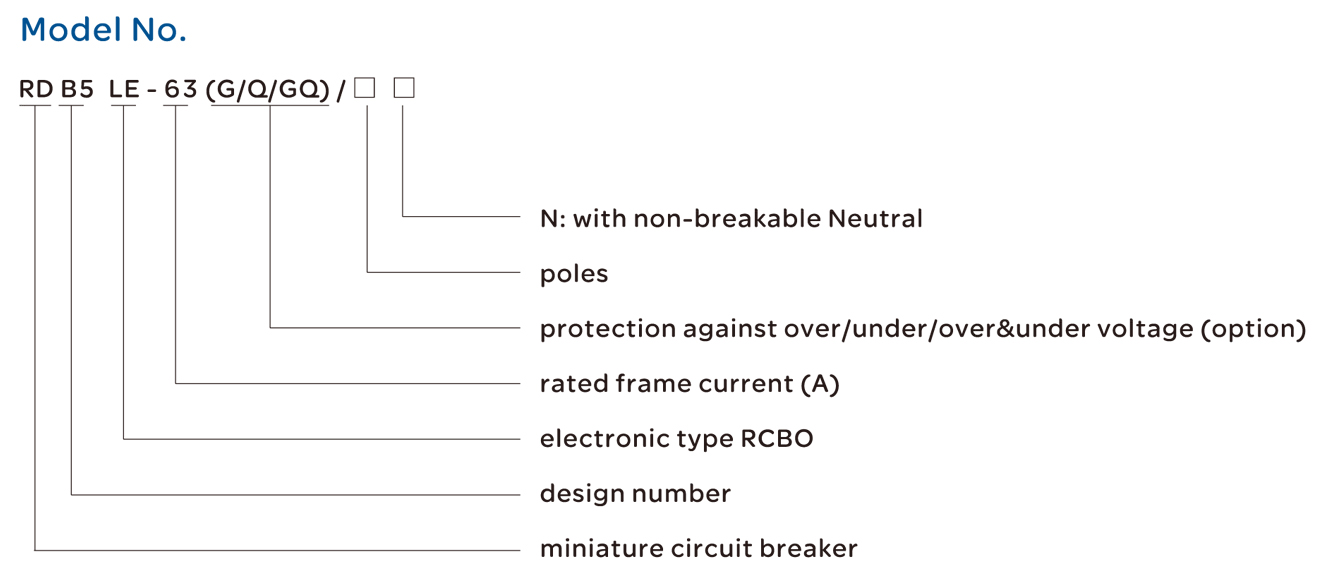

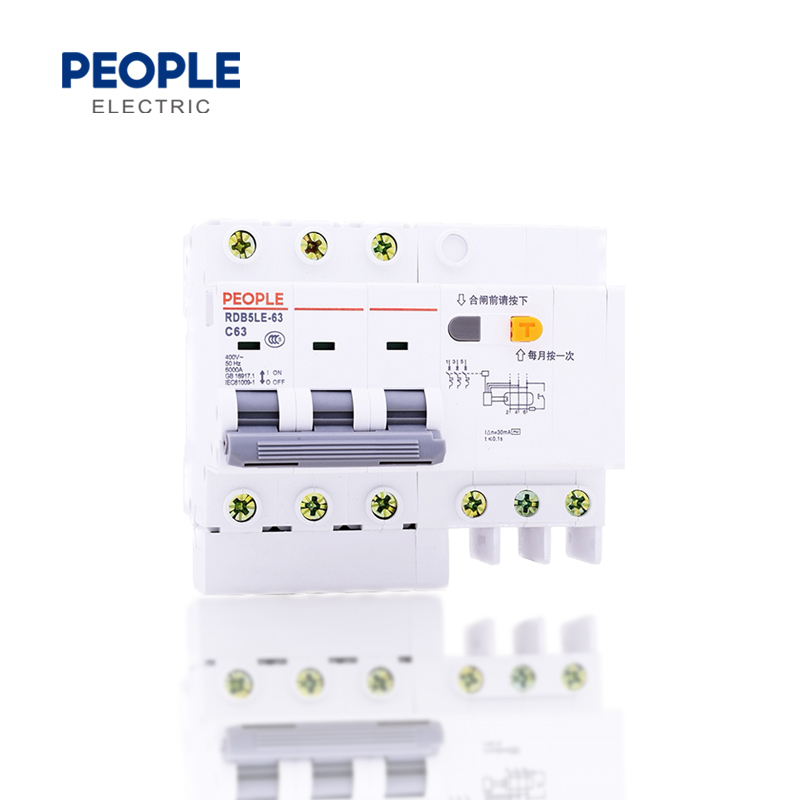

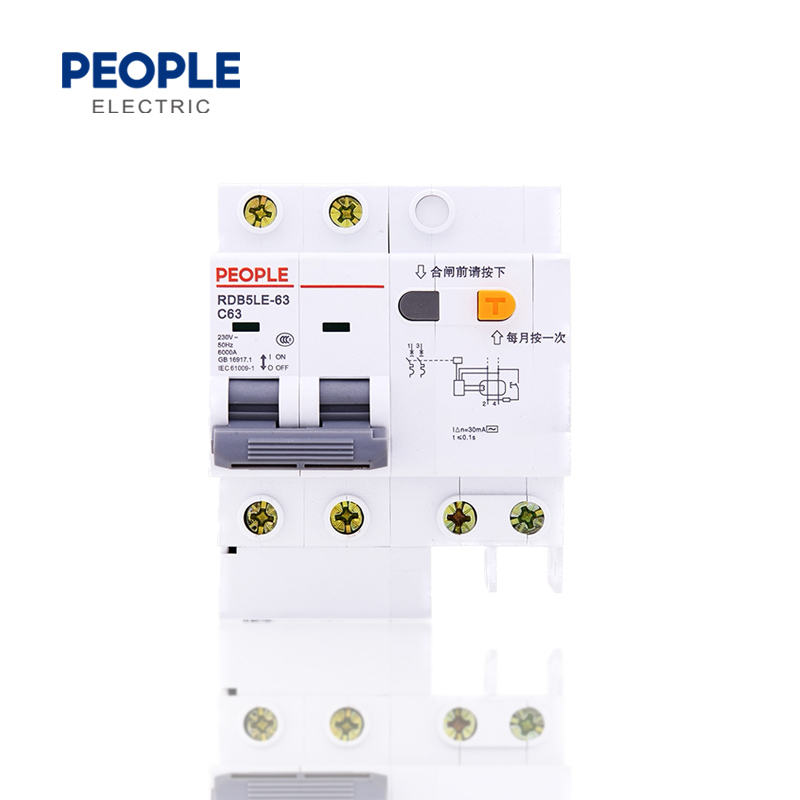

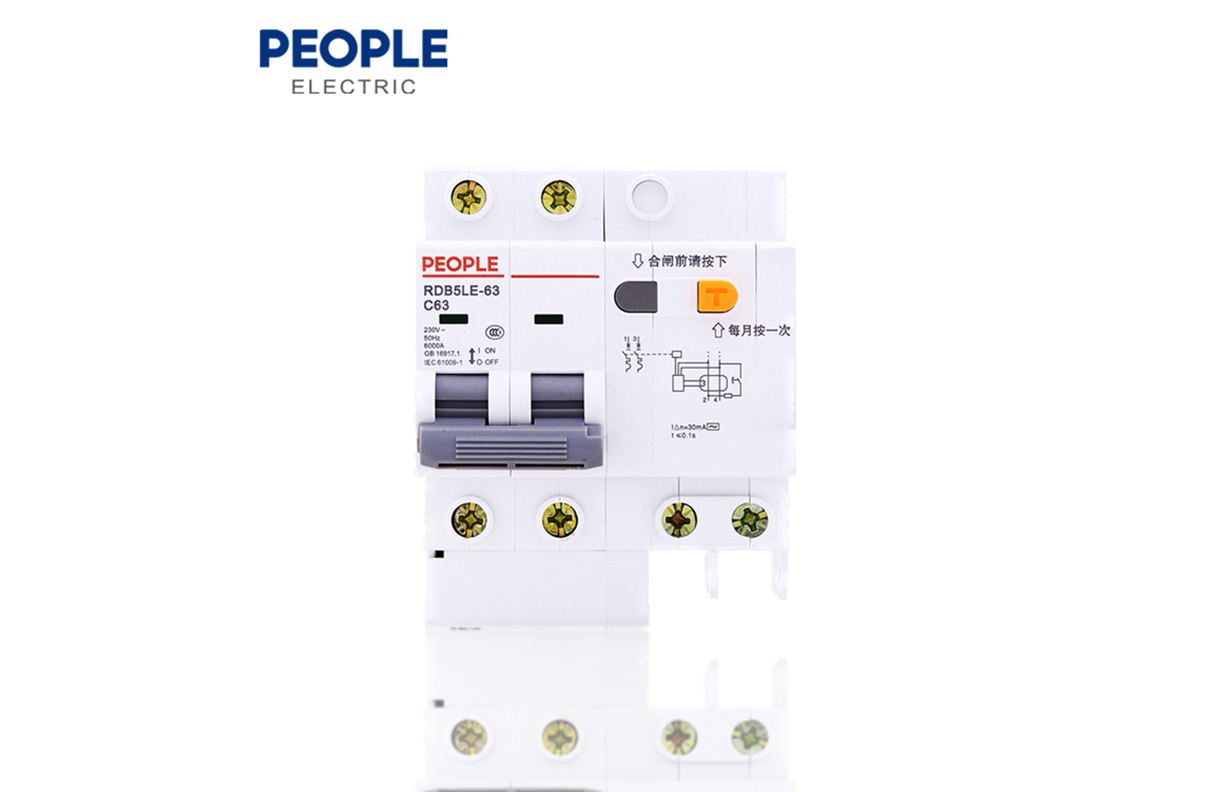

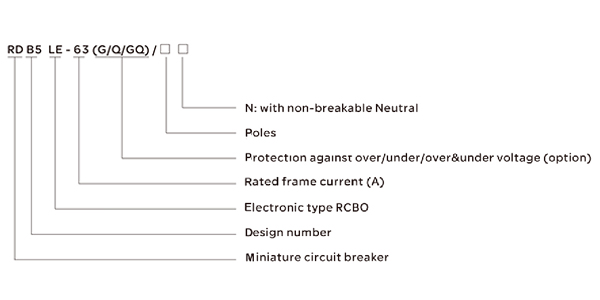

1.Protection against earth leakage,overload and short-circuits
2.Electronic type RCD
3.With indication window
4.Rated short-circuit breaking capacity:6kA
5.Sensitivity range:30mA,100mA,300mA
6.Standard:IEC61009/GB16917.1
7.Scenarios:residential building,commercial and industrial power distribution systems
| Standard | IEC/EN 61009 | |
| Electrical features | Thermo-magnetic release characteristic | C, D |
| Rated current In | 6,10,16,20,25,32,40,50,63A | |
| Poles | 1P+N,2P,3P,3P+N,4P | |
| Rated voltage Ue | 230/400V | |
| Rated sensitivity I△n | 0.03,0.1,0.3A | |
| Rated residual making and breaking capacity I△m | 2000A | |
| Rated short-circuit capacity Icn | 6000A | |
| Break time under I△n | ≤0.1s | |
| Rated frequency | 50/60Hz | |
| Rated impulse withstand voltage Uimp | 4000V | |
| Dielectric TEST voltage at ind.Freg.for 1min | 2kV | |
| Insulation voltage Ui | 600 | |
| Pollution degree | 2 |
| Standard | IEC/EN 61009 | ||
| Mechanical features | Electrical life | 4100 | |
| Mechanical life | 10000 | ||
| Contact position indicator | Yes | ||
| Protection degree | IP20 | ||
| Ambient temperature(with daily averages≤35°C) | °C | -5~+40 | |
| Storage temperature | °C | -25~+70 | |
| Installation | Terminal connection type | Cable/U-type busbar/Pin-type busbar | |
| Terminal size top for cable | mm² | 25 | |
| Terminal size top for busbar | mm² | 25 | |
| Tightening torque | N*m | 2 | |
| In-Ibs | 18 | ||
| Mounting | On DIN rail EN 60715(35mm) by means of fast clip device | ||
| Connection | From top |
| A | B | C | D | 1P+N | 2P | 3P | 3P+N | 4P | |
| RDB5LE-63 | 55 | 42 | 28 | 8 | 18+36 | 36+36 | 54+50 | 54+63 | 72+63 |
| Standard | IEC/EN 60947-3 | |||||||
| Electrical features | Thermo-magnetic release characteristic | C, D | ||||||
| Rated current In | A | 6, 10, 16, 20, 25, 32, 40, 50, 63 | ||||||
| Rated voltage Ue | V | 230/ 400 | ||||||
| Rated sensitivity l△n | A | 0.03, 0.1, 0.3 | ||||||
| Rated residual making and breaking capacity I△m | A | 2000 | ||||||
| Rated short-circuit capacity lcn | A | 6000 | ||||||
| Break time under I△n | S | ≤0.1 | ||||||
| Rated frequency | Hz | 1 | ||||||
| Rated impulse withstand voltage Uimp | V | 4,000 | ||||||
| Dielectric TEST voltage at ind. Freq. for 1min | kV | 2 | ||||||
| Insulation voltage Ui | 600 | |||||||
| Pollution degree | 2 | |||||||
| Mechanical features | Electrical life | 4,000 | ||||||
| Mechanical life | 10,000 | |||||||
| Contact position indicator | Yes | |||||||
| Protection degree | IP20 | |||||||
| Ambient temperature(with daily average≤35℃) | ℃ | -5~+40 | ||||||
| Storage temperature | ℃ | -25~+70 | ||||||
| Installation | Terminal connection type | Cable/ U-type busbar/ Pin-type busbar | ||||||
| Terminal size top for cable | m² | 25 | ||||||
| Terminal size top for busbar | m² | 25 | ||||||
| Tightening torque | N*m | 2 | ||||||
| In-Ibs | 18 | |||||||
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device | |||||||
| Connection | From top | |||||||

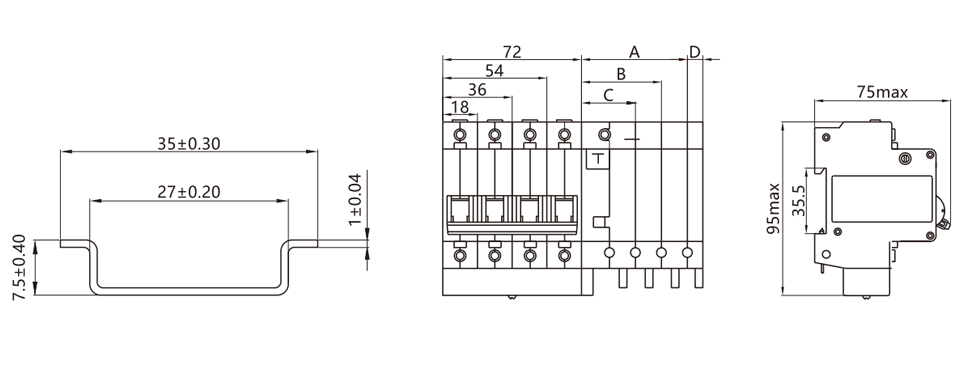

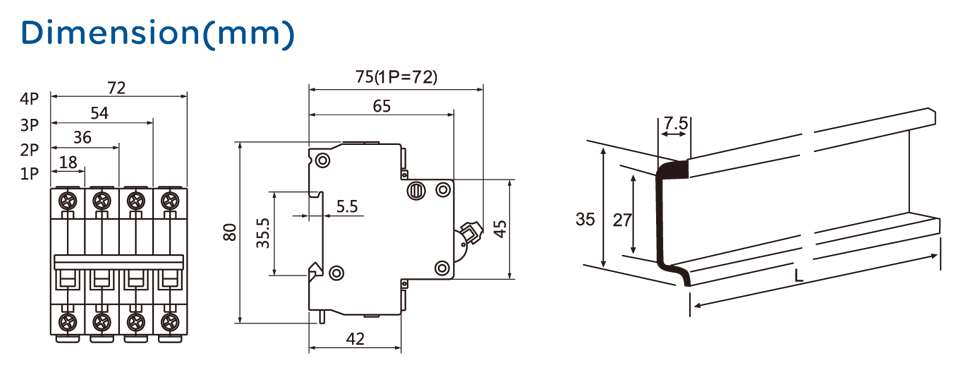

Overall and mounting Dimensions (mm).
| A | B | C | D | 1P+N | 2P | 3P | 3P+N | 4P | |
| RDB5LE-63 | 55 | 42 | 28 | 8 | 18+36 | 36+36 | 54+50 | 54+63 | 72+63 |
