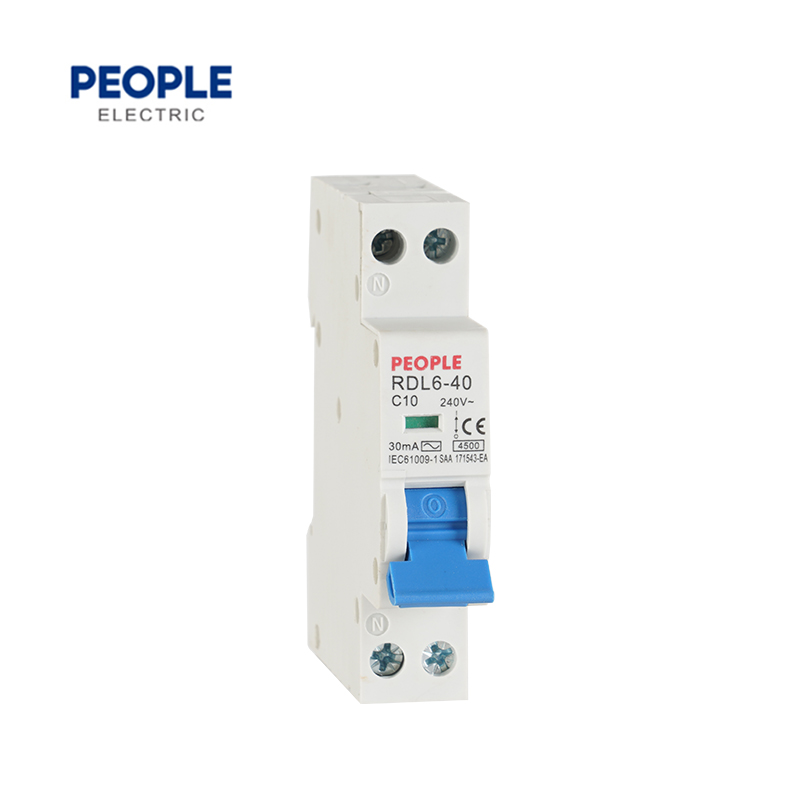

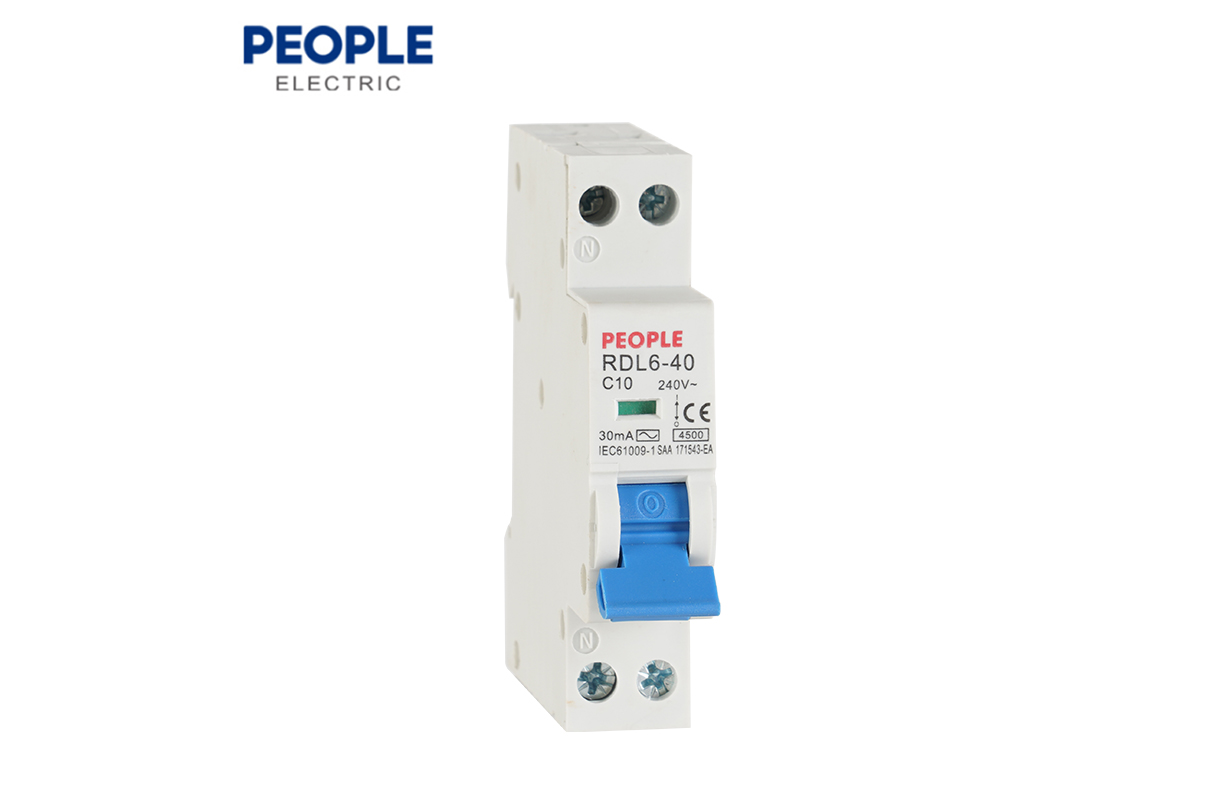

RDL6-40(RCBO) Residual Current Circuit Breaker

RDL6-40 residual current circuit breaker with overload protection is applicable to a circuit of AC50/60Hz, 230V (single phase), for overload, short circuit and residual current protection. Electromagnetic type RCD.


Download as PDF
  • RDL6-40(RCBO) Residual Current Circuit Breaker
  • RDL6-40(RCBO) Residual Current Circuit Breaker

Product Detail

Application

Parameters

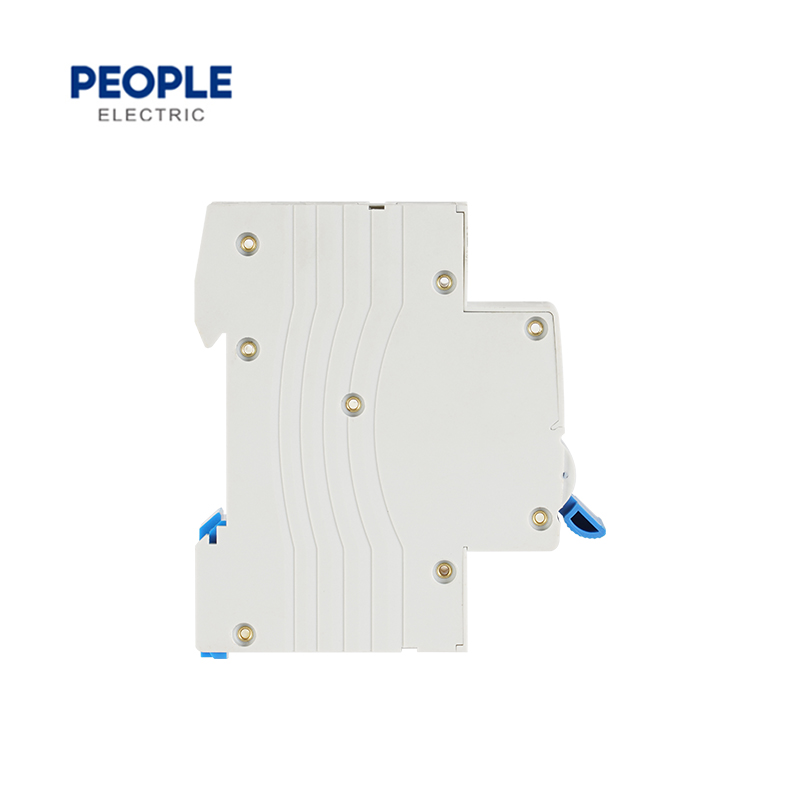

Samples & Structures

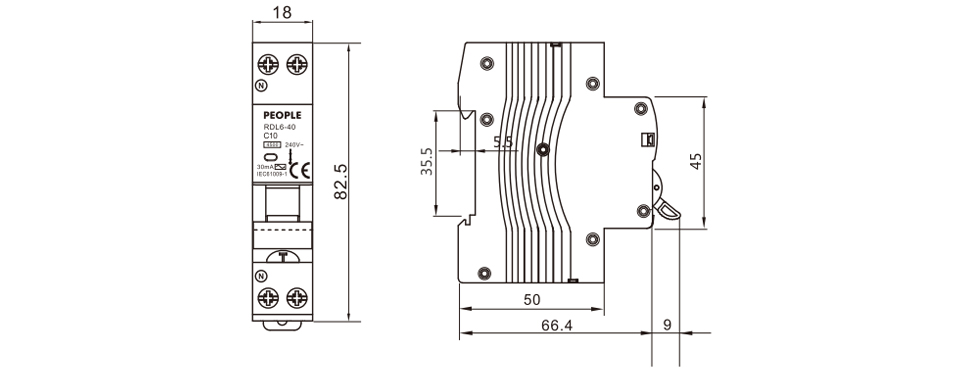

Dimensions

Product Introduction

RDL6-40 residual current circuit breaker with overload protection is applicable to a circuit of AC50/60Hz, 230V (single phase), for overload, short circuit and residual current protection. Electromagnetic type RCD. Rated current up to 40A. It is mainly used in domestic installation, as well as in commercial and industrial electrical distribution systems. It conforms with the standard of IEC/EN61009.

Features

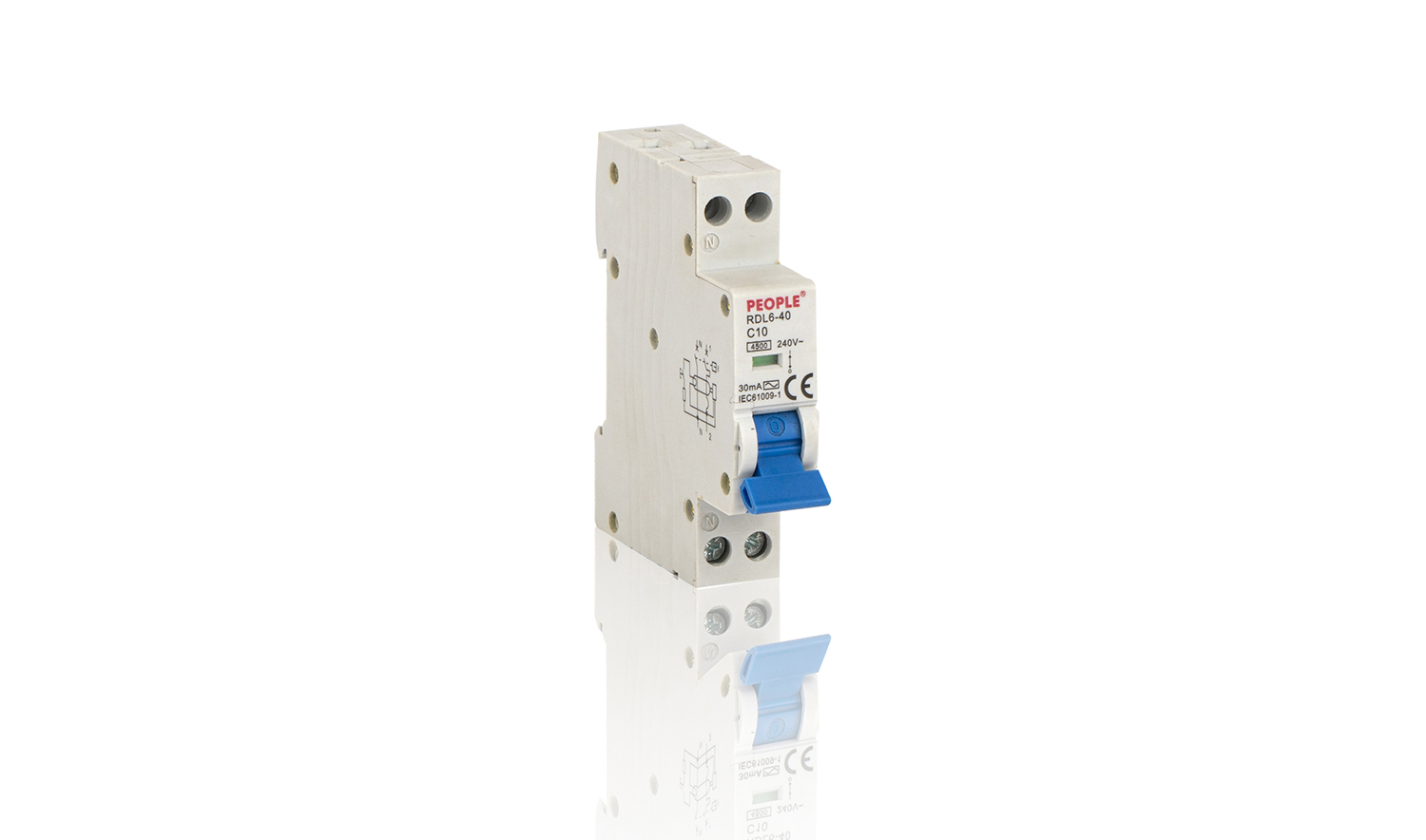

RDL6-40 C10

Leakage switch has the function of detecting and judging the leakage current, but does not have the function of cutting off and connecting the main circuit of the leakage protection device. Leakage protection device can act quickly to cut off the accident power supply, to avoid the expansion of the accident, to protect the safety of people and equipment. Miniature circuit breaker is composed of operating mechanism, contact, protection device (a variety of decoupling), arc extinguishing system, etc.

RDL6-40 residual current circuit breaker with overload protection is applicable to acircuit of AC50/60Hz, 230V (single phase), for overload, short circuit and residualcurrent protection.
Electromagnetic type RCD.
Rated current up to 40A. It is mainly used in domestic installation, as well as incommercial and industrial electrical distribution systemslt conforms with the standardof IEC/EN61009.

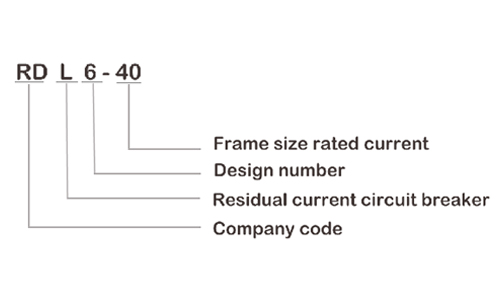

192

Characteristic Unit Parameters
Standard   IEC/EN 61009
Rated curType(wave form of the earth leakage sensed)rent In   AC, A
Thermo-magnetic release characteristic   B,C
Rated current In A 6,10,16,20,25,32,40
Poles   1P+N
Rated voltage Ue V 230/400-240/415
Rated sensitivity I△n A 0.03,0.1,0.3
Rated short-circuit capacity Icn A 4500
Break time under I△n S ≤0.1
Electrical life   2000 times
Mechanical life   2000 times
Mounting   On DIN rail EN60715(35mm)by means of fast clip device
Terminal connection type   Cable/pin type busbar/ U type busbar

3

4

RDL6-40 residual current circuit breaker with overload protection is applicable to acircuit of AC50/60Hz, 230V (single phase), for overload, short circuit and residualcurrent protection.
Electromagnetic type RCD.
Rated current up to 40A. It is mainly used in domestic installation, as well as incommercial and industrial electrical distribution systemslt conforms with the standardof IEC/EN61009.

192

Characteristic Unit Parameters
Standard   IEC/EN 61009
Rated curType(wave form of the earth leakage sensed)rent In   AC, A
Thermo-magnetic release characteristic   B,C
Rated current In A 6,10,16,20,25,32,40
Poles   1P+N
Rated voltage Ue V 230/400-240/415
Rated sensitivity I△n A 0.03,0.1,0.3
Rated short-circuit capacity Icn A 4500
Break time under I△n S ≤0.1
Electrical life   2000 times
Mechanical life   2000 times
Mounting   On DIN rail EN60715(35mm)by means of fast clip device
Terminal connection type   Cable/pin type busbar/ U type busbar

3

4
