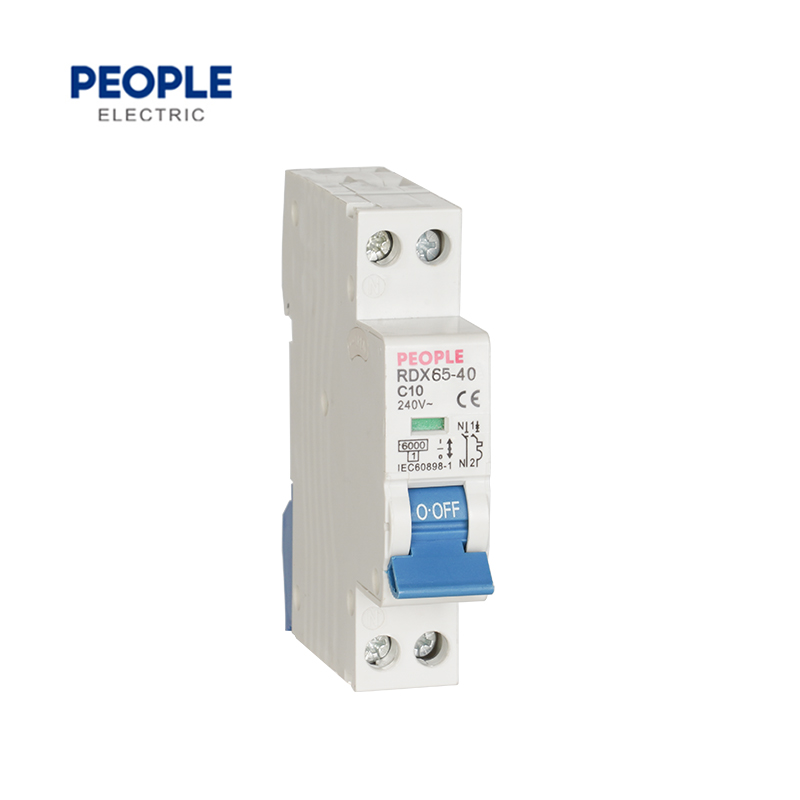

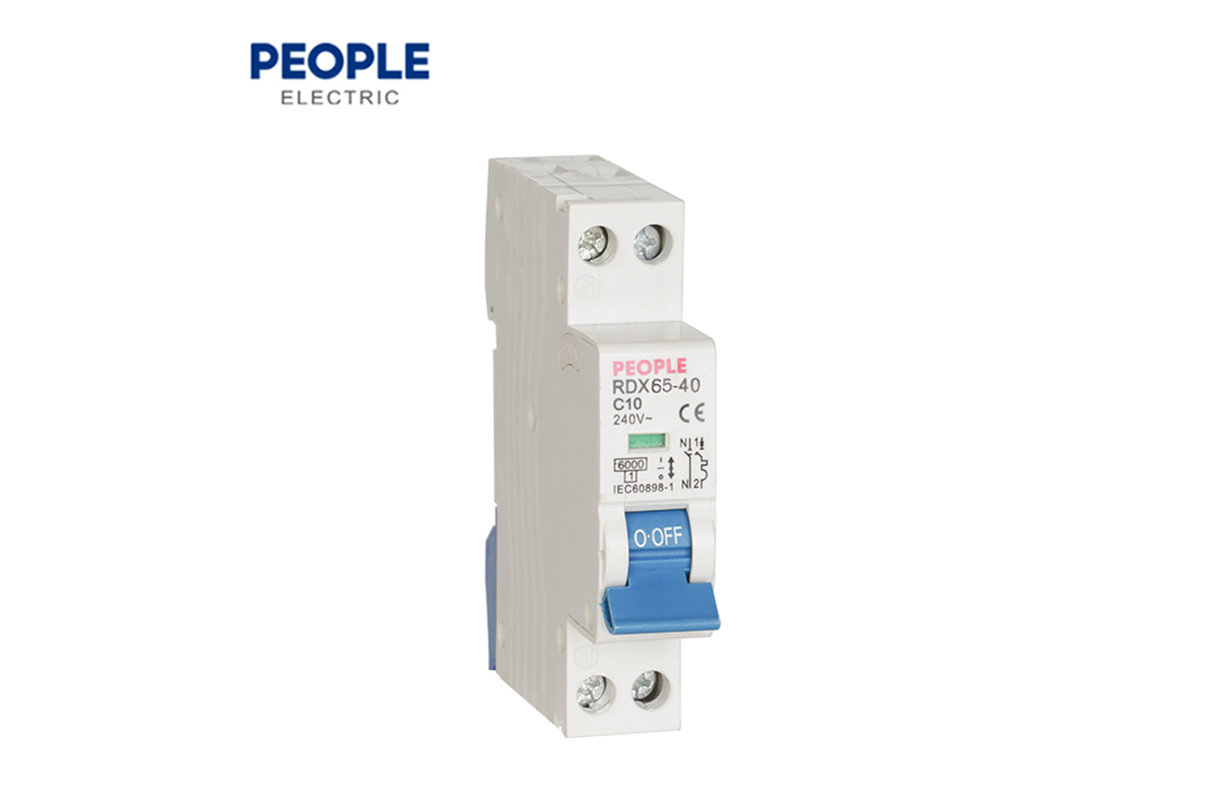

RDX65-40(MCB) 6KA

The PDX30N-32 (RDX65-40) DPN Miniature Circuit Breaker (MCB) keeps your wiring and electrical devices safe from overload and short-circuit damage in 230V single-phase AC (50/60Hz) systems. Primarily designed for residential wiring installations, it also works seamlessly in commercial and industrial power distribution networks, doubles as a switch for occasional line switching, and trips automatically the instant electrical faults occur.

Send email to us Download as PDF

Product Detail

Application

1.Rated current up to 40A

2.Small volume, large capacity

3.Overload currents and short circuit currents protection

4.Good insulation between phases

5.Standard:IEC/EN60898-1.

6.Scenarios:domestic houses,commercial and industrial electrical distribution systems

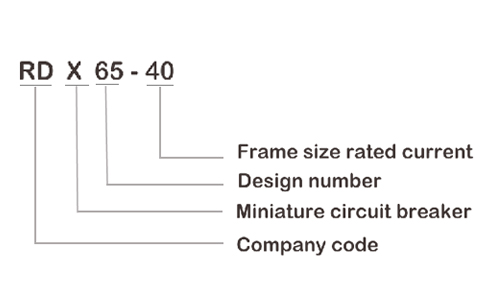

Model No.

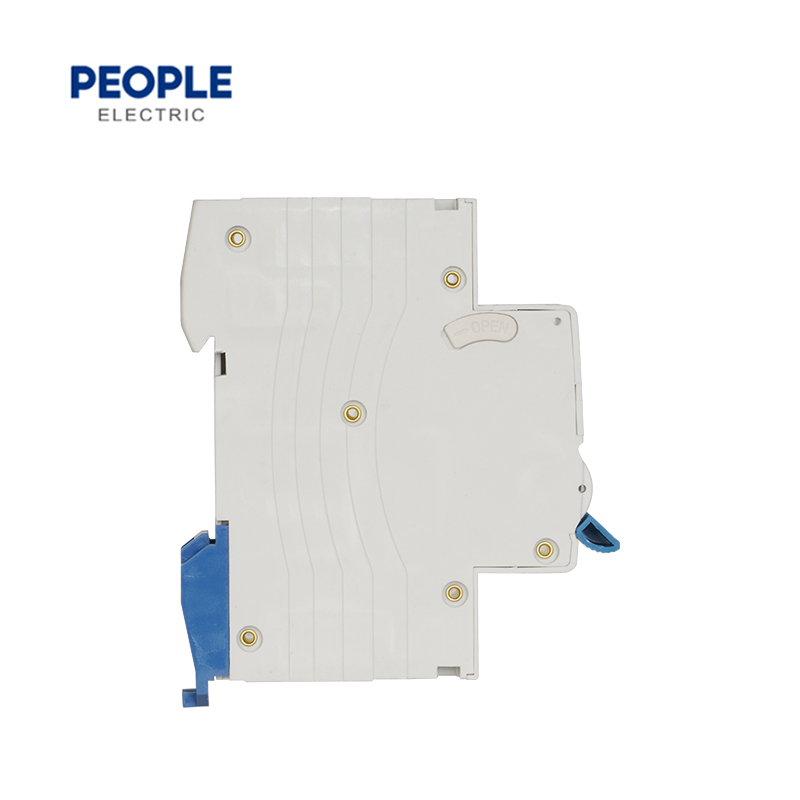

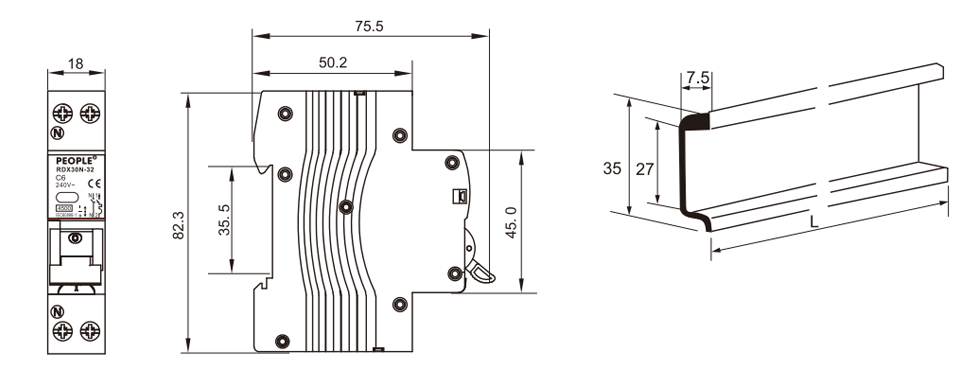

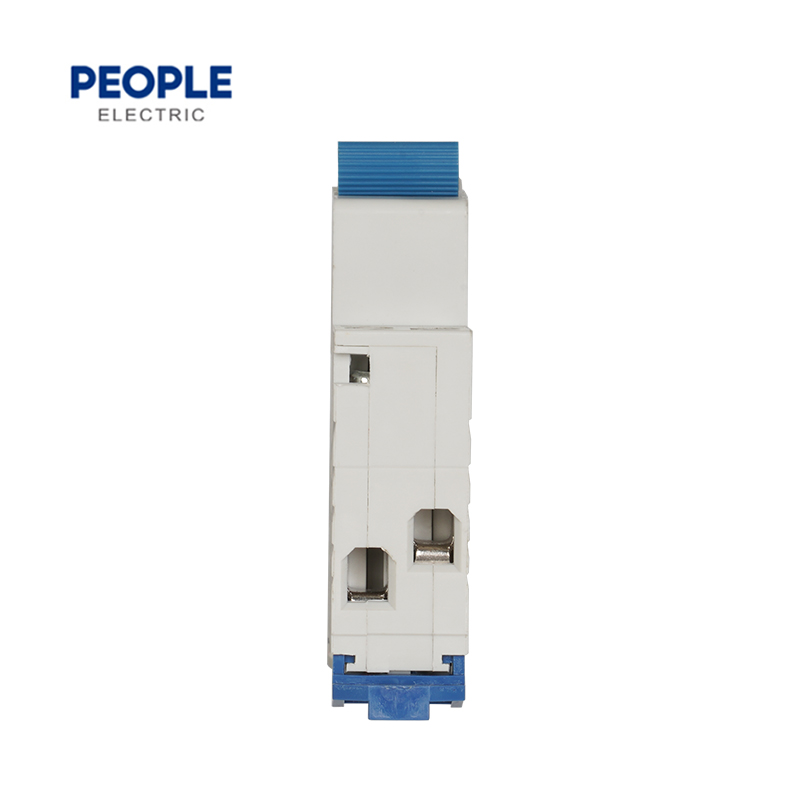

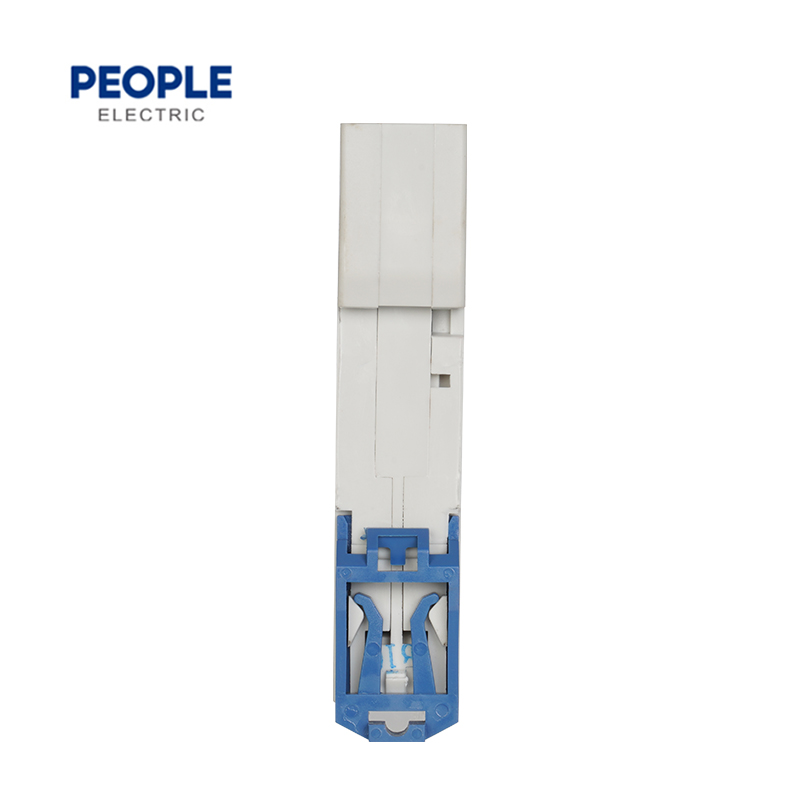

Samples&Structures

Parameters


Pole	1P+N
Rated voltage Ue (V)	230/240
Insulation voltage Ui (V)	500
Rated frequency (Hz)	50/60
Rated current In (A)	1, 2, 3, 4, 6, 10, 16, 25, 32, 40, A
Type of instantaneous release	B, C, D
Protective grade	IP 20
Breaking capacity (A)	6000
Mechanical life	20000 times
Electrical life	8000 times
Ambient temperature (℃)	-5~+40 (with daily average≤35)
Terminal connection type	Cable/ Pin type busbar/U type busbar
