RD580-SF Series High Performance Vector AC Drive

The RD580-SF Series is a rugged, high-performance vector AC variable frequency drive with IP65 ingress protection, designed for demanding industrial environments. Featuring advanced open-loop vector control, V/F control, and torque control modes, this VFD delivers exceptional starting torque (180% at 0.5Hz), precise speed regulation (±0.2% accuracy), and a wide 1:200 speed adjustment range. With power ratings from 0.4kW to 550kW and 25 built-in protection functions, the RD580-SF ensures reliable motor control in dusty, humid, and harsh outdoor conditions.

Send email to us Download as PDF

Product Detail

Technology Specifications

Item		Specifications
Input	Voltage Range	three phase 380V±15% three phase 220V±15% single phase 220V±15%
Input	Frequency	50/60Hz±5%
Output	Voltage	three phase 0~380V three phase 0~220V
	Frequency	0~3000Hz
	Overload capacity	G type:150%rated current 1minute;180 rated current 3s; Ptype:120%rated current1minute;150%rated current 3s.
Control performance	Control mode	Open loop vector control、V/F control、torque control
	Start torque	Open loop vector control:0.5Hz 180%,VF control:0.5Hz 150%
	Speed adjustable range	Open loop vector control:1:200,VF control:1:100
	Speed control accuracy	Open loop vector control:±0.2%,VF control:±0.5%
Protection performance	25 protection functions	Including overvoltage,over current,over heat,over load,under voltage,short circuit,ground fault,input and output lack of equal, all-directional protection AC drive reliable operation.
Installation environment requirements	level of protection	IP65
	Working storage environment temperature	Working temperature:-10～40℃(Ambient temperature 40℃~50℃, please derating forusage),free from the direct sunlight.Storage temperature:-20～60℃
	Ambientenvironment	Humidity within 90%(no condensation),vibration less than 0.6G
	Ambientenvironment	Non(corrosive,flammable,explosive,water-absorbent dust material), all kinds of lint cannot be accumulated.
	Altitude	0~1000m.each rises 1000m,derating 10%forusage.

Model	Power capacity KVA	Input current A	Output current A	Adaptive motorKW
Three phase supply:220V±15%、50/60HZ
RD580-R40G2B-SF	1.5	3.4	2.1	0.4
RD580-R75G2B-SF	3	5	3.8	0.75
RD580-1R5G2B-SF	4	5.8	5.1	1.5
RD580-2R2G2B-SF	5.9	10.5	9	2.2
RD580-3ROG4B-SF	4.5	9	7	3.0
RD580-3R7G2B-SF	8.9	14.6	13	3.7
RD580-5R5G2B-SF	17	26	25	5.5
RD580-7R5G2B-SF	21	35	32	7.5
RD580-011G2-SF	30	46.5	45	11
RD580-015G2-SF	40	62	60	15
RD580-18R5G2-SF	57	76	75	18.5
RD580-022G2-SF	69	92	91	22
RD580-030G2-SF	85	113	112	30
RD580-037G2-SF	114	157	150	37
RD580-045G2-SF	134	180	176	45
RD580-055G2-SF	160	214	210	55
RD580-075G2-SF	231	307	304	75
Three phase supply:380V±15%、50/60HZ
RD580-R75G4B-SF	1.5	3.4	2.1	0.75
RD580-1R5G4B-SF	3	5	3.8	1.5
RD580-2R2G4B-SF	4	5.8	5.1	2.2
RD580-3R7G4B-SF	5.9	10.5	9	3.7
RD580-5R5G4B-SF	8.9	14.6	13	5.5
RD580-7R5G4B-SF	11	20.5	17	7.5
RD580-011G4B-SF	17	26	25	11
RD580-015G4B-SF	21	35	32	15
RD580-18R5G4B-SF	24	38.5	37	18.5
RD580-022G4B-SF	30	46.5	45	22
RD580-030G4-SF	40	62	60	30
RD580-037G4-SF	57	76	75	37
RD580-045G4-SF	69	92	91	45
RD580-055G4-SF	85	113	112	55
RD580-075G4-SF	114	157	150	75
RD580-090G4-SF	134	180	176	90
RD580-110G4-SF	160	214	210	110
RD580-132G4-SF	192	256	253	132
RD580-160G4-SF	231	307	304	160
RD580-185G4-SF	270	350	340	185
RD580-200G4-SF	290	385	377	200
RD580-220G4-SF	310	430	426	220
RD580-250G4-SF	355	468	465	250
Three phase supply:220V±15%、50/60HZ
RD580-280G4-SF	396	525	520	280
RD580-315G4-SF	445	590	585	315
RD580-355G4-SF	500	665	650	355
RD580-400G4-SF	600	785	725	400
RD580-450G4-SF	700	883	820	450
RD580-500G4-SF	800	1000	900	500
RD580-550G4-SF	900	1100	9800	560
RD580-630G4-SF	1000	1200	1100	630
RD580-700G4-SF	1200	1300	1200	720

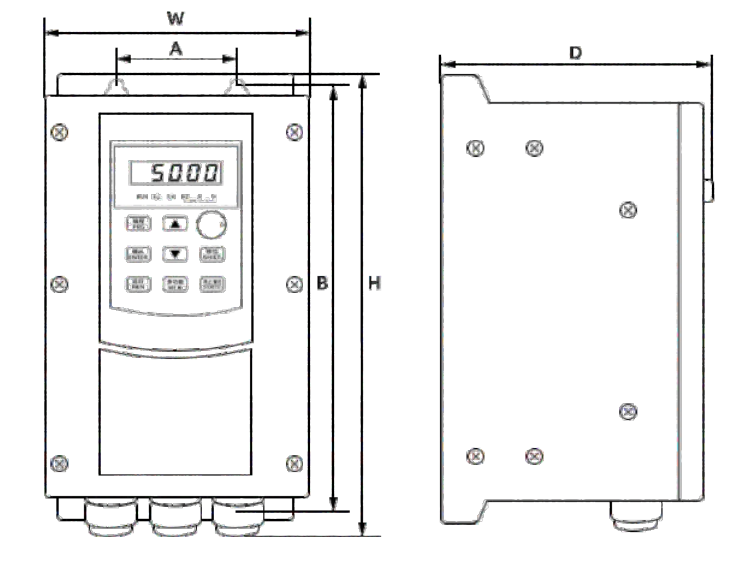

The Dimension and Installation Hole Size

Model	Mounting hole (mm)		External dimension(mm)				Mounting aperture (mm)	Weight (kg)
	A	B	H	H1	W	D
RD580-R75G4B-SF	70	235	250	/	145	170	φ6	3.1
RD580-1R5G4B-SF
RD580-2R2G4B-SF
RD580-3ROG4B-SF
RD580-3R7G4B-SF	70	235	250	/	140	180	φ6
RD580-5R5G4B-SF								3.6
RD580-7R5G4B-SF	100	290	305	/	175	180	φ6	5.5
RD580-011G4B-SF								5.6
RD580-015G4B-SF	160	365	380	/	235	195	φ6	9
RD580-18R5G4B-SF
RD580-022G4B-SF
RD580-030G4B-SF	180	407	422	/	255	210	φ6	10.85
RD580-037G4-SF	220	477	492	/	295	215	φ6	14.7
RD580-045G4-SF								15
RD580-055G4-SF	200	570	590	/	262	280	φ6.5
RD580-075G4-SF
RD580-090G4-SF	260	600	620	/	320	300	φ10
RD580-110G4-SF
RD580-132G4-SF
RD580-160G4-SF	260	780	800		380	315	φ10
RD580-185G4-SF
RD580-200G4-SF	360	876	900		480	350	φ12
RD580-220G4-SF
RD580-250G4-SF
RD580-280G4-SF
RD580-315G4-SF	500	1036	1060		650	350	φ12
RD580-355G4-SF
RD580-400G4-SF	640	1173	1200		860	350	φ14
RD580-450G4-SF
RD580-500G4-SF
RD580-550G4-SF	800	1315	1350		1000	390	Φ14
RD580-630G4-SF
