| ltem | SpeCITIcatlonS | |
| Model | RDJR6 | |
| Maximum motor power compatibility | 22-400 kw | |
| Input | Rated Voltage | 3 phase 415V±15% |
| Frequency | 50/60Hz±5% | |
| Output | Voltage | 3 phase0～415V±15% |
| Overload Capacity | 150%rated current for1minute;180%rated current for 10s. | |
| Control Performance | Control Mode | Voltage Mode,Current Mode |
| Protection Function | Multiple protection functions |
Including over-current,over-heat,overload,input and output phase loss,starting timeout and other protections,all-round protection of the soft starter to ensure reliable operation. |
| Protection level | Protection level | Ip20 |
|
Installation environment requirements |
Working storage environment temperature |
Operating temperature:-10～40℃æ(when the ambient temperature is 40℃æ~50℃æ,please derating the rating),no direct sunlight. Storage temperature:-20～60℃. |
| Surroundings | Humidity within 90%(no condensation),vibration less than 0.6G;No corrosive,flammable,explosive, water-absorbent dust,and no accumulation of various lint. |
|
| Altitude | 0～1000m.The rating shall be derated by 10%forevery 1000m increase. | |
| Control Object | Motor | Standard wiring refers to the motor windings being connected in delta or star,with the thyristor connected between the power supply and the motor..Inner delta connection refers to the motor windings being in a triangle—the thyristors are connected in series with the windings.The main advantage of the inner triangle control is that the soft starter can be selected at a reduced rating. The current flowing through the soft starter and the motorin the inner triangle connection is 1/1. 732 of the line current.The above table uses the margin to select the soft starter,which is selected according to the line current/1.5le.During the selection process,the user can further reduce the rating of the soft starter according to the actual situation. |

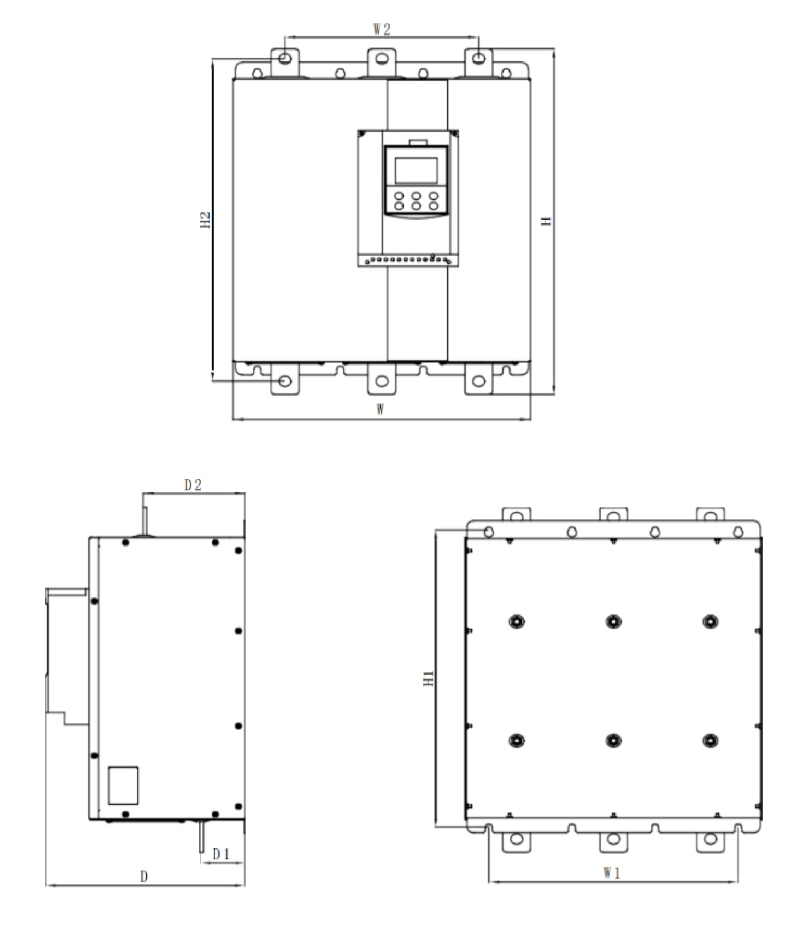

The Dimension and Installation Hole Size
| Specifications | Outline Dimension (m m) |
mounting dimension (m m) |
Main circuit bar spacing(mm) |
Hole (mm)φ |
||||||
| H | W | D | H1 | W1 | H2 | W2 | D1 | D2 | ||
| RDJR6-22 | 321 | 185 | 180 | 285 | 140 | 319 | 104 | 68 | 66 | 1.2 |
| RDJR6-30 | ||||||||||
| RDJR6-37 | ||||||||||
| RDJR6-45 | ||||||||||
| RDJR6-55 | ||||||||||
| RDJR6-75 | ||||||||||
| RDJR6-90 | 413 | 210 | 253 | 355 | 172 | 393 | 122 | 117 | 122 | φ8 |
| RDJR6-110 | ||||||||||
| RDJR6-132 | 590 | 280 | 257 | 535 | 240 | 563 | 67 | 121 | 108 | φ8 |
| RDJR6-160 | ||||||||||
| RDJR6-185 | ||||||||||
| RDJR6-200 | ||||||||||
| RDJR6-220 | ||||||||||
| RDJR6-250 | 413 | 210 | 253 | 355 | 172 | 393 | 122 | 117 | 122 | φ8 |
| RDJR6-280 | ||||||||||
| RDJR6-315 | ||||||||||
| RDJR6-350 | ||||||||||
| RDJR6-400 | 413 | 210 | 253 | 355 | 172 | 393 | 122 | 117 | 122 | φ8 |
