| Item | Specifications | |
| Input | Rated Voltage | T4 Series:3 phase 380V,±15% |
| Frequency | 50/60Hz±5% | |
| Output | Voltage | T4 Series:3 phase 0～380V,±15% |
| Overload Capacity | 150%rated current for 1 minute;180%rated current for 10s. | |
| Control Performance |
Control Mode | Voltage Mode,Current Mode |
| Protection Function |
Multiple protection functions |
Including over-current,over-heat,overload,input and output phase loss,starting timeout and other protections,all-round protection of the soft starter to ensure reliable operation. |
| Protection level | Protection level | Ip20 |
| Installation environment requirements |
Working storage environment temperature |
Operating temperature:-10～40℃(when the ambient temperature is 40℃~50℃, please derating the rating),no direct sunlight. Storage temperature:-20～60℃. |
| Surroundings | Humidity within 90%(no condensation),vibration less than 0.6G;No corrosive,flammable,explosive,water-absorbent dust,and no accumulation of various lint. |
|
| Altitude | 0～1000m.The rating shall be derated by 10%for every 1000m increase. | |
| Control Object | Motor |
Standard wiring refers to the motor windings being connected in delta orstar,with the thyristor connected between the powersupply and the motor..Inner delta connection refers to the motor windings beingin a triangle-the thyristors are connected in series with the windings.The main advantage of the innertriangle controlis that the soft starter can be selected at a reduced rating.The current flowing through the soft starterand the motorin the innertriangle connection is 1/1.732 of the line current.The above table uses the margin to select the soft starter,which is selected according to the line current/1.5le.During the selection process,the user can further reduce the rating of the soft starteraccording to the actual situation. |

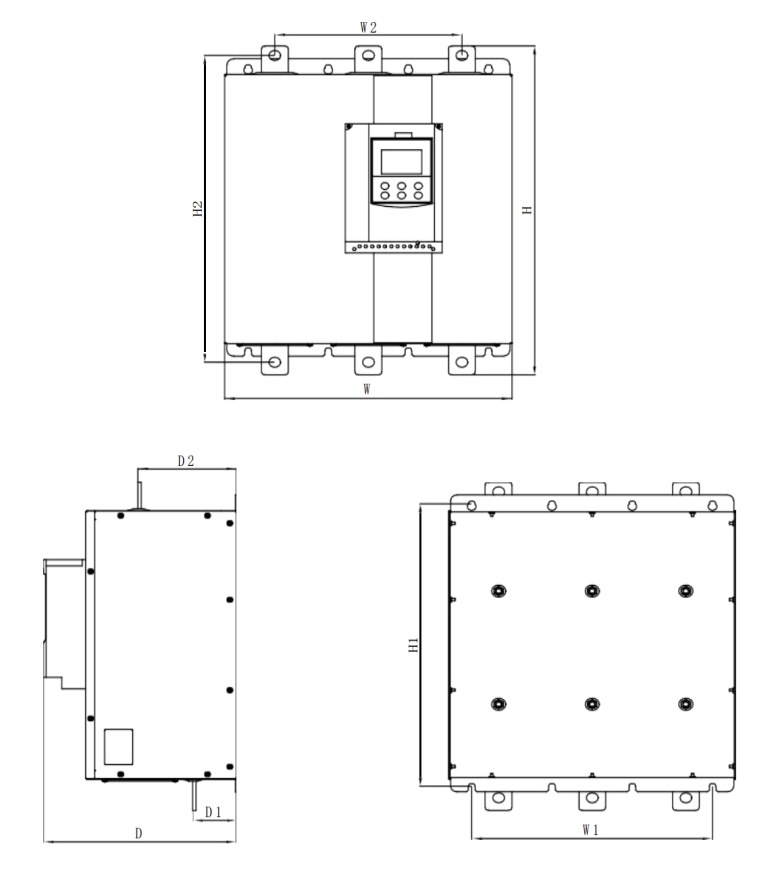

The Dimension and Installation Hole Size
| Specifications | Outline Dimension (m m) |
mounting dimension (m m) |
Main circuit bar spacing(mm) |
Hole (mm)φ |
||||||
| H | W | D | H1 | W1 | H2 | W2 | D1 | D2 | ||
| RDZR8-SZ11-T4 | 294 | 144 | 195 | 275 | 122 | 276 | 87 | / | / | φ6 |
| RDZR8-SZ15-T4 | ||||||||||
| RDZR8-SZ18.5-T4 | ||||||||||
| RDZR8-SZ22-T4 | ||||||||||
| RDZR8-SZ30-T4 | ||||||||||
| RDZR8-SZ37-T4 | ||||||||||
| RDZR8-SZ45-T4 | ||||||||||
| RDZR8-SZ55-T4 | ||||||||||
| RDZR8-SZ75-T4 | ||||||||||
| RDZR8-SZ90-T4 | 345 | 210 | 256 | 330 | 172 | 360 | 121 | 163 | 132 | φ8 |
| RDZR8-SZ110-T4 | ||||||||||
| RDZR8-SZ132-T4 | 365 | 270 | 217 | 350 | 223 | 380 | 150 | 164 | 155 | φ10 |
| RDZR8-SZ160-T4 | ||||||||||
| RDZR8-SZ185-T4 | ||||||||||
| RDZR8-SZ200-T4 | ||||||||||
| RDZR8-SZ220-T4 | 542 | 460 | 263 | 516 | 371 | 565 | 272 | 38 | 131 | |
| RDZR8-SZ250-T4 | ||||||||||
| RDZR8-SZ280-T4 | ||||||||||
| RDZR8-SZ315-T4 | ||||||||||
| RDZR8-SZ350-T4 | ||||||||||
| RDZR8-SZ400-T4 | ||||||||||
| RDZR8-SZ450-T4 | 692 | 616 | 332 | 669 | 549 | 746 | 401 | 49 | 164 | φ12 |
| RDZR8-SZ500-T4 | ||||||||||
| RDZR8-SZ630-T4 | ||||||||||
