| Item | Specifications | |
| Input | Rated Voltage | T4 Series:3 phase 380V,±15% |
| Frequency | 50/60Hz±5% | |
| Output | Voltage | 3 phase 415V±15% |
| Overload Capacity | 50/60Hz±5% | |
| Control Performance |
Control Mode | Voltage Mode,Current Mode |
| Protection Function |
Multiple protection functions |
Including over-current,over-heat,overload,input and output phase loss,starting timeout and other protections,all-round protection of the soft starter to ensure reliable operation. |
| Protection level | Protection level | Ip20 |
| Installation environment requirements |
Working storage environment temperature |
Operating temperature:-10～40℃(when the ambient temperature is 40℃~50℃, please derating the rating),no direct sunlight. Storage temperature:-20～60℃. |
| Surroundings | Humidity within 90%(no condensation),vibration less than 0.6G;No corrosive,flammable,explosive,water-absorbent dust,and no accumulation of various lint. |
|
| Altitude | 0～1000m.The rating shallbe derated by 10%forevery 1000mincrease. | |
| Control Object | Motor | Standard wiring refers to the motorwindings being connected in delta orstar,with the thyristor connected between the power supply and the motor..Inner delta connection refers to the motorwindings beingin atriangle—the thyristors are connected in series with the windings.The main advantage of the innertriangle controlis that the soft starter can be selected at a reduced rating.The current flowing through the soft starter and the motorin the innertriangle connection is 1/1.732 of the line current.The above table uses themargin to select the soft starter,which is selected according to the line current/1.5le.During the selection process,the user can further reduce the rating of the soft starteraccording to the actual situation. |

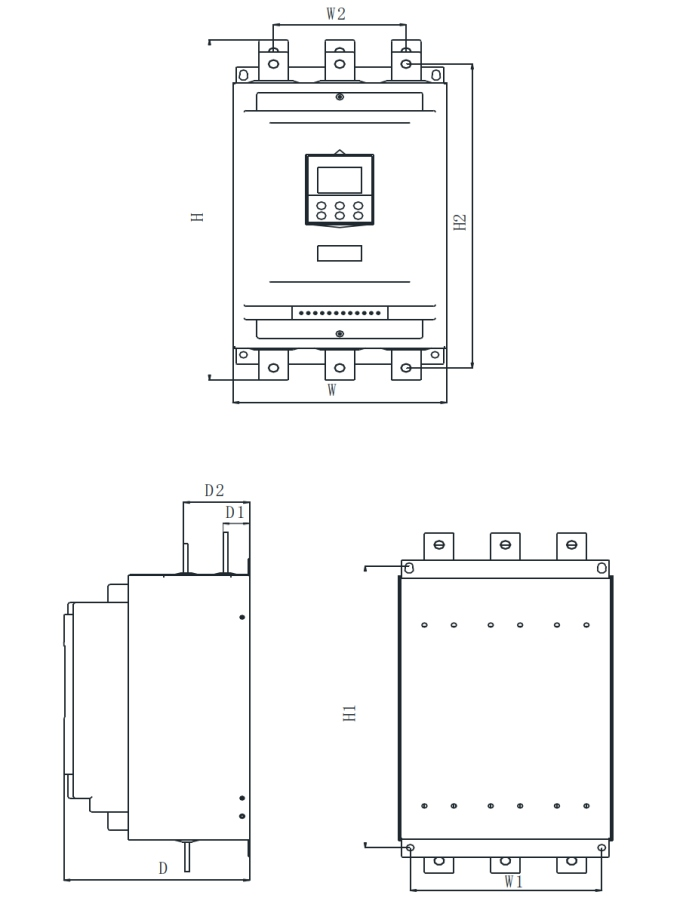

The Dimension and Installation Hole Size
| Specifications | Outline Dimension (m m) |
mounting dimension (m m) |
Main circuit bar spacing(mm) |
Hole (mm)Φ |
||||||
| H | W | D | H1 | W1 | H2 | W2 | D1 | D2 | ||
| RDZR8-SP11-T4 | 270 | 146 | 157 | 249 | 133 | / | / | / | / | Φ6 |
| RDZR8-SP15-T4 | ||||||||||
| RDZR8-SP18.5-T4 | ||||||||||
| RDZR8-SP22-T4 | ||||||||||
| RDZR8-SP30-T4 | ||||||||||
| RDZR8-SP37-T4 | ||||||||||
| RDZR8-SP45-T4 | 275 | 148 | 160 | 246 | 134 | 255 | 78 | 460 | 80 | |
| RDZR8-SP55-T4 | ||||||||||
| RDZR8-SP75-T4 | ||||||||||
| RDZR8-SP80-T4 | 402 | 261 | 194 | 379 | 197 | 490 | 160 | 35 | 87 | φ8 |
| RDZR8-SP110-T4 | ||||||||||
| RDZR8-SP132-T4 | ||||||||||
| RDZR8-SP160-T4 | ||||||||||
| RDZR8-SP185-T4 | 556 | 290 | 242 | 474 | 262 | 526 | 180 | 40 | 90 | φ10 |
| RDZR8-SP200-T4 | ||||||||||
| RDZR8-SP220-T4 | ||||||||||
| RDZR8-SP250-T4 | ||||||||||
| RDZR8-SP280-T4 | ||||||||||
| RDZR8-SP315-T4 | ||||||||||
| RDZR8-SP350-T4 | 581 | 330 | 242 | 510 | 265 | 551 | 210 | 40 | 90 | |
| RDZR8-SP400-T4 | ||||||||||
| RDZR8-SP450-T4 | 670 | 410 | 242 | 559 | 348 | 614 | 260 | 410 | 940 | |
| RDZR8-SP500-T4 | ||||||||||
| RDZR8-SP630-T4 | ||||||||||
