RM-ATS Series

The RM-ATS automatic transfer switches are available in dual power and three power models to meet diverse power supply switching demands. Featuring wide adjustable current and voltage ranges, precise detection and independent operation without auxiliary power, they effectively protect electrical circuits from abnormal voltage and current.


Download as PDF
  • RM-ATS Series
  • RM-ATS Series
  • RM-ATS Series

Product Detail

Main Technical Parameter

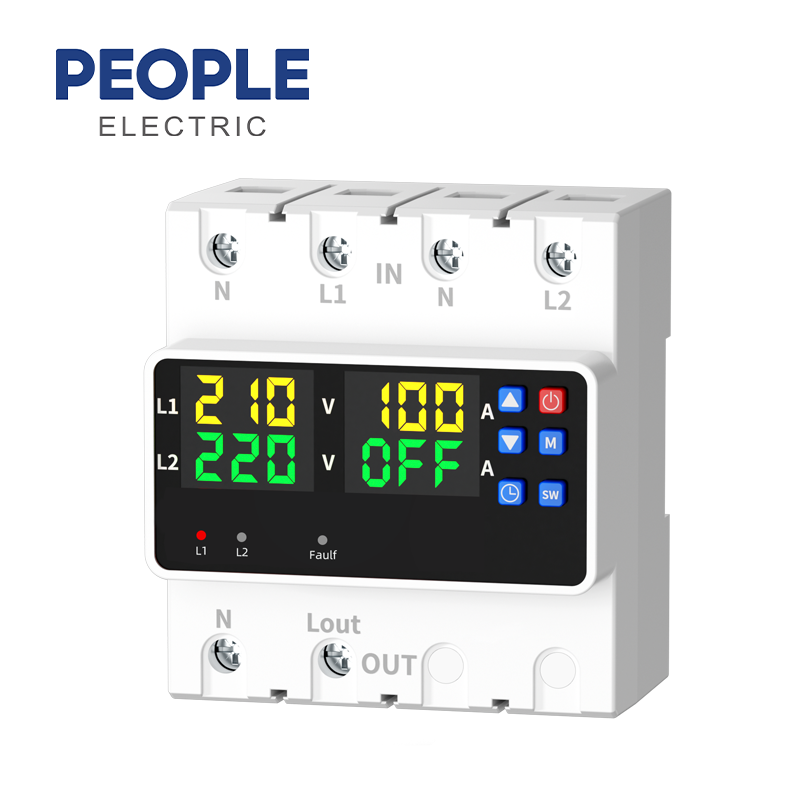

RM-ATS01

RM-ATS01

Technical data:
Rated supply voltage:AC80V~300V 50/60HZ

I setting range:1-/63/80/100A

U max settingrange:120-300V

Umin settingrange:80-210V

Accuracy Class:±(1%FS+1 digit)

Auxiliary Power:no

Function:
①Automatict ransfer

②Priority phase

③V/Aprotection

④Dual PowerTransfer Switch

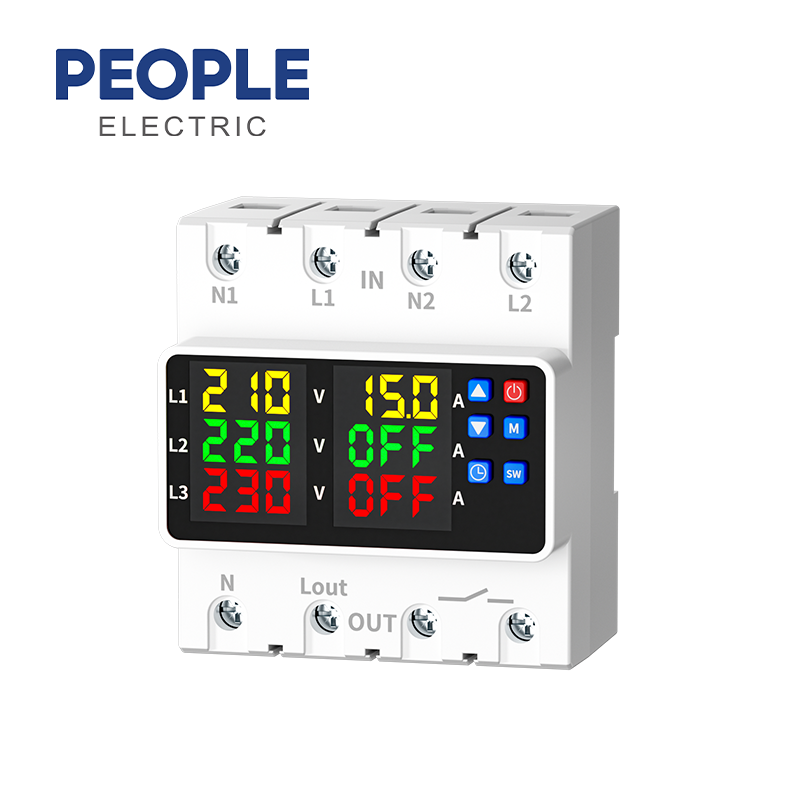

RM-ATS02

Technical data:
Rated supply voltage:AC80V~300V 50/60HZ

I setting range:1-/63/80/100A

U max settingrange:120-300V

Umin settingrange:80-210V

Accuracy Class:±(1%FS+1 digit)

Auxiliary Power:no

Function:
①Automatict ransfer

②Priority phase

③V/Aprotection

④Three PowerTransfer Switch

RM-ATS02

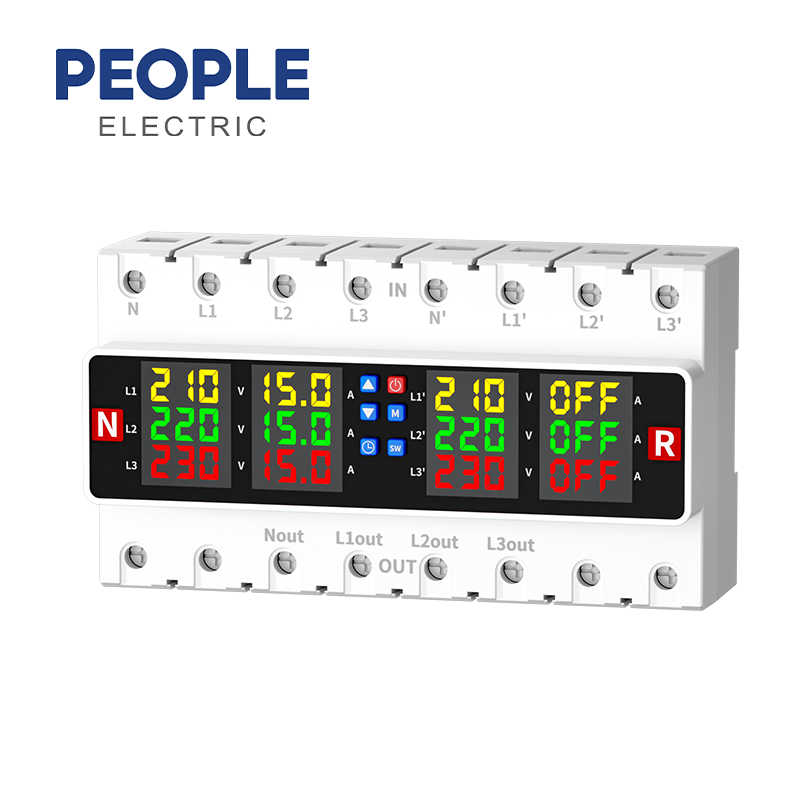

RM-ATS03

RM-ATS03

Technical data:
Rated supply voltage:AC80V~300V 50/60HZ

I setting range:1-/63/80/100A

U max settingrange:120-300V

Umin settingrange:80-210V

Accuracy Class:±(1%FS+1 digit)

Auxiliary Power:no

Function:
①Automatict ransfer

②Priority phase

③V/Aprotection

④Dual PowerTransfer Switch
