RDT16(NT0) series (Fuse)

RDT16 (NTO) series filled tube type knife contact fuse can be applied in the industrial electrical distribution device.It designed for AC 50Hz circuits,rated voltage up to 500/690V, rated current up to 1250A.It can used to protect the circuit against overload, short-circuit damage.

It conforms to IEC60269-2 standard.

Send email to us Download as PDF

Product Detail

Main Technical Parameter

Size	Rated Voltage	Rated breaking capacity	Rated current (A)		Power factor Cosφ
Size	Rated Voltage	Rated breaking capacity	Fuse	Fuse link	Power factor Cosφ
00C	500V 660V	120kA 50kA	100	6, 10, 16, 20, 25, 32, 40, 50, 63, 80, 100	0.1~0.2
00			160	6, 10, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160
0			160	16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160
1			250	80, 100, 125, 160, 200, 250
2			400	125, 160, 200, 250, 315, 400
3			630	315, 400, 500, 630
4	500V	100kA	1000	800, 1000
4a	500V	100kA	1200	1000, 1250

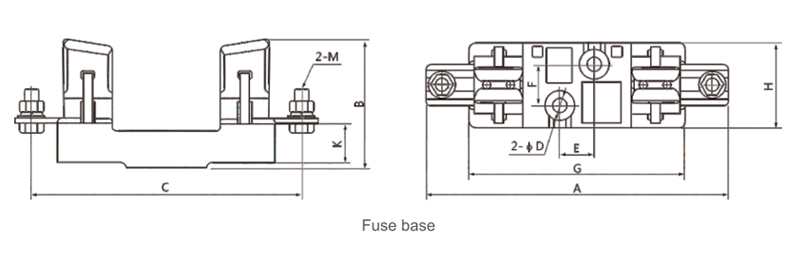

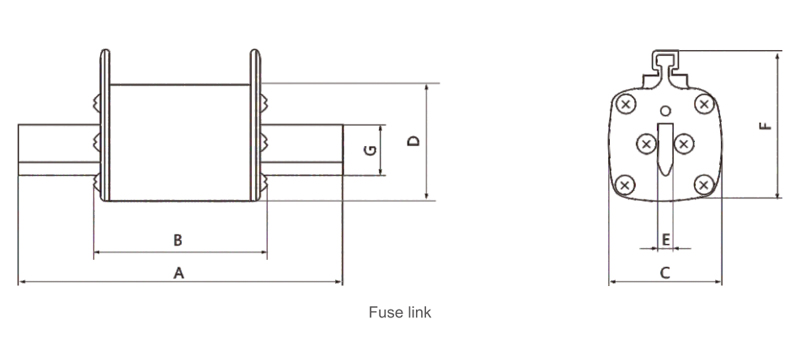

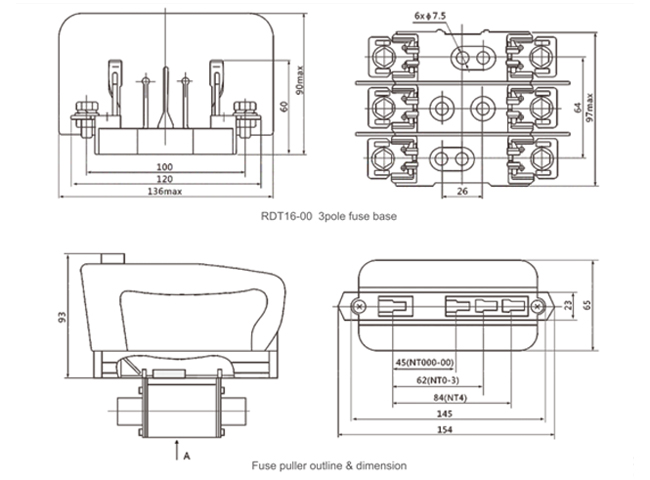

Outline & Mounting Dimension

Size	A	B	C	D	E	F	G
00C	78.5	49	21	40.5	6	42.5	15
0	78.5	49	29	45	6	56.5	15
0	126	68	29	45	6	56.5	15
1	135	68	48	49	6	62	20
2	150	68	56	59	6	70	25
3	150	68	67	68	6	85	32
4	200	90	97	100	8	113	50
4A	200	90	97	100	8	113	50
