RDR5 Series Thermal Relay 0.1~93A – RDC5 Special Relay

RDR5 series Thermal Relay(Relay) is mainly applied to circuit of AC50/60Hz, Rated operate voltage up to 690V, Rated impulse withstand voltage

Uimp(kv):8, Rated current 0.1-93(A), as long-time work or discontinuity long-time circuit and motor overload breaking, protecting.

Standard: IEC 60947-4-1 GB14048.4


Download as PDF
  • RDR5 Series Thermal Relay 0.1~93A – RDC5 Special Relay

Product Detail

Application

Parameters

Samples & Structures

Dimensions

Product Introduction

RDR5 series Thermal Relay(Relay) is mainly applied to circuit of AC50/60Hz, Rated operate voltage up to 690V, Rated impulse withstand voltage

Uimp(kv):8, Rated current 0.1-93(A), as long-time work or discontinuity long-time circuit and motor overload breaking, protecting.

Standard: IEC 60947-4-1 GB14048.4

46

Modol No Frame Size   Seting current Model No Frame Size Setting current
RDR5-25 25   0.1-0.16A
  0.13-0.25A
  0.25-0.4A
  0.4-0.63A
   0.63A-1A
    1-1.6A
   1.25-2A
    2.5-4A
    4-6A
    5.5-8A
    7-10A
    9-13A
    12-18A
    17-25A		 RDR5-36 36 23-32A
28-36A
RDR5-93 93 23-32A
30-40A
37-50A
48-65A
55-70A
63-80A
80-93A
  RDA5-25 RDR5-36 RDR5-93
Current Level 25                        36                           93
Rated Insulation Voltage Ui (V) 690 690 690
Phase-loss Protection Yes Yes Yes
Manual and Auto-Reset Yes Yes Yes
Temperature Compensation Yes Yes Yes
Tripping Inducator Yes Yes Yes
Test Buton Yes Yes Yes
Stop Button Yes Yes Yes
Instal Type Insert Type Insert Type Insert Type
Auxliary Contact 1NO+1NC 1NO+1NC 1NO+1NC
AC-15 220V  Rated current A 2.7 2.7 2.7
AC-15 380V Rated current A 1.5 1.5 1.5
DC-13 220V  Rated  current A 0.2 0.2 02
Matching Contactor RDC5-06.09,12,18,25.38 RDC5-32,38 RDC5-40,50,65,80.95
Rated impulse withstand voltageUimp 8kV
Standard G814048.4 IEC60947-4-1

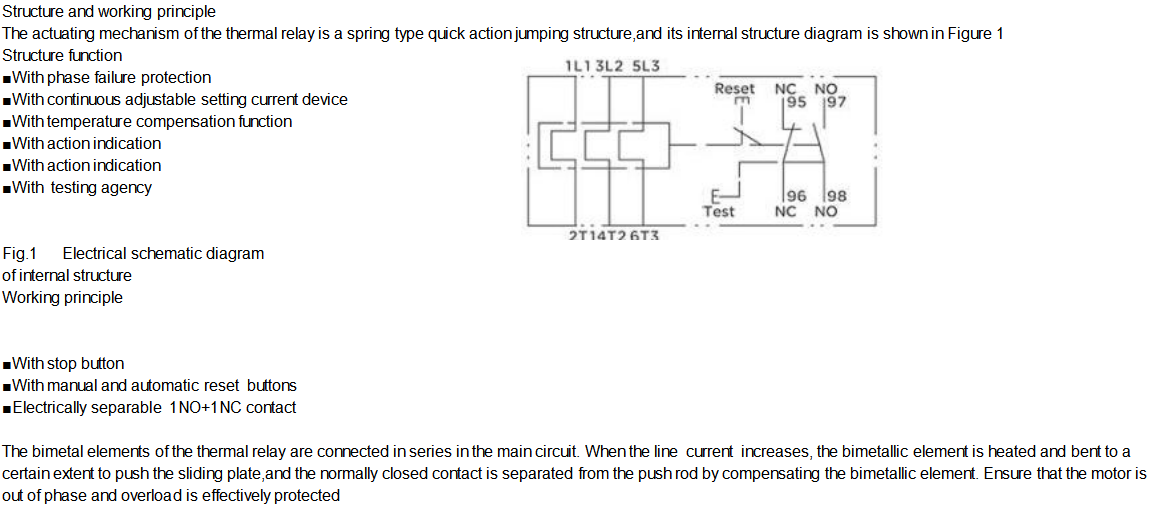

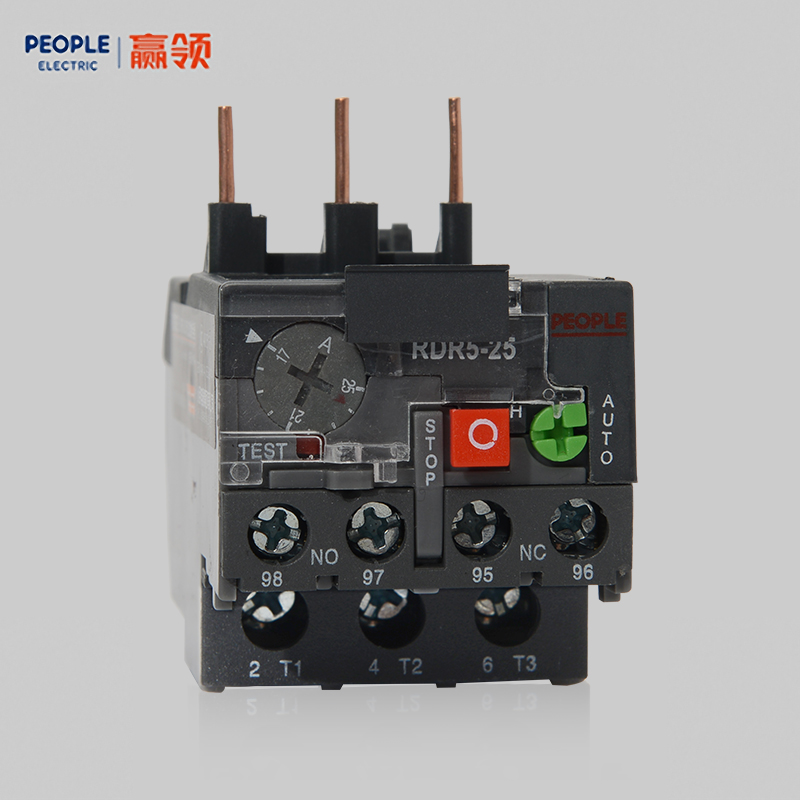

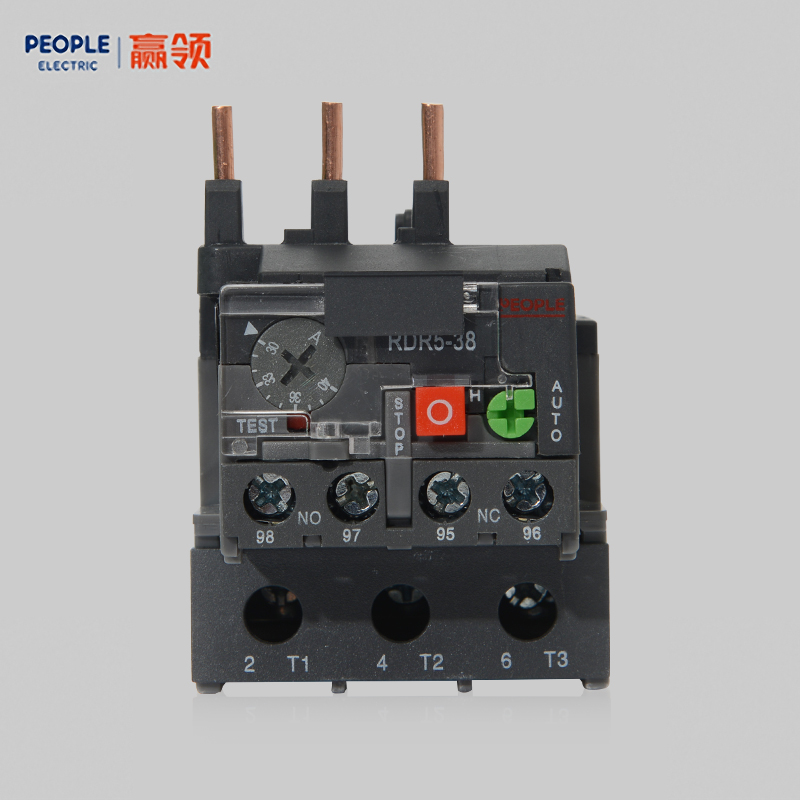

RDR5 (2) RDR5 (3)

Shape and mounting dimensions

47

46

Modol No Frame Size   Seting current Model No Frame Size Setting current
RDR5-25 25   0.1-0.16A
  0.13-0.25A
  0.25-0.4A
  0.4-0.63A
   0.63A-1A
    1-1.6A
   1.25-2A
    2.5-4A
    4-6A
    5.5-8A
    7-10A
    9-13A
    12-18A
    17-25A		 RDR5-36 36 23-32A
28-36A
RDR5-93 93 23-32A
30-40A
37-50A
48-65A
55-70A
63-80A
80-93A
  RDA5-25 RDR5-36 RDR5-93
Current Level 25                        36                           93
Rated Insulation Voltage Ui (V) 690 690 690
Phase-loss Protection Yes Yes Yes
Manual and Auto-Reset Yes Yes Yes
Temperature Compensation Yes Yes Yes
Tripping Inducator Yes Yes Yes
Test Buton Yes Yes Yes
Stop Button Yes Yes Yes
Instal Type Insert Type Insert Type Insert Type
Auxliary Contact 1NO+1NC 1NO+1NC 1NO+1NC
AC-15 220V  Rated current A 2.7 2.7 2.7
AC-15 380V Rated current A 1.5 1.5 1.5
DC-13 220V  Rated  current A 0.2 0.2 02
Matching Contactor RDC5-06.09,12,18,25.38 RDC5-32,38 RDC5-40,50,65,80.95
Rated impulse withstand voltageUimp 8kV
Standard G814048.4 IEC60947-4-1



RDR5 (2) RDR5 (3)

Shape and mounting dimensions

47
