| RDH5R | 160A | 2 | J |
| Product name | Rated current | Extremely an anagram | Handheld assistance |
| Isolation switch fuse group | 160A 250A 400A 630A |
2: The diode 3: Three poles 4: Quadrupole |
No: In-cabinet operation J: Off-site operation |
1.The switch is made of glass fiber reinforced unsaturated polyester molding plastic and manual handle, which has high dielectric performance, protection ability and reliable operation safety.
2.The switch adopts spring energy storage, instantaneous release of the acceleration closing mechanism and contact structure which connects and disconnects multiple parallel breaks at the same time, which improves the electrical performance and mechanical performance of the product.
3.Switches 160A,250A and 400A are designed in a modular design, while 630A is designed in an integral structure. It can ensure reliable overcurrent and short circuit safety protection during load operation and switching.
4.Switches are divided into 2 poles, 3 poles and 4 poles (3 poles + can open and close the neutral pole).
5.The handle can be directly installed on the switch to operate (called cabinet operation),or can be operated outside the distribution cabinet through an extended shaft (called cabinet operation).
6.Auxiliary contacts and back wiring can be provided as required.
Main technical parameters of RDH5R series isolating switch fuse group (See Table l)
| Product model(Table 1) | RDH5R-160 | RDH5R-250 | RDH5R-400 | RDH5R-630 |
| Nominal insulation voltage Ui | 660V | 660V | 660V | 660V |
| Rated frequency | 50Hz | 50Hz | 50Hz | 50HZ |
| Use classes | AC-23B | AC-23B | AC-23B | AC-23B |
| Rated operational voltage Ue | 380V | 380V | 380V | 380V |
| Rated operational current le | 160A | 250A | 400A | 630A |
| Rated on-load capacity(peak) | 1600A | 2500A | 4000A | 6300A |
| Rated breaking capacity(peak) | 1280A | 2000A | 3200A | 5040A |
| Rated limit short circuit current (peak) | 50KA | 50KA | 50KA | 50KA |
| Mechanical life(times) | 3000 | 3000 | 2000 | 1000 |
| Service life(times) | 1000 | 1000 | 800 | 500 |
| Fuse element used | RDT16-00 | RDT16-1 | RDT16-2 | RDT16-3 |
| Operating torque(N•m) | 10 | 15 | 20 | 30 |
| Weight(Kg) excluding handle | 1.9 | 3.3 | 4.8 | 14.6 |
Note: Rated current of auxiliary contacts(AC-15): 3A

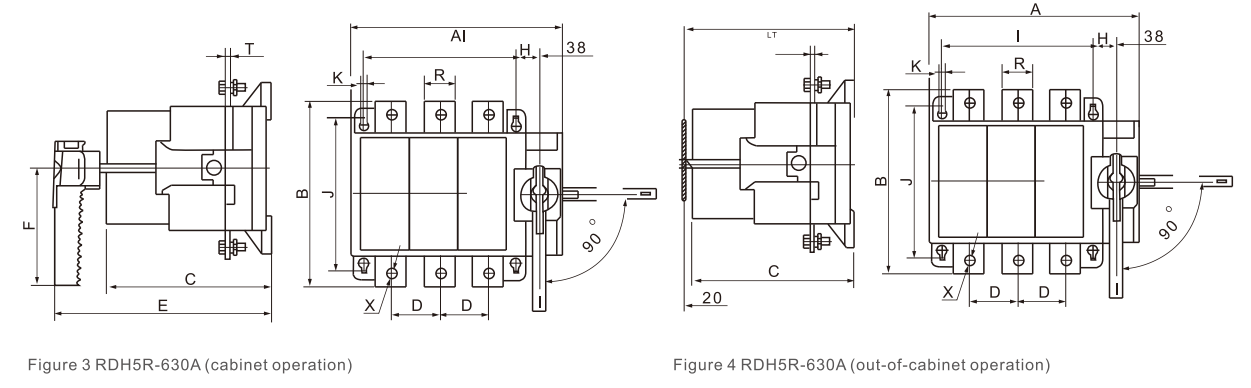

The shape and installation dimensions of RDH5R-160-630 are shown in Table 2
| Product model | Qutline dimension | Installation size | Term inator size | |||||||||||
| A | B | C | D | E | F | H | I | J | K | L | R | T | X | |
| RDH5R-160/3 | 163 | 162 | 128 | 37 | 190 | 115 | 68 | 37 | 125 | 6 | 220-300 | 20 | 2.5 | M8 |
| RDH5R-160/4 | 200 | 162 | 128 | 37 | 190 | 115 | 68 | 74 | 125 | 6 | 220-300 | 20 | 2.5 | M8 |
| RDH5R-250/3 | 235 | 196 | 148 | 60 | 200 | 145 | 92 | 60 | 140 | 6 | 220-300 | 34 | 2.5 | M10 |
| RDH5R-250/4 | 295 | 196 | 148 | 60 | 200 | 145 | 92 | 120 | 140 | 6 | 220-300 | 34 | 2.5 | M10 |
| RDH5R-400/3 | 278 | 205 | 150 | 67 | 200 | 145 | 122 | 67 | 150 | 6 | 220-300 | 50 | 2.5 | M10 |
| RDH5R-400/4 | 345 | 205 | 150 | 67 | 200 | 145 | 122 | 134 | 150 | 6 | 220-300 | 50 | 2.5 | M10 |
| RDH5R-630/3 | 346 | 300 | 270 | 80 | 350 | 190 | 38 | 250 | 250 | 9 | 300-380 | 50 | 7 | M12 |
| RDH5R-630/4 | 426 | 300 | 270 | 80 | 350 | 190 | 38 | 330 | 250 | 9 | 300-380 | 50 | 7 | M12 |
●The switch should be installed horizontally, and the switch should be in the open position before installation.
●The switch should be equipped with NT type fuse, whose performance should meet the requirements of GB13539.1 and 1GB13539.2,and the fuse should have the corresponding rated current and short circuit braking capacity,when the switch is used in the motor circuit, the rated current of the fuse is allowed to be greater than the agreed heating current of the switch.
●The "L" in installation dimensions refers to the factory-set stand and installation depth, representing the distance from the mounting plate (or foot) to the panel surface. During installation, adjust the square shaft depth within the specified L-range based on the switch-to-cabinet-door distance. If the distance is shorter than the square shaft accordingly. After adjustment, securely fasten the bolts. This procedure applies when required by users.
For installation depths other than "L, ", please specify at the time of ordering.

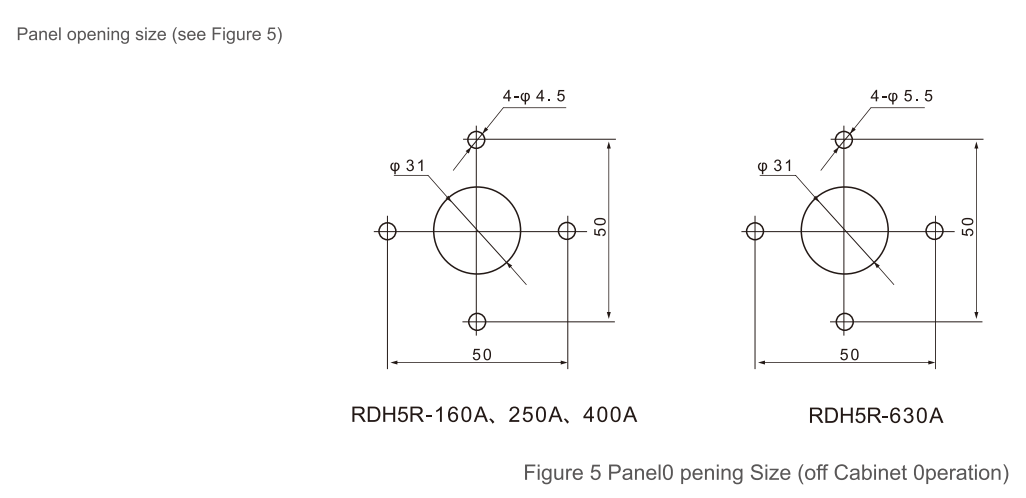

●Detemine the installation center position of the handle according to the shape and installation size of the switch, open an opening on the cabinet door panel according to the panel opening size (see Figure 5), and then fix the handle on the cabinet door panel.
●Turning the handle clockwise closes the switch, while counter dock wise rotation disconnects it. Before each operation, check the switch's status: when in the open position (0),.clockwise rotation is required to close the switch: when in the closed position(I), counterclockwise rotation in necessary to disengage it.
●The RDH5R series switch must be used with a fuse,which can be provided by the user, but please use a good fuse to prevent excessive temperature rise.
●The price of the swich provided by our company does not include the fuse. lf the user asks for it when ordering, our company can provide the fuse as a set but generally it is not installed on the switch body.
●Please indicate the switch model and specification, number of poles and rated current of fuse when ordering.
