1.This product features an LED display that shows real-time grid voltage and current values.
2.Protection parameters including overvoltage, undervoltage, overcurrent, and time delay can be configured locally. The device also includes a configuration menu and functions such as one-touch restoration to factory settings. When the product is in the "No Output (OFF)" state, press and hold the ON/OFF button for 5 seconds to restore factory settings.
3.The product also has rapid disconnection capability. When the overvoltage level reaches 320V or the undervoltage level drops to 110V, the device automatically enters rapid disconnection mode, cutting off the load within 0.1 seconds.
| No. | Option code | Option | Max | Min | Default | Step | Unit | Description |
| 1 | P-1 | Power-on delay | 999 | 1 | 5 | 1/10 | S | |
| 2 | P-2 | Recovery delay | 999 | 1 | 30 | 1/10 | S | |
| 3 | P-3 | Overvoltage | 300 | 230 | 270 | 1/10 | V | OFF: Close over voltage |
| 4 | P-4 | Undervoltage | 210 | 140 | 170 | 1/10 | V | OFF: Close under voltage |
| 5 | P-5 | Voltage trip time | 10.0 | 0.1 | 0.5 | 0.1/1.0 | S | |
| 6 | P-6 | Overcurrent | 16.0 | 0.2 | 10.0 | 0.1 | A | OFF :Close over current |
| 7 | P-7 | Current trip time | 10.0 | 0.1 | 5 | 0.1/1.0 | S | |
| 8 | P-8 | Continuous overcurrent counting | 20 | 0 | OFF | 1 | Times | OFF: Turn off counting |
| 9 | P-9 | Automatic reset | on | off | on | on: Self recovery | ||
| OFF: Manual recovery | ||||||||
| 10 | P-10 | Setup lock password | 999 | 000 | 112 | 1/10 | When this value is not 112, you can only view the parameter and cannot set it |

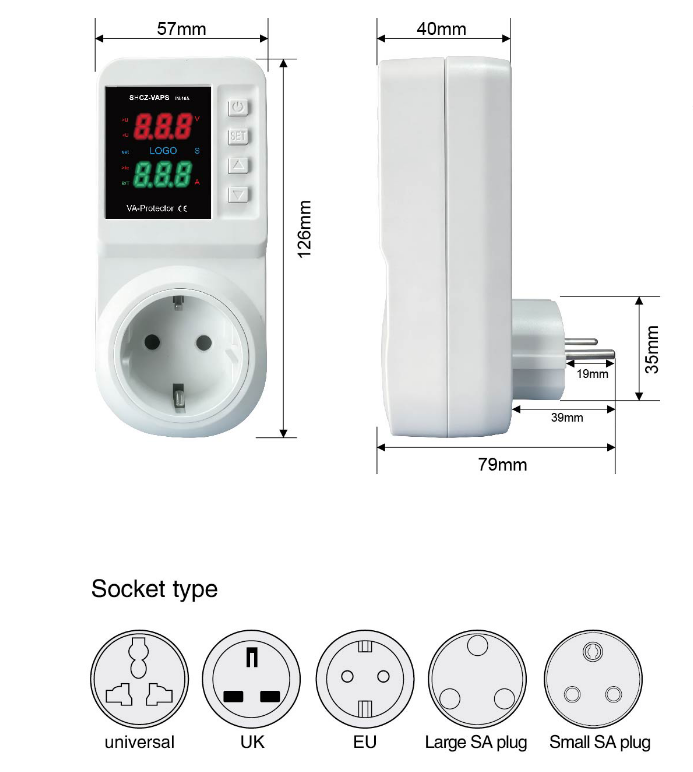

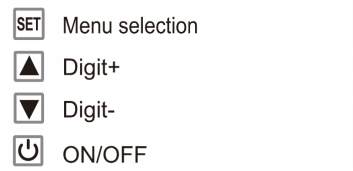

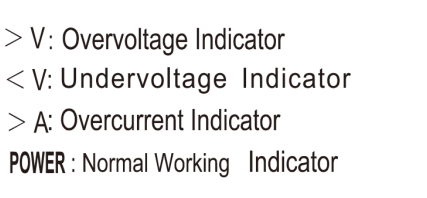

⚫ Front-face panel
| Parameter | Specification |
| Rated Voltage | 220V |
| Rated Current | 10A/16A |
| Rated Frequency | 50/60 Hz |
| Maximum phase voltage | 350V |
| Over/Under voltage recovery | hysteresis 5V |
| Power Consumption | <2W |
| Ambient Temperature | -25℃ to 65℃ |
| Humidity | <95% |
| Installation Method | panel-mount/embedded |
| Overvoltage Setting | 230V-300V, adjustable in 1V steps |
| Undervoltage Setting | 140V-210V, adjustable in 1V steps |
| Overcurrent Setting | 0.2A-16A, adjustable in 0.1A steps |
| Delay Setting | 1s-999s, adjustable in 1s steps |
| Display Accuracy | 0.5 class |
| Min. Current | 0.02A |
