1.Support three-phase 100% unbalanced load
2.PACK level liquid cooled runner design for heat dissipation

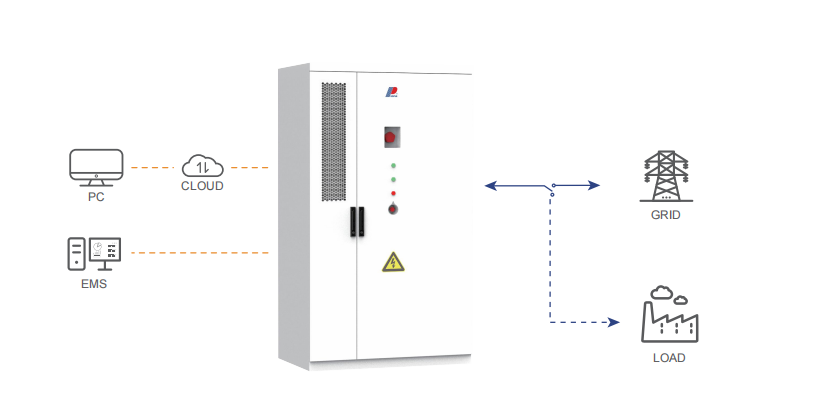

3.Support remote upgrade & cloud operation and maintenance
4.PACK + cabinet level fire control
5.Intelligent dehumidifcation to eliminateup condensation risk
6.Single cabinet capacity up to 418K
7.Flexible expansion, easy to install and maintain
Battery
| Model | RES-200W100 | RES-215W100 |
| Battery Type | LiFePO4 | |
| Rated Charge/Discharge Performance | 0.5C | |
| Rated Voltage (V) | 1331.2 | |
| Operating Voltage (V) | 1164.8~1497.6 | |
| Cell Rated Capacity (Ah) | 280 | 314 |
| Rated Capacity (kWh) | 372.73 | 417.99 |
| Composition | 1P416S | 1P416S |
AC Output (On Grid)
| Model | RES-200W100 | RES-215W100 |
| Rated Output Power (kW) | 186 | 130 |
| Max.Output Current (A) | 171 | 206 |
| Rated Grid Voltage (V) | 3/PE,690 | |
| Rated Grid Frequency (Hz) | 50/60 | |
| Power Factor | 1(0.9 Leading~0.9 Lagging) | |
| THDi | <3%(@Rated Power) | |
General Parameters
| Model | RES-200W100 | RES-215W100 |
| Ingress Protection | IP54 | |
| Cooling Method | Battery Compartment(Liquid Cooled)、Electrical Cabin(Air Cooled) | |
| Battery Cooling Method | Liquid cooling system | |
| Fire Protection System | Aerosol/Perfluorohexanone | |
| Relative Humidity | 0~95%,Non-condensing | |
| Temp.Range (℃) | -20~+50 | |
| Altitude (m) | 4000(>2000 Derating) | |
| Communication | RS485、CAN | |
| Communication Protocol | Modbus、IEC104 | |
| Weight (kg) | ≈3600 | ≈3750 |
| Dimension (W×D×H) (mm) | 1325*1375*2300 | 1325*1375*2300 |
| Delivery Method | Integral transportation | |
