20FT CONTAINER ENERGY STORAGE SYSTEM

20FT All-in-One Containerized Energy Storage System, including DC side RBS series battery units and AC side REG conversion modules, which is applicable for photovoltaic, wind power, commercial & industrial use, microgrid and grid-side energy storage projects.

 It adopts LiFePO4 batteries, liquid cooling plus aerosol fire safety design with separated dual compartments, features IP54/IP55 outdoor protection and complete international certifications, enabling convenient transportation and fast field installation.

  • 20FT CONTAINER ENERGY STORAGE SYSTEM

Product Detail

Features

● DC: RBS-4180/5016-HV-G20 | AC: REG-2500K/3450K/5000K-UD-35

● Suitable for PV, wind power, C&I, PV+ESS+charging microgrid and grid-side ESS

● Battery: LiFePO4, 0.5C rate, 4180/5016 kWh, 1331.2V

● AC Output: 2500/3450/5000 kW, 6–35kV, 50/60Hz

● Cooling & Safety: Liquid cooling, aerosol fire suppression

● Protection: IP54/IP55, operating temp: -20℃~+50℃

● Environment: 0~95% non-condensing, up to 4000m altitude

● Communication: CAN/RS485/Ethernet, Modbus/IEC104/IEC61850

● Structure: Battery & electrical compartments separated; all-in-one for easy transport & deployment

● Certifications: IEC 62619, IEC 62477, UL 1973, UL 9540A, UN38.3, etc.

Fan Cooling System

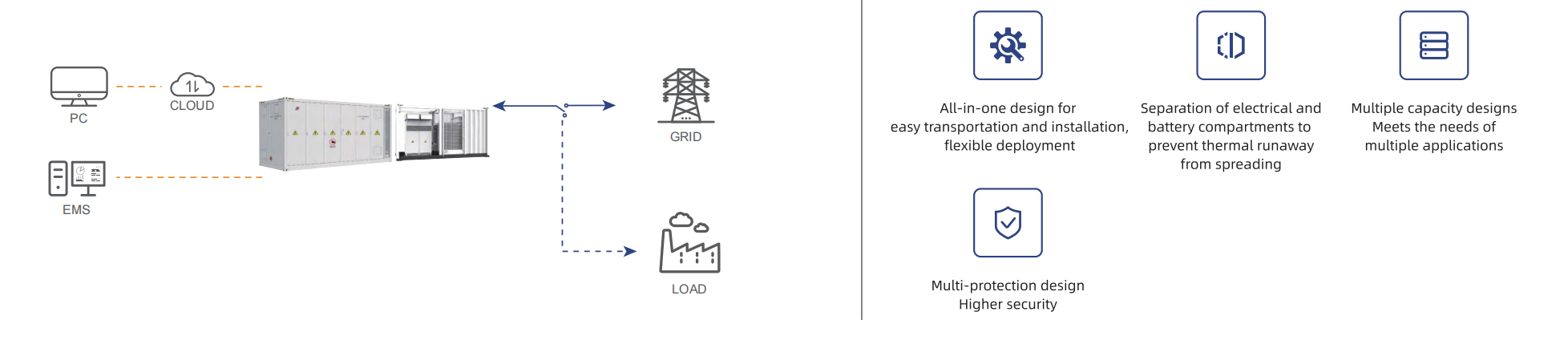

DC Side_RBS-4180/5016-HV-G20 AC Side_REG-2500K/3450K/5000K-UD-35
Model RES-372L186 RES-418L209
Battery
Rated Charge/Discharge Performance 0.5C
Battery Capacity [Ah] 314
Battery Rated Voltage [V] 1331.2
Operating Voltage Range [V] 1164.8~1497.6
Rated Capacity [kWh] 4179.97 5015.96
System Battery Configuration (1P416S)*10P (1P416S)*12P
General Parameters
Ingress Protection IP54/IP55
Cooling Method Liquid Cooling
Fire Fighting System Aerosol
Relative Humidity 0~95%,Non-condensing
Operating Temperature [℃] -20~+50
Altitude [m] 4000(>2000 Derating)
Communication CAN/RS485/Ethernet
Communication Protocol Modbus/IEC104/IEC61850
Weight [T] ≈37 ≈42
Dimension (W*D*H)[mm] 6058*2438*2896
Product Certifications IEC 62619,IEC 62477,IEC 63056,IEC 61000,UL1973,UL9540A,NFPA 855
Certificates UN3536、UN38.3
Safe Transportation
Model REG-2500K-UD-35 REG-3450K-UD-35 REG-5000K-UD-35
AC Side Parameters
Rated Output Power [kW] 2500 3450 5000
Rated Output Voltage [kV] 6~35
Rated Output Frequency[Hz] 50/60
Power Factor 1(0.9 Leading-0.9 Lagging)
Transformer Parameters
Rated Capacity [kVA] 2500 3450 5000
Voltage Transformation Ratio [kV/kV] 0.69/6~35
Connection Group DY11
Transformer Type Dry Type/Oil-immersed
General Parameters
Ingress Protection IP54/IP55
Cooling Method Forced Air Cooling
Relative Humidity 0~95%,Non-condensing
Operating Temperature [℃] -20~+50
Altitude [m] 4000(>2000 Derating)
Communication CAN/RS485/Ethernet
Communication Protocol Modbus/IEC104/IEC61850
Weight [T] ≈16 ≈17 ≈22.5
Dimension(W*D*H)[mm] 6058*2438*2896 12192*2438*2896
*Grid side voltage 6-35kV optional.The size and parameters of customized models are subject to change,and the latest information
of our company shall prevail without further notice.
