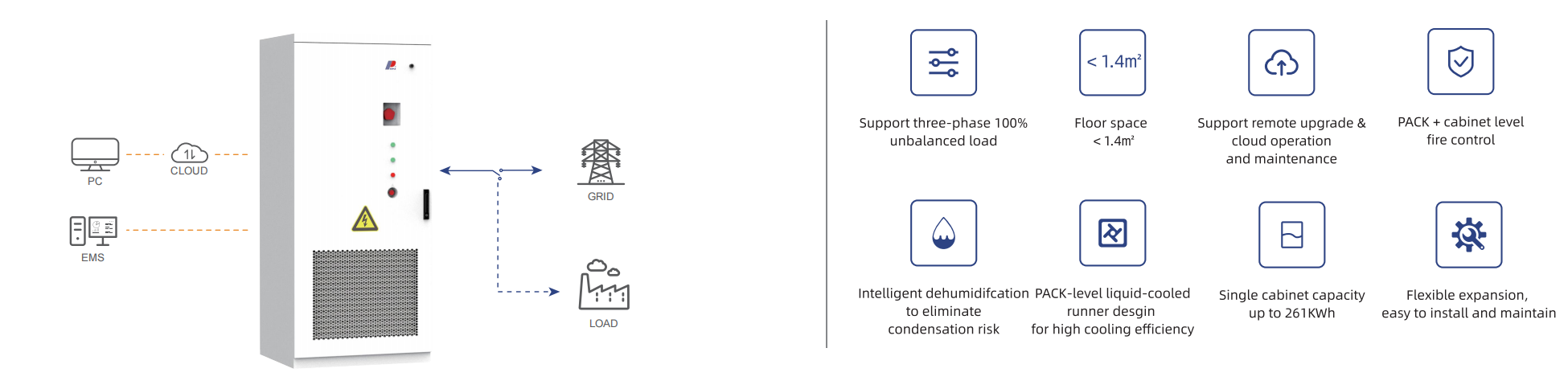

● All-in-one outdoor energy storage system for PV, wind, C&I, PV+ESS+charging microgrid and grid-side ESS
● Battery: LiFePO4, 0.5C charge/discharge, 314Ah cell
● Capacity: 241.15kWh / 261.248kWh
● Voltage: 768V / 832V
● AC Output: 120kW / 130kW, 3/N/PE 230/400V, 50/60Hz
● Load: 100% three-phase unbalanced load supported
● Cooling: Liquid cooling
● Protection: IP54, aerosol fire suppression
● Environment: -20℃~+50℃, 0~95% non-condensing, up to 4000m altitude
● Communication: RS485, Ethernet, Modbus
● Weight: ≈2.5t / ≈2.7t
● Dimensions: 1000×1330×2350mm / 1000×1370×2350mm
● Certifications: EN62477-1, EN IEC 61000, EN 50549 series
| Model | RES-200W100 | RES-215W100 |
| Battery Parameters | ||
| Charge/Discharge Rate | 0.5C | |
| Rated Cell Capacity [Ah] | 314 | |
| Rated Voltage [V] | 768 | 832 |
| Operating Voltage Range [V] | 672~876 | 728~949 |
| Rated Capacity [kWh] | 241.15 | 261.248 |
| Configuration | 1P240S | 1P260S |
| Rated Output Power [kW] | 120 | 130 |
| Max.Output Current [A] | 191 | 206 |
| Rated Grid Voltage [V] | 3/N/PE,230/400 | |
| DC Component | <0.5%In | |
| Rated Grid Frequency [Hz] | 50/60 | |
| Power Factor | 1(0.9 leading to 0.9 lagging) | |
| THDi | <3%(@rated power) | |
| Rated Output Power [kW] | 120 | 130 |
| Max.Output Current [A] | 191 | 206 |
| Rated Grid Voltage [V] | 3/N/PE,230/400 | |
| Rated Grid Frequency [Hz] | 50/60 | |
| Unbalanced Load Capabilit | 100% | |
| IP Rating | IP54 | |
| Cooling Method | Air Cooling | |
| Fire Protection System | Aerosol | |
| Relative Humidity | 0~95%,Non-condensing | |
| Temp.Range [℃] | -20~+50 | |
| Max Altitude [m] | 4000(>2000 Derating required) | |
| Communication Method | RS485,Ethernet | |
| Communication Protocol | Modbus | |
| Weight [T] | ≈2.5 | ≈2.7 |
| Dimensions(W*D*H)[mm] | 1000*1330*2350 | 1000*1370*2350 |
| *Cetifications(LES-241L120) | EN62477-1:2012;EN IEC 61000;EN 50549-1/10;NC RfG,PTPiREE,VDE,CEI0-21,C10/11, NTS,EIFS,TOR,G99,NF EN 50549-1:2019,NFEN 50549-10:2022,EN 50549-1:2019+A1:2023, |
|
