JH1 Series Screw Type Combination Terminal Block

JH1 Series Screw Type Combination Terminal Block has low screw connection cost and simple operation. When the screw turns, push the washer close to the wire until a reliable connection is made. Not easy to fall off after linking, suitable for harsh working environment.


Download as PDF
  • JH1 Series Screw Type Combination Terminal Block

Product Detail

Application

Parameters

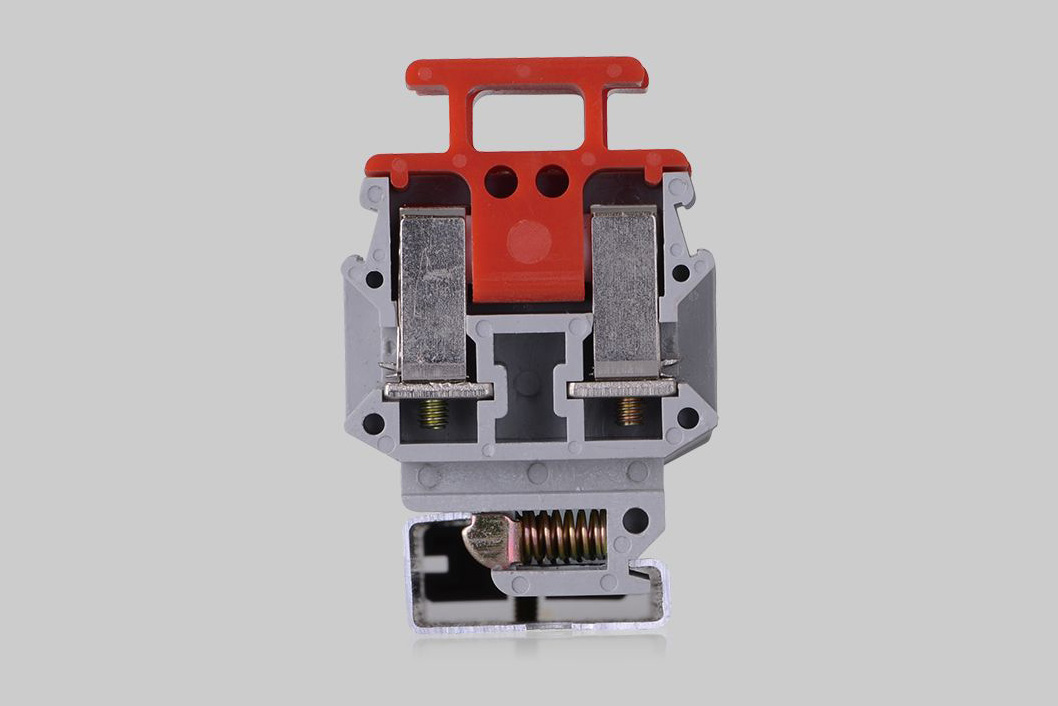

Samples & Structures

Dimensions

Product Introduction

JH (JH1) series screw type combined terminal blocks are made of thermosetting plastic PBT,conductors use the screw press board connecting. The wire size is 0.75-35mm2. Rated voltage AC 50/60Hz, 500V or DC 400V. Used for electrical connection. G type rail mounting.

Features

1. High contact pressure.

2. The connection is reliable.

3. It can be used in harsh environment. It can be used normally no matter in corrosive atmospheric environment or in harsh climatic conditions.

It is mainly used in security, lighting, power supply, elevator, electrical, power and other industries, and can be used in power distribution cabinets, instruments and meters and other environments

Code meaning

Terminal basic code meaning (domestic market)
  L S SL T TL RD K H LX JD B G
Basic Connect Test Test &Connect Special Special connect Fuse Switch Weld Neutral Grounding Mark Isolating board

Main technical data

Type Dimension mm Wire size
mm²		 Rated current
A		 Bolt Terminal type Remark
B H D
JH1-1.5 44.5 48.5 7.5 0.75-1-1.5 17.5 M3  TU1-1/3        TO1-1/3
    TU1-1.5/3    TO1-1.5/3		 JH1-2.5RD fuse terminal blocks equipped with ÿ8.5×31.5 base. Cylindrical tubular filler fuse model 9G1, its breaking capacity not less than 50KA, rated currents are 2, 4, 6, 8, 10, 12, 16,
20A total seven levels.
JH1-1.5L
JH1-1.5B 42 45 10
JH1-1.5G 1.5
JH1-2.5 46.5 51.5 9.5 1-1.5-2.5 24 M4 TU1-1/3        TO1-1/3
    TU1-1.5/3    TO1-1.5/3
JH1-2.5L
JH1-2.5RD 49 70.5 16     TU1-2.5/4    TO1-2.5/4
JH1-2.5S 59 68.5 12 1-1.5-2.5 24 M4     TU1-2.5/4    TO1-2.5/4
    JH1-2.5S Bottom type can use TU1-4/4  TO1-4/4
JH1-2.5SL
JH1-2.5B 44 48 10
JH1-2.5G 1.5
JH1-2.5SG 54 62 2
JH1-2.5RDG 44 57.5 1.5
JH1-6 52.5 54 13.5 2.5-4-6 41 M5     TU1-2.5/5       TO1-2.5/5
 TU1-4/5           TO1-4/5
  TU1-6/5           TO1-6/5
JH1-6L
JH1-6B 50 50.5 10          TO1-10/6       TO1-16/6
TO1-25-6       TO1-6/5
JH1-6G 1.5
JH1-25 60.5 63 20 10-16-25 101 M6
JH1-25L
JH1-25B 58 58.5 10
JH1-25G 2
JH1-35 66.5 59.5 26 16-25-35 125 M8            TO1-16/8    TO1-25/8-35/8

JH1 (2)
