| S (D) BW | F | 50 | kVA |
| Product model | Derived code | Rated capacity | Capacity unit |
| S: three phase D: single phase B: compensation type W: voltage regulator |
F: split mode C: LCD type S: bypass output |
50 100 ... 1800 |
kVA |
The voltage regulator should be used indoors, and the normal conditions of use are as follows.
● Ambient temperature:-5°C~+ 40°C
● Altitude: altitude not exceeding 1000m
● Relative humidity: ≤90%(20°C)
● Installation environment: the installation site shall be free of gases, vapours, chemical deposits,dust, dirt and other explosive and erosive media that seriously affect the insulation of the voltage regulator
● Where the special conditions for use that do not meet the above provisions shall be determined by the user unit in consultation with our company
With boot delay function
When the voltage stabilizing state is running, press the voltage stabilizing button and adjust the voltage regulator to the steady voltage rating value (for a few seconds) before there is an output voltage supply device.
Output overvoltage protection and alarm function
In the voltage stabilizing state, when the input voltage far exceeds the input voltage range(304V~456V) or other reasons cause the output voltage of the voltage regulator to overvoltage(426V ±7V), the voltage regulator cuts off the power supply and alarms, and automatically resumes its work when the output voltage is reduced.Has the function of phase sequence protection, when the input three-phase line is wrong or broken, the protective relay can act and cut off the power supply without output.(the user needs this feature must be proposed in advance).
Product specifications and main technical indicators are shown in Table 1
| Type(Table 1) | Rated capacity kVA | Output current A | Phase number | Input voltage V | Output voltage V | Voltage stabilization accuracy | Overvoltage protection V | Withstand voltage | Insulation resistance MΩ | Efficiency | Working frequency Hz |
| SBW-20 | 20 | 31 | three phase | 304~456 | 380 | ±3% | 426±7 | 2000V 1min No breakdown | ≥5 | ≥97% | 50~60 |
| SBW-30 | 30 | 46 | |||||||||
| SBW-50 | 50 | 76 | |||||||||
| SBW-100 | 100 | 152 | |||||||||
| SBW-180 | 180 | 273 | |||||||||
| SBW-225 | 225 | 342 | |||||||||
| SBW-320 | 320 | 487 | |||||||||
| SBW-400 | 400 | 606 | |||||||||
| SBW-600 | 600 | 910 | |||||||||
| SBW-800 | 800 | 1212 | |||||||||
| SBW-1000 | 1000 | 1515 | |||||||||
| SBW-1200 | 1200 | 1818 | |||||||||
| SBW-1800 | 1800 | 2700 | |||||||||
| DBW-20 | 20 | 91 | single phase | 176~264 | 220 | ±3% | 246±4 | 2000V 1min No breakdown | |||
| DBW-30 | 30 | 137 | |||||||||
| DBW-50 | 50 | 228 | |||||||||
| DBW-100 | 100 | 455 |

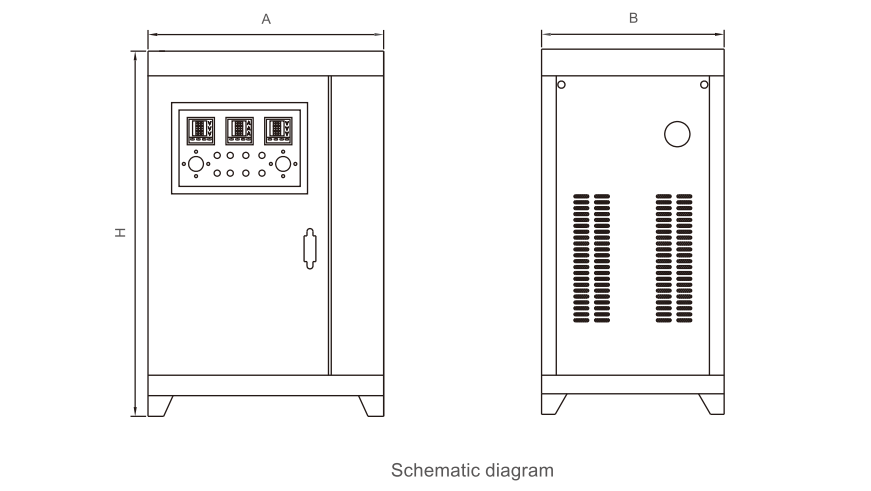

Outline dimension( See table 2)
| Model(Table 2) | Outline dimension (A×B×H)mm | Number of enclosures |
| SBW-20~50kVA | 800×570×1270 | 1 |
| SBW-75~100kVA | 850×620×1370 | 1 |
| SBW-150~200kVA | 1000×700×1500 | 1 |
| SBW-250kVA | 1050×800×1600 | 1 |
| SBW-300kVA | 1100×850×1800 | 1 |
| SBW-400kVA | 1200×950×2050 | 1 |
| SBW-500~600kVA | 1100×1300×2100 | 1 |
| SBW-800~1200kVA | 1000×1230×2050 | 3 |
| SBW-1800kVA | 1200×900×1900 | 4 |
| DBW-20~50kVA | 800×570×1270 | 1 |
| DBW-100kVA | 850×620×1370 | 1 |
● When ordering, the product model, capacity, rated output voltage, input voltage range, voltage stablization accuracy, powerinput (output) distance and other operating conditions should be described.
● If you have any special requirements, please consult with our technical department.
