| Table 1 | CJX2-K-06 | CJX2-K-08 | ||
| Rated working current(A) | 380V | 6 | 9 | |
| AC-3/AC-4 | 660/690V | 3.8 | 5 | |
| Rated insulation voltage(V) | 690 | 690 | ||
| Conventional heating current Ith (A) | 20 | 20 | ||
| Controllable three-phase cage | 220V | 1.5 | 2.2 | |
| Motor power(kW) | 380V | 2.2 | 4 | |
| AC-3 | 660V/690V | 3 | 4 | |
| Operating frequency(h⁻¹) | Electrical life | AC-3 | 12000 | 12000 |
| AC-4 | 300 | 300 | ||
| Mechanical life | 3600 | 3600 | ||
| Electrical life (10000times) | AC-3 | 120 | 120 | |
| AC-4 | 2.5 | 2.5 | ||
| Mechanical life (10000times) | 1000 | 1000 | ||
| Fuse Specification | RDT16-16 | RDT16-20 | ||
| Coil power(VA) | Pull in | 30 | 30 | |
| Hold | 4.5 | 4.5 | ||
1.The utility model has the advantages of advanced structure, small size, light weight, low power consumption, long operation life, safety and reliability, high technical performance etc..
2.It can be assembled by block type, equipped with auxiliary contact group, thermal relay and other accessories,combined into a variety of derivative products.
3.The contactor not only can be installed by screw , but also can be installed with 35mm standard rail.
4.The contact direction of the iron core and the contact of the contactor is parallel to the mounting surface.
Main technical parameter of F4 (LA1-D) type auxiliary contacts to see table 2
| Model(Table 2) | Group of contact | Rated insulation voltage V | Conventional heating current A | Electrical life (10⁶ times) | Mechanical life (10⁴ times) | Max. operating frequency (t/s) | Connectable min. load | Sketch picture |

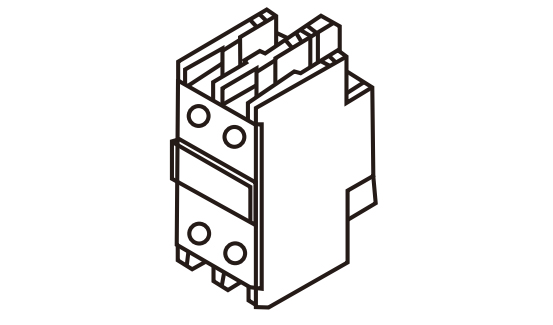

| F4-11 | 1NO+1NC | 690 | 10 | 0.5~5 | 1000 | 3 | 6V 10mA |  |
| F4-20 | 2NO | 3 | ||||||
| F4-02 | 2NC | 3 | ||||||

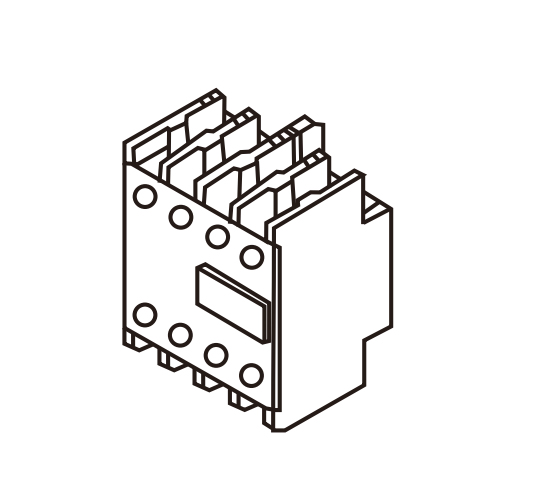

| F4-22 | 2NO+2NC | 3 |  |
|||||
| F4-40 | 4NO | 3 | ||||||
| F4-04 | 4NC | 3 | ||||||
| F4-31 | 3NO+1NC | 3 | ||||||
| F4-13 | 1NO+3NC | 3 |
Main technical parameter of LA2-D/LA3-D type air delay contacts to see table 3
| Model(Table 3) | Rated insulation voltage V | Conventional heating current A | Characteristics of delay | Scope of delay (s) | Delay repeated error | Delay stability error | Temperature error (‰℃) | Group of contacts | Electrical life (times) | Mechanical life | Max. operation frequency (times/s) | Connectable min. load | Sketch picture |

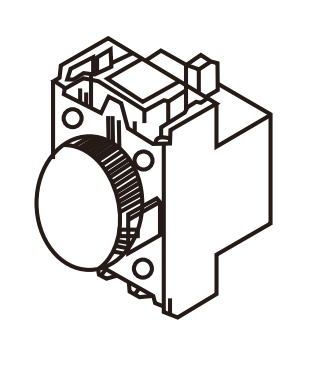

| LA2-D20 | 690 | 10 | Delay when power on | 0.1~3 | ±5 | ±30* | ±25 | NO+NC | 0.5~5×10⁶ | 2.5×10⁶ | 3 | 6V 10mA |  |
| LA2-D22 | 0.1~30 | ||||||||||||
| LA2-D24 | 10~180 | ||||||||||||
| LA3-D20 | Delay when power off | 0.1~3 | |||||||||||
| LA3-D22 | 0.1~30 | ||||||||||||
| LA3-D24 | 10~180 |
Main technical parameter of LA8 type auxiliary contacts to see table 4
| Model(Table 4) | Group of contact | Rated insulation voltage V | Conventional heating current A | Electrical life (10⁶ times) | Mechanical life (10⁴ times) | Max. operating frequency (t/s) | Connectable min. load |
| LA8-11 | 1NO+1NC | 690 | 10 | 0.5~5 | 1000 | 3 | 6V 10mA |
| LA8-20 | 2NO | ||||||
| LA8-02 | 2NC |
