CJX1 (AC Contactor)

The CJX1 Series AC contactor is engineered for AC circuits operating at 50Hz or 60Hz,with rated operating voltage up to 690V. When used in the AC-3 category and rated current up to 400A, it offers a rated operating voltage is 380V, enabling safe remote circuit connection and disconnection. It can also be paired with JRS2 (3UA) to form an electromagnetic starter, protecting circuits from operational overloads.

This product fully complies with IEC/EN60947-4-1 standards.

Send email to us Download as PDF

Product Detail

Model Selection Guide

CJX1	63	22
Product model	Product specification code	Number of auxiliary contacts
AC contactor	9,12,16,22,32,45,63,75,85,110,140,170,205,250,300,400,475,630	Refer to table 1

Table 1
Code for auxiliary contact		22	33	44
Quantity of contact	NO	2	3	4
Quantity of contact	NC	2	3	4

Note:1.The default combination of auxiliary contact is “2NO 2NC"; 2.Auxiliary contact for above 32A can be: “3 NO 3NC" or “4NO 4NC"

Normal Operating Condition an Dinstallation Condition

1.Ambient temperature:+5℃~+40℃, average temperature within 24h does not exceed +35℃

2.Altitude: does not exceed 2000m

3.Atmospheric condition: when the highest temperature is +40℃, the relatively humidity does notexceed 50%; it can allow relatively high humidity when it is at relatively low temperature, for instance, it reaches 90% when it is at +20℃, it should take measurement when there have condensation occurred due to the temperature variation

4.Pollution grade:3

5.Installation category:Ⅲ

6.Installation position: the gradient of the mounting surface to the vertical surface does not exceed ±5°

7.lmpact and vibration: product should be installed and used at the places without obvious shake,impact and vibration

Main Technical Parameter

Main technique parameter of contactor to see table 2

Model(Table 2)			CJX1-9	CJX1-12	CJX1-16	CJX1-22	CJX1-32	CJX1-45	CJX1-63	CJX1-75	CJX1-85	CJX1-110	CJX1-140	CJX1-170	CJX1-205	CJX1-250	CJX1-300	CJX1-400
Rated insulation voltage Ui V			690
Rated operating current Ie (A)	AC-3	380V	9	12	16	22	32	45	63	75	85	110	140	170	205	250	300	400
	AC-3	660V	7.2	9.5	13.5	13.5	18	45	63	75	75	110	110	170	170	200	250	320
	AC-4	380V	3.3	4.3	7.7	8.5	12	24	28	34	42	54	68	75	96	110	125	150
	AC-4	660V	1.4	1.9	3.5	4	7.5	12	14	17	21	27	35	42	67	95	110	115
Control power Pe (kW)	AC-3	380V	4	5.5	7.5	11	15	22	30	37	45	55	75	90	110	132	160	200
	AC-3	660V	5.5	7.5	11	11	15	37	55	55	55	90	90	160	160	185	220	315
	AC-4	380V	1.5	2.5	4	4	5.5	11	15	18.5	22	30	37	37	45	55	55	75
	AC-4	660V	1.1	1.5	3	4	7.5	11	11	15	18.5	22	30	37	55	75	90	110
Conventional thermal current≥Ith		A	20		30		45	70		90		150		170	205	250	300	400
Rated operation frequency times/h		AC-3	1200				600							300
Rated operation frequency times/h		AC-4	300														150
Mechanical life(10000 times)			1000					800		600
Electrical life(10000 times)		AC-3	100					80		60
Electrical life(10000 times)		AC-4	20					15		10
Suited fuse specification(RDT16)A			16	20	25	32	50	80	100	125	160	200	200	250	250	300	400	500

● Rated control power voltage Us of contactor when AC 50/60Hz: 36/42,48/58, 110/132,127/152,220/264,380/456

● The coil of contactor can reliably pull-in when it is at 85%~110% of rated control power voltage, and reliably release at 20%-75% of rated control power voltage

● Rated insulation voltage of auxiliary circuit (Ui) is 380V, conventional thermal current (Ith) is 10A,and other parameters are shown in Table 3

Usage category(Table 3)	Rated operating voltage Ue V	Rated operating current Ie A	Rated control power
			AC VA	DC W
AC-15	36	10	360	--
	110	3.2
	220	1.64
	380	0.95
DC-13	48	0.69	--	33
	110	0.3
	220	0.15

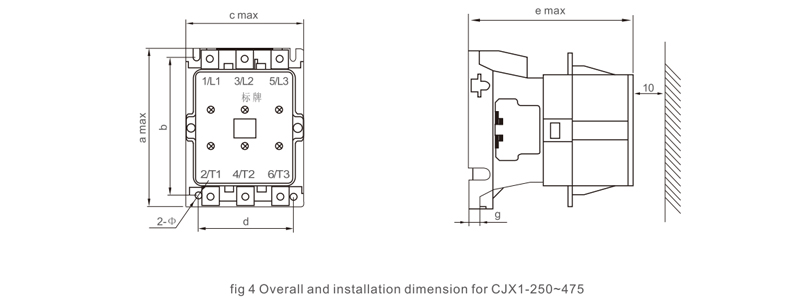

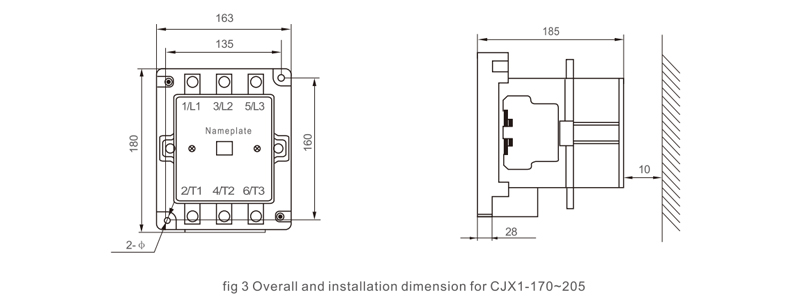

Dimensions

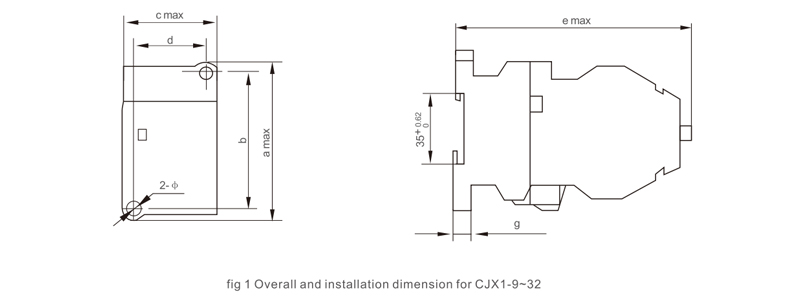

Overall and installation dimension for CJX1-9~32 to see fig 1 and table 4

Model(Table 4)	a max	b	c max	d	e max	g	Φ
CJX1-9/12	79	60±0.60	46	35±0.50	106	8
CJX1-16/22	89	75±0.60	46	35±0.50	116	8
CJX1-32	90	75±0.60	74	35±0.50	109	8

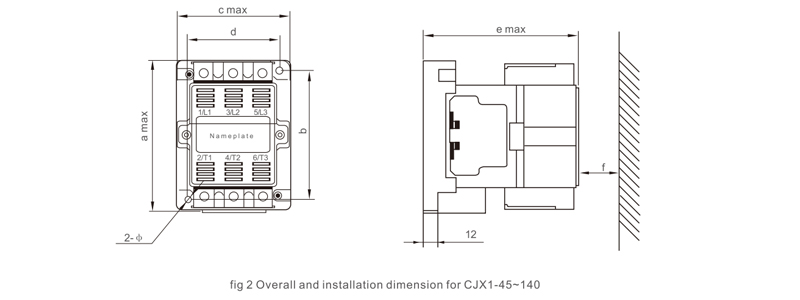

Overall and installation dimension for CJX1-45~140 to see fig 2 and table 5

Model(Table 5)	a max	b	c max	d	e max	f	Φ
CJX1-45/63	120	100±0.70	92	70±0.60	125	20
CJX1-75/85	135	100±0.70	105	80±0.60	145	20
CJX1-110/140	158	130±0.80	125	100±0.70	155	20
