10FT CONTAINER ENERGY STORAGE SYSTEM(RES-H10)

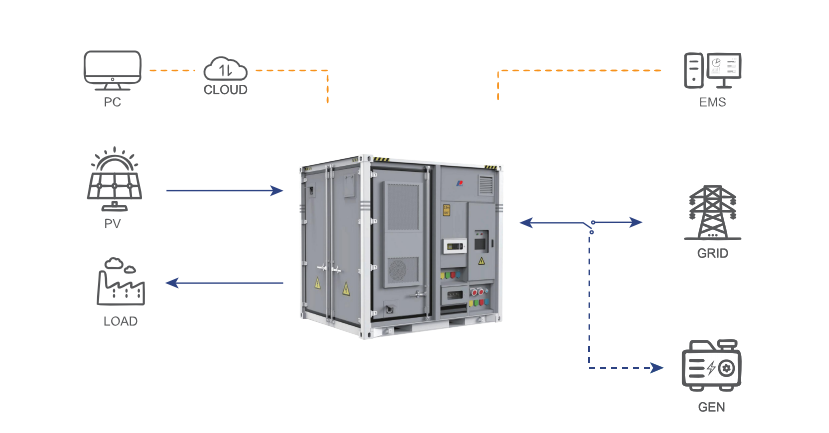

RES-H10 Series is an all-in-one 10-foot containerized ESS with a hybrid cooling scheme (liquid cooling for battery compartment, air cooling for electrical compartment). Its separated compartment design effectively blocks thermal runaway propagation, and cabinet-level fire suppression delivers reliable safety. With IP54 rating and it enables easy transport, installation and flexible deployment, supports PV DC input and multiple quick connections, applicable to PV, wind power, C&I ESS, microgrid and grid-side scenarios.

Available in 482kWh/250kW and 723kWh/360kW models, it is compatible with 50/60Hz grids in both on-grid and off-grid modes. Featuring complete electrical performance and standard communication interfaces, it provides a high-efficiency solution for diversified energy storage applications.

Send email to us Download as PDF

Product Detail

Fan Cooling System

1.All-in-one design for easy transportation and installation,flexible deployment

2.Separation of electrical and battery compartments to prevent thermal runaway from spreading

3.Multiple capacity designs meets the needs of multiple applications

4.Multiple quick-connectport design meet the needs of different scenarios for quick connection

5.Supports PV DC access

The Main Technical Parameters

Battery Parameters

Model	RES-372L186	RES-418L209
Charge/Discharge Rate	0.5C
Rated Battery Cell Capacity (Ah)	314
Rated Voltage (V)	768
Operating Voltage Range (V)	672~876
Rated Energy (kWh)	482	723
Configuration	(1P240S)*2P	(1P240S)*3P

AC Parameters (On Grid)

Model	RES-372L186	RES-418L209
Rated Output Power (kW)	250
Rated Output Current (A)	360
Rated Grid Voltage &Range (V)	3W/N/PE,230/400
Rated Grid Frequency (Hz)	50/60
Power Factor	1(0.9 leading to 0.9 lagging)
THDi	≤3%(@rated power)

AC Parameters (Off Grid)

Model	RES-372L186	RES-418L209
Rated Output Power (kW)	250
Rated Output Current (A)	360
Rated Output Voltage (V)	3W/N/PE,230/400
Rated Output Frequency (Hz)	50/60
Unbalanced Load Capability	100%

PV Input (PV Integration via Optional Side Cabinet)

Model	RES-372L186	RES-418L209
PV Max.Input Power (kWp)	360
MPPT Max.Number	6
PV Input Voltage Range (V)	200~660
PV Max.Input Current (A)	6*150

General Parameters

Model	RES-372L186	RES-418L209
Isolation Transformer	Yes
IP Rating	IP54
Cooling Method	Battery Compartment(Liquid-Cooled) / Electrical Compartment(Air-Cooled)
Fire Suppression System	Cabinet-level Fire Suppression
Relative Humidity	0~95%,Non-condensing
Temp.Range (℃)	-20~+50
Max.Operating Altitude (m)	4000(>2000 Derating required)
Communication Interface	CAN/RS485,Ethernet
Communication Protocol	Modbus/IEC104
Weight (T)	≈8.1	≈9.8
Dimensions(WDH)(mm)	299124382896
