XLPE insulated power cables Featured Image

XLPE insulated power cables

XLPE insulated power cables for rated up to 6/1kV are fit for AC 50Hz distribution lines for the same rated voltages. The mechanical and electrical properties of these cables are accordant with GB/T12706-2008《Power cbales extruded insulation and their accessories of eated voltages 1kV(Um=1.2kV)up to35kV(Um=40.5kV)》and IEC=60502-1:2004《Extruded insulation power cables and appendites for rated voltages 1kV up to 30kV.


  • XLPE insulated power cables

Product Detail

Application

Parameters

Samples & Structures

Dimensions

Product Introduction

XLPE insulated power cables with rated voltage up to 6/1kV are suitable for AC 50Hz distribution lines with the same rated voltage. The mechanical and electrical properties of these cables comply with GB/T12706-2008 "Withstand Voltage 1kV (Um=1.2kV) to 35kV (Um=40.5kV) Power Cable Extruded Insulation and Its Accessories" and IEC=60502-1: 2004 "Rated Extruded insulated power cables and accessories for voltage 1kV to 30kV".

Instruction of application

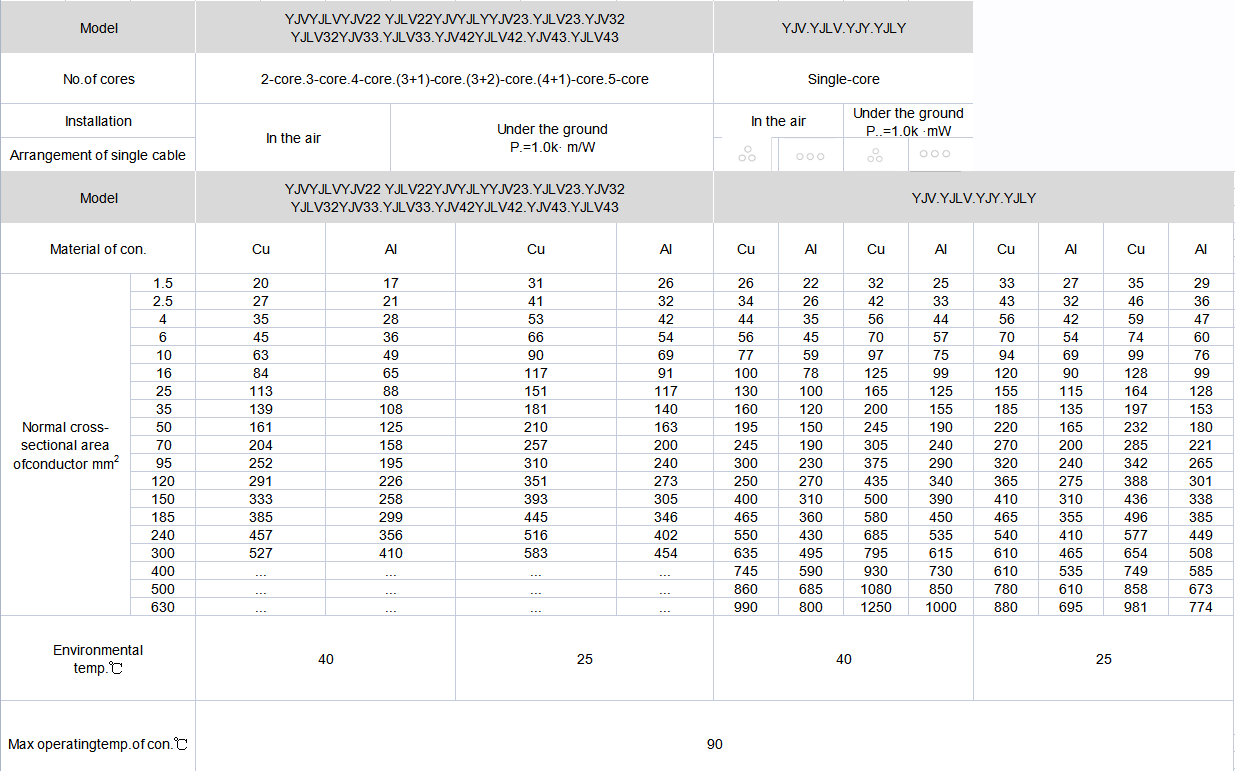

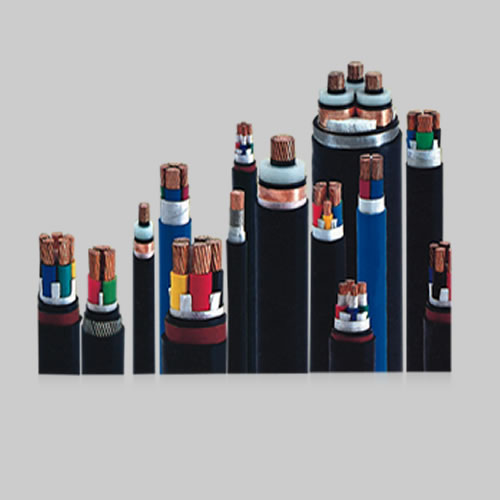

1676597729256

Rated voltages :0.6/1kV

The ambient temperature for cable installation: ≥ 0℃

Maximum conductor temperature in normal operation: ≤90℃

Max operating temperature of con.when cable short-circuited(5smaximun duration):250℃

Permissible bending radius:

Single cable: [20 ( D+d ) 5%]，mm

Multi cable:[15 ( D+d)5%]，mm

Actual overall diameter,mm

Actual diameter of Con,mm

XLPE insulated cables are suitable for distribution networks, industrial devices or other fields that require large-capacity electricity. They are used for fixed laying on power transmission and distribution lines with AC 50Hz and rated voltage 6kV～35kV. The main function is to transmit electric energy.

Product range of XLPE insulated power cables

Model Core number Rated voltage(KV)
0.61/1
Nomal cross sectional area of conductor
YJV YJLV YJY YJLY 1 1.5-630
YJV62 YJLV62 YJV62 YJLV62 25-630
YJV62 YJLV62 YJV62 YJLV62 ….
YJV YJLV YJY YJLY 3 1.5-300
YJV22 YJLV22 YJV23 YJLV23 4-300
YJV32 YJLV32 YJV33 YJLV33 4-300
YJV42 YJLV42 YJV43 YJLV43 25-300
YJV YJLV YJY YJLY 2 1.5-185
YJV22 YJLV22 YJV23 YJLV23 4-185
YJV32 YJLV32 YJV33 YJLV33 4-185
YJV42 YJLV42 YJV43 YJLV43 25-185
YJV YJLV YJY YJLY 3+1 4-300
YJV22 YJLV22 YJV23 YJLV23
YJV32 YJLV32 YJV33 YJLV33
YJV42 YJLV42 YJV43 YJLV43 2.5-300
YJV YJLV YJY YJLY 4 1.5-300
YJV22 YJLV22 YJV23 YJLV23 4-300
YJV32 YJLV32 YJV33 YJLV33 4-300
YJV42 YJLV42 YJV43 YJLV43 25-300
YJV YJLV YJY YJLY 4+1 4-300
YJV22 YJLV22 YJV23 YJLV23
YJV32 YJLV32 YJV33 YJLV33
YJV42 YJLV42 YJV43 YJLV43 25-300
YJV YJLV YJY YJLY 3+2 4-300
YJV22 YJLV22 YJV23 YJLV23
YJV32 YJLV32 YJV33 YJLV33
YJV42 YJLV42 YJV43 YJLV43 25-300
YJV YJLV YJY YJLY 5 4-300
YJV22 YJLV22 YJV23 YJLV23
YJV32 YJLV32 YJV33 YJLV33
YJV42 YJLV42 YJV43 YJLV43 25-300
XLPE insulated power cables rated up to 0.6/1kV GB/T12706.1-2008

Cable structure and weight

Table 1 Structure and weight of single-core XLPE insulated PVC/PE sheathed power cable

Normal cross-sectional area of conductor mm2 Overall diameter
of conductor m m		 Normal thickness of insulation m m Normalthickness of sheath m m Approx.overalldiameter m m Approx.weight kg/km
YJV YJY YJLV YJLY
1.5 1.38 0.7 1.4 6 47 37 38 28
2.5 1.78 0.7 1.4 6 59 49 44 33
4 2.25 0.7 1.4 7 77 65 52 40
6 2.76 0.7 1.4 7 99 86 62 49
10 4.05 0.7 1.4 8 147 131 84 68
16 5.1 0.7 1.4 9 209 191 109 91
25 6 0.9 1.4 11 304 283 149 127
35 7 0.9 1.4 12 400 377 184 160
50 8.1 1 1.4 13 524 498 232 205
70 9.9 1.1 1.4 15 732 701 310 279
95 11.5 1.1 1.4 17 991 953 404 367
120 12.9 1.2 1.5 18 1230 1189 490 449
150 14.3 1.4 1.5 20 1516 1467 603 554
185 16 1.6 1.6 23 1890 1832 748 690
240 18.4 1.7 1.7 26 2454 2384 954 884
300 20.6 1.8 1.8 28 3041 2965 1157 1081
400 23.3 2 2 32 3888 3789 1478 1379
500 26.7 2.2 2.1 36 4959 4850 1874 1755
630 30.4 2.4 2.2 40 6348 6242 2382 2240
Table 2 Structure and weight of two-core XLPE insulated PVC/PE sheathed power cable
Normal cross-sectional area ofconductor
mm2		 Overall diameter
of conductor m m		 Normal thickness of insulation m m Normalthickness of sheath m m Approx.overalldiameter m m Approx.weight kg/km
YJV YJY YJLV YJLY
1.5 1.38 0.7 1.8 10 105 84 86 62
2.5 1.78 0.7 1.8 10 134 111 102 79
4 2.25 0.7 1.8 11 173 148 123 98
6 2.76 0.7 1.8 12 226 198 150 122
10 4.05 0.7 1.8 15 342 307 214 178
16 5.1 0.7 1.8 17 488 448 285 244
25 6 0.9 1.8 21 711 663 393 345
35 7 0.9 1.8 23 927 873 486 433
50 (5.41) 1 1.8 21 1096 1045 499 448
70 (6.58) 1.1 1.8 23 1518 1460 657 598
95 (7.77) 1.1 2 27 2061 1987 864 791
120 (8.75) 1.2 2.1 29 2567 2483 1058 937
150 (9.71) 1.4 2.2 32 3155 3057 1292 1194
185 (10.97) 1.6 2.3 36 3913 3799 1583 1469

Table 3 Structure and weight of three-core XLPE insulated PVC/PE sheathed power cable

Normal cross-sectional area ofconductor
mm2		 Overall diameter
of conductor m m		 Normal thickness of insulation m m Normalthickness of sheath m m Approx.overalldiameter m m Approx.weight kg/km
YJV YJY YJLV YJLY
1.5 1.38 0.7 1.8 10 127 105 99 77
2.5 1.78 0.7 1.8 11 167 143 120 96
4 2.25 0.7 1.8 12 221 194 145 118
6 2.76 0.7 1.8 13 293 263 179 149
10 4.05 0.7 1.8 16 445 408 253 215
16 5.1 0.7 1.8 18 647 604 342 299
25 6 0.9 1.8 22 959 908 482 431
35 7 0.9 1.8 24 1274 1217 613 556
50 (6.81) 1 1.8 24 1590 1530 695 634
70 (8.23) 1.1 1.8 28 2228 2154 935 861
95 (9.71) 1.1 2 31 3015 2927 1220 1132
120 (10.95) 1.2 2.1 34 3763 3661 1497 1396
150 (12.16) 1.4 2.3 38 4695 4533 1861 1738
185 (13.61) 1.6 2.4 42 5778 5636 2281 2138
240 (15.65) 1.7 2.6 47 7513 7339 2920 2746
300 (17.53) 1.8 2.8 52 9409 9202 3642 3535

Table 4 Structure and weight of (3+1) XLPE insulated PVC/PE sheathed power cable

Normal cross-sectional areaof conductor mm2 Oerall diameter
of conductor
m m		 Normal thickness
of insulation
m m		 Normal
thickness of
sheath m m		 Approx.over-
all diameter m m		 Approx.weight kg/km
Primary
conductor		 Neutral line(orgrounded line)
YJV YJY YJLV YJLY
4 2.5 0.7 1.8 13 13 258 229 166 137
6 4 0.7 1.8 14 14 344 312 205 173
10 6 0.7 1.8 17 17 516 476 285 246
16 10 0.7 1.8 19 19 765 719 396 350
25 16 0.9 1.8 23 23 1134 1079 556 501
35 16 0.9 1.8 25 25 1431 1371 668 608
50 25 1 1.8 27 27 1863 1803 809 742
70 35 1.1 1.9 30 30 2604 2523 1090 1009
95 50 1.1 2.1 35 35 3527 3425 1433 1331
120 70 1.2 2.2 38 38 4489 4371 1794 1676
150 70 1.4 2.3 42 42 5362 5227 2136 2001
185 95 1.6 2.5 47 47 6770 6605 2674 2509
240 120 1.7 2.7 52 52 8743 8545 3395 3197
300 120 1.8 2.9 57 57 10878 10643 4180 3945

Table 5 Structure and weight of four-core XLPE insulated PYC/PE sheathed power cable

Normal cross-sectional area ofconductor
mm2		 Overall diameter
of conductor m m		 Normal thickness of insulation m m Normalthickness of sheath m m Approx.overalldiameter m m Approx.weight kg/km
YJV YJY YJLV YJLY
1.5 1.38 0.7 1.8 11 154 130 117 93
2.5 1.78 0.7 1.8 12 204 177 142 109
4 2.25 0.7 1.8 13 274 245 175 146
6 2.76 0.7 1.8 13 363 330 214 181
10 4.05 0.7 1.8 14 559 518 307 266
16 5.1 0.7 1.8 17 815 767 416 368
25 6 0.9 1.8 20 1208 1151 585 528
35 7 0.9 1.8 25 1612 1549 747 684
50 （7.77) 1 1.9 27 2057 1983 886 812
70 (9.36) 1.1 2 28 2883 2794 1193 1104
95 (11.03) 1.1 2.1 32 3914 3908 1567 1461
120 (12.55) 1.2 2.3 36 4902 4775 1941 1814
150 (15.94) 1.4 2.4 44 6033 5886 2380 2233
185 (15.59) 1.6 2.6 48 7526 7348 2955 2777
240 (17.60) 1.7 2.8 54 9781 9565 3778 3562
300 (19.96) 1.8 3 60 12184 11929 4646 4391

Table 6 Structure and weight of (3+2) XLPE insulated PVC/PE sheathed power

Normal cross-sectional areaof conductor mm2 Oerall diameter
of conductor
m m		 Normal thickness
of insulation
m m		 Normal
thickness of
sheath m m		 Approx.over-
all diameter m m		 Approx.weight kg/km
Primary
conductor		 Neutral line(orgrounded line)
YJV YJY YJLV YJLY
4 2.5 2.25 0.7 1.8 13 294 263 187 156
6 4 2.76 0.7 1.8 15 399 364 234 199
10 6 4.05 0.7 1.8 17 589 547 320 278
16 10 5.1 0.7 1.8 21 879 829 446 396
25 16 6 0.9 1.8 24 1313 1254 633 574
35 16 7 0.9 1.8 26 1607 1573 742 678
50 25 8.1 1.0 1.8 30 2243 2162 1029 948
70 35 9.9 1.1 1.9 35 3126 3028 1392 1294
95 50 11.5 1.1 2.2 39 4207 4085 1814 1692
120 70 12.9 1.2 2.3 44 5303 5159 2176 2032
150 70 14.3 1.4 2.4 48 6209 6047 2552 2390
185 95 16 1.6 2.6 53 7898 7701 3204 3007
240 120 18.4 1.7 2.8 60 10188 9949 4086 3847
300 150 20.6 1.8 3.0 66 12675 12392 5045 4762

Table 7 Structure and weight of three-core XLPE insulaled PVC/PE sheathed power cable

Normal cross-sectional areaof conductor mm2 Oerall diameter
of conductor
m m		 Normal thickness
of insulation
m m		 Normal
thickness of sheath m m		 Approx.over-
all diameter m m		 Approx.weight kg/km
Primary
conductor		 Neutral line(orgrounded line)
YJV YJY YJLV YJLY
4 2.5 2.25 0.7 1.8 14 313 281 197 165
6 4 2.76 0.7 1.8 15 448 413 271 236
10 6 4.05 0.7 1.8 18 656 612 361 317
16 10 5.1 0.7 1.8 21 946 894 475 423
25 16 6 0.9 1.8 25 1408 1347 670 609
35 16 7 0.9 1.8 27 1807 1740 823 756
50 25 8.1 1.0 1.9 32 2479 2395 1127 1043
70 35 9.9 1.1 2.1 37 3483 3374 1539 1430
95 50 11.5 1.1 2.2 41 4677 4549 1986 1858
120 70 12.9 1.2 2.4 46 5791 5815 2522 2366
150 70 14.3 1.4 2.5 50 7021 6843 2865 2687
185 95 16 1.6 2.7 56 8858 8643 3599 3384
240 120 18.4 1.7 2.9 63 11473 11212 4598 4337
300 150 20.6 1.8 3.1 70 14275 13967 5659 5351

Table 8 Structure and weight of five-core XLPE insulated thick PVC/PE sheathed power cable

Normal cross-sectional area ofconductor
mm2		 Overall diameter
of conductor
m m		 Normal thickness of insulation m m Normalthickness of sheath m m Approx.overalldiameter m m Approx.weight kg/km
YJV YJY YJLV YJLY
4 2.5 0.7 1.8 14 332 300 206 174
6 2.76 0.7 1.8 15 446 410 256 220
10 4.05 0.7 1.8 19 691 646 370 325
16 5.10 0.7 1.8 22 1007 954 499 446
25 6.0 0.9 1.8 25 1504 1441 710 835
35 7.0 0.9 1.8 28 2007 1937 905 947
50 8.1 1 2.0 33 2726 2634 1234 1142
70 9.9 1.1 2.1 37 3823 3712 1669 1558
95 11.5 1.1 2.3 43 5190 5050 2199 2059
120 12.9 1.2 2.4 48 6349 6187 2575 2413
150 14.3 1.4 2.6 53 7869 7673 3213 3017
185 16.0 1.6 2.8 59 9788 9552 3962 3726
240 18.4 1.7 3.0 67 12849 12564 5198 4913
300 20.6 1.8 3.2 74 15920 15584 6314 5978

Table 9 Structure and weight of wo-core XLPE insulated steel tape armored PVC/PE sheathed power

Nomal cross-sectional area of
conductor
mm2		 Overall diam-
eter of conductor
(high of sector)
mm		 Normal thickness
innercovering
m m		 Thickness of
steel tape
m m		 Diameter of
steel wire
mm		 Normal
thickness of
sheath
m m		 Approx.overalLA
diameter
m m		 Approxweight
YJV22 YJY23 YJLY22 YJLY23
4 2.5 0.7 1.2 0.2 1.8 15 324 290 274 240
6 2.76 0.7 1.2 0.2 1.8 16 390 353 314 277
10 4.05 0.7 1.2 0.2 1.8 18 524 480 396 352
16 5.10 0.7 1.2 0.2 1.8 20 694 645 490 441
25 6.0 0.9 1.2 0.2 1.8 24 978 922 645 589
35 7.0 0.9 1.2 0.2 1.8 26 1222 1160 782 720
50 (5.41) 1 1.2 0.2 1.8 24 1372 1312 775 715
70 (6.58) 1.1 1.2 0.5 2 28 2124 2761 1263 1185
95 (7.77) 1.1 1.2 0.5 2.1 31 2728 2637 1532 1441
120 (8.75) 1.2 1.2 0.5 2.2 34 3292 3189 1783 1680
150 (9.71) 1.4 1.3 0.5 2.4 37 3975 3851 2113 1989
185 (10.97) 1.6 1.3 0.5 2.5 41 4838 4696 2508 2366

Table10 Structure and weight of three-core XLPE insulated steel tape armored PVC/PE sheathed power cable

Nomal cross-sectional area of
conductor
mm2		 Overall diam-
eter of conductor
(high of sector)
mm		 Normal thickness
innercovering
m m		 Thickness of
steel tape
m m		 Diameter of
steel wire
mm		 Normal
thickness of
sheath
m m		 Approx.overalLA
diameter
m m		 Approxweight
YJV22 YJY23 YJLY22 YJLY23
4 2.5 0.7 1.2 0.2 1.8 15 379 344 303 268
6 2.76 0.7 1.2 0.2 1.8 16 466 428 352 314
10 4.05 0.7 1.2 0.2 1.8 19 655 609 462 416
16 5.10 0.7 1.2 0.2 1.8 21 887 835 582 530
25 6.0 0.9 1.2 0.2 1.8 25 1243 1183 766 706
35 7.0 0.9 1.2 0.2 1.8 28 1588 1523 927 862
50 (6.81) 1 1.2 0.2 1.9 28 1923 1850 1027 954
70 (8.23) 1.1 1.2 0.5 2 33 2929 2838 1636 1545
95 (9.71) 1.1 1.2 0.5 2.2 36 3822 3710 2026 1910
120 (10.95) 1.2 1.3 0.5 2.3 39 4659 4532 2394 2267
150 (12.16) 1.4 1.3 0.5 2.4 43 5627 5482 2832 2687
185 (13.61) 1.6 1.4 0.5 2.6 48 6897 6723 3400 3226
240 (15.65) 1.7 1.5 0.5 2.8 53 8788 8579 4195 3986
300 (17.53) 1.8 1.5 0.5 2.9 58 10757 10550 5020 4738

Table 11 Structure and weight of +core XLPE insulatedsteel tape armored PyCPEsheathed oower cable

Normal cross-sectional areaof conductor mm2 Oerall diameter
of conductor
m m		 Normal thickness
of insulation
m m		 thickness of inner cover-ing m m Thickness of
steel tape m m		 Normal
thickness of
sheath m m		 Approx.over-
all
diameter m m		 Approx.weight kg/km
Primary
conductor		 Neutral line(orgrounded line)
YJV YJY YJLV YJLY
4 2.5 2.5 0.7 1.2 0.2 1.8 16 425 388 333 296
6 4 2.76 0.7 1.2 0.2 1.8 17 527 486 388 347
10 6 4.05 0.7 1.2 0.2 1.8 20 734 686 503 455
16 10 5.10 0.7 1.2 0.2 1.8 23 1019 964 650 595
25 16 6.0 0.9 1.2 0.2 1.8 26 1434 1371 856 793
35 16 7.0 0.9 1.2 0.2 1.8 28 1757 1689 994 926
50 25 (7.51) 1 1.2 0.2 1.9 30 2229 2149 1175 1095
70 35 (9.06) 1.1 1.2 0.2 2.1 35 3386 3282 1872 1768
95 50 (10.68) 1.1 1.2 0.2 2.2 39 4397 4275 2303 2181
120 70 (12.25) 1.2 1.3 0.2 2.3 43 5468 5328 2772 2632
150 70 (13.55) 1.4 1.4 0.5 2.5 47 6464 6299 3238 3073
185 95 (15.04) 1.6 1.5 0.5 2.6 52 8004 7813 3908 3717
240 120 (17.21) 1.7 1.6 0.5 2.8 57 10140 9912 4792 4564
300 150 (19.29) 1.8 1.7 0.5 3.0 63 12445 12177 5747 5479

Table 12 Structure and weight of four-core XLPE insulated sleel tape armored PVC/PE sheathed power cable

Nomal cross-sectional area of
conductor
mm2		 Overall diam-
eter of conductor
(high of sector)
mm		 Normal thickness
innercovering m m		 Thickness of
steel tape m m		 Diameter of steel wire mm Normal
thickness of
sheath m m		 Approx.overalLA
diameter m m		 Approxweight
YJV22 YJY23 YJLY22 YJLY23
4 2.25 0.7 1.2 0.2 1.8 16 446 407 408 370
6 2.76 0.7 1.2 0.2 1.8 17 550 509 488 447
10 4.05 0.7 1.2 0.2 1.8 21 787 737 688 638
16 5.10 0.7 1.2 0.2 1.8 23 1076 1019 927 870
25 6.0 0.9 1.2 0.2 1.8 27 1519 1454 1267 1202
35 7.0 0.9 1.2 0.2 1.8 30 1957 1885 1558 1486
50 (7.77) 1 1.2 0.5 1.8 33 2759 2668 2136 2045
70 (9.36) 1.1 1.2 0.5 2 36 3678 3571 2485 2353
95 (11.03) 1.1 1.2 0.5 2.1 41 4832 4700 2813 2706
120 (12.55) 1.2 1.3 0.5 2.3 44 5906 5756 2945 2813
150 (13.94) 1.4 1.4 0.5 2.4 49 7186 7007 3533 3354
185 (15.59) 1.6 1.5 0.5 2.7 54 8807 8602 4236 4031
240 (17.80) 1.7 1.6 0.5 3.0 60 11268 11013 5625 5010
300 (19.96) 1.8 1.7 0.5 3.1 66 13824 13534 6286 5996

Table 13 Structure and weight of (3+2)core XLPE insulated steel tape armored PVC/PE sheathed power cable

Normal cross-sectional areaof conductor mm2 Oerall diameter
of conductor
m m		 Normal thickness
of insulation
m m		 thickness of inner cover-ing m m Thickness of
steel tape m m		 Normal
thickness of
sheath m m		 Approx.over-
all
diameter m m		 Approx.weight kg/km
Primary
conductor		 Neutral line(orgrounded line)
YJV YJY YJLV YJLY
4 2.5 2.5 0.7 1.2 0.2 1.8 17 463 423 356 316
6 4 2.76 0.7 1.2 0.2 1.8 16 584 541 420 376
10 6 4.05 0.7 1.2 0.2 1.8 21 806 756 538 487
16 10 5.10 0.7 1.2 0.2 1.8 24 1136 1077 702 644
25 16 6.0 0.9 1.2 0.2 1.8 27 1610 1542 930 852
35 16 7.0 0.9 1.2 0.2 1.8 29 1926 1853 1061 988
50 25 8.1 1 1.2 0.5 2 35 2983 2885 1770 1672
70 35 9.9 1.1 1.2 0.5 2.1 40 3979 3861 2244 2127
95 50 11.5 1.1 1.2 0.5 2.3 44 5162 5018 2769 2626
120 70 12.9 1.2 1.3 0.5 2.4 49 6397 6229 3269 3102
150 70 14.3 1.4 1.4 0.5 2.5 53 7409 7221 3752 3564
185 95 16.0 1.6 1.5 0.5 2.7 59 9259 9034 4565 4339
240 120 18.4 1.7 1.6 0.5 2.9 66 11737 11467 5635 5365
300 150 20.6 1.8 1.7 0.5 3.1 72 14413 14095 6783 6465

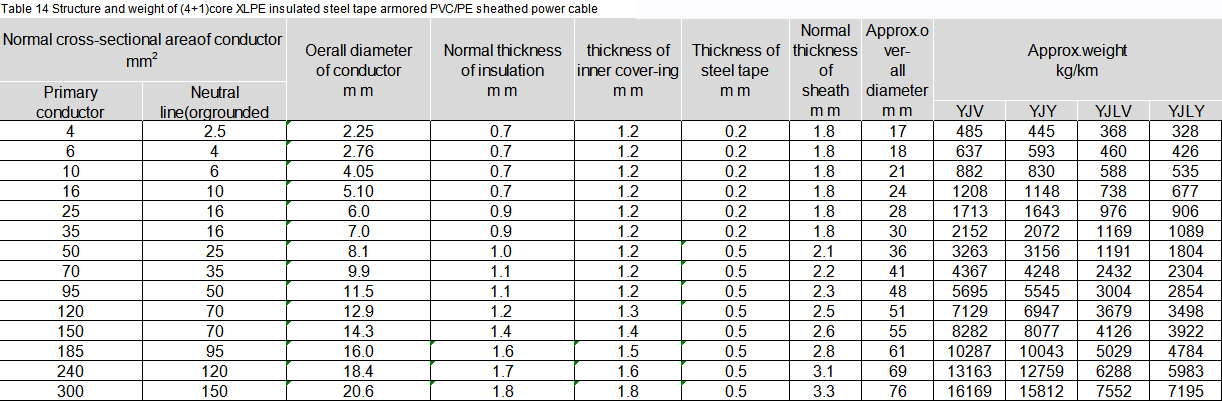

Table 14 Structure and weight of (4+1)core XLPE insulated steel tape armored PVC/PE sheathed power cable

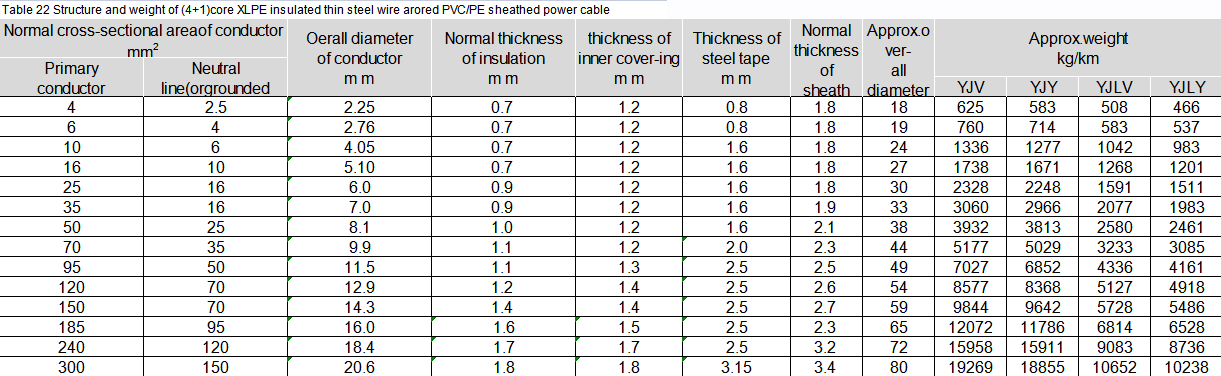

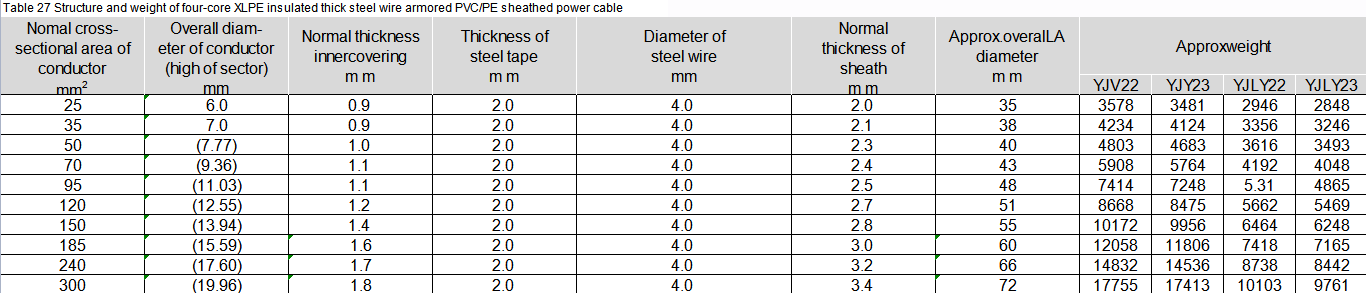

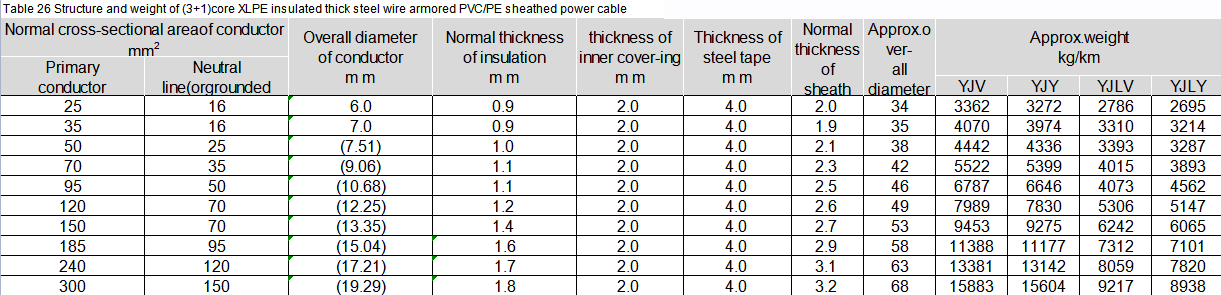

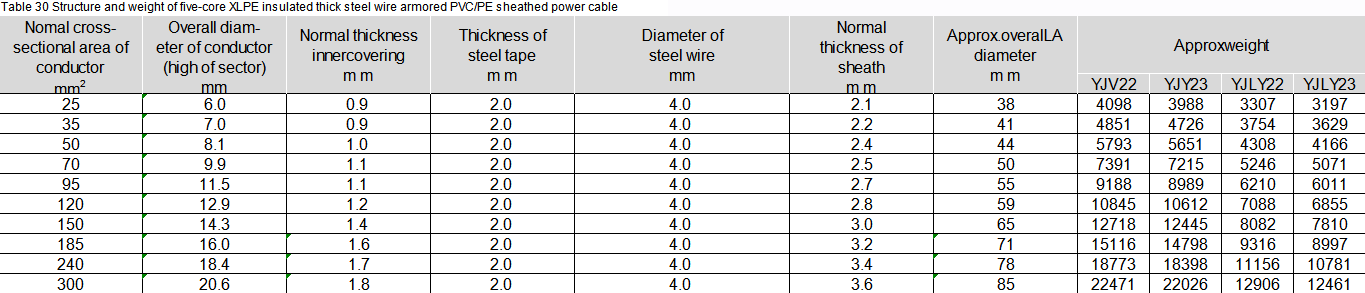

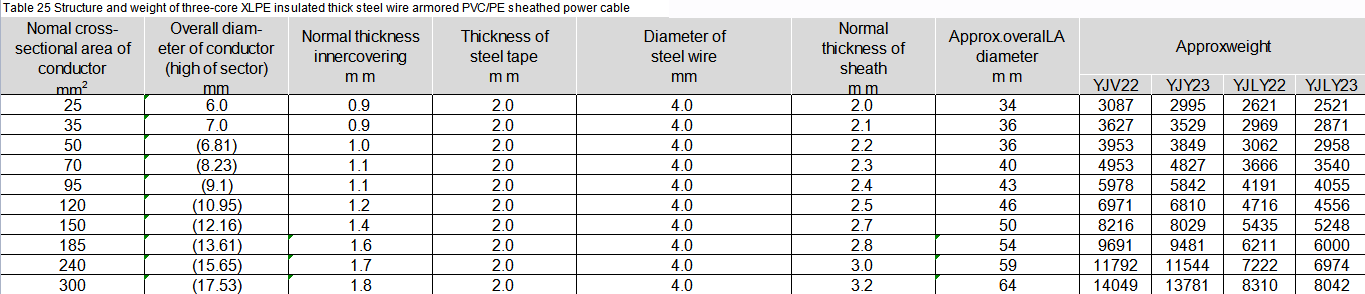

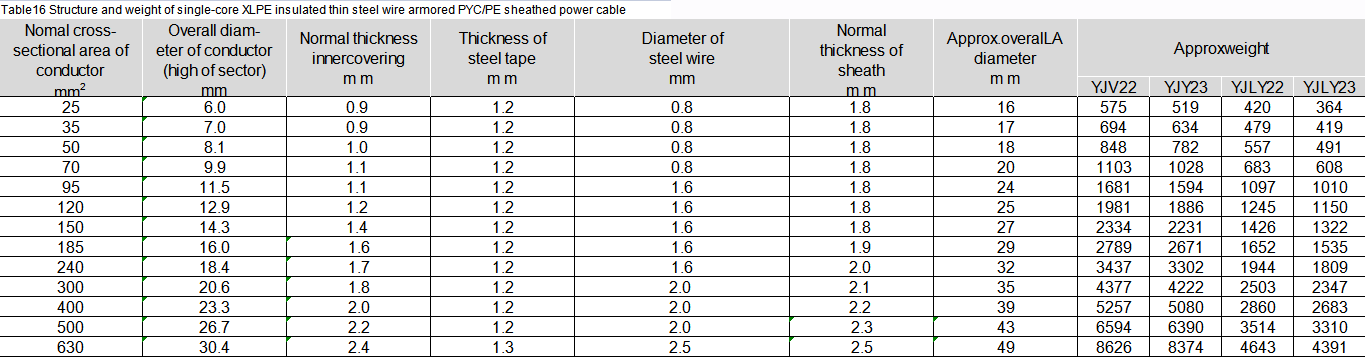

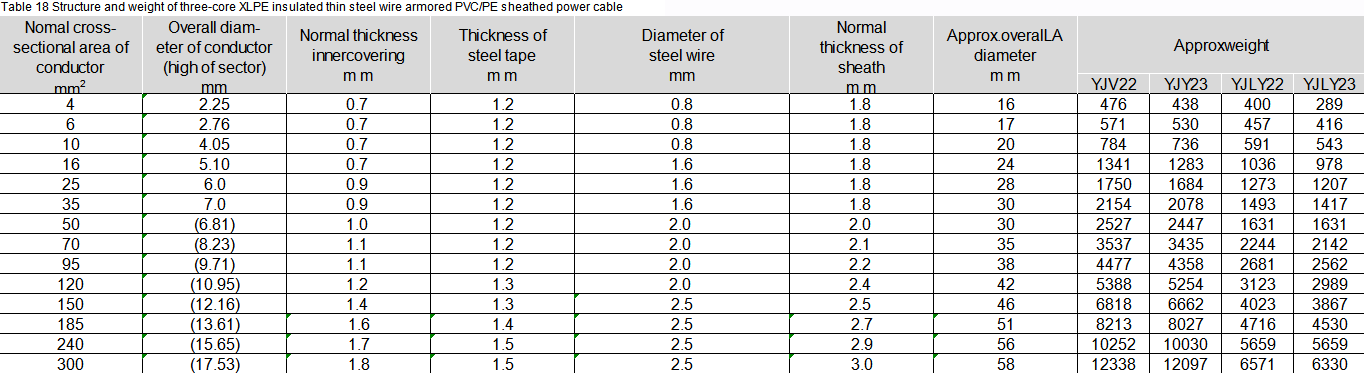

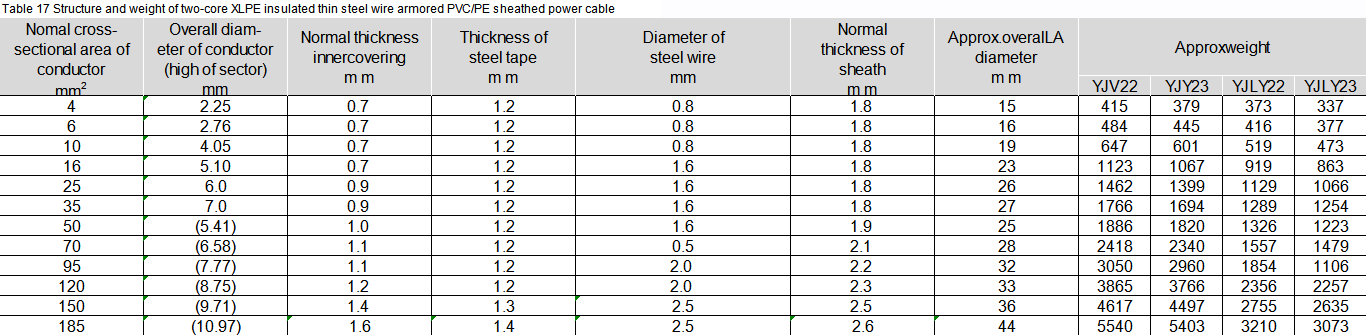

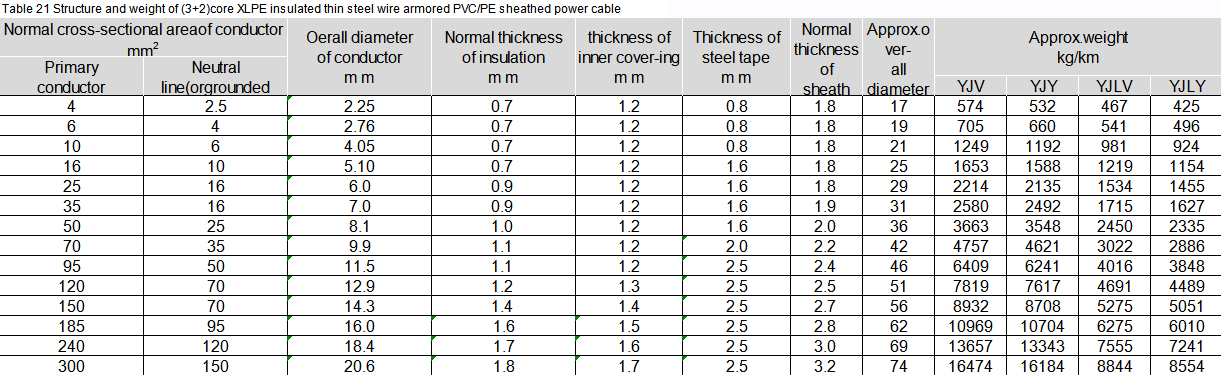

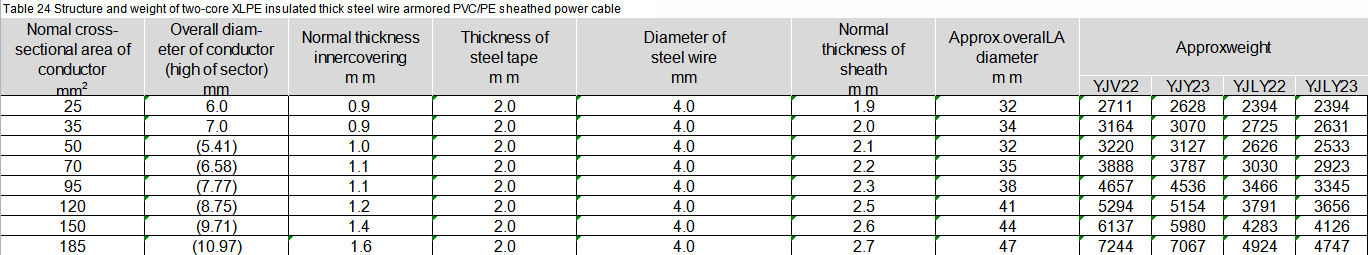

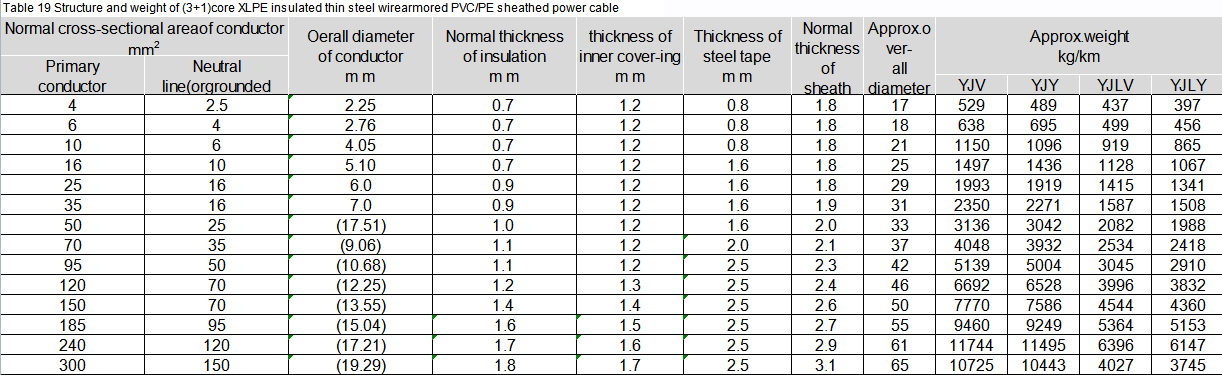

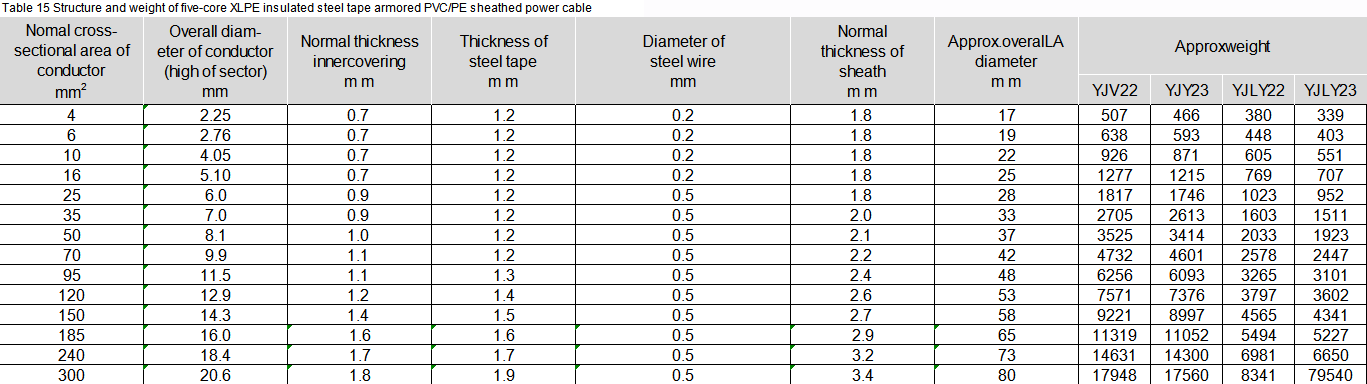

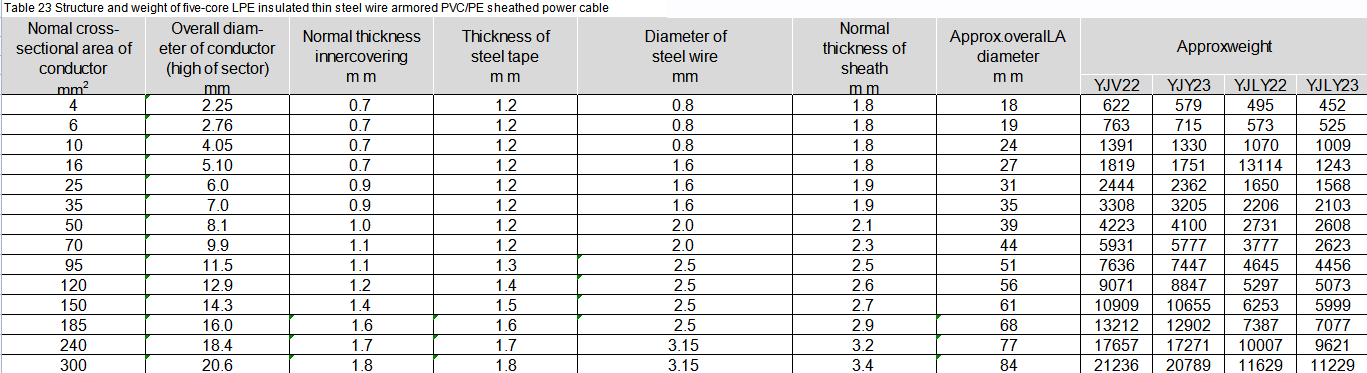

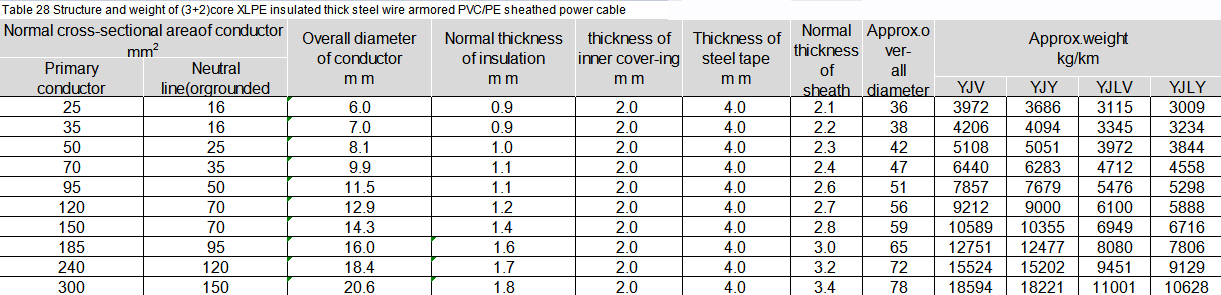

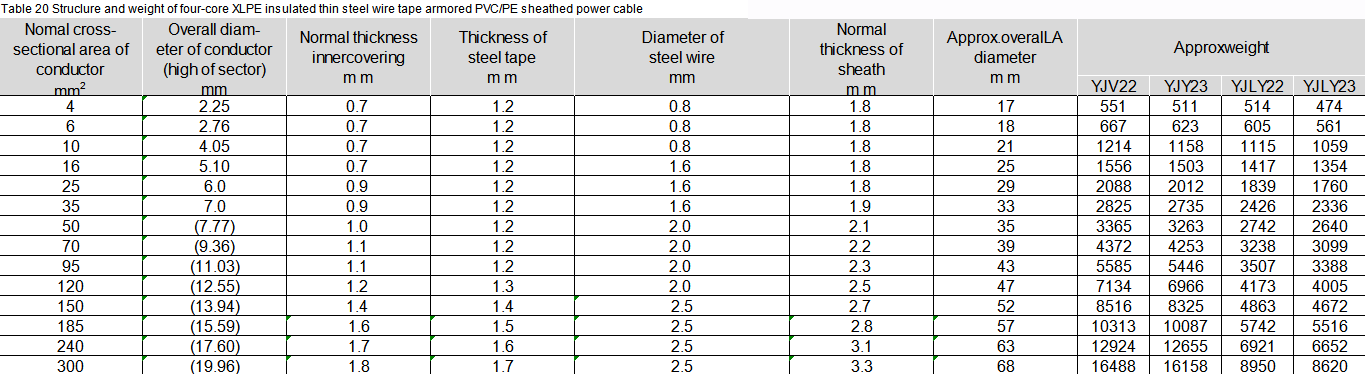

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

For details, please contact our salesman through the FAQ

For details, please contact our salesman through the FAQ

XLPE insulated cables are suitable for distribution networks, industrial devices or other fields that require large-capacity electricity. They are used for fixed laying on power transmission and distribution lines with AC 50Hz and rated voltage 6kV～35kV. The main function is to transmit electric energy.

Product range of XLPE insulated power cables

Model Core number Rated voltage(KV)
0.61/1
Nomal cross sectional area of conductor
YJV YJLV YJY YJLY 1 1.5-630
YJV62 YJLV62 YJV62 YJLV62 25-630
YJV62 YJLV62 YJV62 YJLV62 ….
YJV YJLV YJY YJLY 3 1.5-300
YJV22 YJLV22 YJV23 YJLV23 4-300
YJV32 YJLV32 YJV33 YJLV33 4-300
YJV42 YJLV42 YJV43 YJLV43 25-300
YJV YJLV YJY YJLY 2 1.5-185
YJV22 YJLV22 YJV23 YJLV23 4-185
YJV32 YJLV32 YJV33 YJLV33 4-185
YJV42 YJLV42 YJV43 YJLV43 25-185
YJV YJLV YJY YJLY 3+1 4-300
YJV22 YJLV22 YJV23 YJLV23
YJV32 YJLV32 YJV33 YJLV33
YJV42 YJLV42 YJV43 YJLV43 2.5-300
YJV YJLV YJY YJLY 4 1.5-300
YJV22 YJLV22 YJV23 YJLV23 4-300
YJV32 YJLV32 YJV33 YJLV33 4-300
YJV42 YJLV42 YJV43 YJLV43 25-300
YJV YJLV YJY YJLY 4+1 4-300
YJV22 YJLV22 YJV23 YJLV23
YJV32 YJLV32 YJV33 YJLV33
YJV42 YJLV42 YJV43 YJLV43 25-300
YJV YJLV YJY YJLY 3+2 4-300
YJV22 YJLV22 YJV23 YJLV23
YJV32 YJLV32 YJV33 YJLV33
YJV42 YJLV42 YJV43 YJLV43 25-300
YJV YJLV YJY YJLY 5 4-300
YJV22 YJLV22 YJV23 YJLV23
YJV32 YJLV32 YJV33 YJLV33
YJV42 YJLV42 YJV43 YJLV43 25-300
XLPE insulated power cables rated up to 0.6/1kV GB/T12706.1-2008

Cable structure and weight

Table 1 Structure and weight of single-core XLPE insulated PVC/PE sheathed power cable

Normal cross-sectional area of conductor mm2 Overall diameter
of conductor m m		 Normal thickness of insulation m m Normalthickness of sheath m m Approx.overalldiameter m m Approx.weight kg/km
YJV YJY YJLV YJLY
1.5 1.38 0.7 1.4 6 47 37 38 28
2.5 1.78 0.7 1.4 6 59 49 44 33
4 2.25 0.7 1.4 7 77 65 52 40
6 2.76 0.7 1.4 7 99 86 62 49
10 4.05 0.7 1.4 8 147 131 84 68
16 5.1 0.7 1.4 9 209 191 109 91
25 6 0.9 1.4 11 304 283 149 127
35 7 0.9 1.4 12 400 377 184 160
50 8.1 1 1.4 13 524 498 232 205
70 9.9 1.1 1.4 15 732 701 310 279
95 11.5 1.1 1.4 17 991 953 404 367
120 12.9 1.2 1.5 18 1230 1189 490 449
150 14.3 1.4 1.5 20 1516 1467 603 554
185 16 1.6 1.6 23 1890 1832 748 690
240 18.4 1.7 1.7 26 2454 2384 954 884
300 20.6 1.8 1.8 28 3041 2965 1157 1081
400 23.3 2 2 32 3888 3789 1478 1379
500 26.7 2.2 2.1 36 4959 4850 1874 1755
630 30.4 2.4 2.2 40 6348 6242 2382 2240
Table 2 Structure and weight of two-core XLPE insulated PVC/PE sheathed power cable
Normal cross-sectional area ofconductor
mm2		 Overall diameter
of conductor m m		 Normal thickness of insulation m m Normalthickness of sheath m m Approx.overalldiameter m m Approx.weight kg/km
YJV YJY YJLV YJLY
1.5 1.38 0.7 1.8 10 105 84 86 62
2.5 1.78 0.7 1.8 10 134 111 102 79
4 2.25 0.7 1.8 11 173 148 123 98
6 2.76 0.7 1.8 12 226 198 150 122
10 4.05 0.7 1.8 15 342 307 214 178
16 5.1 0.7 1.8 17 488 448 285 244
25 6 0.9 1.8 21 711 663 393 345
35 7 0.9 1.8 23 927 873 486 433
50 (5.41) 1 1.8 21 1096 1045 499 448
70 (6.58) 1.1 1.8 23 1518 1460 657 598
95 (7.77) 1.1 2 27 2061 1987 864 791
120 (8.75) 1.2 2.1 29 2567 2483 1058 937
150 (9.71) 1.4 2.2 32 3155 3057 1292 1194
185 (10.97) 1.6 2.3 36 3913 3799 1583 1469

Table 3 Structure and weight of three-core XLPE insulated PVC/PE sheathed power cable

Normal cross-sectional area ofconductor
mm2		 Overall diameter
of conductor m m		 Normal thickness of insulation m m Normalthickness of sheath m m Approx.overalldiameter m m Approx.weight kg/km
YJV YJY YJLV YJLY
1.5 1.38 0.7 1.8 10 127 105 99 77
2.5 1.78 0.7 1.8 11 167 143 120 96
4 2.25 0.7 1.8 12 221 194 145 118
6 2.76 0.7 1.8 13 293 263 179 149
10 4.05 0.7 1.8 16 445 408 253 215
16 5.1 0.7 1.8 18 647 604 342 299
25 6 0.9 1.8 22 959 908 482 431
35 7 0.9 1.8 24 1274 1217 613 556
50 (6.81) 1 1.8 24 1590 1530 695 634
70 (8.23) 1.1 1.8 28 2228 2154 935 861
95 (9.71) 1.1 2 31 3015 2927 1220 1132
120 (10.95) 1.2 2.1 34 3763 3661 1497 1396
150 (12.16) 1.4 2.3 38 4695 4533 1861 1738
185 (13.61) 1.6 2.4 42 5778 5636 2281 2138
240 (15.65) 1.7 2.6 47 7513 7339 2920 2746
300 (17.53) 1.8 2.8 52 9409 9202 3642 3535

Table 4 Structure and weight of (3+1) XLPE insulated PVC/PE sheathed power cable

Normal cross-sectional areaof conductor mm2 Oerall diameter
of conductor
m m		 Normal thickness
of insulation
m m		 Normal
thickness of
sheath m m		 Approx.over-
all diameter m m		 Approx.weight kg/km
Primary
conductor		 Neutral line(orgrounded line)
YJV YJY YJLV YJLY
4 2.5 0.7 1.8 13 13 258 229 166 137
6 4 0.7 1.8 14 14 344 312 205 173
10 6 0.7 1.8 17 17 516 476 285 246
16 10 0.7 1.8 19 19 765 719 396 350
25 16 0.9 1.8 23 23 1134 1079 556 501
35 16 0.9 1.8 25 25 1431 1371 668 608
50 25 1 1.8 27 27 1863 1803 809 742
70 35 1.1 1.9 30 30 2604 2523 1090 1009
95 50 1.1 2.1 35 35 3527 3425 1433 1331
120 70 1.2 2.2 38 38 4489 4371 1794 1676
150 70 1.4 2.3 42 42 5362 5227 2136 2001
185 95 1.6 2.5 47 47 6770 6605 2674 2509
240 120 1.7 2.7 52 52 8743 8545 3395 3197
300 120 1.8 2.9 57 57 10878 10643 4180 3945

Table 5 Structure and weight of four-core XLPE insulated PYC/PE sheathed power cable

Normal cross-sectional area ofconductor
mm2		 Overall diameter
of conductor m m		 Normal thickness of insulation m m Normalthickness of sheath m m Approx.overalldiameter m m Approx.weight kg/km
YJV YJY YJLV YJLY
1.5 1.38 0.7 1.8 11 154 130 117 93
2.5 1.78 0.7 1.8 12 204 177 142 109
4 2.25 0.7 1.8 13 274 245 175 146
6 2.76 0.7 1.8 13 363 330 214 181
10 4.05 0.7 1.8 14 559 518 307 266
16 5.1 0.7 1.8 17 815 767 416 368
25 6 0.9 1.8 20 1208 1151 585 528
35 7 0.9 1.8 25 1612 1549 747 684
50 （7.77) 1 1.9 27 2057 1983 886 812
70 (9.36) 1.1 2 28 2883 2794 1193 1104
95 (11.03) 1.1 2.1 32 3914 3908 1567 1461
120 (12.55) 1.2 2.3 36 4902 4775 1941 1814
150 (15.94) 1.4 2.4 44 6033 5886 2380 2233
185 (15.59) 1.6 2.6 48 7526 7348 2955 2777
240 (17.60) 1.7 2.8 54 9781 9565 3778 3562
300 (19.96) 1.8 3 60 12184 11929 4646 4391

Table 6 Structure and weight of (3+2) XLPE insulated PVC/PE sheathed power

Normal cross-sectional areaof conductor mm2 Oerall diameter
of conductor
m m		 Normal thickness
of insulation
m m		 Normal
thickness of
sheath m m		 Approx.over-
all diameter m m		 Approx.weight kg/km
Primary
conductor		 Neutral line(orgrounded line)
YJV YJY YJLV YJLY
4 2.5 2.25 0.7 1.8 13 294 263 187 156
6 4 2.76 0.7 1.8 15 399 364 234 199
10 6 4.05 0.7 1.8 17 589 547 320 278
16 10 5.1 0.7 1.8 21 879 829 446 396
25 16 6 0.9 1.8 24 1313 1254 633 574
35 16 7 0.9 1.8 26 1607 1573 742 678
50 25 8.1 1.0 1.8 30 2243 2162 1029 948
70 35 9.9 1.1 1.9 35 3126 3028 1392 1294
95 50 11.5 1.1 2.2 39 4207 4085 1814 1692
120 70 12.9 1.2 2.3 44 5303 5159 2176 2032
150 70 14.3 1.4 2.4 48 6209 6047 2552 2390
185 95 16 1.6 2.6 53 7898 7701 3204 3007
240 120 18.4 1.7 2.8 60 10188 9949 4086 3847
300 150 20.6 1.8 3.0 66 12675 12392 5045 4762

Table 7 Structure and weight of three-core XLPE insulaled PVC/PE sheathed power cable

Normal cross-sectional areaof conductor mm2 Oerall diameter
of conductor
m m		 Normal thickness
of insulation
m m		 Normal
thickness of sheath m m		 Approx.over-
all diameter m m		 Approx.weight kg/km
Primary
conductor		 Neutral line(orgrounded line)
YJV YJY YJLV YJLY
4 2.5 2.25 0.7 1.8 14 313 281 197 165
6 4 2.76 0.7 1.8 15 448 413 271 236
10 6 4.05 0.7 1.8 18 656 612 361 317
16 10 5.1 0.7 1.8 21 946 894 475 423
25 16 6 0.9 1.8 25 1408 1347 670 609
35 16 7 0.9 1.8 27 1807 1740 823 756
50 25 8.1 1.0 1.9 32 2479 2395 1127 1043
70 35 9.9 1.1 2.1 37 3483 3374 1539 1430
95 50 11.5 1.1 2.2 41 4677 4549 1986 1858
120 70 12.9 1.2 2.4 46 5791 5815 2522 2366
150 70 14.3 1.4 2.5 50 7021 6843 2865 2687
185 95 16 1.6 2.7 56 8858 8643 3599 3384
240 120 18.4 1.7 2.9 63 11473 11212 4598 4337
300 150 20.6 1.8 3.1 70 14275 13967 5659 5351

Table 8 Structure and weight of five-core XLPE insulated thick PVC/PE sheathed power cable

Normal cross-sectional area ofconductor
mm2		 Overall diameter
of conductor
m m		 Normal thickness of insulation m m Normalthickness of sheath m m Approx.overalldiameter m m Approx.weight kg/km
YJV YJY YJLV YJLY
4 2.5 0.7 1.8 14 332 300 206 174
6 2.76 0.7 1.8 15 446 410 256 220
10 4.05 0.7 1.8 19 691 646 370 325
16 5.10 0.7 1.8 22 1007 954 499 446
25 6.0 0.9 1.8 25 1504 1441 710 835
35 7.0 0.9 1.8 28 2007 1937 905 947
50 8.1 1 2.0 33 2726 2634 1234 1142
70 9.9 1.1 2.1 37 3823 3712 1669 1558
95 11.5 1.1 2.3 43 5190 5050 2199 2059
120 12.9 1.2 2.4 48 6349 6187 2575 2413
150 14.3 1.4 2.6 53 7869 7673 3213 3017
185 16.0 1.6 2.8 59 9788 9552 3962 3726
240 18.4 1.7 3.0 67 12849 12564 5198 4913
300 20.6 1.8 3.2 74 15920 15584 6314 5978

Table 9 Structure and weight of wo-core XLPE insulated steel tape armored PVC/PE sheathed power

Nomal cross-sectional area of
conductor
mm2		 Overall diam-
eter of conductor
(high of sector)
mm		 Normal thickness
innercovering
m m		 Thickness of
steel tape
m m		 Diameter of
steel wire
mm		 Normal
thickness of
sheath
m m		 Approx.overalLA
diameter
m m		 Approxweight
YJV22 YJY23 YJLY22 YJLY23
4 2.5 0.7 1.2 0.2 1.8 15 324 290 274 240
6 2.76 0.7 1.2 0.2 1.8 16 390 353 314 277
10 4.05 0.7 1.2 0.2 1.8 18 524 480 396 352
16 5.10 0.7 1.2 0.2 1.8 20 694 645 490 441
25 6.0 0.9 1.2 0.2 1.8 24 978 922 645 589
35 7.0 0.9 1.2 0.2 1.8 26 1222 1160 782 720
50 (5.41) 1 1.2 0.2 1.8 24 1372 1312 775 715
70 (6.58) 1.1 1.2 0.5 2 28 2124 2761 1263 1185
95 (7.77) 1.1 1.2 0.5 2.1 31 2728 2637 1532 1441
120 (8.75) 1.2 1.2 0.5 2.2 34 3292 3189 1783 1680
150 (9.71) 1.4 1.3 0.5 2.4 37 3975 3851 2113 1989
185 (10.97) 1.6 1.3 0.5 2.5 41 4838 4696 2508 2366

Table10 Structure and weight of three-core XLPE insulated steel tape armored PVC/PE sheathed power cable

Nomal cross-sectional area of
conductor
mm2		 Overall diam-
eter of conductor
(high of sector)
mm		 Normal thickness
innercovering
m m		 Thickness of
steel tape
m m		 Diameter of
steel wire
mm		 Normal
thickness of
sheath
m m		 Approx.overalLA
diameter
m m		 Approxweight
YJV22 YJY23 YJLY22 YJLY23
4 2.5 0.7 1.2 0.2 1.8 15 379 344 303 268
6 2.76 0.7 1.2 0.2 1.8 16 466 428 352 314
10 4.05 0.7 1.2 0.2 1.8 19 655 609 462 416
16 5.10 0.7 1.2 0.2 1.8 21 887 835 582 530
25 6.0 0.9 1.2 0.2 1.8 25 1243 1183 766 706
35 7.0 0.9 1.2 0.2 1.8 28 1588 1523 927 862
50 (6.81) 1 1.2 0.2 1.9 28 1923 1850 1027 954
70 (8.23) 1.1 1.2 0.5 2 33 2929 2838 1636 1545
95 (9.71) 1.1 1.2 0.5 2.2 36 3822 3710 2026 1910
120 (10.95) 1.2 1.3 0.5 2.3 39 4659 4532 2394 2267
150 (12.16) 1.4 1.3 0.5 2.4 43 5627 5482 2832 2687
185 (13.61) 1.6 1.4 0.5 2.6 48 6897 6723 3400 3226
240 (15.65) 1.7 1.5 0.5 2.8 53 8788 8579 4195 3986
300 (17.53) 1.8 1.5 0.5 2.9 58 10757 10550 5020 4738

Table 11 Structure and weight of +core XLPE insulatedsteel tape armored PyCPEsheathed oower cable

Normal cross-sectional areaof conductor mm2 Oerall diameter
of conductor
m m		 Normal thickness
of insulation
m m		 thickness of inner cover-ing m m Thickness of
steel tape m m		 Normal
thickness of
sheath m m		 Approx.over-
all
diameter m m		 Approx.weight kg/km
Primary
conductor		 Neutral line(orgrounded line)
YJV YJY YJLV YJLY
4 2.5 2.5 0.7 1.2 0.2 1.8 16 425 388 333 296
6 4 2.76 0.7 1.2 0.2 1.8 17 527 486 388 347
10 6 4.05 0.7 1.2 0.2 1.8 20 734 686 503 455
16 10 5.10 0.7 1.2 0.2 1.8 23 1019 964 650 595
25 16 6.0 0.9 1.2 0.2 1.8 26 1434 1371 856 793
35 16 7.0 0.9 1.2 0.2 1.8 28 1757 1689 994 926
50 25 (7.51) 1 1.2 0.2 1.9 30 2229 2149 1175 1095
70 35 (9.06) 1.1 1.2 0.2 2.1 35 3386 3282 1872 1768
95 50 (10.68) 1.1 1.2 0.2 2.2 39 4397 4275 2303 2181
120 70 (12.25) 1.2 1.3 0.2 2.3 43 5468 5328 2772 2632
150 70 (13.55) 1.4 1.4 0.5 2.5 47 6464 6299 3238 3073
185 95 (15.04) 1.6 1.5 0.5 2.6 52 8004 7813 3908 3717
240 120 (17.21) 1.7 1.6 0.5 2.8 57 10140 9912 4792 4564
300 150 (19.29) 1.8 1.7 0.5 3.0 63 12445 12177 5747 5479

Table 12 Structure and weight of four-core XLPE insulated sleel tape armored PVC/PE sheathed power cable

Nomal cross-sectional area of
conductor
mm2		 Overall diam-
eter of conductor
(high of sector)
mm		 Normal thickness
innercovering m m		 Thickness of
steel tape m m		 Diameter of steel wire mm Normal
thickness of
sheath m m		 Approx.overalLA
diameter m m		 Approxweight
YJV22 YJY23 YJLY22 YJLY23
4 2.25 0.7 1.2 0.2 1.8 16 446 407 408 370
6 2.76 0.7 1.2 0.2 1.8 17 550 509 488 447
10 4.05 0.7 1.2 0.2 1.8 21 787 737 688 638
16 5.10 0.7 1.2 0.2 1.8 23 1076 1019 927 870
25 6.0 0.9 1.2 0.2 1.8 27 1519 1454 1267 1202
35 7.0 0.9 1.2 0.2 1.8 30 1957 1885 1558 1486
50 (7.77) 1 1.2 0.5 1.8 33 2759 2668 2136 2045
70 (9.36) 1.1 1.2 0.5 2 36 3678 3571 2485 2353
95 (11.03) 1.1 1.2 0.5 2.1 41 4832 4700 2813 2706
120 (12.55) 1.2 1.3 0.5 2.3 44 5906 5756 2945 2813
150 (13.94) 1.4 1.4 0.5 2.4 49 7186 7007 3533 3354
185 (15.59) 1.6 1.5 0.5 2.7 54 8807 8602 4236 4031
240 (17.80) 1.7 1.6 0.5 3.0 60 11268 11013 5625 5010
300 (19.96) 1.8 1.7 0.5 3.1 66 13824 13534 6286 5996

Table 13 Structure and weight of (3+2)core XLPE insulated steel tape armored PVC/PE sheathed power cable

Normal cross-sectional areaof conductor mm2 Oerall diameter
of conductor
m m		 Normal thickness
of insulation
m m		 thickness of inner cover-ing m m Thickness of
steel tape m m		 Normal
thickness of
sheath m m		 Approx.over-
all
diameter m m		 Approx.weight kg/km
Primary
conductor		 Neutral line(orgrounded line)
YJV YJY YJLV YJLY
4 2.5 2.5 0.7 1.2 0.2 1.8 17 463 423 356 316
6 4 2.76 0.7 1.2 0.2 1.8 16 584 541 420 376
10 6 4.05 0.7 1.2 0.2 1.8 21 806 756 538 487
16 10 5.10 0.7 1.2 0.2 1.8 24 1136 1077 702 644
25 16 6.0 0.9 1.2 0.2 1.8 27 1610 1542 930 852
35 16 7.0 0.9 1.2 0.2 1.8 29 1926 1853 1061 988
50 25 8.1 1 1.2 0.5 2 35 2983 2885 1770 1672
70 35 9.9 1.1 1.2 0.5 2.1 40 3979 3861 2244 2127
95 50 11.5 1.1 1.2 0.5 2.3 44 5162 5018 2769 2626
120 70 12.9 1.2 1.3 0.5 2.4 49 6397 6229 3269 3102
150 70 14.3 1.4 1.4 0.5 2.5 53 7409 7221 3752 3564
185 95 16.0 1.6 1.5 0.5 2.7 59 9259 9034 4565 4339
240 120 18.4 1.7 1.6 0.5 2.9 66 11737 11467 5635 5365
300 150 20.6 1.8 1.7 0.5 3.1 72 14413 14095 6783 6465

Table 14 Structure and weight of (4+1)core XLPE insulated steel tape armored PVC/PE sheathed power cable

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

For details, please contact our salesman through the FAQ

For details, please contact our salesman through the FAQ

Products categories

Write your message here and send it to us
Hit enter to search or ESC to close
