| RDT8 | 32 | PV | 30 |
| Product code | Specification | Only for PV | Rated current of the fuse link |
| Packed closed tube type fuse | 32 63 |
Dedicated to solar photovoltaic system | 32(10x38):2,3,4,5,6,8,10,12,15,20,25,30 63(10x85):2,3,4,5,6,8,10,12,15,20,25,30 |
● The ambient temperature does not exceed 40℃,the average measured in 24h does not exceed 35℃, and the average measured in a year is lower than the lowest value of the ambient air temperature of -5℃. The air is clean and its relative humidity does not exceed 50% at a maximum temperature of 40℃. You can have higher relative humidity at lower temperatures. For example, at 20℃,the relative humidity can reach 90%. Due to the temperature change occurring on the product body condensation situation must be taken measures.
● The fuse should be installed in a place where there is no significant shaking or shock vibration.
● Pollution level: Level3.
● Installation category:Class Ⅲ.
● The card is mounted on the TH35-7.5 standard guide rail and installed vertically.
● Current correction factor.
| Altitude | ≤2000m | （2000-3000）m | ≥3000m |
| Current correction factor | 1 | 0.9 | 0.8 |
| Isolator | RDT8-32PV | RDT8-63PV |
| Rated voltage | DC 1000V | DC 1500V |
| Rated current | 32A | 63A |
| Peak withstand current | 20kA | |
| Class of protection | IP2X | |
| Category of use | DC-PVO | |

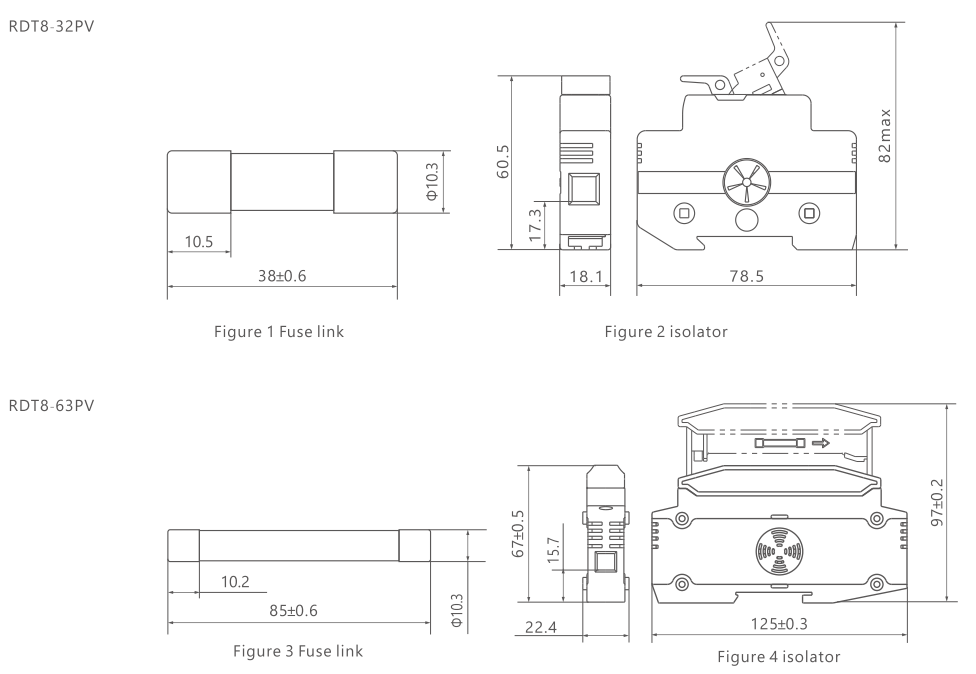

| Fuse link size | 10×38 | 10×85 |
| Rated current / A | 2,3,4,5,6,8,10,12,15,20,25,30 | 2,3,4,5,6,8,10,12,15,20,25,30 |
| Rated breaking capacity | 20kA | |
| Minimum fusing current | 1.45In A | |
Please indicate the name, model, rated current and quantity of fuse when purchasing.
● Isolator and fuse breakers must be purchased separately.
● When purchasing the fuse, please indicate the current of the fuse.
For example, Isolator RDT8-63PV 1000 pieces. Fuse RDT8-63PV/30A 1000 pieces.
