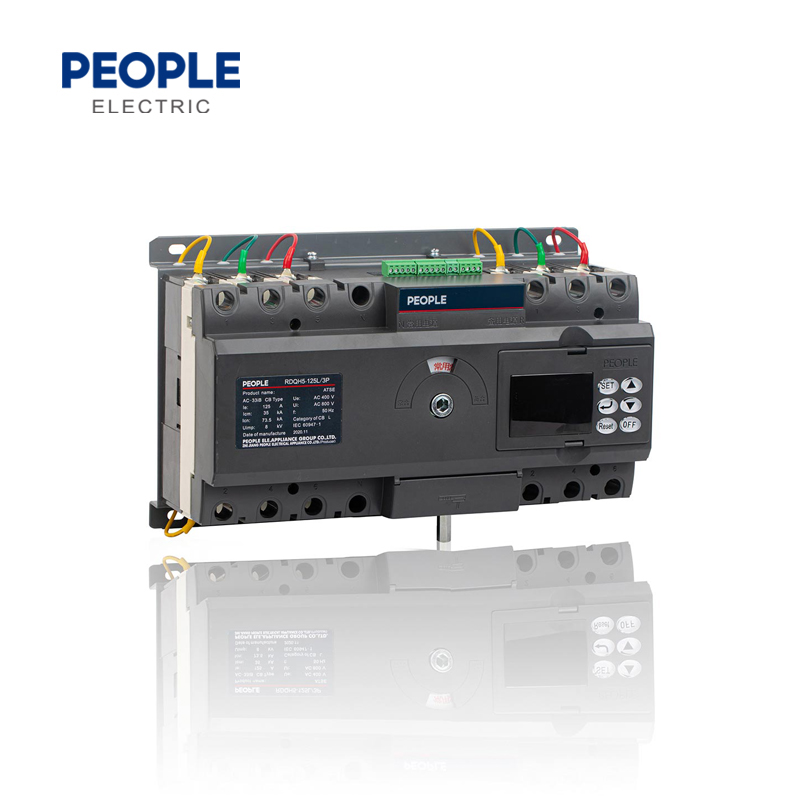

| RDQH5 | 125 | L | 4P | R |
| Code | Frame size | Type of circuit breaker | Pole | Working mode |
| ATS | 125 250 400 630 |
L:L type circuit breaker M:M type circuit breaker H:H type circuit breaker |
3P 4P |
R:(Normal one, do not mark) automatically changeover and automatically recover S:Automatically changeover and not automatically recover T:two are the backup |
Note: Grid to generator only can select the working mode of automatically changeover and automatically recover.
Remark the ATS mode: grid to grid, grid to generator,in order to set up the parameter when factory out.
● Using environment temperature: ambient temperature: -35℃~+70℃, average value with in 24h does not exceed +35℃.
● Relative humidity: does not exceed 50% when at +40℃,it can has relatively high relative humidity when at low temperature.
● Pollution grade:3
● Height above sea level: does not exceed 5000m
● Electromagnetic environment:A
● Installation category of main circuit: Ⅲ
● Installation category: Ⅲ
● Installation environment: at the places of there is no danger of explosion and conductive dust,not enough to corrode metal and destroy insulation
● Installation angle: In places with no impact vibration and no rain and snow invasion, the inclination of the installation plate and each direction shall not exceed 5°
● The product should put lightly put when transportation, should not be inverted, to avoid violent collision.

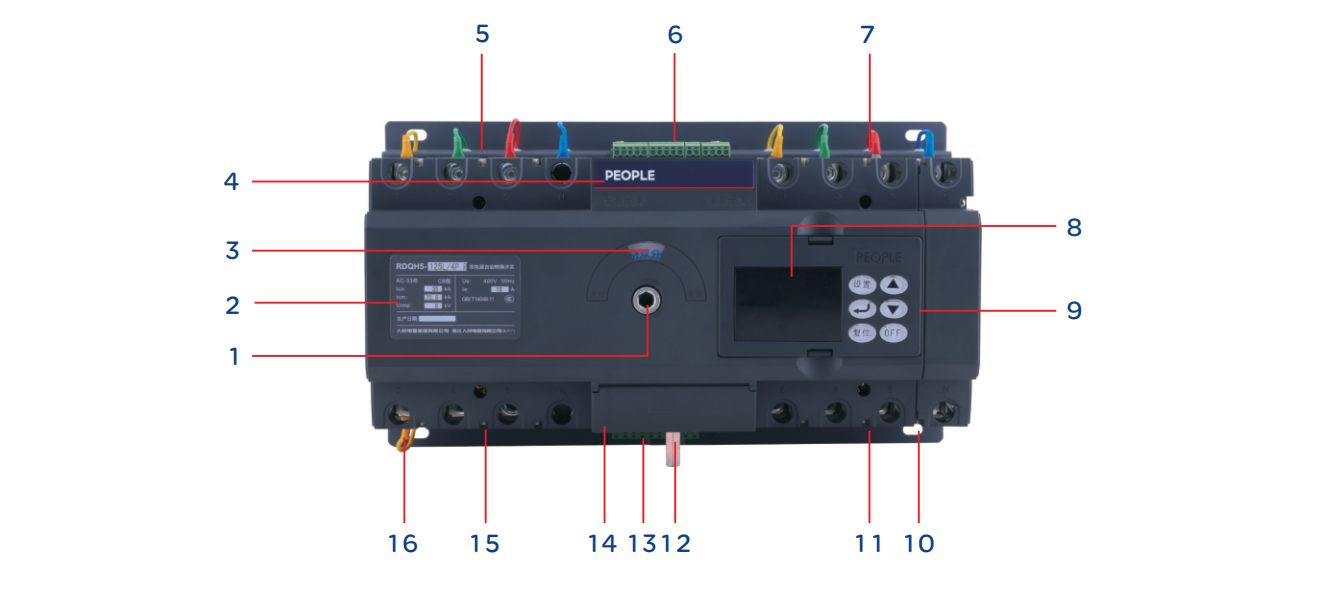

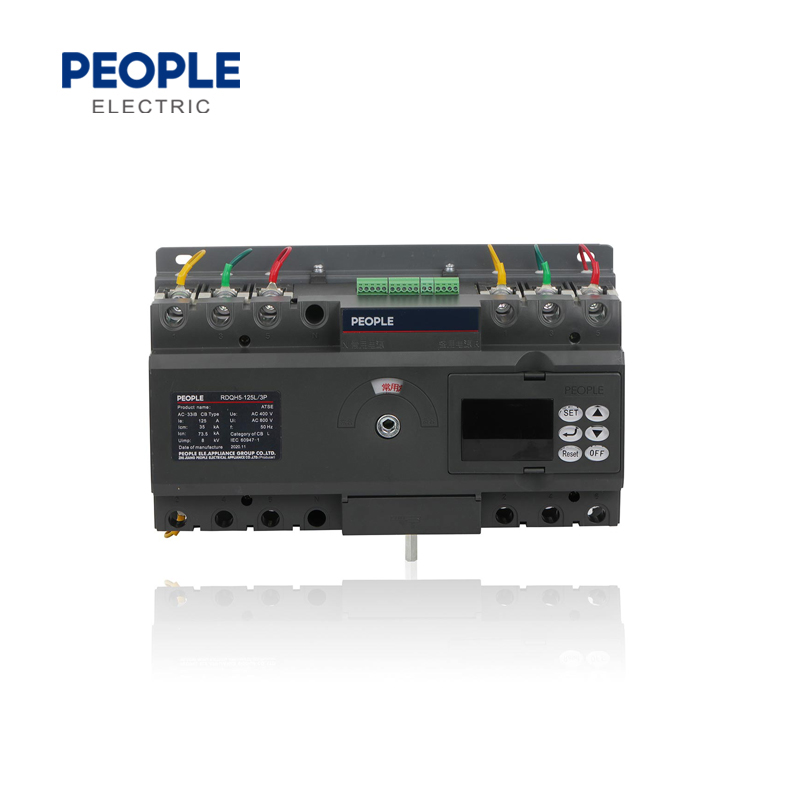

| Impication | ||
| 1.handle hole when manual | 8.Controller display screen | |
| 2.Name plate | 9.Controller keyboard control button | |
| 3.Main contact position indication | Normal power closing Normal power | 10.Fixed screw hole |
| Double break position Double break | 11.Load side for backup power supply | |
| Backup power closing Backup | 12.Handle | |
| 4.Logo | 13.Power indication, closing indication, fault indication output terminal | |
| 5.Input and power sampling line of normal power supply | 14.Cover for the handle | |
| 6.Signal terminal: Fire protection voltage input, generator startup signal output | 15.Load side for normal power supply | |
| 7.Input and power sampling line of backup power supply | 16.Power supply sampling line | |

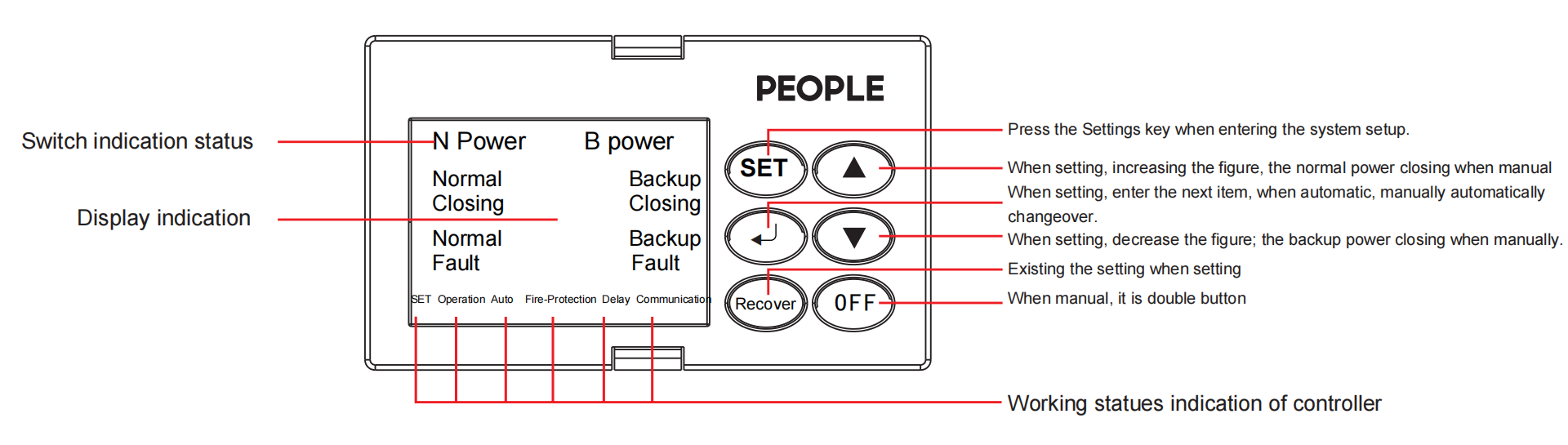

| Function Setting | Setting Range | Default Value |
| 1.Operation mode | Automatic, manual | Automatic |
| 2.Grid structure | Grid to grid,grid to generator | Grid/Grid |
| 3.Working mode | Automatically changeover and automatically recover,Automatically changeover and not automatically recover,Both are backup | Automatically changeover and automatically recover |
| 4.Buzzer warning | Can be open,can be closed | Open |
| 5.Monitoring function | Over-voltage,under-voltage,break-phase detection,over-voltage value can be set 230V~280V,under-voltage value can be set 140V~220V | Over-voltage set 270V, Under-voltage set 170V |
| 6.Normal transfer to backup delay | 1s～255s | 3s |
| 7.Backup transfer to normal delay | 1s～255s | 3s |
| 8.Double breaking delay | 0s～10s | 3s |
| 9.Phase sequency detection | Can be open, can be closed | Closing |
| 10.Fire-protection gang control | AC/DC12V～36V input side double break | |
| 11.Voltage calibration | Six-way voltage calibration is possible |
| Rated current of frame size I nm(A) | 125 | 250 | 400 | 630 | ||||||||
| Rated current le(A) | 16、20、25、32、40、50、63、80、100、125 | 100、125、160、180、200、225、250 | 225、250、315、350、400 | 400、500、630 | ||||||||
| Pole | 3P、4P | |||||||||||
| Rated frequency(Hz) | 50 | |||||||||||
| Rated insulation voltage Ui(V) | AC800 | |||||||||||
| Rated impulse withstand voltage Uimp(kV) | 8 | |||||||||||
| Rated working voltage Ue(V) | AC400 | |||||||||||
| Type of circuit breaker | L | M | H | L | M | H | L | M | H | L | M | H |
| Rated short-circuit breaking capacity Icn(kA) | 35 | 50 | 85 | 35 | 50 | 85 | 50 | 65 | 100 | 50 | 65 | 100 |
| Rated short-circuit making capacity cm(kA) | 73.5 | 105 | 187 | 73.5 | 105 | 187 | 105 | 143 | 220 | 105 | 143 | 220 |
| ATSE Grade | CB grade | |||||||||||
| Usage category | AC-33iB | |||||||||||
| Working temperature | -5℃~+40℃ | |||||||||||
| Electrical life(times) | 1000 | 1000 | 1000 | 1000 | ||||||||
| Mechanical life(times) | 5000 | 5000 | 3000 | 2000 | ||||||||
| Min.changeover action time | ≤3s(Can add the delay changeover time) | |||||||||||

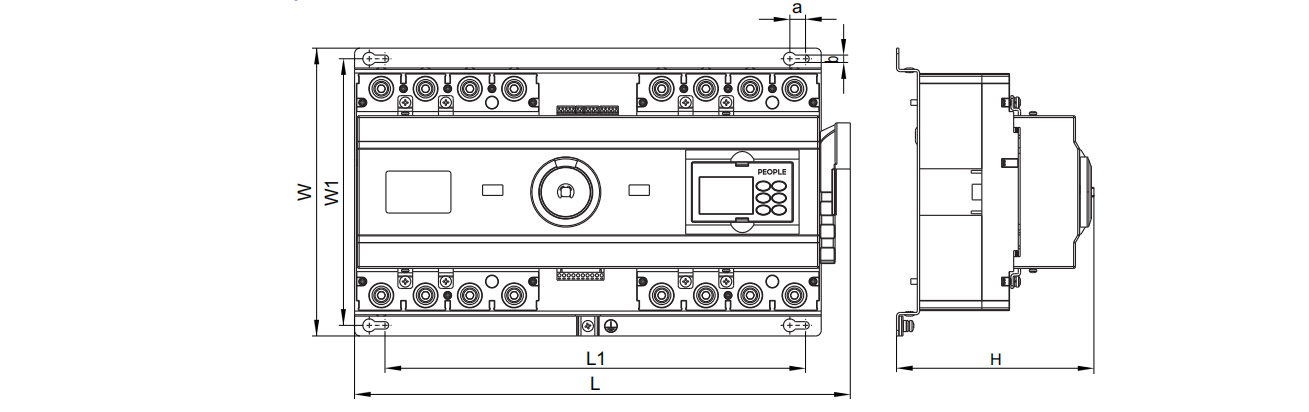

RDQH5-125/250 Shape and installation dimension
| Model No. | Shape dimension | Installation dimension | |||||
| L(Length) | w(Width) | H(Height) | L1 | W1 | a | b | |
| RDQH5-125L/3P | 308 | 194 | 132 | 270 | 174 | 6 | 6 |
| RDQH5-125L/4P | 338 | 194 | 132 | 300 | 174 | 6 | 6 |
| RDQH5-125M(H)/3P | 308 | 194 | 149 | 270 | 174 | 6 | 6 |
| RDQH5-125M(H)/4P | 338 | 194 | 149 | 300 | 174 | 6 | 6 |
| RDQH5-250L/3P | 347 | 209 | 151 | 309 | 193 | 6 | 6 |
| RDQH5-250L/4P | 382 | 209 | 151 | 344 | 193 | 6 | 6 |
| RDQH5-250M(H)/3P | 347 | 209 | 169 | 309 | 193 | 6 | 6 |
| RDQH5-250M(H)/4P | 382 | 209 | 169 | 344 | 193 | 6 | 6 |
RDQH5-400/630 Shape and installation dimension
| Model No. | Shape dimension | Installation dimension | |||||
| L(Length) | W(Wideth) | H(Height) | L1 | W1 | a | b | |
| RDQH5-400(L、M、H)/3P | 490 | 311 | 214 | 407 | 288 | 17 | 8 |
| RDQH5-400(L、M、H)/4P | 539 | 311 | 214 | 456 | 288 | 17 | 8 |
| RDQH5-630(L、M、H)/3P | 567 | 325 | 216.5 | 484 | 302 | 17 | 8 |
| RDQH5-630(L、M、H)/4P | 625 | 325 | 216.5 | 544 | 302 | 17 | 8 |
Technical parameter
| Frame Size Rated Current Inm(A) | 125 | 250 | 400 | 630 | ||||||||
| Rated current Ie(A ) | 16、20、25、32、40 | 100、125、160、180、 | 225、250、315、 | 400、500、630 | ||||||||
| 50、63、80、100、125 | 200、225、250 | 350、400 | ||||||||||
| Pole | 3P、4P | |||||||||||
| F requency (Hz) | 50 | |||||||||||
| Rated insulation voltage Ui (V ) | AC800 | |||||||||||
| Rated impulse withstand voltage Uimp(kV) | 8 | |||||||||||
| Rated operate voltage Ue (V ) | AC400 | |||||||||||
| Breaker Type | L | M | H | L | M | H | L | M | H | L | M | H |
| Rated short-circuit breaking capacity Icn (kA) | 35 | 50 | 85 | 35 | 50 | 85 | 50 | 65 | 100 | 50 | 65 | 100 |
| Rated short-circuit connecting capacity Icm (kA) | 73.5 | 105 | 187 | 73.5 | 105 | 187 | 105 | 143 | 220 | 105 | 143 | 220 |
| ATSE Type | CB Type | |||||||||||
| Using Type | AC-33iB | |||||||||||
| Ambient Temperature | -35°C~+70°C | |||||||||||
| Electrical life (Times) | 1000 | 1000 | 1000 | 1000 | ||||||||
| Mechanical life (Times) | 5000 | 5000 | 3000 | 2000 | ||||||||
| Mini transfer time | ≤3s(Can be added the conversion time delay) | |||||||||||

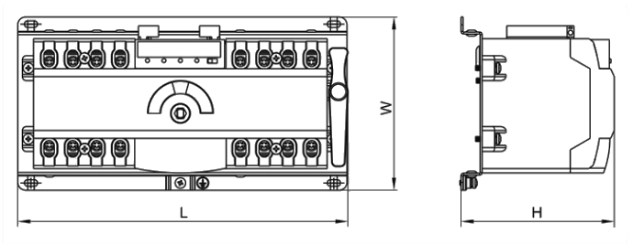

Shape Dimension
| Model NO. | L (mm) | W (mm) | H (mm) |
| RDQH5- 125L/3P | 308 | 194 | 132 |
| RDQH5- 125L/4P | 338 | 194 | 132 |
| RDQH5- 125M(H)/3P | 308 | 194 | 149 |
| RDQH5- 125M(H)/4P | 338 | 194 | 149 |
| RDQH5-250L/3P | 347 | 209 | 151 |
| RDQH5-250L/4P | 382 | 209 | 151 |
| RDQH5-250M(H)/3P | 347 | 209 | 169 |
| RDQH5-250M(H)/4P | 382 | 209 | 169 |
| RDQH5-400L/3P | 490 | 309 | 215 |
| RDQH5-400L/4P | 539.5 | 309 | 215 |
| RDQH5-630L/3P | 568 | 328 | 216.5 |
| RDQH5-630L/4P | 626 | 328 | 216.5 |
