| RDC8 | 700 | 660V |
| Product code | Rated current | Control loop voltage |
| Ac contactor | 150、250、350、450、550、700 | AC 110V~660V DC 110V~500V |
| F4 | 20 | LA8 | 20 | LA2 | 20 |
| Product code | Auxiliary contact group | Product code | Auxiliary contact group | Product code | Air delay headdelay range |
| Top auxiliary contact group | 20:2NO 11:1NO+1NC 02:2NC 40:4NO 31:3NO+1NC 22:2NO+2NC 13:1NO+3NC 04:4NC NO:Moving auxiliary contact NC:Break auxiliary contact |
Side auxiliary contact group | 20:2NO 40:4NO 31:3NO+1NC 22:2NO+2NC NO: dynamic auxiliary contact NC: break auxiliary contact |
LA2: The electric delayair delay head LA3: Air delay head for power failure |
D20:Indicates a delay of 0.1-3s D22:Indicates a delay of 0.1-30s D24:Indicates a delay of 10 to 180s |
● Ambient air temperature: -25℃~+60℃, reduce the working current and voltage can be used in the air temperature of -40℃~70℃;
● Altitude:There is no capacity reduction below 3000m, and it can be used to a higher altitude after reducing the working curent and voltage;
● Atmospheric conditions: at +40℃,the relative humidity of the air does not exceed 50%; At lower temperatures, there can be higher relative humidity,the monthly average minimum temperature of the wettest month does not exceed +25℃, the monthly average maximum relative humidity of the month does not exceed 90%, and the condensation on the product due to temperature changes is considered;
● Pollution level: Level 3 ;
● Installation category:Class Ⅲ;
● Installation conditions: The mounting surface and vertical inclination is not greater than +5°,when the coil end control voltage is not less than 85%Us,not greater than +30°for other installation methods, electrical and mechanical life will not be guaranteed;
● Shock vibration: The product shall be installed and used where there is no significant shaking, shock or vibration.
| Typenumber | RDC8-150 | RDC8-250 | RDC8-350 | RDC8-450 | RDC8-550 | RDC8-700 | |
| Rated operational current leAθ≤40℃ | AC-1 | 150 | 250 | 350 | 450 | 550 | 700 |
| Rated operating votage Ue V | 1140 | ||||||
| Convention free air heating current It A | 150 | 250 | 350 | 450 | 550 | 700 | |
| Rated insulation voltage Ui V | 1140 | ||||||
| Rated impulse withstand voltage Uimp KV | 12 | ||||||
| Rated switching capacity (A) | 225 | 375 | 525 | 675 | 825 | 1050 | |
| Rated breaking capacity(A) | Breaking current:1.5×I(AC-1) | ||||||
| Short-time withstand current from cold state,prior to 60 minutes no current,ring temperature≤40℃ | 10 seconds | 1500 | 2100 | 2700 | 3300 | 4200 | |
| 30 seconds | 1200 | 1680 | 2160 | 2640 | 3360 | ||
| 1 minute | 750 | 1050 | 1350 | 1650 | 2100 | ||
| 3 minute | 600 | 840 | 1080 | 1320 | 1680 | ||
| 10 minute | 500 | 700 | 900 | 1100 | 1260 | ||
| Maximum working power Pe kW θ≤40℃ AC-1 | 220/240V | 50 | 80 | 120 | 150 | 190 | 240 |
| 380/400V | 85 | 140 | 210 | 260 | 330 | 420 | |
| 440V | 100 | 160 | 230 | 300 | 360 | 470 | |
| 500V | 110 | 175 | 270 | 330 | 410 | 520 | |
| 660/690V | 145 | 240 | 370 | 450 | 570 | 685 | |
| 1000V | 220 | 355 | 540 | 650 | 810 | 1035 | |
| 1140V | 250 | 400 | 610 | 720 | 950 | 1180 | |
| Maximum operating frequency Working cycle/hour | 600 | ||||||
| Mechanical life thousands of times | 300 | ||||||
| Average impedance per pole Ith and 50Hz(mΩ) | 0.35 | 0.35 | 0.3 | 0.25 | 0.2 | 0.17 | |
| Average power consumption per pole at rated operating current | 8W | 22W | 37W | 51W | 61W | 85W | |
| Terminal assignable conductor | Number of copper bars | 1 | 1 | 2 | 2 | 2 | |
| Bar size mm² | 120 | 185 | 150 | 185 | 50×5 | ||
| Impact resistance 1/2 sine wave=11ms | Contactor open | 6gn | 9gn | 7gn | 6gn | 6gn | |
| Contactor closing | 15gn | 15gn | 15gn | 15gn | 15gn | ||
| Seismic performance 5...150Hz | Contactor open | 2gn | 2gn | 2gn | 2gn | 1.5gn | |
| Contactor closing | 4gn | 4gn | 4gn | 5gn | 5gn | ||
| Class of protection | Main circuit | IP00 | |||||
| Coil terminal | IP20 prevents direct finger contact | ||||||
| Operating frequency times/h | 1200 | 1200 | 1200 | 600 | 600 | ||
| Control circuit characteristic | AC | 110...60V | |||||
| Control circuit characteristic | DC | 110...500V | |||||
| Operating voltage | Pull-in voltag | 0.85-1.1Uc | |||||
| Release voltage(AC) | 0.2-0.75Uc | ||||||
| Release voltage(DC) | 0.1-0.75Uc | ||||||
| Average power consumption | Start(AC) | 450VA | 580VA | 805VA | 700VA | 1150VA | |
| Holding(AC) | 22VA | 51VA | 65VA | 12VA | 18VA | ||
| Startup(DC) | / | 665W | 902W | 803W | 1140W | ||
| Holding(DC) | / | 4.9W | 5.1W | 4.6W | 7.5W | ||
| Actuation time | actuation | 40...75ms | |||||
| AC release | 100...170ms | ||||||
| DC release | 100...170ms | ||||||
| Mechanical life(under Uc) 10⁶ times | 3 | 3 | 3 | 3 | 3 | ||

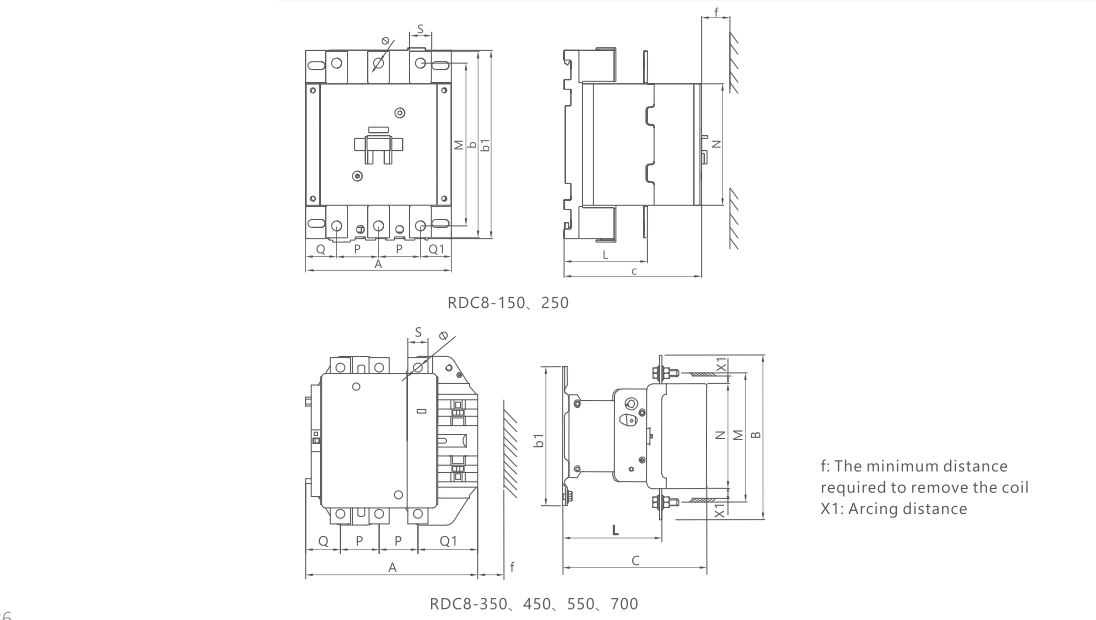

| Type number | RDC8 - 150 | RDC8 - 250 | RDC8 - 350 | RDC8 - 450 | RDC8 - 550 | RDC8 - 700 |
| A | 120 | 168 | 168.5 | 213 | 213 | |
| P | 34.5 | 40 | 48 | 48 | 48 | |
| Q | 25.5 | 30.5 | 21 | 43 | 43 | |
| Q1 | 25.5 | 57.5 | 51.5 | 74 | 74 | |
| S | 18 | 20 | 25 | 25 | 25 | |
| Φ | M8 | M8 | M10 | M10 | M10 | |
| f | 10 | 131 | 130 | 147 | 151 | |
| B | 154 | 170 | 197 | 206 | 206 | |
| b1 | 160 | 137 | 137 | 145 | 209 | |
| M | 134 | 150 | 172 | 181 | 181 | |
| N | 100 | 124 | 127 | 158 | 158 | |
| C | 121 | 171 | 181 | 219 | 219 | |
| L | 68.5 | 107 | 113.5 | 145 | 143.5 | |
| X1≤500V ＞＞600V |
15 20 |
15 20 |
15 20 |
15 20 |
15 20 |
|

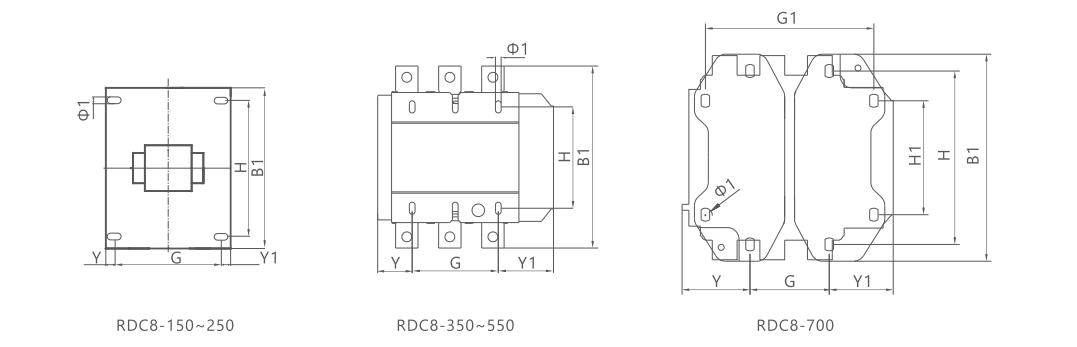

| G | 100(95 - 110) | 80 | 80 | 96 | 80(66~102) | |
| H | 130 | 120 - 106 | 120 - 106 | 120 - 106 | 170 - 180 | |
| φ1 | 6.5 | 6.5 | 6.5 | 6.5 | 8.5 | |
| ⊥ | M8 | M8 | M8 | M10 | ||
| Y | 10 | 57 | 59.5 | 67 | 68.5 | |
| Y1 | 10 | 26.5 | 29 | 49.5 | 64.5 | |
| B1 | 160 | 170 | 209 | 209 | 209 | |
