In low-voltage power distribution selection, many buyers hold a common misconception: the higher the sensitivity of an Residual Current Breaker with Overcurrent protection, the safer the power consumption will be. In fact, the core of residual current protection lies in scenario adaptation and professional parameter setting, rather than blindly pursuing ultra-high sensitivity.
Unreasonably high sensitivity settings will easily cause frequent nuisance tripping and unexpected power supply interruptions. Only by matching technical parameters in accordance with professional industry logic can we perfectly balance personal safety, equipment operation stability and power line reliability.
The Rated Residual Operating Current (IΔn) is the core setting parameter of a residual current breaker with overcurrent protection. The mainstream current ratings include 30mA, 100mA and 300mA, with each rating featuring an entirely independent protection logic.
The 30mA model belongs to the high-sensitivity grade, specially designed for personal electric shock protection. The 100mA and 300mA grades are medium and low sensitivity options, focusing on electrical fire prevention and power equipment protection.
If high-sensitivity 30mA devices are forcibly adopted in industrial and commercial high-load scenarios, the normal leakage current of operating equipment will trigger unnecessary tripping and interrupt commercial and production power supply. On the contrary, applying low-sensitivity breakers in residential and densely populated commercial areas fails to cut off power instantly during electric shock accidents, bringing huge potential safety hazards.
The professional selection logic for residual current protection parameters based on application scenarios is clear and standardized:
1.Residential & Civil Scenarios
Prioritize personal safety and adopt 30mA rated residual current. Suitable for 230V single-phase circuits, it covers lighting, socket and kitchen & bathroom circuits where people are easy to touch live parts, realizing rapid power cut to avoid electric shock risks.
2.Commercial & Light Industrial Scenarios
Balance safety and operational stability with a 100mA setting. It effectively avoids nuisance tripping caused by normal leakage current of high-power equipment in shopping malls and small factories, while providing reliable electrical fire protection.
3.Industrial & Heavy-Duty Power Distribution Scenarios
Focus on power line and equipment protection with a 300mA rating. Perfect for 400V three-phase power distribution systems, it adapts to long-distance circuits and heavy-load working conditions to ensure continuous and stable power supply.

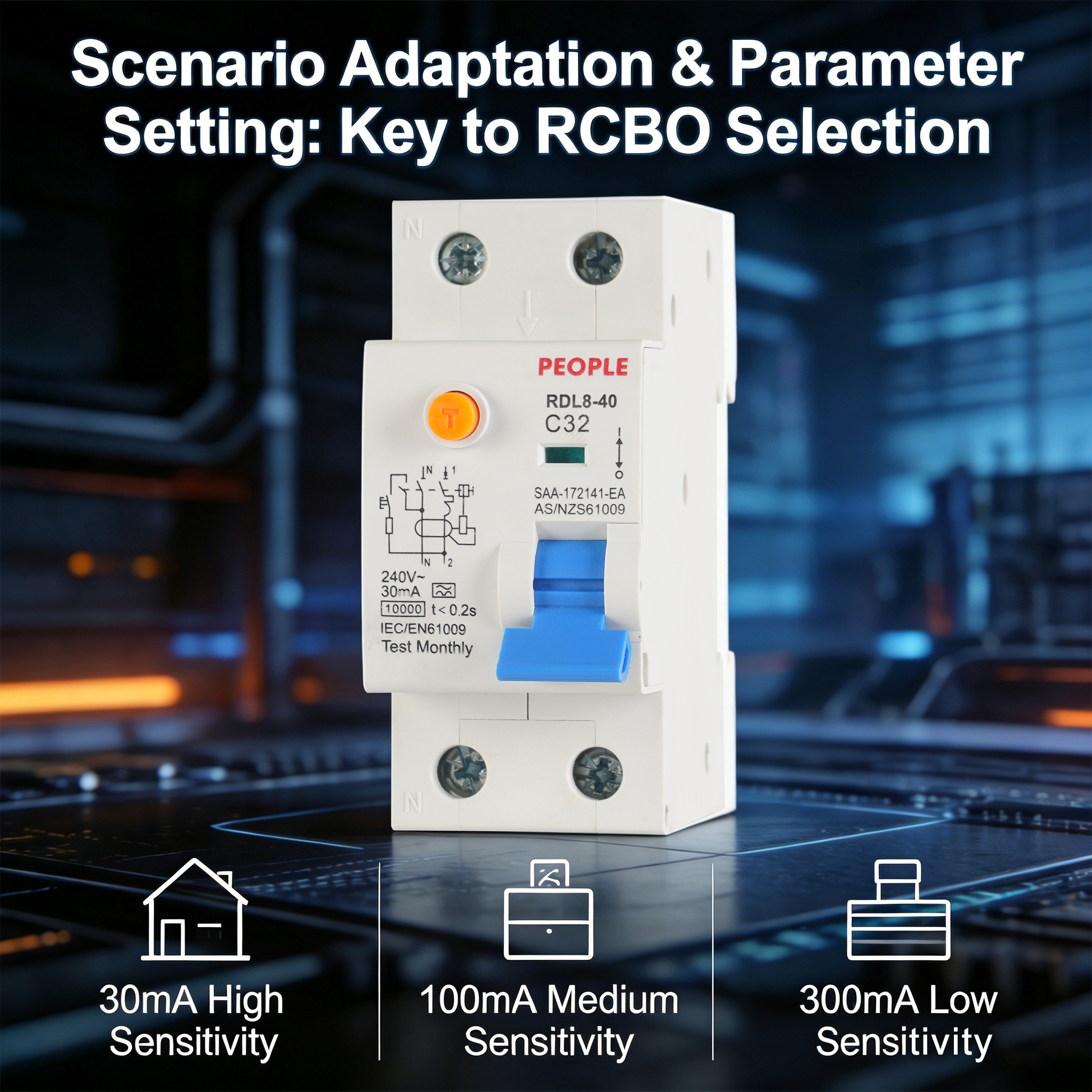

To meet the scenario-based selection demands above, People Electric RDL8-40 Series RCBO provides an all-in-one professional solution. Complying strictly with IEC/EN61009 international standards, this series supports adjustable rated residual operating current of 30mA/100mA/300mA, with rated current ranging from 6A to 40A.
It is available in 1P+N and 3P+N pole configurations, fully compatible with 230/400V, 50/60Hz AC and DC power distribution systems. Integrating overcurrent, short circuit and residual current triple protection, the electromagnetic design ensures an operation time of less than 0.1s. Adopting 35mm standard DIN rail mounting for quick installation, the RDL8-40 Series RCBO is widely applicable to residential, commercial and industrial occasions, solving the common selection dilemma of nuisance tripping from over-sensitivity and hidden safety risks from insufficient sensitivity.
The safety value of an RCBO residual current breaker never depends solely on high sensitivity, but on scientific combination of scenario matching and parameter setting. With professional parameter design, People Electric RDL8-40 Series delivers reliable residual current protection for various power consumption scenarios, enabling precise selection and safe power use for global users.
