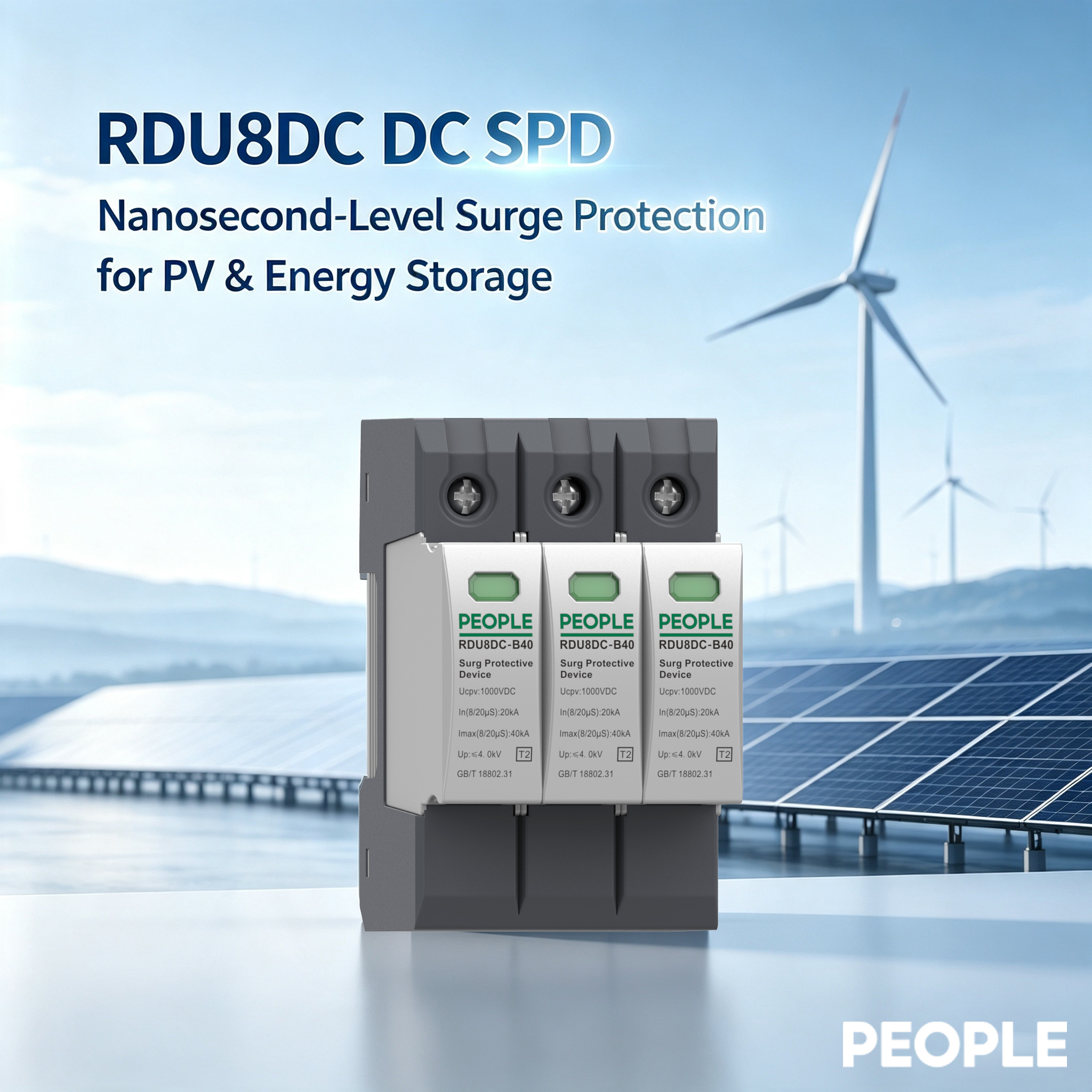

PEOPLE Electric officially launches the RDU8DC series DC surge protective device (SPD), a purpose-built solution for DC power systems in photovoltaic (PV), energy storage, wind power and industrial DC distribution projects. Engineered to address lightning-induced surges and switching overvoltage risks in outdoor renewable energy stations, the RDU8DC delivers nanosecond-speed discharge, wide-environment adaptability and multi-layer safety features, establishing a robust lightning defense for green power infrastructure worldwide.
1. Core Performance: ≤25 ns Nanosecond Surge Discharge for Instant Lightning Interception
Outdoor new energy stations feature long cable runs across open terrain, where lightning induction and grid switching frequently generate kilovolt-level transient overvoltages. Unlike AC systems, DC circuits have no natural zero-crossing point, making surge damage to PV inverters, energy storage BMS and other precision components far more destructive.
✅️ The RDU8DC series achieves a response time of ≤25 nanoseconds, conducting and discharging surge currents the instant lightning-induced overvoltage occurs, delivering significantly faster protection than general-purpose AC SPDs and ensuring suppression activates before surges propagate to downstream equipment.
✅️ It maintains a strict voltage protection level (Up) of ≤4.0 kV, clamping transient voltages to a safe range and eliminating insulation breakdown and thermal runaway fire risks in solar inverters and energy storage controllers.
✅️ Two standard specifications cover graded protection needs: the RDU8DC-B20 delivers 10 kA nominal discharge current (In) with 20 kA maximum discharge current (Imax), while the RDU8DC-B40 offers 20 kA In and 40 kA Imax, delivering reliable high-energy lightning current handling for high-thunderstorm regions and coastal PV farms across Southeast Asia and South China.
2. 1000 VDC Rated Design: Full Compatibility with Global Green Power DC Bus Systems
Most universal surge protectors on the market are designed for AC circuits; direct deployment in DC solar and storage systems often leads to sustained DC arcing and thermal breakdown of internal components. The RDU8DC is fully optimized for high-voltage DC systems.
⭕️ With a maximum continuous operating voltage (Ucpv) of 1000 VDC, it perfectly matches mainstream high-voltage DC bus architectures in distributed PV, utility-scale solar farms, battery energy storage clusters and DC charging piles deployed across Europe, the Middle East and Africa.
⭕️ It is available in 2P and 3P pole configurations, supporting both front-panel and back-panel wiring to fit different cabinet layouts in PV combiner boxes, energy storage distribution cabinets and wind power converters.
⭕️ Compliant with the GB/T 18802.31 national standard and aligned with IEC 61643-31 international specifications, it provides Class II (Type 2) secondary protection. When paired with upstream Class I SPDs, it forms a multi-stage lightning protection system that extends the service life of entire electrical installations.
3. Wide-Temperature All-Weather Durability for Harsh Outdoor Environments
PV plants, onshore wind farms and energy storage stations are often deployed in mountainous areas, coastal zones, high-altitude plateaus and regions with extreme day-night temperature differences. Extreme temperatures, high humidity and condensation drastically shorten the lifespan of standard SPDs. The RDU8DC is engineered for full-climate reliability.
✅️ It supports an operating and storage temperature range of -40°C to +70°C, delivering uninterrupted performance year-round in frigid mountain solar farms in Northern Europe, high-temperature desert PV stations in the Middle East, and high-humidity coastal projects in Southeast Asia.
✅️ It adapts to variable humidity conditions: up to 50% relative humidity at +40°C, and up to 90% at +20°C. Its internal components feature insulation optimization for condensation caused by temperature fluctuations, preventing moisture-induced degradation.
✅️ It is certified for installation at altitudes up to 2000 m, avoiding discharge gap breakdown and leakage current spikes in low-pressure high-altitude environments such as plateau solar projects.
✅️ With an IP20 protection rating and Pollution Degree 2 classification, it is designed for in-cabinet installation and resists dust and foreign object intrusion, meeting standard requirements for new energy distribution enclosures.
4. Built-In Multi-Layer Safety Design to Eliminate DC Arc Fire Risks
The difficulty of naturally extinguishing DC arcs is a major industry safety hazard. The RDU8DC integrates multi-layer protective structures to eliminate failure risks at the source.
⭕️ It features an independent thermal trip mechanism: when varistor aging causes abnormal temperature rise, the device automatically disconnects from the main circuit and isolates the faulty module, preventing sustained DC arcing from igniting cables.
⭕️ A front-panel visual status indicator allows maintenance teams to identify device failure without disassembly, reducing inspection workload at unmanned new energy stations.
⭕️ An optional remote alarm contact module can connect to SCADA monitoring systems, sending real-time alerts for SPD degradation and tripping faults to support unattended intelligent operation.
⭕️ It supports standard 35 mm DIN rail mounting, with both vertical (inclination ≤±5°) and horizontal installation options, making it compatible with the vast majority of new energy combiner cabinets and energy storage enclosures on the market.
5. Versatile Industry Applications Across Global New Energy Projects
With its DC-specific protection performance, the RDU8DC adapts to today’s mainstream new energy and industrial DC projects, addressing surge risks unique to each application scenario.
✅️ Photovoltaic systems: Suitable for residential distributed PV, commercial rooftop solar and utility-scale ground-mounted PV plants. Installed upstream of DC combiner boxes and inverters, it defends against cloud-to-ground lightning induction and transient overvoltages in open-field stations.
✅️ Battery energy storage systems (ESS): Protects DC busbars in lithium-ion battery containers and residential battery cabinets, preventing BMS board damage caused by grid switching and lightning surges.
✅️ Wind power stations: Deployed in DC control circuits and converter cabinets of onshore and offshore wind turbines, delivering stable induction surge suppression even in high-salt coastal environments.
✅️ Other DC scenarios: DC charging piles, rail transit DC distribution, 48V/1000V DC power supplies for telecom base stations, port industrial DC equipment and building intelligent DC microgrids.
✅️ It also supports DC distribution systems in civil buildings, financial data centers and airport terminals, delivering standardized DC surge protection across all industries.
PEOPLE Electric offers the RDU8DC not as a standalone component, but as part of a complete DC distribution and lightning protection package paired with the DC MCBs, PV fuses, DC contactors and smart monitoring meters — ideal for overseas EPC contractors and new energy developers.
As the global transition to carbon neutrality accelerates, lightning and switching overvoltage remain critical risks to the reliable operation of solar, energy storage and other green power equipment. RDU8DC DC surge protective device closes the gap in DC system lightning protection with nanosecond-speed response, all-weather environmental adaptability and multi-layer safety design, building a reliable green power defense for new energy stations and industrial DC projects worldwide.
