Energy Storage Solutions

                                                                 PEOPLE ELECTRIC SERVES THE PEOPLE



















                                Energy Storage Solutions

                                                                                         People energy storage technology at its core

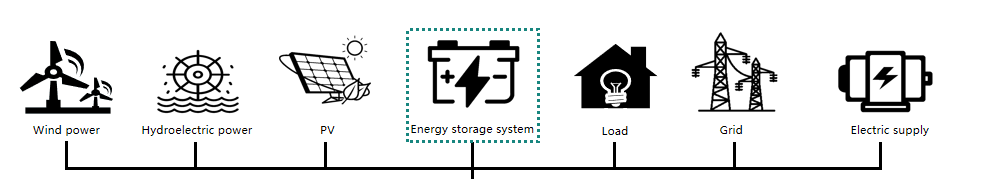

The project covers the construction of a source network with photovoltaic power generation as the core, and the load side with

energy consumption control as the core to create an integrated micro power station with "source, network, load and storage".

Applications  Various types                                                            Applications in Industrial                                           Applications in Urban and

of energy-using equipment                                                             and commercial parks                                                 public buildings

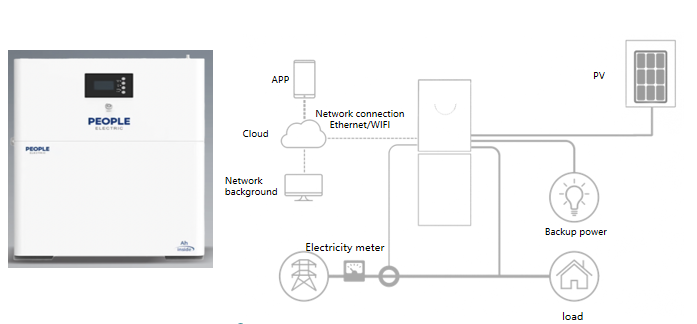

Solution Household PV and BESS

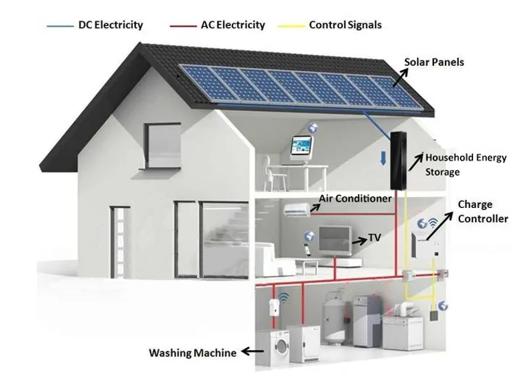

1.The house will be zoned, and one home energy storage unit will be placed, capable of supplying power to the loads in the house.

2.The rational allocation of power lines inside the villa by means of circuit breakers in the distribution box to ensure basic working and living requirements when storing energy for power supply.

3.Customised retrofit solutions according to customer requirements.

Advantages

1.Zero emissions, zero noise, energy saving and environmental protection through the use of photovoltaic power generation

2.Long-term cost savings through the use of photovoltaics for lasting energy savings

3.Rational use of the roof to beautify and insulate the roof from the sun

4.The combination of energy storage for the household enables continuous power supply in the event of a power failure, with a response time of less than 2s.

We provide micro-grid solutions for the house, use distributed photovoltaics and energy storage to form a micro-grid, fundamentally relieve the anxiety of electricity power supply.

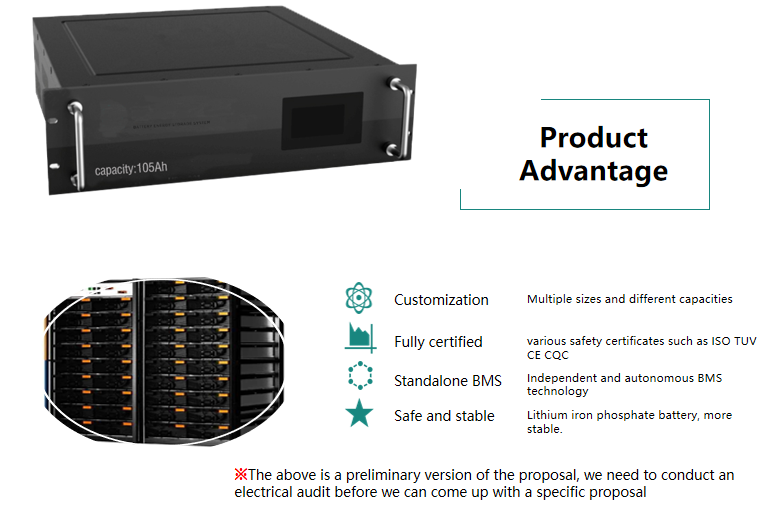

Product Energy storage batteries

Household energy storage

1.High efficiency                          Conversion efficiency ≥98.5%

2.Convenient O&M                     Low maintenance cost

3.Intelligent system                    Stable, efficient and reliable

4.Long life-cycle                          >6000 cycles,

        Item                                                Parameter

Rated power                                             5500W

Battery pack capacity                               5kWh

MPPT Voltage Range                              120v-450v

voltage range                                         43.2v～57.6v

Maximum charging current                       100A

Maximum discharge current                      100A

Discharge cut-off voltage                          43.2V

Range of working temperature             -10°C～50°C

Storage temperature range                  -20°C～60°C

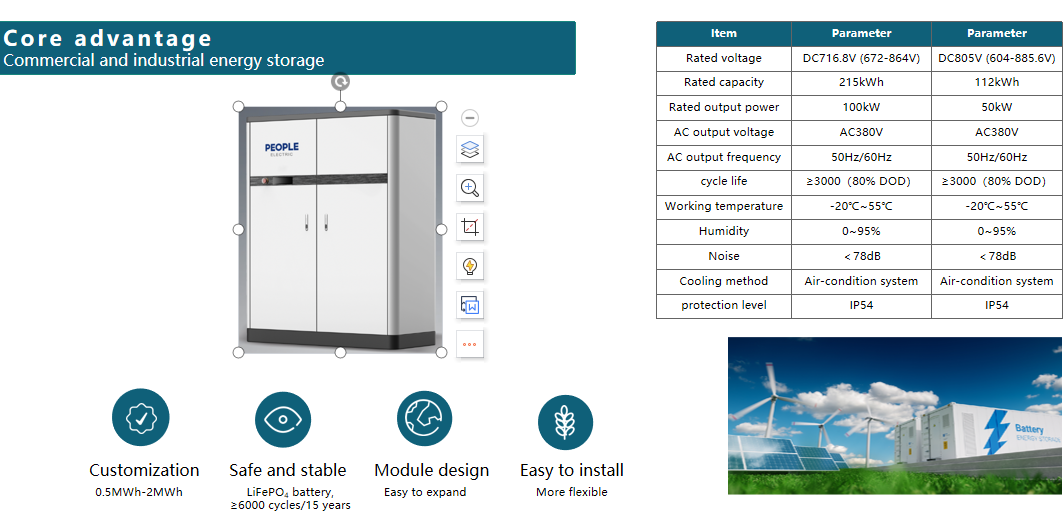

Core advantage Commercial and industrial energy storage
