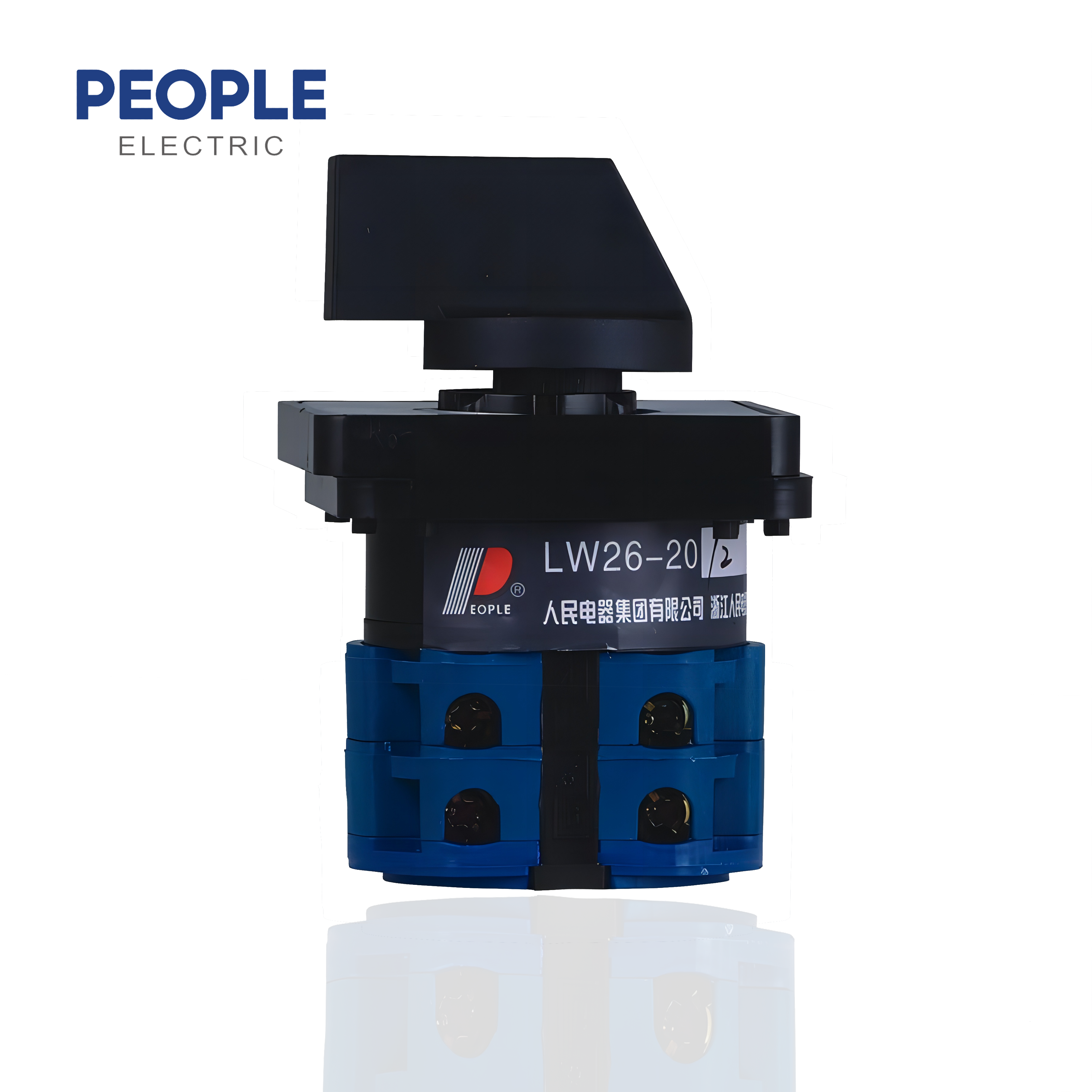

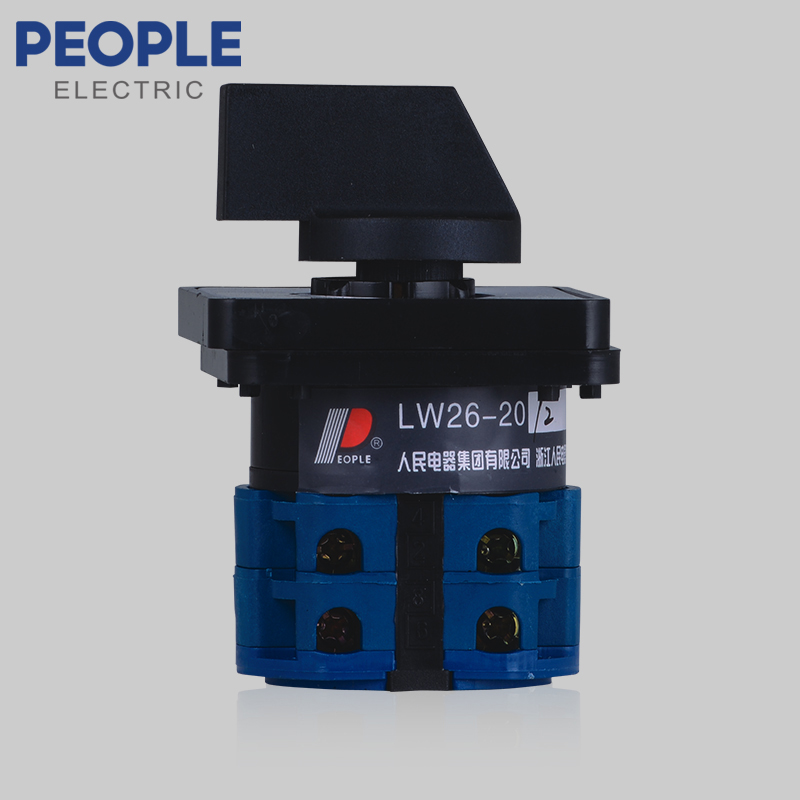

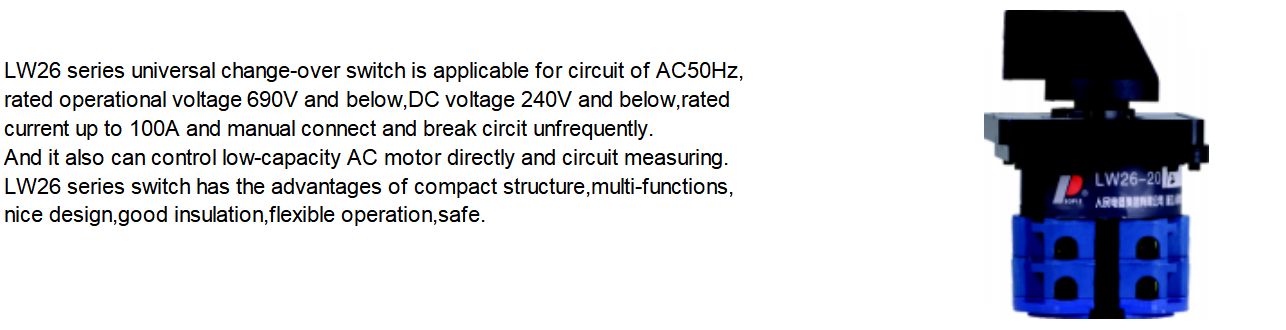

LW26 Series (Change-over Switch)

The LW26 series universal change-over switch is suitable for AC circuits with a frequency of 50Hz, a rated operational voltage of 690V or lower, and DC circuits with a voltage of 240V or lower. It can handle a rated current of up to 100A and is designed for infrequent manual connection and disconnection of circuits.
Additionally, it can directly control small-capacity AC motors and be used for circuit measurement. The LW26 series switch offers several advantages, including a compact structure, multiple functions, an attractive design, good insulation properties, flexible operation, and enhanced safety.


Download as PDF
  • LW26 Series (Change-over Switch)
  • LW26 Series (Change-over Switch)
  • LW26 Series (Change-over Switch)
  • LW26 Series (Change-over Switch)

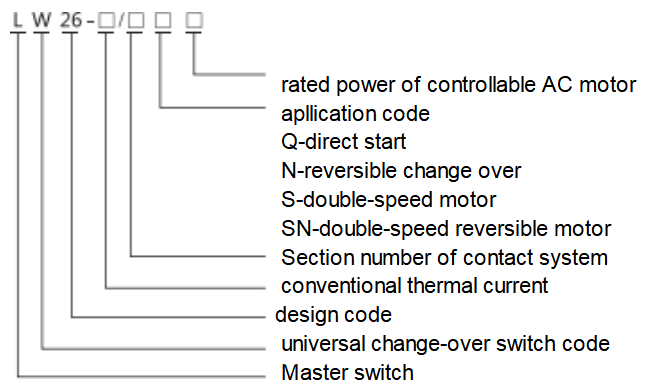

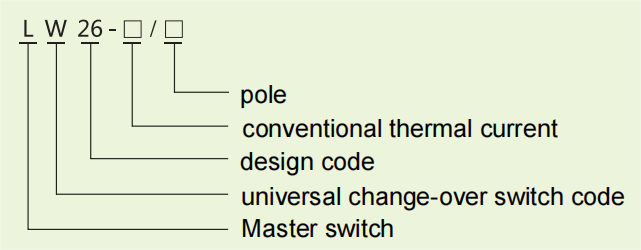

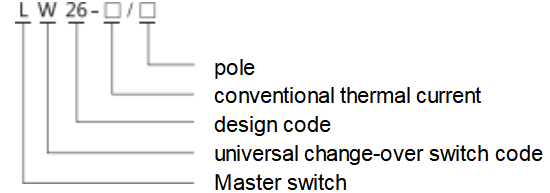

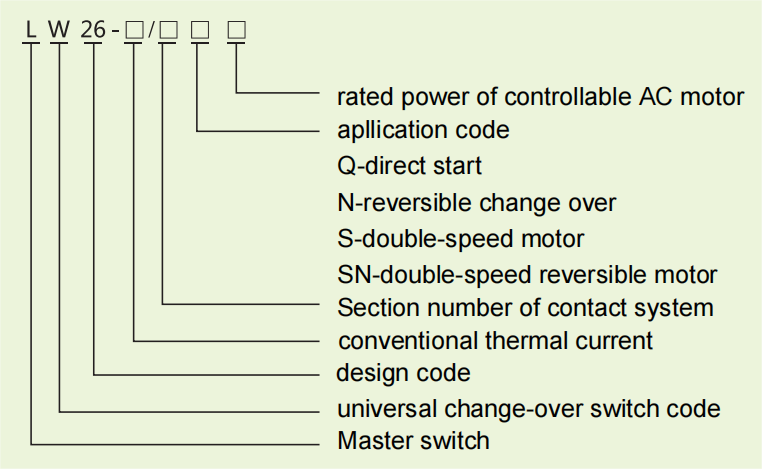

Product Detail

Parameters

Samples & Structures

Dimensions

Working conditions

1.Ambient temperature can not exceed 40℃ and the average temperature,measured over a period of 24 hours ,do not exceed 35℃

2.Ambient temperature should not be below -5℃

3.Should not be installed over 2000m above sea level

4.The humidity should not exceed 50 when the ambient temperature is over 40℃, and higher humidity is allowed at lower temperature

Installation conditions

1.A clean environment is required

2.Please follow our manual

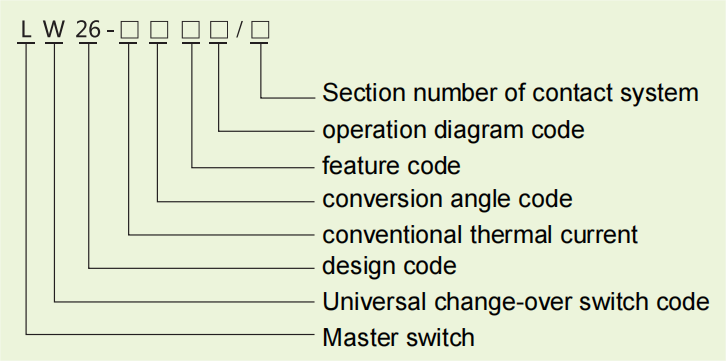

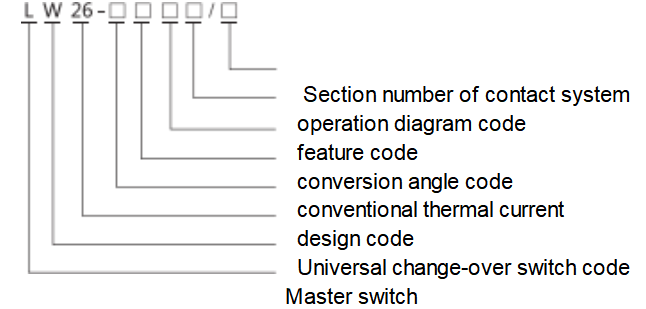

Diagram for the operation and position of handle

Operation type Character code Position of handle
30°Rotation 45°Rotation 60°Rotation 90°Rotation
Spring return A 0° ←30° 0° ←45°
B 30°→ 0° ←30° 45°→ 0° ←45°
Limited movement C 0° 30° 0° 45° 0° 60° 0° 90°
D 30° 0° 30° 45° 0° 45° 60° 0° 60° 90° 0° 90°
E 30° 0° 30° 60° 45° 0° 45° 90° 90° 30° 30° 90° 90° 0° 90° 180°
F 60° 30° 0° 30° 60° 90° 45° 0° 45° 90° 90° 30° 30° 90° 150°
G 60° 30° 0° 30° 60° 90° 90° 45° 0° 45° 90° 135° 150° 90° 30° 30° 90° 150°
H 90° 60° 30° 0° 30° 60° 90° 135° 90° 45° 0° 45° 90° 135°
I 90° 60° 30° 0° 30° 60° 90° 120° 135° 90° 45° 0° 45° 90° 135° 180°
J 120° 90° 60° 30° 0° 30° 60° 90° 120°
K 120° 90° 60° 30° 0° 30° 60° 90° 120° 150°
L 150° 120° 90° 60° 30° 0° 30° 60° 90° 120° 150°
M 150° 120° 90° 60° 30° 0° 30° 60° 90° 120° 150° 180°
N 30° 30°
P 90° 0°
Limited movement with spring return 30°→ 0° 60° 90° 0° ←45° 60°→ 0° ←60°
60°→ 30°→ 0° ←30° ←60° 135°→ 90° 0° ←45° 90°→ 60° 0° 60° ←90°
Z 30°→ 0° 90° ←120° 45°→ 0° ←45° 120°→ 60° 0° 60° ←120°

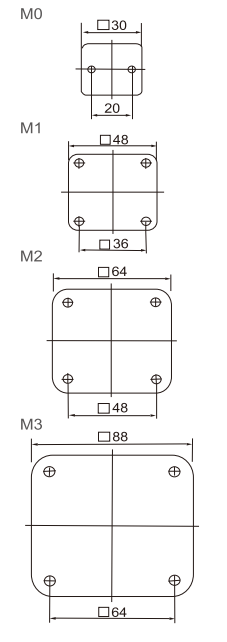

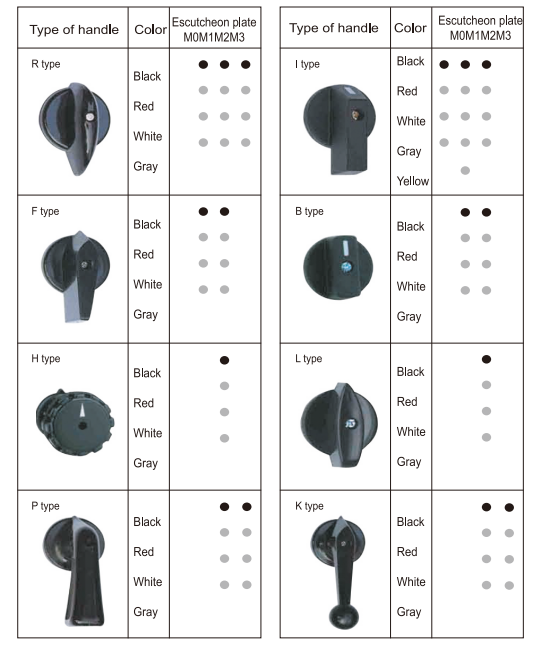

Escutcheon plate and handle

Description Escutcheon plate Type of handle Rotating angle
M0 M1 M1B M2 M2B M3 R F I B H L P K 30° 45° 60° 90°
LW26-10 ● ● ● ● ● ● ●
LW26X-10 ● ● ● ● ● ● ●
LW26-20 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
LW26X-20 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
LW26-25 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
LW26-25 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
LW26-32 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
LW26-63 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
LW26-125 ● ● ● ● ● ● ● ●
LW26-160 ● ● ● ● ● ●

Re:M1B,M2B Plate should be installed by self tapping screw.

LW26
LW26

Main technical parameter

Description   LW26-10 LW26-20 LW26-25 LW26-32 LW26-63 LW26-125 LW26-160
Rated thermal
current Ith		 A 10 20 25 32 125 160
Rated working
voltage Ue		 V 240 440 240 440 240 440 240 440 240 440 240 440 240 440
Rated working
current Ie
AC-21A AC-22A A 10 10 20 20 25 25 32 32 63 63 100 100 100 100
AC-23A A 7.5 7.5 15 15 22 22 30 30 57 57 90 90 135 135
AC-2 A 7.5 7.5 15 15 22 22 30 30 57 57 90 90 135 135
AC-3 A 5.5 5.5 11 11 15 15 22 22 36 36 75 75 95 95
AC-4 A 1.75 1.75 35 3.5 6.5 6.5 11 11 15 15 30 30 55 55
Description LW26-10 LW26-20 LW26-25 LW26-32 LW26-63 LW26-125 LW26-160
AC-15 A 2.5 1.5 5 4 8 5 14 6 - - - - - -
Power
AC-23A KW 1.8 3 3.7/2.5 7.5/3.7 5.5/3 11/5.5 7.5/4 15/7.5 10/15 30/18.5 30/15 45/22 37/22 75/37
AC-2 KW 2.5 3.7 4 7.5 5.5 11 7.5 15 18.5 30 30 45 37 55
AC-3 KW 1.5 2.2 3/2.2 5.5/3 4/3 7.5/3.7 5.5/4 11/5.5 11/6 18.5/11 15/7.5 30/13 11/22 37/18.5
AC-4 KW 0.37 0.55 0.55/0.75 1.5/1.5 1.5/1.1 3/2.2 2.7/1.5 5.5/3 5.5/2.4 7.5/4 6/3 12/5.5 1./4 15/7.5

Re1:Neutral
Re2: The power under: AC-23A,AC-3,Ac-4 are in three phases three poles, and the denominator represents the power under single phase two poles.
Mechanical life
Mechanical life without load:0.1x106 times operation frequency is 120 times/h.
Mechanical life with load:0.03x106 times operation frequency is 120 times/h.

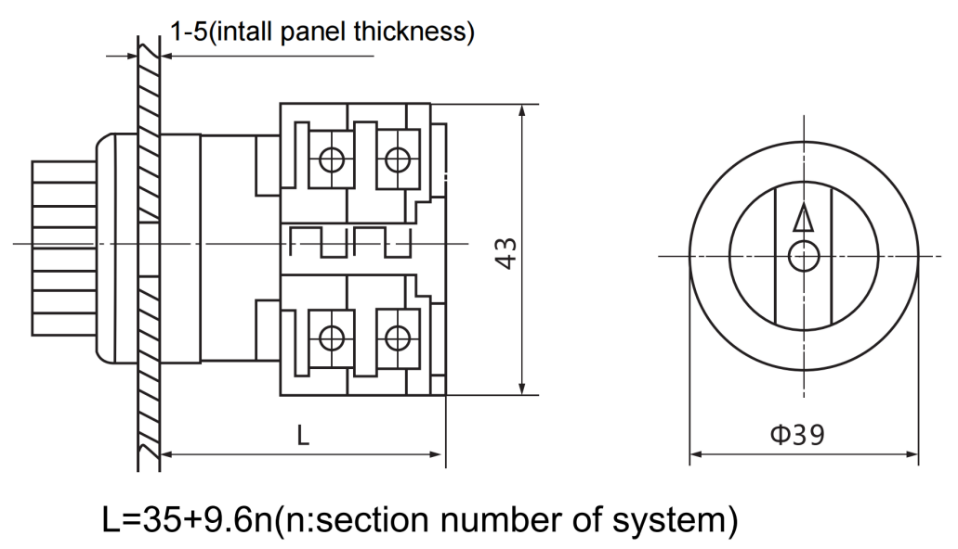

Dimensions and installstion

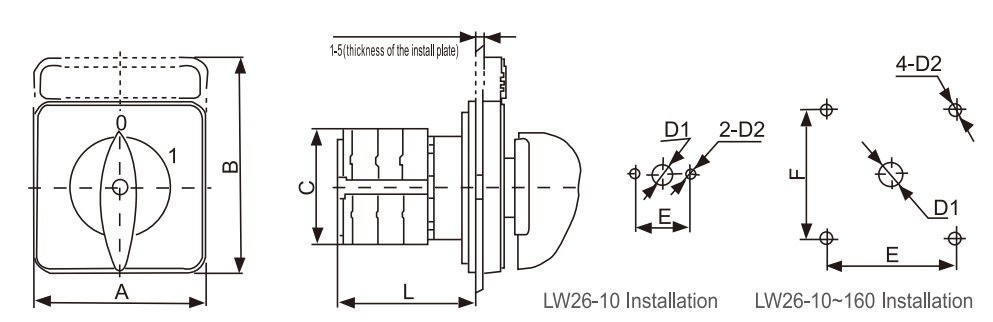

Square escutcheon plate and rectangular escutcheon plate

LW26

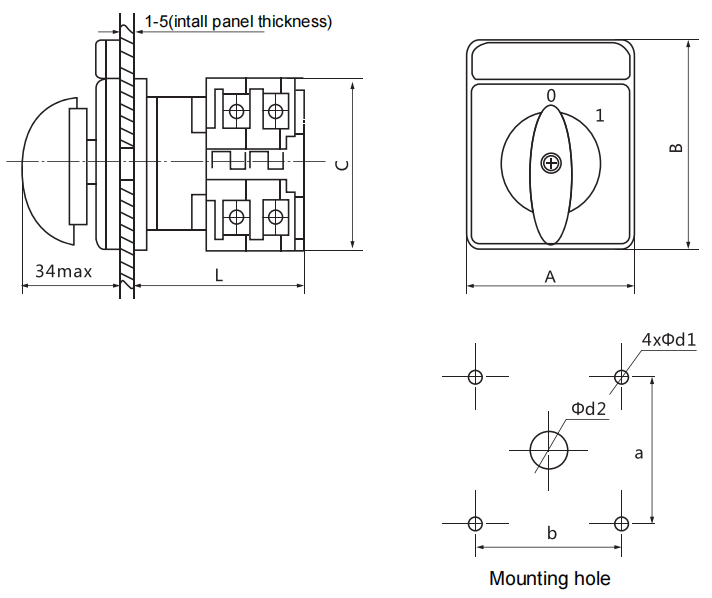

Description Escutcheon plate Dimensions(mm) Installation(mm)
A B C L E F D1 D2
LW26-10 M0 square 30 30 28 22+8n 20 - Φ8 Φ3.2
LW26X-10 M0 square 30 30 28 26.5+12n 20 - Φ8 Φ3.2
LW26-20 M1 square 48 48 43 22+9.6n 36 36 Φ8.5 Φ4.5
LW26-20 M1 rectangular 48 60 43 22+9.6n 36 36 Φ8.5 Φ4.5
LW26-20 M2 square 64 64 43 25+9.6n 48 48 Φ10 Φ4.5
LW26-20 M2 rectangular 64 80 43 25+9.6n 48 48 Φ10 Φ4.5
LW26X-20 M1 square 48 48 46 22+14n 36 36 Φ8.5 Φ4.5
LW26X-20 M1 rectangular 48 60 46 25+14n 36 36 Φ8.5 Φ4.5
LW26X-20 M2 square 64 64 46 25+14n 48 48 Φ10 Φ4.5
LW26X-20 M2 rectangular 64 80 46 25+14n 48 48 Φ10 Φ4.5
LW26-25 M1 square 48 48 45.2 23+12.8n 36 36 Φ8.5 Φ4.5
LW26-25 M1 rectangular 48 60 45.2 23+12.8n 36 36 Φ8.5 Φ4.5
LW26-25 M2 square 64 64 45.2 26.5+12.8n 48 48 Φ10 Φ4.5
LW26-25 M2 rectangular 64 80 45.2 26.5+12.8n 48 48 Φ10 Φ4.5
LW26-32 M2 square 64 64 58 28.2+12.8n 48 48 Φ10 Φ4.5
LW26-32 M2 rectangular 64 80 58 29.2+12.8n 48 48 Φ10 Φ4.5
LW26-32F M1 square 48 48 48 23+14n 36 36 Φ8.5 Φ4.5
LW26-32F M1 rectangular 48 60 48 23+14n 36 36 Φ8.5 Φ4.5
LW26-32F M2 square 64 64 48 24.5+14n 48 48 Φ10 Φ4.5
LW26-32F M2 rectangular 64 80 48 24.5+14n 48 48 Φ10 Φ4.5
Description Escutcheon plate Dimensions(mm) Installation(mm)
A B C L E F D1 D2
LW26-63 M2 square 64 64 66 29.2+21.5n 48 48 Φ10 Φ4.5
M2 rectangular 64 80 66 29.2+21.5n 48 48 Φ10 Φ4.5
M3 square 88 88 66 29.2+21.5n 68 68 Φ13 Φ4.5
M3 rectangular 88 107 66 29.2+21.5n 68 68 Φ13 Φ4.5
LW26-125 M3 square 88 88 84 35+26.5n 68 68 Φ13 Φ6
M3 rectangular 88 107 84 35+26.5n 68 68 Φ13 Φ6
LW26-160 M3 square 88 88 88 35+32.5n 68 68 Φ13 Φ6
M3 rectangular 88 107 88 68 68 Φ13 Φ6

Re:n for number of layers.

LW26

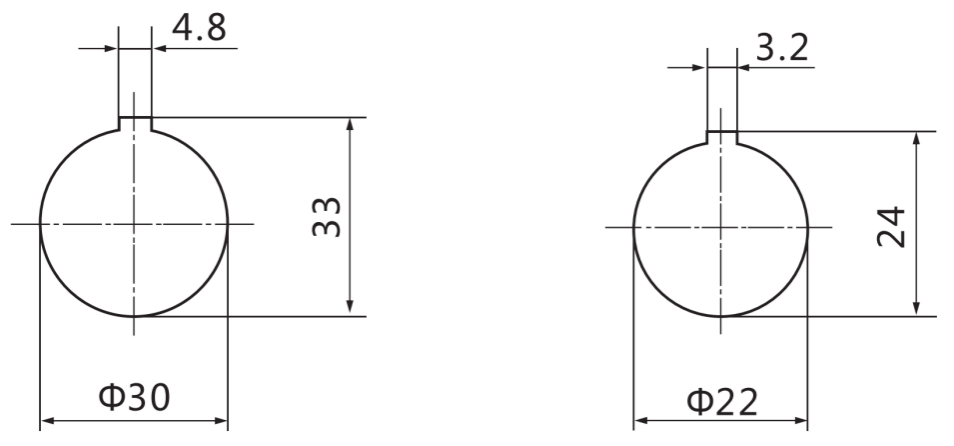

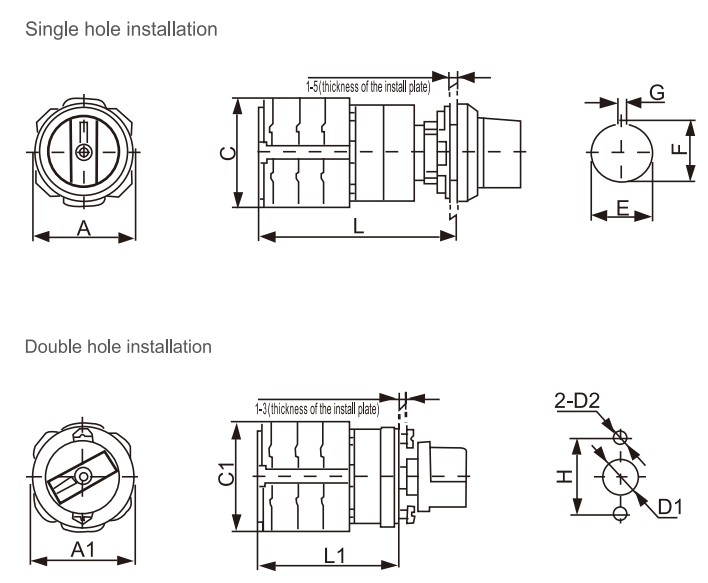

Description Dimensions(mm) Installation(mm)
A B L A1 C1 L1 E F G H D1 D2
LW26-10 Φ29 28 35+8n - - - Φ16.2 18 1.9 - - -
LW26X-10 Φ29 28 39+12n - - - Φ16.2 18 1.9 - - -
LW26-20 Φ39 43 35+9.6n - - - Φ30.5 33 4.8 - - -
LW26-20 Φ39 43 42+9.6n Φ39 43 24+9.6n Φ22.3 24.1 3.2 30 Φ15 Φ5
LW26X-20 Φ39 46 42+14n Φ39 46 25+14n Φ22.3 24.1 3.2 30 Φ15 Φ5
LW26-25 Φ39 45.2 42+12.8n Φ39 45.2 25+12.8n Φ22.3 24.1 3.2 30 Φ15 Φ5
LW26-32F Φ39 48 42+14n Φ39 48 25+14n Φ22.3 24.1 3.2 30 Φ15 Φ5

Main Technical data

Model No. LW26-20 LW26-25 LW26-32 LW26-63 LW26-125 LW26-160
Rated insulation voltage Ui (V) 690V
Conventional thermal current Ith (A) 20 25 32 63 125 160
Rated operation voltage Ue (V) 220 380 500 220 380 500 220 380 500 220 380 500 220 380 220 380
AC-21A AC-22A (A) 20 25 32 63 125 160
AC-2 3P (kW) 4 7.5 10 5.5 11 13 7.5 15 18.5 18.5 30 40 30 45 37 55
AC-3 3P/1P (kW) 3/2.2 5.5/3 5.5 4/3 7.5/3.7 7.5 5.5/4 11/5.5 11 11/6 18.5/11 18.5 15/7.5 30/13 22/11 37/18.5
AC-4 3P/1P (kW) 0.55/0.75 1.5/1.5 1.5 1.5/1.1 3/2.2 2.2 2.5/1.5 5.5/3 5.5 5.5/2.4 7.5/34 7.5 6/3 11/5.5 10/4 15/7.5
AC-23 3P/1P (kW) 3.7/2.5 7.5/3.7 7.5 5.5/3 11/5.5 11 7.5/4 15/7.5 15 15/10 30/18.5 45 30/15 45/22 37/22 75/37
AC-15 (A) 5 4   8 5   14 6
AC-13 (A) 1           1.5     11
Mechanical life 60×10⁴ Operation frequency 120/h
AC-15 electrical life 20×10⁴ Operation frequency 300/h
AC-13 electricallife 6×10⁴ Operation frequency 300/h

7

Appearance

6.2 Square panel appearance dimension and mounting dimension. See Table2

8

Specification Appearance dimension Install dimension
A B C L d1 d2 axb
20A 50 50 Φ46.5 19×13n Φ5.5 Φ6.5 36×36.5
32A 64.5 64.5 Φ58.5 24×13n Φ5 Φ8 48×48
63A 64.5 64.5 Φ66.5 25×22n Φ5 Φ8 48×48
125A 89 89 Φ99 32×27n Φ5.4 Φ11 68×68
160A 89 89 Φ95.5 32×32.5n Φ5.4 Φ11 68×68

6.2 Round panel appearance dimension

9

6.3 LW26-20GS Installation dimension

10
