JBK Series (Control Transformer) Featured Image

JBK Series (Control Transformer)

JBK series machine tool control transformer is applied to circuit of AC 50Hz/60Hz and output voltage up to 660V.It is usually used as the control power-supply of kinds of machine tool and mechannical equipments.and also as the power supply for local illumination indicator lamp.

This production has the advantage of stable operation,low consumption,small volume,safe connection,large application.

It conforms to standards of IEC/EN61558.


Download as PDF
  • JBK Series (Control Transformer)
  • JBK Series (Control Transformer)
  • JBK Series (Control Transformer)
  • JBK Series (Control Transformer)

Product Detail

Parameters

Samples & Structures

Dimensions

Main Technical Parameter

JBK series control transformer voltage type see Table 1

Specification(Table 1) First voltage V Secondary voltage V
Control Illumination Indicator
40VA 220V/380V 110(127)(220) 24(36) (48) (12) 6
63VA
100VA
160VA
250VA
400VA
630VA
1000VA
1600VA
2000VA
2500VA

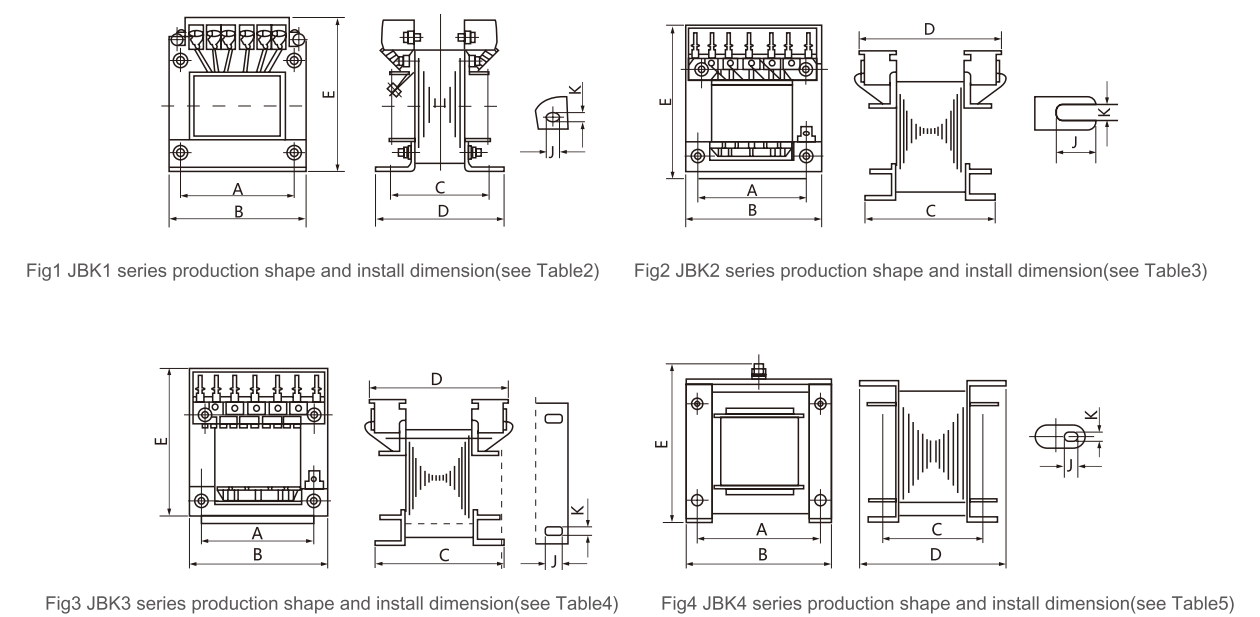

Appearance and Installation Dimension

JBK

JBK series control transformer voltage type see Table 2

Model No.(Table 2) Install dimension mm Install dimension mm Shape mm Notice
A C K J B D E
JBK1-40VA 83 55 6 10 96 80 108 Shape and install dimension for reference only,if any special requirements,please note it in the order.
JBK1-63VA 83 55 6 10 96 80 108
JBK1-100VA 83 70 6 10 96 94 108
JBK1-160VA 90 90 7 13 126 130 110
JBK1-250VA 90 114 7 13 126 130 136
JBK1-400VA 110 100 8 14 150 146 126
JBK1-630VA 110 110 8 14 150 176 136
JBK1-1000VA 130 120 8 14 180 176 146
JBK1-1600VA 150 140 9 16 196 193 166
JBK1-2000VA 150 154 9 16 196 233 180

JBK2 series production appearance dimension

Model No.(Table 3) Install dimension mm Install bore mm Shape mm
A C K J B D E
JBK2-40VA 78 65 6 12 90 84 97
JBK2-63VA 78 65 6 12 90 84 97
JBK2-100VA 78 78 6 12 90 94 97
JBK2-160VA 90 78 6 12 108 94 112
JBK2-250VA 90 88 6 12 108 105 112
JBK2-400VA 105 84 8 16 136 108 127
JBK2-630VA 120 95 8 16 144 120 142

JBK3 series production appearance dimension

Model No.(Table 4) Install dimension mm Install bore mm Shape mm
A C K J B D E
JBK3-40VA 55 50 6 9 80 78 90
JBK3-63VA 55 50 6 9 80 78 90
JBK3-100VA 65 65 6 9 87 95 92
JBK3-160VA 85 76 6 9 96 99 106
JBK3-250VA 85 90 6 9 100 106 102
JBK3-400VA 102 85 8 14 125 108 126
JBK3-630VA 130 82 8 14 155 107 145
JBK3-1000VA 155 125 φ8 φ8 205 155 155
JBK3-1600VA 185 157 φ8 φ8 220 180 150
JBK3-2500VA 174 200 7 12 210 265 175

JBK4 series production appearance dimension

Model No.(Table 5) Install dimension mm Install bore mm Shape mm
A C K J B D E
JBK4-40VA 55 50 6 9 78 80 92
JBK4-63VA 55 50 6 9 78 80 92
JBK4-100VA 65 65 6 9 84 96 95
JBK4-160VA 85 71 6 9 96 100 110
JBK4-250VA 85 82 6 9 96 112 110
JBK4-400VA 102 86 8 14 12 106 128
JBK4-630VA 110 110 8 14 150 104 150

JBK5 series production appearance dimension

Model No.(Table 6) Install dimension mm Shape mm weight kg
A C B D E
40VA 56 46 78 72 90 1.09
63VA 56 46 78 72 90 1.18
100VA 64 62 84 92 96 1.98
160VA 84 73 96 92 106 2.55
200VA 84 85 96 108 106 3.15
250VA 84 85 96 108 106 3.44
300VA 93 84 120 95 122 4.76
400VA 93 84 120 100 122 5
500VA 93 99 120 115 122 6.8
630VA 125 92 150 115 155 8.16
800VA 125 105 150 130 155 9.08
1000VA 140 158 160 195 145 11.25
1600VA 155 180 184 225 145 13.6
2500VA 165 210 200 250 171 22.35

Main technical parameter

JBK series control transformer voltage type see Table1

Specification First voltage V Secondary voltage V
control illumination indicator
40VA 220V or 380V 110(127)(220) 24(36) (48) (12) 6
63VA 220V or 380V 110(127)(220) 24(36) (48) (12) 6
100VA 220V or 380V 110(127)(220) 24(36) (48) (12) 6
160VA 220V or 380V 110(127)(220) 24(36) (48) (12) 6
250VA 220V or 380V 110(127)(220) 24(36) (48) (12) 6
400VA 220V or 380V 110(127)(220) 24(36) (48) (12) 6
630VA 220V or 380V 110(127)(220) 24(36) (48) (12) 6
1000VA 220V or 380V 110(127)(220) 24(36) (48) (12) 6
1600VA 220V or 380V 110(127)(220) 24(36) (48) (12) 6
2000VA 220V or 380V 110(127)(220) 24(36) (48) (12) 6
2500VA 220V or 380V 110(127)(220) 24(36) (48) (12) 6

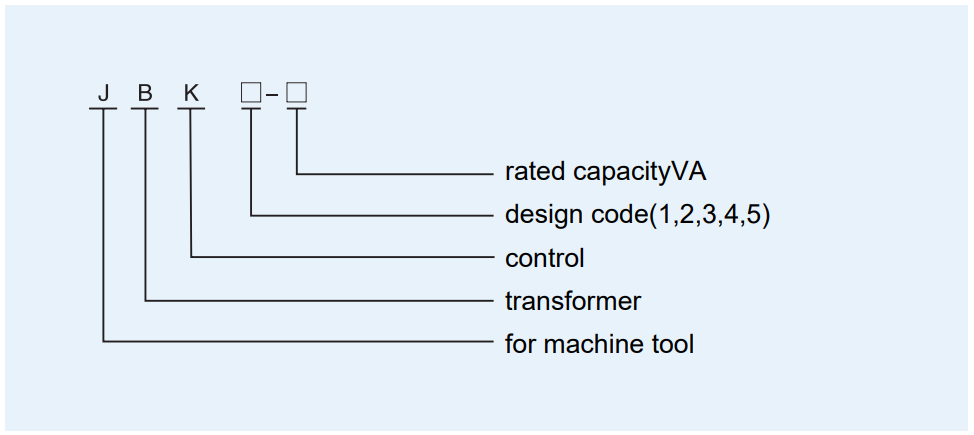

Model No.

33

Structure

This production has the advantage of stable operation, low consumption, small volume, safe connection, large application.

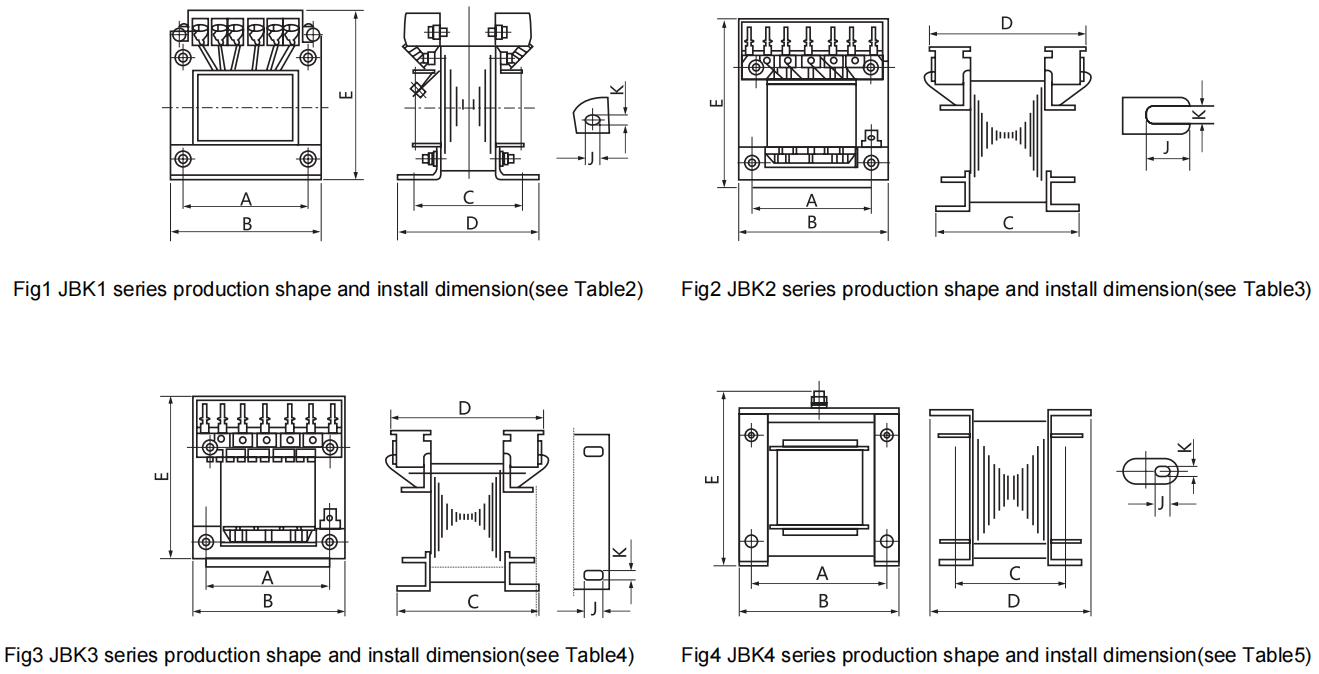

Appearance and install dimension

34

JBK1 series production appearance dimension                                                                                                                              Table2

Model No. Install dimension mm Install bore mm Shape mm Note
A C K J B D E
JBK1-40VA 83 55 6 10 96 80 108 Shape and install dimension for reference only, if any special requirements, please note it in the order.
JBK1-63VA 83 55 6 10 96 80 108
JBK1-100VA 83 70 6 10 96 80 108
JBK1-160VA 90 90 7 13 126 130 110
JBK1-250VA 90 114 7 13 126 130 136
JBK1-400VA 110 100 8 14 150 146 126
JBK1-630VA 110 110 8 14 150 176 136
JBK1-1000VA 130 120 8 14 180 176 146
JBK1-1600VA 150 140 9 16 196 193 166
JBK1-2000VA 150 154 9 16 196 233 180

JBK2 series production appearance dimension                                                                                          Table3

Model No. Install dimension mm Install bore mm Shape mm
A C K J B D E
JBK2-40VA 78 65 6 12 90 84 97
JBK2-63VA 78 65 6 12 90 84 97
JBK2-100VA 78 78 6 12 90 94 97
JBK2-160VA 90 78 6 12 108 94 112
JBK2-250VA 90 88 6 12 108 105 112
JBK2-400VA 105 84 8 16 136 108 127
JBK2-630VA 120 95 8 16 144 120 142

JBK3 series production appearance dimension                                                                                          Table4

Model No. Install dimension mm Install bore mm Shape mm
A C K J B D E
JBK1-40VA 55 50 6 9 80 78 90
JBK1-63VA 55 50 6 9 80 78 90
JBK1-100VA 65 65 6 9 87 95 92
JBK1-160VA 85 76 6 9 96 99 106
JBK1-250VA 85 90 6 9 100 106 102
JBK1-400VA 102 85 8 14 125 108 126
JBK1-630VA 130 82 8 14 155 107 145
JBK1-1000VA 155 125 Φ8 Φ8 205 155 155
JBK1-1600VA 185 157 Φ8 Φ8 220 180 150
JBK1-2500VA 174 200 7 12 210 265 175

JBK4 series production appearance dimension                                                                                          Table5

Model No. Install dimension mm Install bore mm Shape mm
A C K J B D E
JBK2-40VA 55 50 6 9 78 80 92
JBK2-63VA 55 50 6 9 78 80 92
JBK2-100VA 65 65 6 9 84 96 95
JBK2-160VA 85 71 6 9 96 100 110
JBK2-250VA 85 82 6 9 96 112 110
JBK2-400VA 102 86 8 14 12 106 128
JBK2-630VA 110 110 8 14 150 104 150

JBK5 series production appearance dimension                                                                  Table6

Model No. Install dimension mm Shape mm Weight kg
A C B D E
40VA 56 46 78 72 90 1.09
63VA 56 46 78 72 90 1.09
100VA 64 62 84 92 96 1.09
160VA 84 73 96 92 106 2.55
200VA 84 85 96 108 106 3.15
250VA 84 85 96 108 106 3.44
300VA 93 84 120 95 122 4.76
400VA 93 84 120 100 122 5
500VA 93 99 120 115 122
630VA 125 92 150 115 155 8.16
800VA 125 105 150 130 155 9.08
1000VA 140 158 160 195 145 11.25
1600VA 155 180 184 225 145 13.6
2500VA 165 210 200 250 171 22.35
