DTS858 (Energy Meter)

DSS858/DTS858 three-phase electronic energy meter adopts large scale integrated circuit,16-bit A/D conversion,digital multiplier,digital sampling and SMT technology,can measure positive/reverse active power of 3-phase directly and accurately and indicate by LCD. With extra additional infrared and Rs485 communication function.

Stable and reliable, with exellent anti-electromagnetic interference performance,low consumption,high accuracy,anti electric-stealing.

It conforms to the standard IEC61036.

Send email to us Download as PDF

Product Detail

Technical Features

Model	Category	Reference voltage	Rated current In	Impulse constant
DSS858	3 phases 3 wires	3x100V	3x1.5(6)A	Based on nameplate
		3x100V	3x3(6)A
		3x380V	3x1.5(6)A
			3x3(6)A
			3x2.5(10)A
			3x5(20)A
			3x10(40)A
			3x15(60)A
			3x20(80)A
			3x30(100)A
DTS858	3 phases 4 wires	3x57.5/100V	3x1.5(6)A
			3x3(6)A
			3x1.5(6)A
			3x3(6)A
			3x2.5(10)A
			3x5(20)A
			3x10(40)A
			3x15(60)A
			3x20(80)A
			3x30(100)A


Normal working voltage	0.8~1.2 rated voltage
Isolation voltage	≥2000V(AC)
Voltage cycle power consumption	≤2W,10VA
Accuracy	1.0 class; 2.0 class

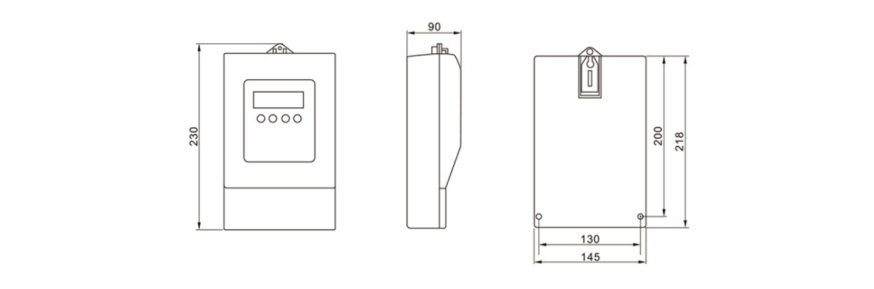

Outline size	230x145x90mm
Weight	About 3Kg
