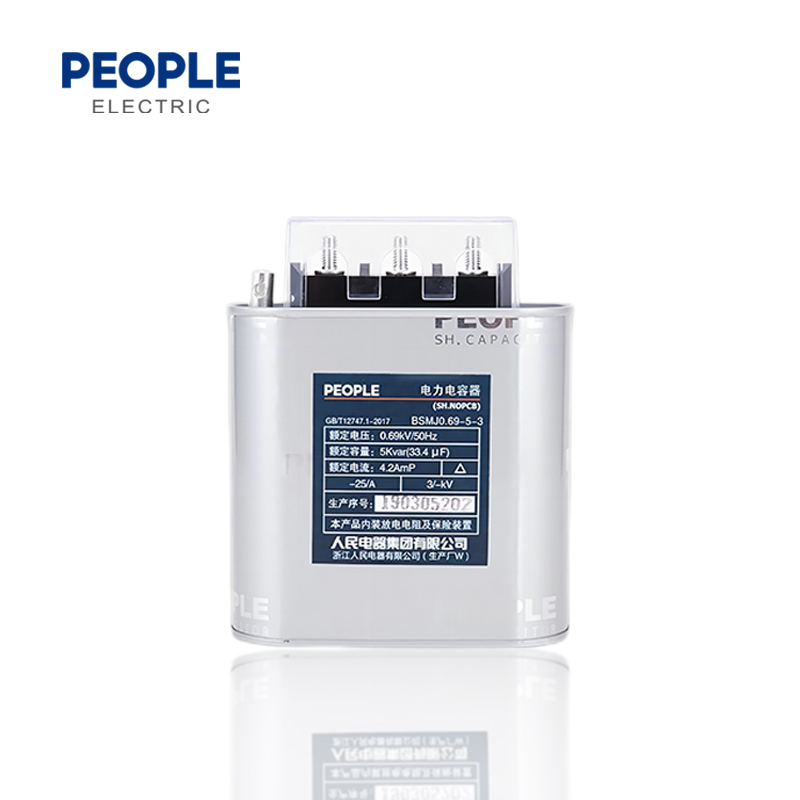

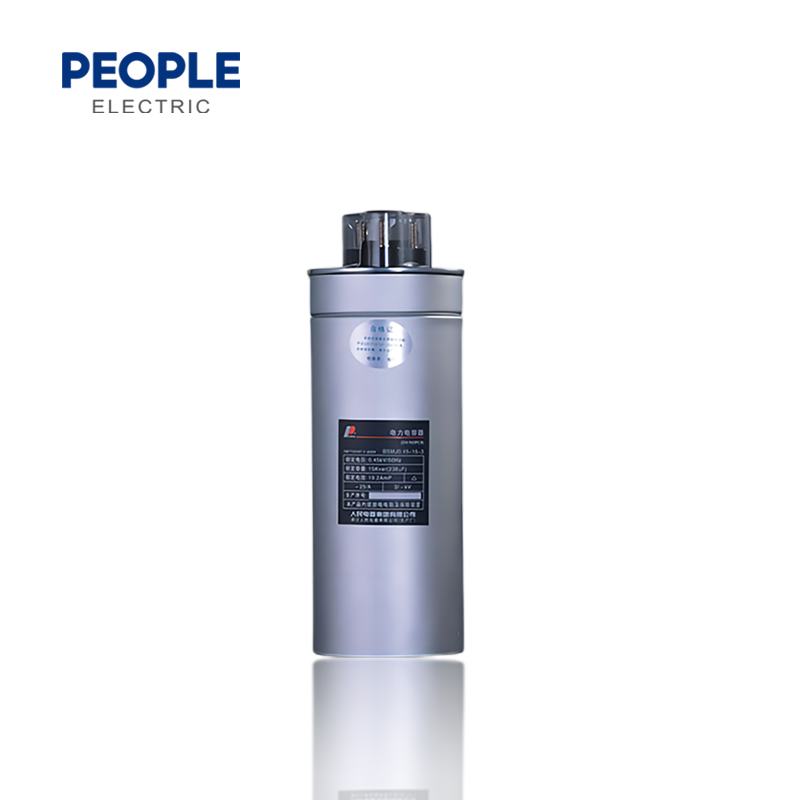

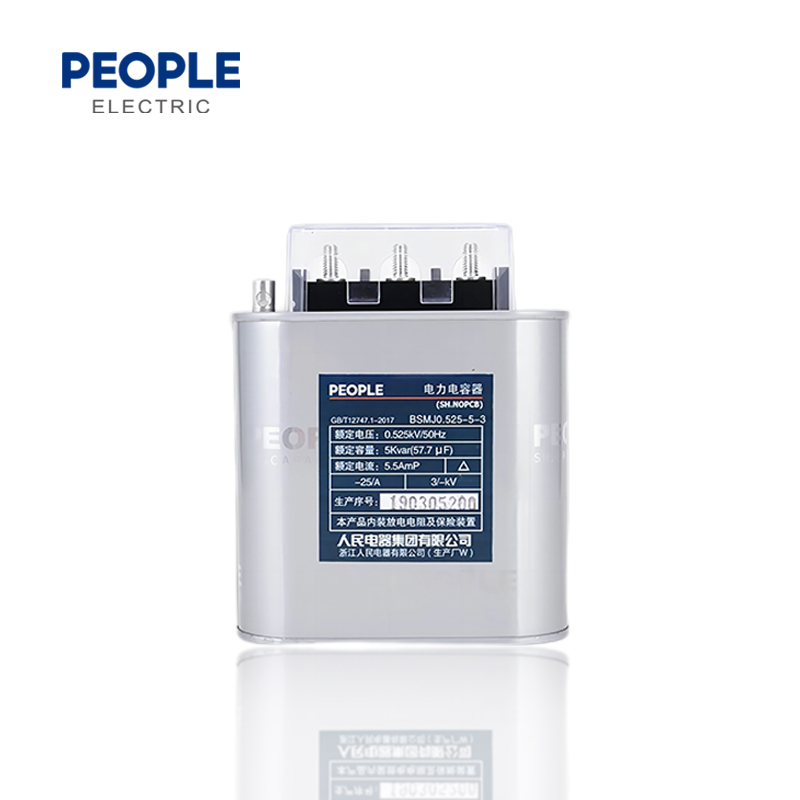

BSMJ(Y) BCMJ(Y) Series Capacitor – Self-Healing Shunt Type

It is very small and light, so it is easy to carry and install. They also have the characteristics of high efficiency and low energy consumption, which can save energy costs for users. At the same time, it also has the characteristics of low noise and low vibration, which can provide users with a more comfortable use experience.

BSMJ (Y) and BCMJ (Y) series are excellent new products, which are characterized by fully sealed structure, small size, light weight, good durability, low energy consumption, low noise, and can meet the needs of different users. If you are looking for a product with high quality and reliable performance, these products must be your best choice

Send email to us Download as PDF

Product Detail

Application

Parameters

Samples & Structures sample

Dimensions

Product Introduction

Characteristic

3.1 Characteristic
3.1.1 Small volume,realiable quality
3.1.2 Applicable for the high temperature and large system voltage wave location
3.1.3 Good sealing.
3.1.4 Firm, conveninet installation
3.1.5 convenient connecting terminal.
3.1.6 Anti-corrosion metal shell
3.2 Notice
3.2.1 Overvoltage and overheating would shorten life of capacitor.
3.2.2 The following situation should be attention,when install shunt capacitor in the system.
a. It can not install shunt capacitor directly under serious harmonic. (anti-harmonic reactor need to install)
b. When transformer does no-load running,capacitor should quit operating.
3.2.3 capacitor connecting to circuit needs to delay 3mins and above. Only after breaking power-supply and discharging by short-circuit, it can be touched and measured.
3.2.4 MCB should be choosen according to 2-3 times of capacitor rated current.

About Us

Our company is committed to providing customers with first-class products and services based on the principle of service first and customer first. As an enterprise dedicated to customer satisfaction, we have always adhered to customer demand as the center, and constantly improved and improved our products and services.

Our team is composed of a group of passionate, experienced and skilled professionals. Our employees not only have professional skills, but also have good communication and cooperation skills to ensure that our customers can get the best service.

Our products and services cover various industries and fields, including but not limited to IT, finance, medical care, education and government. We always pay attention to the development of the market, constantly innovate, and constantly improve our products and services to meet the needs of different customers.

We believe that through our services and products, we can help customers improve production efficiency, reduce costs, improve product and service quality, and enhance customer competitiveness. We look forward to working with you to jointly achieve business goals and create a better future.

BSMJ(Y) BCMJ(Y) series self-healing low-voltage shunt capacitor,is applicable for AC power system of voltage up to 1000V, is usedfor improving lowvoltage network power factor and voltage qualityand decreasing reactive power consumption. This production conforms to the Standard of IEC60831-1996.

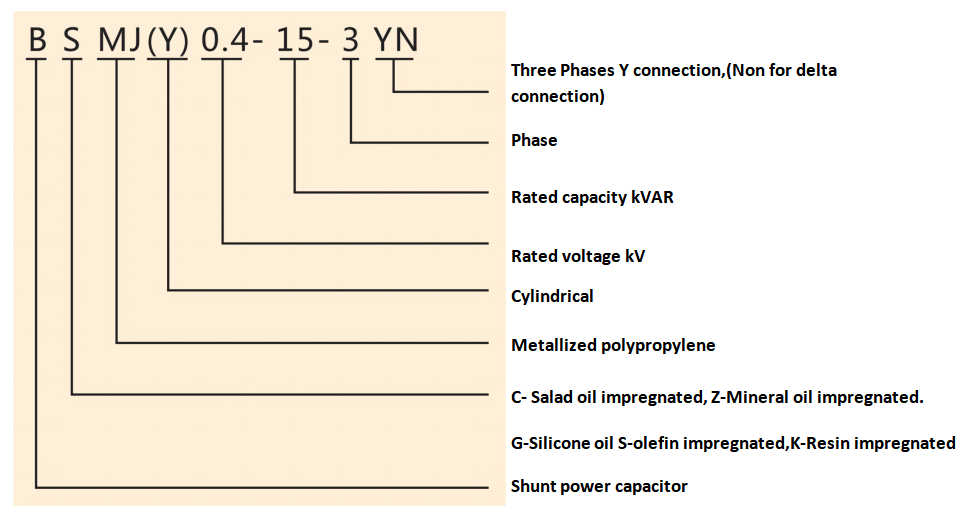

Model No.

Rated voltage			250VAC、400VAC、450VAC
			525VAC、690VAC、750VAC
Rated capacity			1-50kVAR
Error			0~+10%
Low dissipation factor			lower than 0.10%
Junction withstand voltage			1.75Vn10s junction shell 3kVA10s
Insulation			junction shell 500VDC 1 min bigger than 100M
Max overload voltage			110%of rated voltage
Max overload current			130%of rated current
Self-discharge feature			1min after poweroff,residual voltage decreases to 50V and below

Specification	Rated voltage(kV)	Nominal capacity(Kvar)	Total capacity(uF)	Rated current(A)	Shape and High(mm)
BSMJ0.4-3-3	0.4(50HZ)	3	59	4.3	Type A H=115
BSMJ0.4-5-3		5	99	7.2
BSMJ0.4-7.5-3		7.5	149	10.8	Type A H=135
BSMJ0.4-8-3		8	158	11.5
BSMJ0.4-10-3		10	198	14.4	Type A H=175
BSMJ0.4-12-3		12	238	17.3
BSMJ0.4-14-3		14	278	20.2	Type A H=215
BSMJ0.4-15-3		15	298	21.7
BSMJ0.4-16-3		16	318	23.1
BSMJ0.4-18-3		18	358	26	Type A H=245
BSMJ0.4-20-3		20	398	28.9
BSMJ0.4-25-3		25	498	36	Type B H=215
BSMJ0.4-30-3		30	597	43.3	Type B H=245
BSMJ0.4-40-3		40	796	57.7	Type B H=300
BSMJ0.4-50-3		50	995	72.2	Type C

Specification	Rated voltage(kV)	Nominal capacity(Kvar)	Total capacity(uF)	Rated current(A)	Shape and High(mm)
BSMJ0.45-3-3	0.45(50HZ)	3	47	3.8	Type A H=115
BSMJ0.45-5-3		5	78	6.4
BSMJ045-7.5-3		7.5	118	9.6	Type A H=135
BSMJ0.45-8-3		8	126	10.3
BSMJ045-10-3		10	157	12.8	Type A H=175
BSMJ0.45-12-3		12	188	15.4
BSMJ045-14-3		14	220	18	Type A H=215
BSMJ045-15-3		15	236	19.2
BSMJ045-16-3		16	251	20.5
BSMJ0.45-18-3		18	283	23	Type A H=245
BSMJ0.45-20-3		20	314	25.7
BSMJ0.45-25-3		25	393	32	Type B H=215
BSMJ045-30-3		30	471	38.5	Type B H=245
BSMJ045-40-3		40	629	51.3	Type B H=300
BSMJ045-50-3		50	786	64.2	Type C

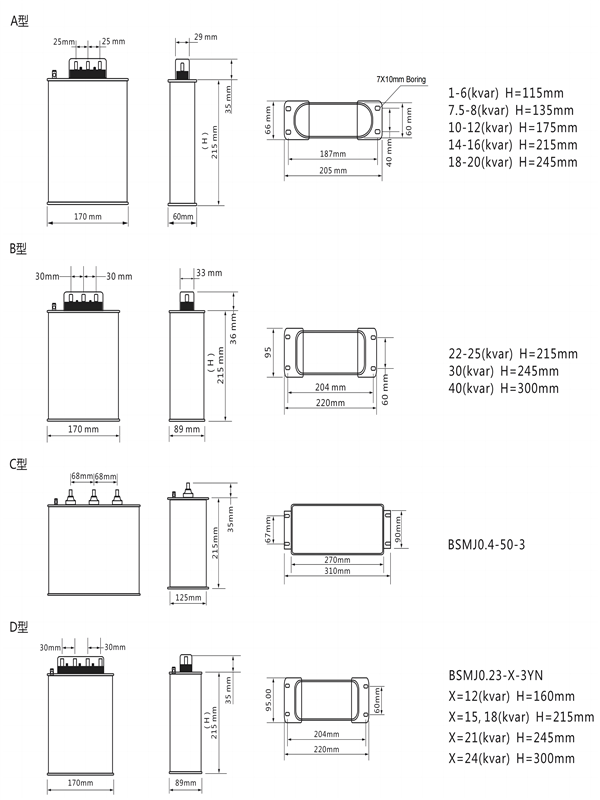

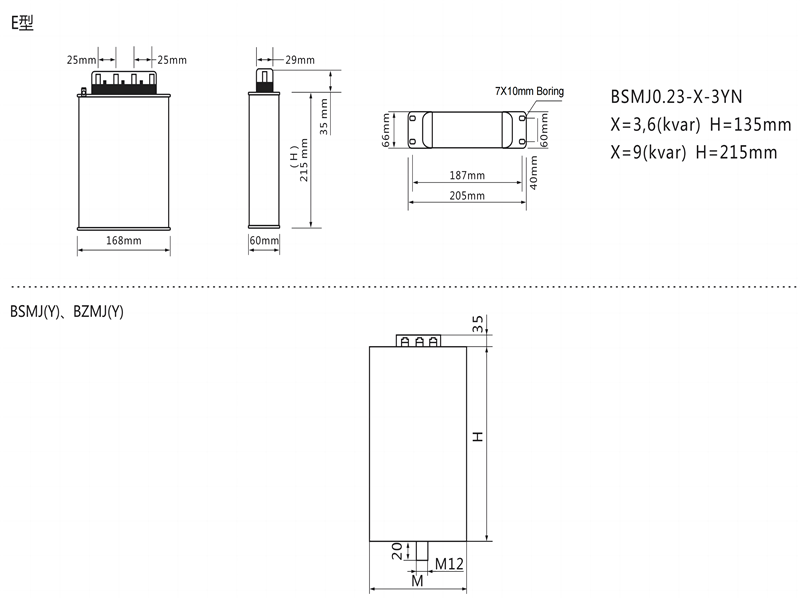

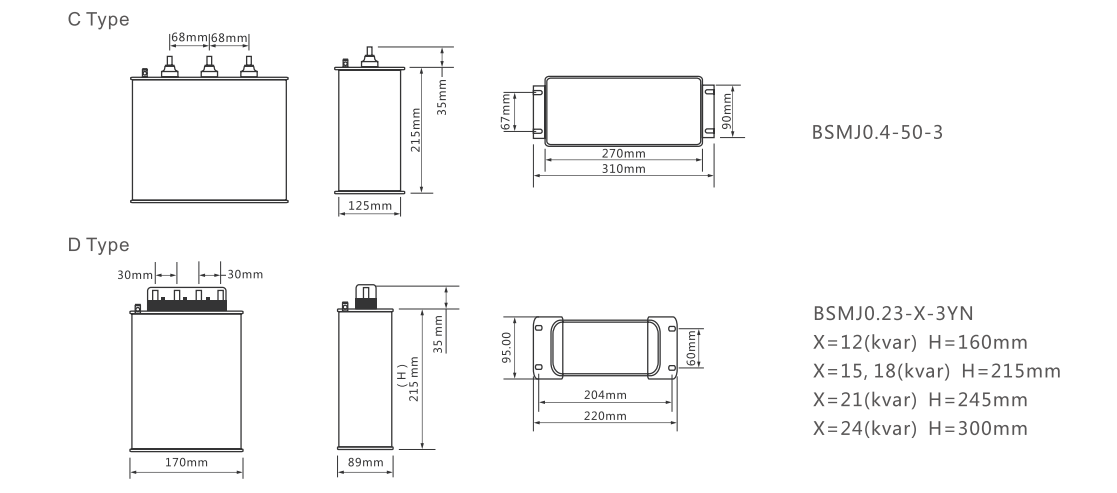

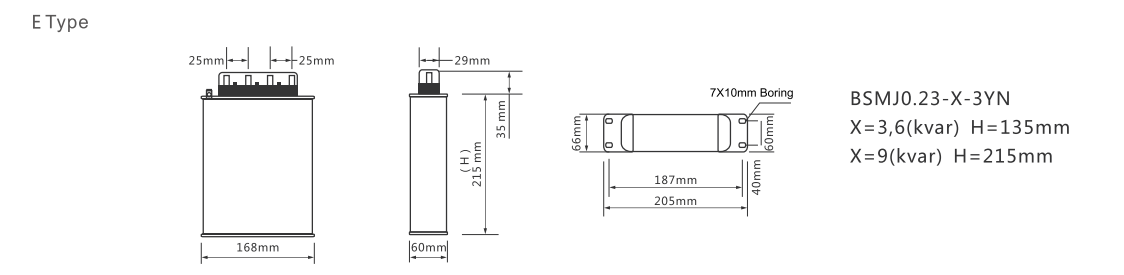

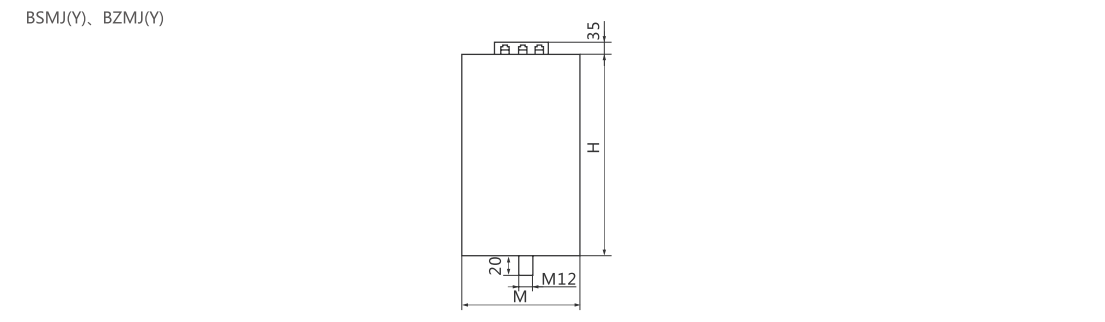

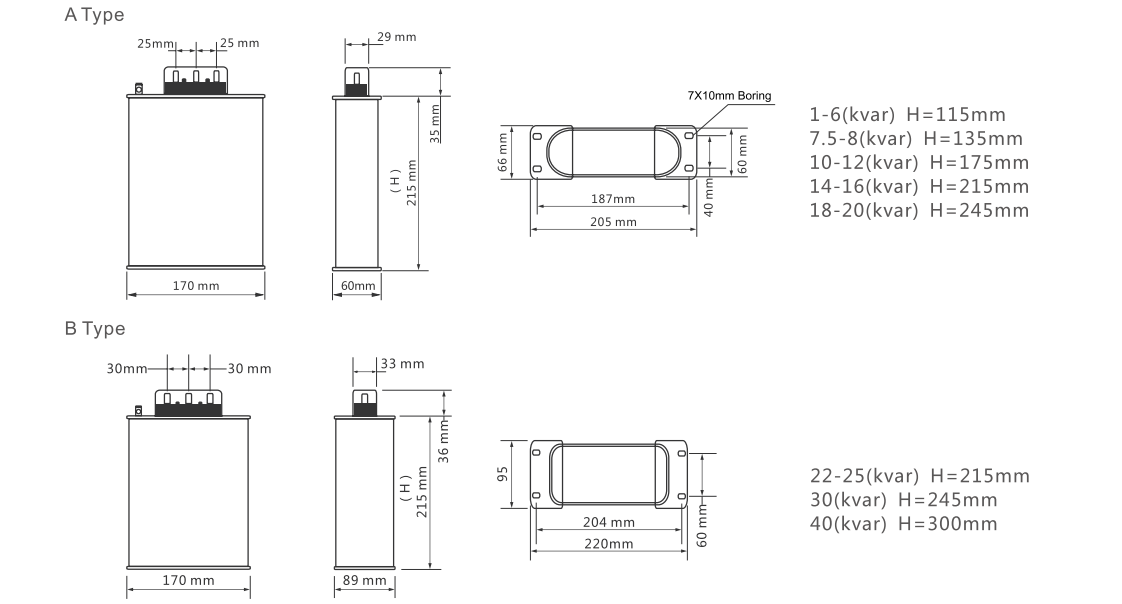

Overall and mounting dimension

Model No.BSMJ(Y),BZMJ(J)	shell radius M(mm)	shell high H(mm)
0.4-10-3	76	240
0.4-12.5-3	76	240
0.4-14-3	86	240
0.4-15-3	86	240
0.4-16-3	86	240
0.4-18-3	96	240
0.4-20-3	96	240
0.4-25-3	116	280
0.4-30-3	116	280
0.45-10-3	76	240
0.45-12.5-3	76	240
0.45-14-3	86	240
0.45-15-3	86	240
0.45-16-3	86	240
0.45-18-3	96	240
0.45-20-3	96	240
0.45-25-3	106	240
0.45-30-3	116	280

Model No.

Rated voltage			250VAC、400VAC、450VAC
			525VAC、690VAC、750VAC
Rated capacity			1-50kVAR
Error			0~+10%
Low dissipation factor			lower than 0.10%
Junction withstand voltage			1.75Vn10s junction shell 3kVA10s
Insulation			junction shell 500VDC 1 min bigger than 100M
Max overload voltage			110%of rated voltage
Max overload current			130%of rated current
Self-discharge feature			1min after poweroff,residual voltage decreases to 50V and below

Specification	Rated voltage(kV)	Nominal capacity(Kvar)	Total capacity(uF)	Rated current(A)	Shape and High(mm)
BSMJ0.4-3-3	0.4(50HZ)	3	59	4.3	Type A H=115
BSMJ0.4-5-3		5	99	7.2
BSMJ0.4-7.5-3		7.5	149	10.8	Type A H=135
BSMJ0.4-8-3		8	158	11.5
BSMJ0.4-10-3		10	198	14.4	Type A H=175
BSMJ0.4-12-3		12	238	17.3
BSMJ0.4-14-3		14	278	20.2	Type A H=215
BSMJ0.4-15-3		15	298	21.7
BSMJ0.4-16-3		16	318	23.1
BSMJ0.4-18-3		18	358	26	Type A H=245
BSMJ0.4-20-3		20	398	28.9
BSMJ0.4-25-3		25	498	36	Type B H=215
BSMJ0.4-30-3		30	597	43.3	Type B H=245
BSMJ0.4-40-3		40	796	57.7	Type B H=300
BSMJ0.4-50-3		50	995	72.2	Type C

Specification	Rated voltage(kV)	Nominal capacity(Kvar)	Total capacity(uF)	Rated current(A)	Shape and High(mm)
BSMJ0.45-3-3	0.45(50HZ)	3	47	3.8	Type A H=115
BSMJ0.45-5-3		5	78	6.4
BSMJ045-7.5-3		7.5	118	9.6	Type A H=135
BSMJ0.45-8-3		8	126	10.3
BSMJ045-10-3		10	157	12.8	Type A H=175
BSMJ0.45-12-3		12	188	15.4
BSMJ045-14-3		14	220	18	Type A H=215
BSMJ045-15-3		15	236	19.2
BSMJ045-16-3		16	251	20.5
BSMJ0.45-18-3		18	283	23	Type A H=245
BSMJ0.45-20-3		20	314	25.7
BSMJ0.45-25-3		25	393	32	Type B H=215
BSMJ045-30-3		30	471	38.5	Type B H=245
BSMJ045-40-3		40	629	51.3	Type B H=300
BSMJ045-50-3		50	786	64.2	Type C

Overall and mounting dimension

Model No.BSMJ(Y),BZMJ(J)	shell radius M(mm)	shell high H(mm)
0.4-10-3	76	240
0.4-12.5-3	76	240
0.4-14-3	86	240
0.4-15-3	86	240
0.4-16-3	86	240
0.4-18-3	96	240
0.4-20-3	96	240
0.4-25-3	116	280
0.4-30-3	116	280
0.45-10-3	76	240
0.45-12.5-3	76	240
0.45-14-3	86	240
0.45-15-3	86	240
0.45-16-3	86	240
0.45-18-3	96	240
0.45-20-3	96	240
0.45-25-3	106	240
0.45-30-3	116	280
