Following the unprecedented wave of global diplomatic visits to China this month, where leaders from Russia, Saudi Arabia, Kazakhstan and Vietnam signed over $250 billion in energy and infrastructure agreements, the world’s attention has turned to one critical question: who can deliver the electrical equipment needed to turn these agreements into reality?
At the heart of every power grid, data center and renewable energy plant lies a component that determines the entire system’s safety and reliability: the air circuit breaker (ACB). Today, we shine a spotlight on our flagship RDW5 Series Intelligent Air Circuit Breaker---the product that has become the backbone of our global success, powering projects in 87 countries and helping our customers overcome the industry’s most pressing challenges.
Why the RDW5 Series Is More Critical Than Ever in 2026
The global power system is under unprecedented strain:
● 48% of U.S. AI data center projects face delays due to electrical equipment shortages
● Russia plans to upgrade 60% of its aging power grids by 2030
● Saudi Arabia’s Vision 2030 requires 12GW of new solar power capacity by 2027
● Global transformer lead times remain at 120–210 weeks (2–4 years)
In this environment, a reliable, fast-delivered ACB is not just a component – it is the difference between a project being completed on time and being delayed for years. The RDW5 series was engineered specifically to solve these challenges, combining advanced intelligence, industry-leading reliability and unmatched delivery speed.
RDW5 Series: Technical Excellence Meets Real-World Performance

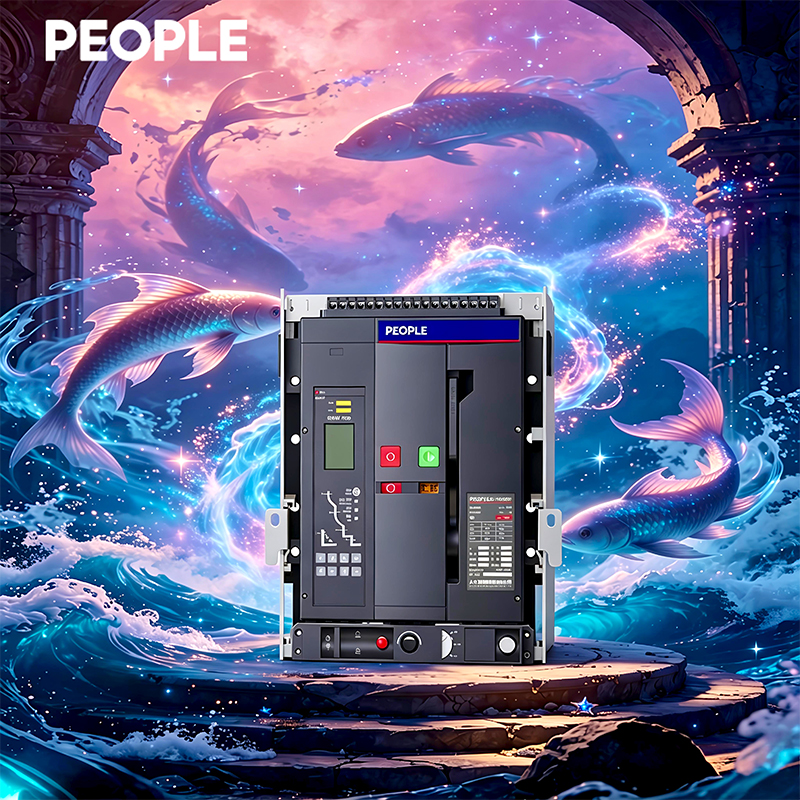

The RDW5 series is a next-generation intelligent air circuit breaker designed for AC 50/60Hz power distribution networks up to 690V, with a rated current range of 200A to 6300A. Fully certified to IEC 60947-2 and CE standards, it provides comprehensive protection against overload, short-circuit, undervoltage, single-phase grounding and current imbalance faults .
⭕️ Core Technical Specifications
| Parameter | Details |
| Rated Voltage | 400V / 690V AC |
| Rated Current | 200A – 6300A (6 frame sizes) |
| Breaking Capacity | Up to 120kA at 400V AC |
| Operating Temperature | -25°C to +55°C (customizable to -40°C / +70°C) |
| Communication Protocols | Modbus/TCP (standard), Profibus, Ethernet/IP |
| Mechanical Endurance | 10,000 operations |
| Electrical Endurance | 2,000 operations at rated current |
| Standard Compliance | IEC 60947-2, CE, GOST (mutually recognized) |
⭕️ 5 Game-Changing Advantages That Set Us Apart
1. Intelligent Protection & Predictive Maintenance
At the heart of the RDW5 series is an advanced microprocessor-based intelligent trip unit that provides precise selective protection, eliminating unnecessary power outages. Unlike traditional breakers that only respond to faults after they occur, the RDW5 features:
● Real-time monitoring of current, voltage, power and temperature
● Contact wear prediction and mechanical status monitoring
● Early fault warning system that alerts operators to potential issues 2–4 weeks before failure
● This reduces unplanned downtime by up to 40% and extends the breaker’s service life to over 20 years
2. Built for the World’s Harshest Environments
The RDW5 series is engineered to perform reliably in the most extreme conditions on Earth:
● Extreme cold: Specialized insulation materials ensure operation at temperatures as low as -40°C, ideal for Siberia and Northern Kazakhstan
● Desert heat and sand: Sealed enclosures and corrosion-resistant coatings protect against temperatures up to 55°C and sand ingress, proven in our 500MW solar farm project in Saudi Arabia
● Coastal salt spray: Galvanized steel casings and epoxy coatings resist corrosion in coastal environments
● This global durability means a single product line can serve multiple markets, reducing inventory costs for our customers
3. Seamless Integration with Smart Power Systems
The RDW5 series comes standard with IoT connectivity, enabling seamless integration with smart grids, energy management systems and AI data center infrastructure:
● Supports "four remote" functions: remote control, remote measurement, remote signaling and remote adjustment
● Provides real-time energy consumption data for carbon reporting and optimization
● Compatible with all major SCADA and building management systems
● This makes it the ideal choice for modern intelligent power distribution systems
4. Compact, Modular Design for Easy Installation
The RDW5 series features a compact, modular design that reduces installation time by 30% compared to traditional breakers:
● Draw-out design with three positions (connection, test, isolation) for safe maintenance
● Plug-and-play accessories that can be added or replaced without removing the breaker from the cabinet
● Flexible connection options (top or bottom entry) to suit any installation requirement
● This saves valuable time and labor costs during project execution
5. Industry-Leading 45-Day Fast Delivery
While Western manufacturers quote 6–12 month lead times for intelligent ACBs, People Electric delivers standard RDW5 series units in just 45 days – and bulk orders in as little as 30 days. This is made possible by:
● Our fully integrated in-house manufacturing facilities in Zhejiang and Jiangsu
● Strategic inventory of core components
● AI-optimized production scheduling
● For time-sensitive projects, this capability can save millions of dollars in delay penalties
RDW5 Series Complete Selection Guide: Find the Perfect Model for Your Project
Choosing the right air circuit breaker is critical for system safety, reliability and cost efficiency. Below is our step-by-step selection guide tailored to global industrial and utility applications, with clear recommendations for every scenario.
✔️ Step 1: 5-Step Quick Selection Process
Follow this proven workflow to narrow down your requirements :
1.Define System Parameters: Confirm rated voltage (400V/690V AC), frequency (50/60Hz) and maximum prospective short-circuit current at the installation point
2.Calculate Load Current: Use the formula: Ie = (Total Power × Simultaneity Factor) / (√3 × Line Voltage × Power Factor × Efficiency) (simultaneity factor: 0.7–0.9 for industrial, 0.5–0.8 for commercial)
3.Select Frame Size: Choose a frame rating 10–20% larger than your calculated load current to allow for future expansion
4.Determine Protection Needs: Specify required protection functions (overload, short-circuit, earth fault, under-voltage) and communication requirements
5.Consider Environment: Adjust for extreme temperatures, humidity, dust or corrosion
✔️ Step 2: RDW5 Series Model Specification Comparison
All models feature Ics = 100% Icu (service breaking capacity equals ultimate breaking capacity), ensuring the breaker remains fully operational even after a maximum fault event .
| Model Number | Frame Current | Rated Current Range | Ultimate Breaking Capacity (Icu) at 400V | Short-Time Withstand (Icw, 1s) | Typical Applications |
| RDW5-1600 | 1600A | 200A, 400A, 630A, 800A, 1000A, 1250A, 1600A | 50kA / 65kA / 80kA | 30kA / 40kA / 50kA | Distribution feeders, small industrial plants, commercial buildings |
| RDW5-2000 | 2000A | 800A, 1000A, 1250A, 1600A, 2000A | 65kA / 80kA | 40kA / 50kA | Medium industrial facilities, substation feeders |
| RDW5-2500 | 2500A | 1250A, 1600A, 2000A, 2500A | 65kA / 80kA | 50kA | Large industrial plants, data center distribution |
| RDW5-3200 | 3200A | 2000A, 2500A, 3200A | 65kA / 80kA / 100kA | 50kA / 65kA | AI data center main incomers, utility substations, large generators |
| RDW5-4000 | 4000A | 3200A, 3600A, 4000A | 80kA / 100kA | 65kA / 80kA | Heavy industry, utility grid interconnections |
| RDW5-6300 | 6300A | 4000A, 5000A, 6300A | 80kA / 100kA / 120kA | 80kA / 100kA | Ultra-large data centers, power plant main breakers |
✔️ Step 3: Application-Specific Recommendations
AI Data Centers (Highest Priority)
● Main Incomer: RDW5-3200 / RDW5-4000 (80kA/100kA breaking capacity)
● Distribution Feeders: RDW5-1600 / RDW5-2000
● Mandatory Configuration: Built-in IoT module, Modbus/TCP communication, predictive maintenance, 4-pole design
● Why: 99.999% uptime requirement, real-time energy monitoring, fast fault isolation
✔️ Grid Modernization & Utility Projects
● Substation Incomers: RDW5-3200 / RDW5-6300
● Feeder Breakers: RDW5-1600 / RDW5-2500
● Mandatory Configuration: Zone selective interlocking (ZSI), event logging, remote tripping
● Why: Selective protection to avoid cascading outages, remote management for remote substations
✔️ Renewable Energy (PV / Wind / Energy Storage)
● PV Inverter Side: RDW5-1600 / RDW5-2000 (DC-compatible trip unit optional)
● Grid Connection Point: RDW5-2500 / RDW5-3200
● Mandatory Configuration: Anti-islanding protection, reverse power protection, wide temperature range (-25°C to +55°C)
● Why: Harsh outdoor environments, variable load conditions, grid stability requirements
✔️ Industrial Plants & Manufacturing
● Main Switchboard: RDW5-2000 / RDW5-3200
● Motor Feeders: RDW5-1600 with motor protection module
● Mandatory Configuration: Overload long delay, short circuit short delay, mechanical endurance ≥10,000 operations
● Why: High mechanical stress, frequent switching, heavy inductive loads
✔️ Step 4: Special Environment Selection
| Environment | Recommended Model | Special Configuration |
| Extreme Cold (-40°C to -25°C) | All RDW5 models | Low-temperature silicone insulation, cold-resistant operating mechanism, integrated heater module |
| Desert & High Temperature (+55°C to +70°C) | All RDW5 models | Enhanced heat dissipation fins, IP54 sand-proof sealed enclosure, zinc-nickel corrosion-resistant coating |
| Coastal & Salt Spray | All RDW5 models | Hot-dip galvanized steel chassis, epoxy powder coating on all metal parts, 316 stainless steel hardware |
| Hazardous Areas (Zone 2) | RDW5-1600 / RDW5-2000 | Explosion-proof enclosure, arc fault protection, intrinsically safe control circuits |
✔️ Step 5: Optional Accessories & Communication Protocols
Choose these accessories based on your specific needs:
● Protection Accessories: Under-voltage release (AC230V/400V, DC110V/220V), shunt trip, closing coil, earth fault leakage module (30mA–30A)
● Monitoring Accessories: Built-in current transformers, voltage transformers, power quality analyzer (harmonic detection up to 31st)
● Communication Protocols: Modbus/TCP (standard), Profibus-DP, Ethernet/IP, IEC 61850 (optional for utility projects)
● Installation Options: Draw-out type (recommended for easy maintenance, 90% of global orders), fixed type (cost-effective for simple applications)
Common Selection Mistakes to Avoid
❌ Only considering rated current: Always verify that the breaking capacity exceeds your system's maximum short-circuit current. A breaker with insufficient breaking capacity will fail catastrophically during a fault.
❌ Over-sizing unnecessarily: A larger frame size increases cost and panel dimensions without additional benefit. Only over-size by 10–20% for future expansion.
❌ Ignoring environmental factors: High temperatures require derating (5% per 5°C above 40°C). Always specify appropriate environmental protection for outdoor or harsh locations.
❌ Neglecting communication needs: Smart features add only 5–10% to the initial cost but deliver 30–40% lower maintenance costs over the product lifetime.
❌ Forgetting selectivity: Ensure proper coordination between upstream and downstream breakers to avoid cascading outages. Our technical team can provide free selectivity analysis for your system.
RDW5 Series: Powering Global Projects Across Every Continent
The RDW5 series has been successfully deployed in hundreds of projects worldwide, addressing the unique needs of each market:
✅️ Russia & Central Asia: Grid Modernization
● Project: 80MW substation upgrade in Novosibirsk, Russia
● Challenge: Western suppliers quoted 3-year lead times for replacement ACBs
● Solution: 12 units of RDW5-3200 intelligent ACBs delivered in 45 days, with -40°C cold-resistant configuration
● Result: Project completed 2.5 years ahead of schedule, saving $4.2 million in delay costs
✅️ Middle East: Utility-Scale Solar
● Project: 500MW solar farm in Saudi Arabia
● Challenge: Extreme heat and sand conditions required rugged, reliable equipment
● Solution: 86 units of RDW5-1600 ACBs with enhanced corrosion protection and IP54 enclosures
● Result: 99.9% reliability over 3 years of operation in desert conditions
✅️ Southeast Asia: AI Data Centers
● Project: 120MW AI data center in Singapore
● Challenge: Strict requirements for uptime, low noise and remote monitoring
● Solution: 120 units of RDW5-3200 ACBs with integrated energy management and Modbus/TCP communication
● Result: Achieved 99.999% uptime, enabling the data center to meet its SLA commitments
✅️ Africa: Rural Electrification
● Project: Off-grid microgrid in Nigeria
● Challenge: Limited technical support and harsh environmental conditions
● Solution: 24 units of RDW5-1600 ACBs with simplified operation and maintenance
● Result: Reliable power supply for 10,000 households and businesses
Why Global Buyers Choose RDW5 Without UL Certification
While UL certification is dominant in the U.S. consumer market, IEC 60947-2 certification is universally accepted for industrial and utility projects worldwide – including in all the countries that recently visited China. For our customers, the RDW5 series offers four compelling reasons to choose IEC-certified equipment:
1.Global recognition: IEC standards are accepted in 87 countries, including Russia, Saudi Arabia, Kazakhstan and Vietnam
2.Cost savings: No UL certification premium, resulting in 15–20% lower total cost
3.Faster delivery: Our IEC-certified production lines are optimized for high volume, enabling 45-day lead times
4.Proven performance: Deployed in over 1,000 industrial projects worldwide with a 99.9% reliability rate
For U.S. customers, we also offer comprehensive certification support, working with NRTL partners to provide field evaluation and testing for specific projects where required.
Looking Ahead: Powering the Next Era of Global Infrastructure
The recent wave of diplomatic visits to China has unlocked a new era of global infrastructure development. Over the next 5 years, trillions of dollars will be invested in power grids, renewable energy and AI data centers worldwide.
At People Electric, we are ready to meet this demand. We have increased production capacity for the RDW5 series by 30% in 2026, and we are establishing regional assembly hubs in Moscow, Dubai and Jakarta to further reduce lead times and improve local support.
The RDW5 series is more than just a product – it is a testament to our commitment to building a safer, more affordable and more resilient global power system. Whether you are upgrading an aging grid, building a solar farm or constructing an AI data center, the RDW5 series has the performance, reliability and delivery speed you need to succeed.
Ready to Power Your Next Project?
Our technical team provides free customized selection services for all projects. Simply send us your single-line diagram and load calculation, and we will recommend the optimal RDW5 configuration within 24 hours.
Contact our international business team today to:
● Request a detailed RDW5 series datasheet
● Get a customized quotation for your project
● Discuss trial orders or bulk supply agreements
● Learn more about our certification support services
