Lessons Learned from a Solar Power Failure in Vietnam: Ultimate Solution for High Voltage DC Distribution Safety

Binh Duong Province in Vietnam features perennial high temperature, high humidity and dense salt fog, bringing harsh operating conditions that pose severe challenges to photovoltaic power distribution equipment. Nguyễn Minh Trung, a 36-year-old engineer with 8 years of experience in local new energy operation and maintenance, is responsible for inspecting the DC power distribution systems of regional photovoltaic power stations.

At noon when the temperature soared to 42℃, a sudden short circuit broke out in No.2 power distribution room during his routine inspection. Accompanied by burnt electrical odor, the DC busbar tripped urgently and the entire photovoltaic power station suspended power generation. Investigation revealed that the project adopted low-cost unbranded DC circuit breakers to cut initial costs. After merely two months of service, the harsh local climate caused insulation aging and contact failure, triggering a severe DC short circuit. Hard to extinguish, the sustained DC electric arc nearly sparked an electrical fire.

The power outage lasted four days, resulting in massive losses in power generation revenue, as well as extra expenses on equipment replacement and maintenance work. Nguyễn Minh Trung pointed out that harsh working conditions are the biggest challenge for Vietnam’s photovoltaic and energy storage projects. Inferior low-cost equipment fails to adapt to extreme environments, making safety and durability the top priority for local new energy projects.

Developed exclusively for high-voltage DC new energy applications, the RDM8DC series DC molded case circuit breakers (DC MCCB) perfectly adapt to Vietnam’s tough and complex operating environments, effectively solving power distribution safety risks for local photovoltaic and energy storage facilities.

Part1：Booming Renewable Energy in Southeast Asia Makes DC Distribution Protection Indispensable

Southeast Asia has become one of the fastest-growing renewable energy markets worldwide. Countries including Vietnam, Malaysia, the Philippines and Indonesia have rolled out supportive policies for solar power and energy storage. Faced with power shortage and incomplete power grid infrastructure, regional new energy industries witness explosive development.

Benefiting from abundant sunlight resources, numerous industrial parks and favorable governmental policies, Vietnam ranks first in solar and energy storage installation growth across Southeast Asia. Rooftop solar panels, ground-mounted solar stations, commercial energy storage systems and off-grid micro power grids can be seen nationwide. Statistics show that Southeast Asia will achieve over 30GW newly installed solar capacity in 2026, with Vietnam accounting for nearly 40% of the total volume. The growth rate of energy storage market exceeds 100%, and the cumulative newly added capacity will reach nearly 100GWh in the next four years.

250V to 1500V high voltage DC power system has become the mainstream configuration in modern renewable energy projects. It is widely applied in solar array convergence, battery cluster output, inverter DC side connection and EV charging pile power distribution. High voltage DC transmission effectively reduces cable power loss and improves overall system efficiency. Nevertheless, it also brings prominent hidden dangers:

  ✔️  DC arc cannot extinguish naturally, greatly raising risks of equipment burnout and electrical fire caused by short circuit;

  ✔️  Vietnam’s temperature varies from -5℃ to 50℃, accompanied by long rainy seasons and coastal salt mist corrosion, setting strict requirements on insulation, high temperature resistance and anti-corrosion performance of DC MCCB;

  ✔️  Frequent current fluctuation easily leads to overload and short circuit faults, requiring circuit breakers with precise protection performance and strong breaking capacity;

  ✔️  Diversified project scenarios demand flexible design on pole number, operation mode and wiring installation.

Traditional AC circuit breakers and inferior DC protective switches cannot meet the above requirements. They usually have insufficient voltage resistance and weak short-circuit breaking capacity, failing to quench electric arc timely during faults. Poor heat and moisture resistance also result in frequent malfunction and invalid operation under Vietnam’s tough climate. Single protection function also makes these products incapable of protecting DC power grids comprehensively.

Unsafe DC power distribution has become a major bottleneck restricting stable operation and low-cost maintenance of Vietnam renewable energy projects. RDM8DC high voltage DC molded case circuit breaker is tailored to tackle these challenges, perfectly matching operational demands of solar power, energy storage and DC distribution projects in Vietnam and Southeast Asia.

Part2：Superior Performance of RDM8DC DC MCCB for High Voltage DC Application

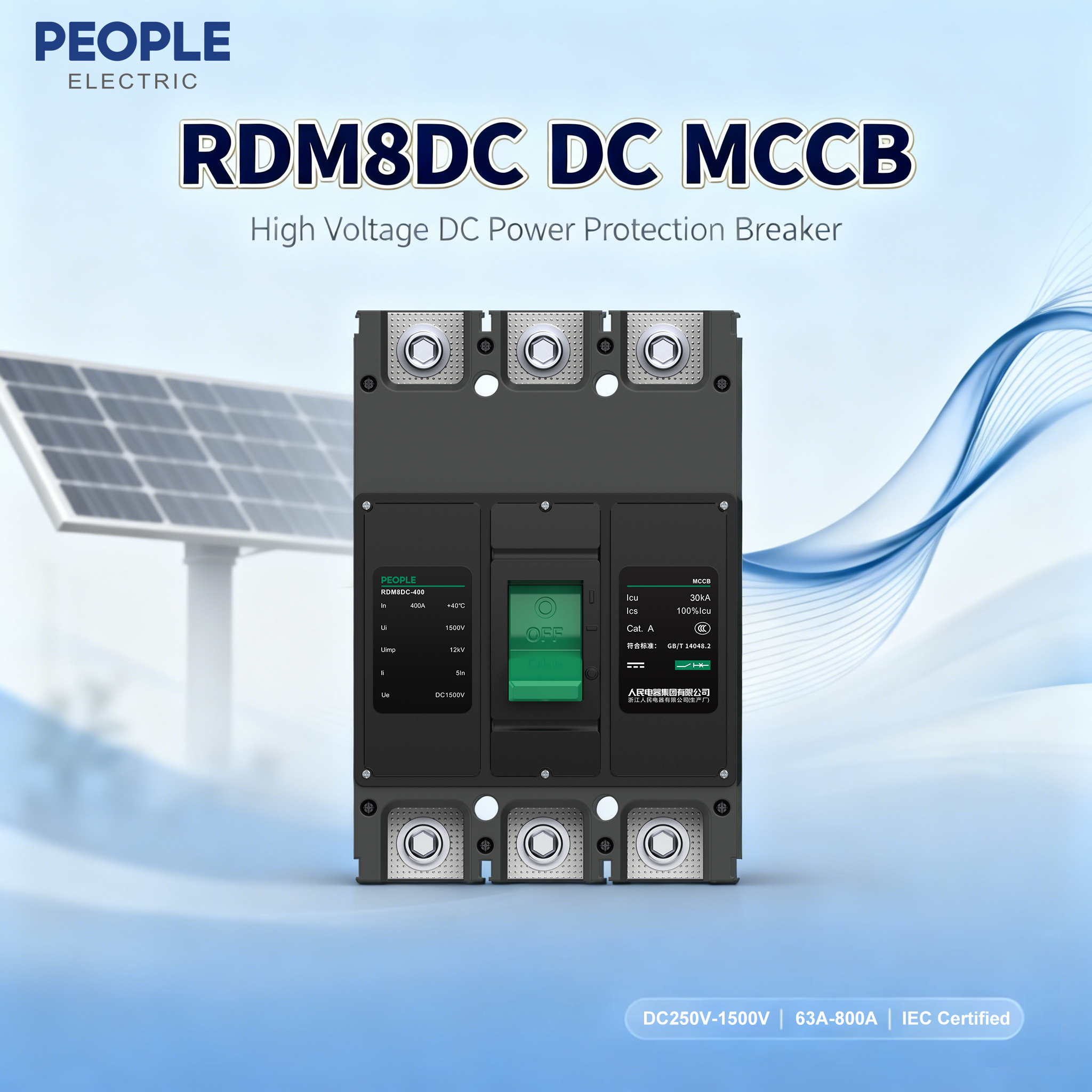

Independently developed by People Electric for new energy high voltage DC power grids, RDM8DC series DC MCCB is manufactured in strict accordance with international standards IEC60947-1 and IEC60947-2. Covering rated voltage from DC250V to DC1500V and rated current ranging from 63A to 800A, this premium DC circuit breaker provides long time delay overload protection and instantaneous short circuit protection. It realizes efficient power distribution and full protection for electric lines and power equipment against overload and short circuit damage. Every detailed design is optimized to solve practical pain points of Vietnam high voltage DC distribution scenarios.

⭕️ Wide Voltage & Current Coverage for Full-scenario DC Power Grid

RDM8DC DC molded case circuit breaker covers complete voltage grades: DC250V, DC500V, DC750V, DC1000V, DC1250V and DC1500V. The current specifications range from 63A to 800A, classified into 5 frame sizes: 250 frame, 315 frame, 400 frame, 630 frame and 800 frame.

It can be perfectly matched with small rooftop solar convergence boxes with DC500V voltage, DC1000V battery cluster output cabinets of commercial energy storage systems, DC1500V inverter sides of large ground solar power plants and DC busbars of container energy storage systems. No customized modification is required, helping clients cut down model selection and procurement costs greatly.

⭕️ Powerful Breaking Capacity to Eliminate DC Arc Safety Hazards

Electric arc out of control is the most dangerous threat for high voltage DC short circuit faults. Equipped with advanced magnetic blow arc extinction technology and reinforced arc extinguishing chamber structure, RDM8DC DC MCCB delivers outstanding short-circuit breaking performance to prevent fire accidents in Vietnam solar stations:

● 2P DC250V/500V: Ultimate and service short-circuit breaking capacity 50/50kA

● 2P DC750V/1000V: 25/25kA

● 2P DC1500V: 7.5/7.5kA (250/315 frame), 10/10kA (400/630/800 frame)

● 3P DC1000V~DC1500V: Maximum 40/40kA

Once short circuit occurs in high voltage DC power systems, RDM8DC DC circuit breaker can cut off faulty current and extinguish DC arc within milliseconds. It effectively avoids equipment damage, cabinet burning and plant shutdown, ensuring steady running of Vietnam renewable energy facilities.

⭕️ Excellent Environmental Adaptability Against Vietnam Heat, Humidity & Salt Mist

Designed to withstand Vietnam’s extreme working conditions including 50℃ peak temperature, all-year high humidity, seasonal condensation and coastal salt mist corrosion, RDM8DC adopts high temperature resistant flame-retardant insulation material, fully sealed moisture-proof structure and anti-corrosion coating. It operates stably at altitude below 2000 meters, adapting to all regional environments in Vietnam:

● Working temperature scope: -5℃ ~ +50℃, normal operation available with slight capacity reduction under ultra-high temperature

● Humidity resistance: Stable operation under 90% relative humidity at 20℃, preventing condensation erosion, electric leakage and premature aging

● Superior insulation strength: Rated insulation voltage 1500V, rated impulse withstand voltage 12kV, far exceeding industrial standard to avoid high voltage breakdown risks

Whether it is humid rooftop solar projects in Binh Duong industrial zone, high-temperature ground solar farms in southern Vietnam or salt mist affected energy storage stations in coastal cities like Da Nang and Hai Phong, RDM8DC DC MCCB maintains long-term stable performance and remarkably reduces failure rate and maintenance frequency.

⭕️ Flexible Configuration & Easy Installation for Diverse Vietnamese Projects

Vietnam renewable energy projects feature diverse application types, including rooftop solar, mountain ground power station, container energy storage and remote off-grid micro grid. RDM8DC series DC circuit breaker offers comprehensive flexible configurations to satisfy all local project requirements:

● Optional pole type: 2 pole and 3 pole for different DC wiring demands

● Multiple operation modes: Direct handle, electric operation and rotary handle, suitable for manual maintenance and remote intelligent control

● Dual tripping types: Magnetic trip and thermal-magnetic trip, ideal for solar and energy storage systems with unstable current flow

● Expandable auxiliary accessories: Shunt release, alarm contact and auxiliary contact support remote monitoring, fault alert and remote breaking

● Flexible wiring & mounting: Front wiring, rear wiring, horizontal and vertical installation fit limited space inside distribution cabinets and energy storage enclosures

Compact product size saves cabinet space without extra structural reconstruction, lowering cabinet design and on-site installation costs for Vietnam engineering projects.

⭕️ Reliable Quality & Long Service Life to Cut Lifecycle Cost

Renewable energy investment is a long-term business, and equipment durability directly determines project profit. RDM8DC high voltage DC circuit breaker is assembled with high-purity copper components, high-precision contacts and robust tripping mechanism, achieving excellent service lifespan:

● Electrical endurance: 1000 times

● Mechanical endurance: 7000 times (250/315 frame), 4000 times (400/630/800 frame)

All products comply with IEC international standards and national specifications, passing strict factory inspection and quality control throughout production. Compared with cheap low-quality alternatives, choosing RDM8DC DC MCCB greatly reduces equipment replacement frequency and daily maintenance expenditure, bringing higher cost performance during the whole project lifecycle.
