Aluminum stranded conductor&aluminum conductor steel-reinfored

The product is used in aluminium stranded wire and steel core stranded wire for overhead power line.The standard is in accordance with the international electrotechincal commission (IEC61089-1991).(round wire concentric overhead electric stranded conductors ) issued by lEC

Send email to us

Product Detail

Application

Parameters

Samples & Structures

Dimensions

Product Introduction

The product is uesd in aluminium stranded wire and steel core stranded wire for overhead power line.

The standard is in accordance with the international electrotechnical commission(IEC61089-1991), Round wire concentric overheah electric stranded conductors Issued by IEC.

Features

Aluminum stranded conductor&aluminum conductor steel-reinfored

Steel cored aluminum strand, steel core has higher mechanical strength, aluminum has higher conductivity (smaller resistance coefficient), and smaller specific gravity. ACSR combines these advantages and is suitable for power transmission with high power, high voltage and long distance; However, the steel strand is only of high mechanical strength and is not suitable for power transmission.

Type of Cable

Type			Description
LJ LGJ LGJF			Aluminum standard wire Aluminum conductor steel reinforced Anti-corrosive aluminum conductor steel reinforce

Power transmission and distribution. Transmission of electric energy.

Specifications Specifications are shown by normal section.The specification of aluminium strand cable should meet the requirement of table 2The specification of aluminium conductor steel reinforced and anti-corrosive aluminium conductor steelreinforced should meet the requirements of tabe 4.

Nominal cross section aluminum/steel m m2	Structure, number of roots/diameter mm		Calculated cross section mm2
Nominal cross section aluminum/steel m m2	A1	G	A1	Total
95/55 120/7 120/20 120/25 120/70	12/3.20 18/2.90 26/2.38 7/4.72 12/3.60	7/3.20 1/2.90 771.85 7/2.10 7/3.60	96.5 1118.89 115.67 122.48 122.15
150/8 150/20 150/25 150/35 185/10	18/3.20 24/2.78 26/2.70 30/2.50 18/3.60

mm²	Structure number/diameter mm	Calculate cross-sectional area mm²	Outer diameter mm	DC resistance not greater than Ω/km	Calculate breaking force N	Calculate weight kg/ km	The delivery length is not less than m
16	7/1.70	15.89	5.10	1.802	2810	13.5	4000
25	7/2.15	25.41	6.45	1.127	4355	69.6	3000
35	7/2.50	34.36	7.50	0.8332	5760	94.1	2000
50	7/3.00	49.48	9.00	0.5786	7930	135.5	1500
70	7/3.60	71.25	10.80	0.4018	10950	195.1	1250
95	7/4.16	95.14	12.48	0.3009	14450	260.5	1000
120	19/2.85	121.21	14.25	0.2373	19420	333.5	1500
150	19/3.15	148.07	15.75	0.1943	23310	407.4	1250
185	19/3.50	182.80	17.50	0.1574	28440	503.0	1000
210	19/3.75	209.85	18.75	0.1371	32260	577.4	1000
240	19/4.00	238.76	20.00	0.1205	36260	656.9	1000
300	37/3.20	297.57	22.40	0.09689	46850	820.4	1000
400	37/3.70	397.83	25.90	0.07247	61150	1097	1000
500	37/4.16	502.90	29.12	0.05733	76370	1387	1000
630	61/3.63	631.30	32.67	0.04577	91940	1744	800
800	61/4.10	805.36	36.90	0.03588	11590	2225	800

Aluminum/ Steel mm²	Structure, number of roots / diameter mm		Calculate cross-sectional area mm²
Aluminum/ Steel mm²	A1	G	A1	G	Total
10/2 16/3 25/4 35/6 50/8	6/1.5 6/1.85 6/2.32 6/2.72 6/3.20	1/1.5 1/1.85 1/2.32 1/2.72 1/3.20	10.60 16.13 26.36 34.86 18.25	1.77 2.69 4.23 5.81 8.01	12.37 18.82 29.59 40.67 26.26
50/30 70/10 70/40 95/15 95/20	12/2.32 6/3.80 12/2.72 26/2.15 7/4.16	7/2.32 1/3.80 7/2.72 7/1.67 7/1.85	50.73 68.05 69.73 94.39 95.14	29.59 11.34 40.67 15.33 18.82	80.32 79.39 110.40 109.72 113.96
95/55 120/7 120/20 120/25 120/70	12/3.20 18/2.90 26/2.38 7/4.72 12/3.60	7/3.20 1/2.90 7/1.85 7/2.10 7/3.60	96.51 118.89 115.67 122.48 122.15	56.30 6.61 18.82 24.25 71.25	152.81 125.50 134.49 146.73 193.40
150/8 150/20 150/25 150/35 185/10	18/3.20 24/2.78 26/2.70 30/2.50 18/3.60	1/3.20 7/1.85 7/2.10 7/2.50 1/3.60	144.76 145.68 148.86 147.26 183.22	8.04 18.82 24.25 34.36 10.18	152.80 164.50 173.11 181.62 193.40
185/25 185/30 185/45 210/10 210/25	24/3.15 26/2.98 30/2.80 18/3.80 24/3.33	7/2.10 7/2.32 7/2.80 1/3.80 7/2.22	187.04 181.34 184.73 204.14 209.02	24.25 29.59 43.10 11.34 27.10	211.29 210.93 227.83 215.48 236.12
210/35 210/50 240/30 240/40 240/55 300/15	26/3.22 30/2.98 24/3.60 26/3.42 30/3.20 42/3.00	7/2.50 7/2.98 7/2.40 7/2.66 7/3.20 7/1.67	211.72 209.24 244.29 238.82 241.27 296.88	34.36 48.82 31.67 38.90 56.30 15.33	246.09 258.06 275.96 277.72 297.57 312.21
300/20 300/25 300/40 300/50 300/70	45/2.93 48/2.85 24/3.99 26/3.83 30/3.60	7/1.95 7/2.22 7/2.66 7/2.98 7/3.60	303.42 306.21 300.09 299.54 305.36	20.91 27.10 38.90 48.82 71.25	324.33 333.31 338.99 348.36 376.61
400/20 400/25 400/35 400/50 400/65	42/3.51 45/3.33 48/3.22 54/3.07 26/4.42	7/1.95 7/2.22 7/2.50 7/3.07 7/3.44	406.40 391.91 390.88 399.73 398.94	20.91 27.10 34.36 51.82 65.06	427.21 419.01 425.24 451.55 464.00
400/90 500/35 500/45 500/60 630/45	30/4.16 45/3.75 48/3.60 54/3.44 45/4.20	19/2.50 7/2.50 7/2.80 7/3.44 7/2.80	407.75 497.01 488.58 501.88 623.45	93.27 34.36 43.10 65.06 43.10	501.02 531.37 531.68 566.94 666.55
630/55 630/80 800/55 800/70 800/100	48/4.12 54/3.87 45/4.80 48/4.64 54/4.33	7/3.20 19/2.32 7/3.20 7/3.60 19/2.60	639.92 635.19 814.30 808.15 795.17	56.30 80.32 56.30 71.25 100.88	696.22 715.51 870.60 879.40 896.05

Aluminum/ Steel mm²	Outer diameter mm	DC resistance not greater than Ω/km	Calculate breaking force N	Calculate weight kg/ km	The delivery length is not less than m
10/2 16/3 25/4 35/6 50/8	4.50 5.55 6.96 8.16 9.60	2.706 1.779 1.131 0.8230 0.5946	1120 6130 9290 12630 16870	42.9 65.2 102.6 141.0 195.1	3000 3000 3000 3000 2000
50/30 70/10 70/40 95/15 95/20	11.60 11.40 13.60 13.61 13.87	0.5692 0.4217 0.4141 0.3058 0.3019	42620 23390 58300 35000 37200	372.0 275.2 511.3 380.8 408.9	3000 2000 2000 2000 2000
95/55 120/7 120/20 120/25 120/70	16.00 14.50 15.07 15.74 18.00	0.2992 0.2422 0.2496 0.2345 0.2364	78110 27570 41000 47880 98370	707.7 379.0 466.8 526.6 895.6	2000 2000 2000 2000 2000
150/8 150/20 150/25 150/35 185/10	16.00 16.67 17.10 17.50 18.00	0.1989 0.1980 0.1939 0.1962 0.1572	32860 46630 54110 65020 40880	461.4 549.4 601.0 676.2 584.0	2000 2000 2000 2000 2000
185/25 185/30 185/45 210/10 210/25	18.90 18.88 19.60 19.00 19.98	0.1542 0.1592 0.1564 0.1411 0.1380	59420 64320 80190 45140 65990	706.1 732.6 848.2 650.7 789.1	2000 2000 2000 2000 2000
210/35 210/50 240/30 240/40 240/55 300/15	20.38 20.86 21.60 21.66 22.40 23.01	0.1363 0.1381 0.1181 0.1209 0.1198 0.09724	74250 90830 75620 83370 102100 68060	853.9 960.8 922.2 964.3 1108.0 939.8	2000 2000 2000 2000 2000 2000
300/20 300/25 300/40 300/50 300/70	23.43 23.76 23.94 24.26 25.20	0.09520 0.09433 0.09614 0.09636 0.09463	75680 83410 92220 103400 128000	1002 1058 1133 1210 1402	2000 2000 2000 2000 2000
400/20 400/25 400/35 400/50 400/65	26.91 26.64 26.82 27.63 28.00	0.07104 0.07370 0.07389 0.07232 0.07236	88850 95940 103900 123400 135200	1286 1295 1349 1511 1611	1500 1500 1500 1500 1500
400/95 500/35 500/45 500/65 630/45	29.14 30.00 30.00 30.96 33.60	0.07087 0.05812 0.05912 0.05760 0.04633	171300 119500 128100 154000 148700	1860 1642 1688 1897 2060	1500 1500 1500 1500 1200
630/55 630/80 800/55 800/70 800/100	35.32 34.82 38.40 38.58 38.98	0.04514 0.04551 0.03547 0.03571 0.03635	164400 192900 191500 207000 241100	2209 2388 2690 2791 2991	1200 1200 1000 1000 1000

The calculated weight of LGJF type shall be equal to the value of the normal plus the weight of anti-corrosvie material, the increase should be added 20% on copper core anti-corrosive paint; added 5% for anti-corrosive material painted layers inside Al steel.

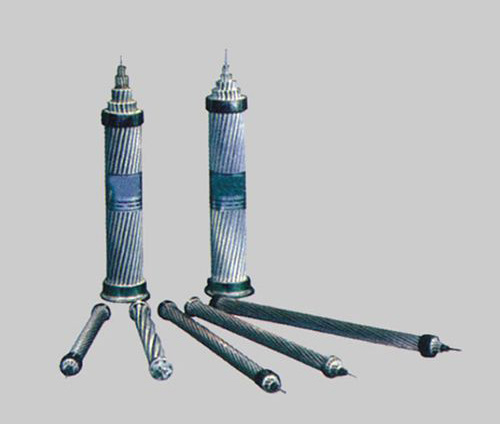

gaggg

For details, please contact our salesman through the FAQ.
