1.The frame of substation is made of steel and angle iron galvanized to have the enoughmechanical strength.
2.Cold-rolled steel sheet, stainless steel, aluminum alloy sheet or compound colorful sheet is used for the enclosure.
3.Each cubicle is separated by steel sheet to be different shape inside.
4.The illuminating devices are installed inside L.V.&H.V. cubicles and transformer cubicle for supervision and maintenance.
5.The cover is double-layer to prevent the heat from increasing temperature.
6.Natural ventilation is taken for transformer. When the temperature inside the transformer cubicle is higher than the set temperature, the fan installed on the top will start to work and control the temperature.
7.Sealing devices are put on the turning parts to be moisture-proof.
8.Perfect protection and convenient operation, particularly "five-proof"functions on H.V. side ensures the security of maintenance.
9.The product is good-looking and natural in certain environment.
① Altitude:<1000m
② Ambient temperature:-25℃ -+40℃
③ Wind speed: <30m/s
④ Relative humidity: <90%
| No. | Item | Unit | High voltage apparatus | Transformer | Low voltage apparatus |
| 1 | Rated voltage Ue | kV | 7.2、12 | 6/0.4、10/0.4 | 0.4 |
| 2 | Rated capacity Se | kvA | 200~1250 | ||
| 3 | Rated current Le | kvA | 200~630 | 100~3000 | |
| 4 | Rated drop out current | A | switch disconnector 400~630A | 15～63 | |
| kA | subject to fuse if the combined appliance is adopted | ||||
| 5 | Rated short time withstand current |
kA | 20(2S) | 200~400kvA | 15(1S) |
| 12.5(4S) | 400kvA | 30(1S) | |||
| 6 | Rated crest withstand current |
kA | 31.5、50 | 200~400kvA | 30 |
| 400kvA | 63 | ||||
| 7 | Rated making current | kV | 31.5、50 | ||
| 8 | 1min power frequency withstand voltage |
kV | phase to earth phase to phase 42、30 | oil-immersed transformer:35/5min | ≤300V when 2kV |
| across isolating distance 48、34 | dry type:28/5 min | 300,660V when 2.5kV | |||
| 9 | lightning impulse withstand voltage |
kV | phase to earth phase to phase 85、75 | 75 | |
| phase to earth phase to phase 85、75 | |||||
| 10 | Noise | dB | oil-immersed transformer:<55 | ||
| dry type:<65 | |||||
| 11 | Protection class | IP33 | IP23 | IP33 | |
| 12 | outline dimension | Choose different dimension according to the capacity and type of power transformer | |||

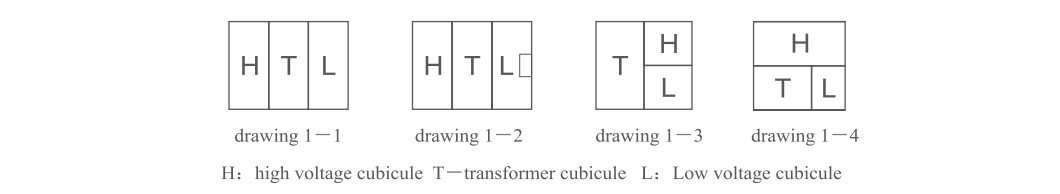

1.Plan layout please see drawing1-1,1-2,1-3,1-4
● "type includes "1-1 and 1-2
● "type includes "1-3 and 1-4

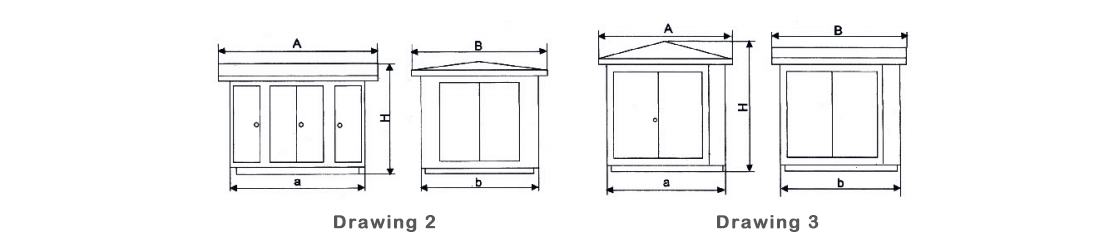

2.Outline Dimension Please See Drawing 2,Drawing 3 and Table 2
3.Main Technical Parameters
| Type | A | a | B | b | H | The most suitable site | ||
| Three phase | 100-630kVA | 4140 | 3750 | 2590 | 2290 | 2320 | Mine,oil field | |
| 800-1250kvA | 5184 | 4880 | 2500 | 2290 | 2626 | Residential area | ||
| 50-400kvA | 2500 | 2300 | 2400 | 2200 | 2320 | |||
| Single phase | ≤50kvA | 2500 | 2300 | 1260 | 1060 | 2215 | Power supply for street lamp | |
| 80-100kvA | 2500 | 2300 | 1840 | 1640 | 2215 | |||
Note: above dimension only for your information during design period, the dimension subject to dimension of obiective.
1.Type of substation
2.Type of transformer
3.H.V/ L.V. wiring mode, type and parameters of chosen components
4.Regarding to enclosure color, if there is no special requirement by customer, it would be dark green
