RDM8HU MCCB

RDM8H series high voltage molded case circuit breaker (hereinafter referred to as circuit breaker).
The circuit breaker is suitable for AC 50/60Hz distribution networks with a rated insulation voltage of 1500V, a rated operational voltage of 1140V and below, and a rated current of up to 800A.
It is used to distribute power and protect lines and power equipment from overload, short circuit, and undervoltage faults. For circuit breakers with a rated current of 630A and below, they can also be used to protect motors.
Under normal circumstances, the circuit breaker can distribute power and provide overload, short circuit, and undervoltage protection for lines and power equipment. When used to protect motors in distribution networks, it can break the circuit of squirrel-cage motors during starting and running, and protect them against overload, short circuit, and undervoltage.
The circuit breaker can be installed vertically (i.e., upright) or horizontally (i.e., horizontal).
It is suitable for isolation, symbolized as “I-”.
Product standards:
• IEC 60947-1
• IEC 60947-2
• GB/T 14048.1 Low-voltage switchgear and control equipment – Part 1: General
• GB/T 14048.2 Low-voltage switchgear and control equipment – Part 2: Circuit


  • RDM8HU MCCB
  • RDM8HU MCCB
  • RDM8HU MCCB
  • RDM8HU MCCB

Product Detail

Selection guide

RDM8HU 400 M P 3 3 10 AC1140V 125A AC230V Board front connection
Product code Shell level Breaking ability level operating mode Number of poles Trip mode Accessory Rated voltage Rated current Accessory voltage Installation wiring mode
High voltage molded case circuit breaker 250(63~250)
315(280~315)
400(250~400)
630(400~630)
800(630~800)
M: Higher fracture type
H: High segment type
Nocode:Direct handle operation
P:electrical operation
Z:Turn the handle to operate
3:3 poles 2:Single magnetic type
3:Thermo magnetic type
00: No accessories
08: Alarm contact
10: Shunt release
18: Shunt release, alarm contact
20: auxiliary contact
02: auxiliary contact
28: auxiliary contact, alarm contact
40: Shunt release, auxiliary contact
12: Shunt release, auxiliary contact
48: Shunt release, auxiliary contact alarm contact
60: two sets of auxiliary contacts
68: Double auxiliary contact,alarm contact
AC800V
AC1000V
AC1140V
63、80、100、125、140、160、180、200、225、250、280、300、315、350、400、500、630、700、800 Shunt release DC24V、AC230V、AC400V Board front connection (No code)
Backboard connection

Normal working conditions and installation conditions

The altitude of the installation site does not exceed 2000m;

Allow the ambient temperature is not higher than +40 C, not lower than -5'C,(Over +40C capacity reduction, specific consultation with the manufacturer)。

Atmospheric conditions: When the ambient temperature is 40 ℃C, the relative humidity of the atmosphere does not exceed 50%, and a higherrelative humidity is allowed at a lower temperature, such as 90% at 20 ℃, and considering the condensation that occurs on the surface of the product due to temperature changes;

The pollution level:level 3;

lnstallation category:Ⅱ;

The magnetic field of the installation position should not exceed 5 times the geomagnetic field in any direction;

In a medium that is not at risk of explosion, and in which there is no gas or conductive dust sufficient to corode metal and destroy insulation;口No erosion from wind and snow;
Can be installed horizontally and vertically;

There should be no significant impact and vibration at the installation place, and it should not be installed in flammable and explosive places.

Main technical parameter

Model RDM8HU
Specification 250 315 400 630 800
Number of pole 3
Breaking ability level M、H
Rated current In(A) 63、80、100125、140、160

200、225、250

280、300 315 250、315350、400 400、500 630 630、700 800
Rated insulation voltage Ui(V) 1500 1500
Rated impulse withstand voltage Uimp(kV) 12 12
Rated operational voltage Ue(V) AC800、1000、1140
Arcing distance(mm) +50(0) +100(0)
Rated limit short-circuit breaking capacityIcu(kA) AC800V M:36.5 H:50 M:36.5 H:50
AC1000V M:20 H:20 M:20 H:20
AC1140V M:10 H:15 M:10 H:15
ated operating short- circuit breaking capacity Ics(kA AC800V M:25 H:35 M:25 H:37.5
AC1000V M:12 H:15 M:12 H:15
AC1140V M:10 H:15 M:10 H:15
Electrical life(times) 1500 1000 1000 800 500
Mechanicallife(times)² Maintenance free 10000 10000 7000 7000 7000
Maintenance required 15000 5000 10000 10000 10000
Outline dimension(lengthxwidthxheight) 288×107×135 320×182×156
Reference ambient temperature℃ 40



The over-current trip device consists of a thermal long-delay trip device with inverse time-Iimitcharacteristics and an instantaneous
electromagnetic trip device, whose operating characteristics are shown in Table5.

Distribution circuit Circuit breakers for protecting motors
Rated current

In(A)

thermal overload release Electromagnetic trip operating current(A) Rated current

In(A)

thermal overload release Electromagnetic trip operating current(A)
1.05Inconvention al non-tripping time(h)(cold) 1.30Inconvention al non-tripping time(h)(thermal) 1.0Inconvention al non-tripping time(h)(cold) 1.2Inconventional tripping

current(h)(cold)

63<In≤125 2 2 10In±20%



63≤In≤630



2



2





12In±20%

125<In≤800 2 2 5In±20% 10ln±20%

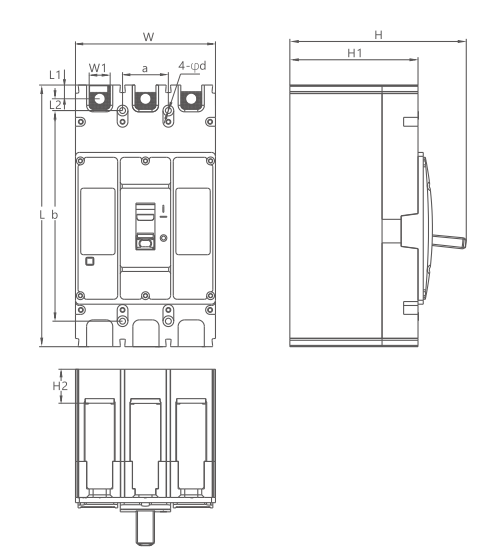

Outline and Installation dimension

RDM8HU
Type specification Outline dimension(mm) Installation dimension(mm)
L W H L1 L2 W1 H1 H2 a b 4-Qd
RDM8HU-250/3RDM8HU-315/3 200 107 135 10.5 9.5 22 98 26 35 164 4.5
RDM8HU-400/3RDM8HU-630/3

RDM8HU-800/3

 270  182  156  18  18  41  118  29  58  200  7

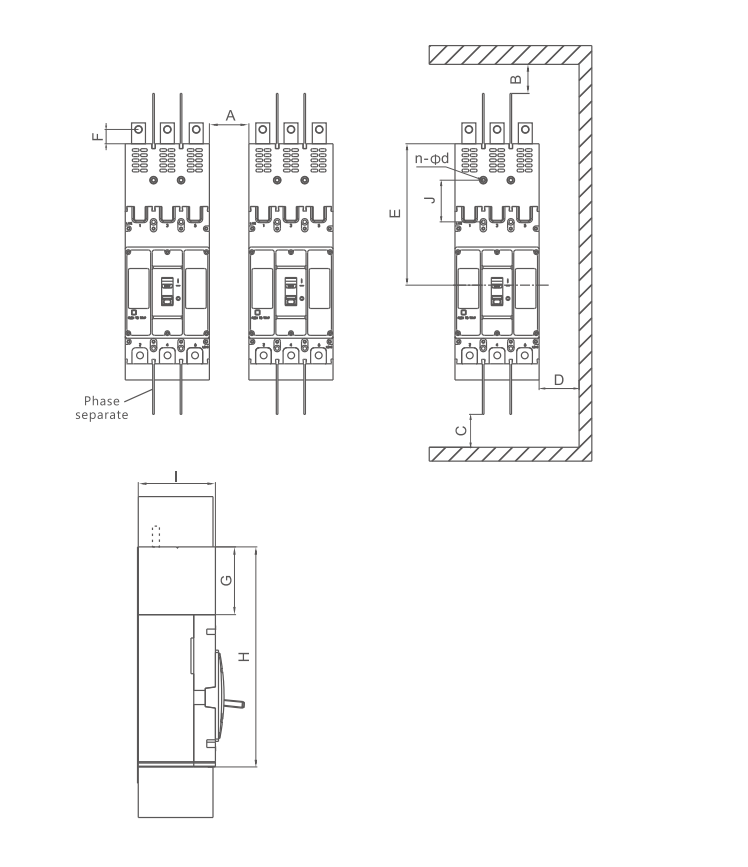

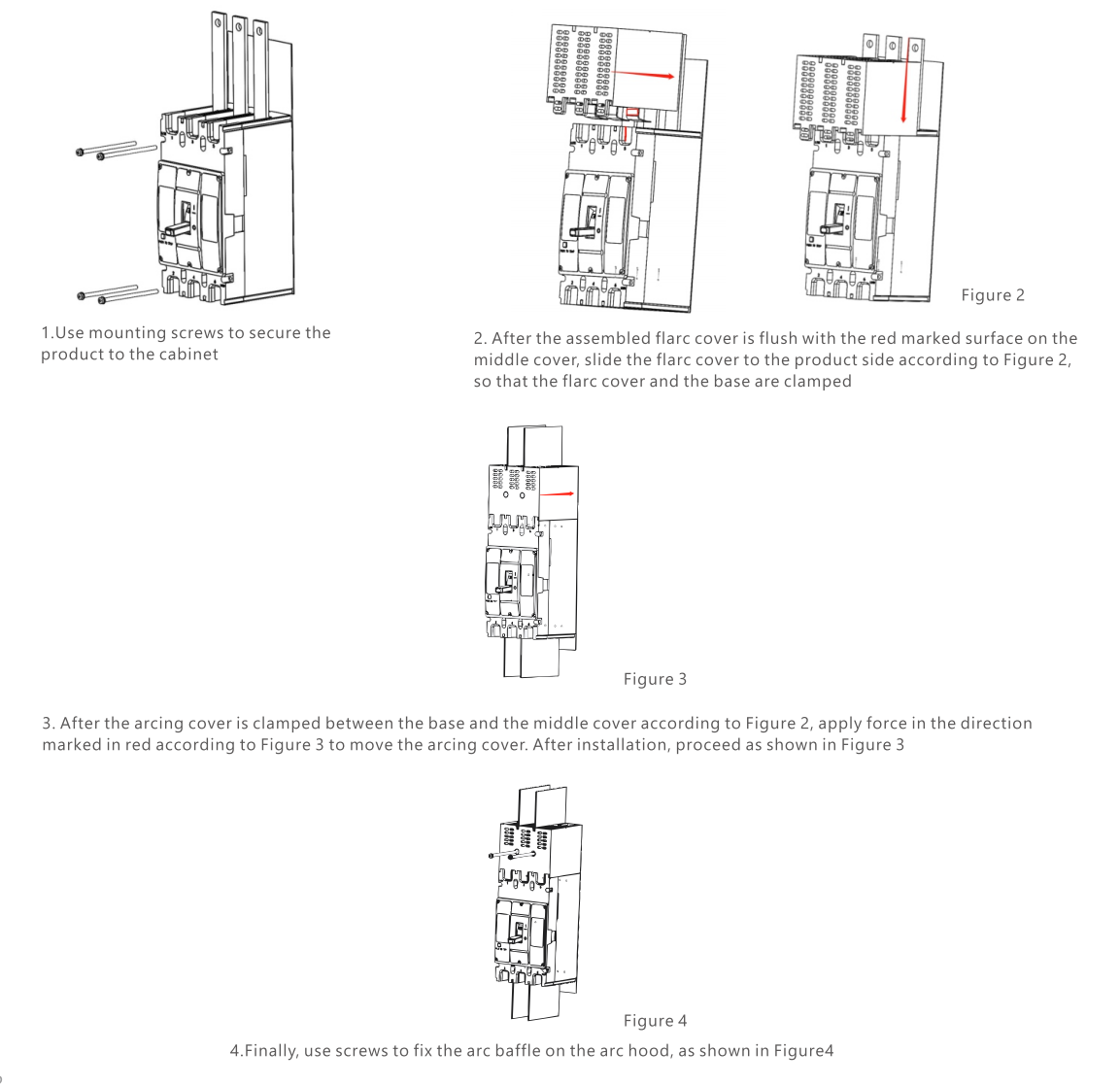

Terminal cover installation instruction

RDM8HU
RDM8HU
Type specification Distance(mm)
A B C D E G H I J n-φd
RDM8HU-250/3 30 30 30 30 188 80 280 94 53 2-φ4.5
RDM8HU-315/3
RDM8HU-400/3

30



30



30



30



185



50



320



118



60



4-φ4.5
