1.Temperature: not exceed +40℃, and the day average value not exceed +35°C, not below -5°C
2.Altitude:not exceed 2000m
3.Humidity: the relative humidity shall not exceed 50% when it at +40℃. And it has the lower temperature, the higher humidity is accepted.Like 90% humidity is accepted when the temperature is+20°C.And the special measurement should be taken for condensation caused by temperature change
4.Pollution class: 3 class
5.Installation type:Ⅲ type.The vertical install and horizontal installation
Main parameter and main performance index, see Table 1
| Type(Table 1) | Pole | Rated insulating voltage (V) |
Rated operating voltage (V) |
Rated ultimate short circuit breaking capacity Icu (kA) at 380/415V |
Rated service short circuit breaking capacity Ics at 380/415V(kA) |
Operation life ( times ) |
Utilization category |
|
| Load | No load | |||||||
| RDM11-100N | 3, 4 poles | 800 | 690 or below | 36 | 36 | 1500 | 8500 | A |
| RDM11-100H | 70 | 70 | ||||||
| RDM11-160N | 36 | 36 | 1000 | 7000 | ||||
| RDM11-160H | 70 | 70 | ||||||
| RDM11-250N | 36 | 36 | 1000 | 7000 | ||||
| RDM11-250H | 70 | 70 | ||||||
| RDM11-400N | 45 | 45 | 1000 | 4000 | ||||
| RDM11-400H | 70 | 70 | ||||||
| RDM11-630N | 45 | 45 | 1000 | 4000 | ||||
| RDM11-630H | 70 | 70 | ||||||
| RDM11-1250N | 3 poles | 50 | 50 | 1000 | 4000 | |||
| RDM11-1600N | 50 | 50 | ||||||
Trip Units Main Technical Parameter
| Type | Rated current In(A) | Note |
| RDM11-100 | 12.5,16,20,25,32,40,50,63,80,100， 16,20,25,32,40,50,63,80,100,125,160 |
T adjustable (0.8~1In) M fixed |
| RDM11-160 | ||
| RDM11-250 | 160 180 200 225 250 315 350 400 400 500 630 |
T adjustable (0.8~1In) M adjustable (5~10In) |
| RDM11-400 | ||
| RDM11-630 |
Electronic release
RDM11 22SE: protection of low-voltagedistribution networks for RDM11-100\160\250
| Type | Rated current In(A) | Note |
| RDM11-100 | 40 100 | Ir=0.4~1 In(adjustable 48 setting),Tripping between 1.05~1.3 Ir (IEC60947-2) (Long-time overload protection) Im=2-3-4-5-6-7-8-10 Ir (Short-circuit protection) |
| RDM11-160 | 40 100 160 | |
| RDM11-250 | 40 100 160 250 |
1.Overload protection with adjustable threshold
2.Short-circuit protection with adjustable threshold
3.Load indication : light at 90% of lr setting threshold; Flashing at 105% or more of lr setting threshold
RDM11 23SE: protection of low-voltage distribution networks for RDM11-400\630
1.Overload protection with adjustable threshold
2.Short-circuit protection with adjustable threshold
3. Load indication : light at 90% of lr setting threshold; Flashing at 105% or more of lr setting threshold
| Type | Rated current In(A) | Note |
| RDM11-400 | 250 315 350 400 | Ir=0.4~1 In(adjustable 48 setting),Tripping between 1.05~1.3 Ir (IEC60947-2) (Long-time overload protection) Im=2-3-4-5-6-7-8-10 Ir (Short-circuit protection) |
| RDM11-630 | 400 500 630 |
Micrologic 2.0:for RDM11-800\1000\1250\1600
1.Overload protection with adjustable threshold
2.Short-circuit protection with adjustable threshold
3. Load indication : light at 90% of lr setting threshold; Flashing at 105% or more of lr setting threshold
| Type | Rated current In(A) | Note |
| RDM11-1000 | 800 1000 | Ir=0.4~1 In(adjustable 48 setting) Tripping between 1.05~1.3 Ir (IEC60947-2) (Long-time overload protection) Im=2-3-4-5-6-7-8-10(Short-circuit protection) |
| RDM11-1250 | 1000 1250 | |
| RDM11-1600 | 1250 1600 |

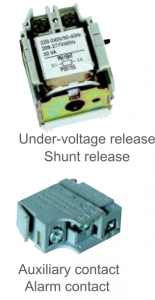

| Accessories | Rated operating voltage | Consumption | For type | |
| Pick-up | Seal-in | |||
| Shunt release (MX) |
24V 100V 220/230V 380/400V |
<10VA | <5VA | RDM11-100~630 |
| Under-voltage release(UN) |
220/230V 380/400V |
<10VA | <5VA | |
| Accessories | Rated operating voltage | Rated operating current | For type | |
| AC12 | AC15 | |||
| Auxiliary contact (OF) | 380/400V | 6 | 3 | RDM11-100~630 |
| Alarm contact(AL) | 380/400V | 6 | 3 | |
Rotary handle
●Direct rotary handle Degree of protection:IP40
Function:1)Suitability for isolation
2)Indication of three positions 0(off) I(on) and tripped
3)press “push to trip" button,can trip-free
4)visibility of and access to trip unit settings
5) the circuit breaker can be locked in the off position by one to three padlocks diameter 5 to 8mm(not supplied)
●Extended rotary handle Degree of protection:IP55
Function:1)Suitability for isolation
2)Indication of three positions 0(off) I(on) and tripped
3)Visibility of and access to trip unit settings when the door is open
4)Door opening prevented when circuit breaker is on
5) The circuit breaker can be locked in the off position by one to three padlocks,diameter 5 to 8mm(not supplied).Locking prevents opening of the switchboard door
●Installation: Circuit breaker may be mounted vertically, horizontally or flat on their back without any derating of characteristics.
●Fix: Mounting on backplate , mounting on rails
●Connection: Front panel connection , back panel connection , plug-in connection
Outline and Installation Dimension

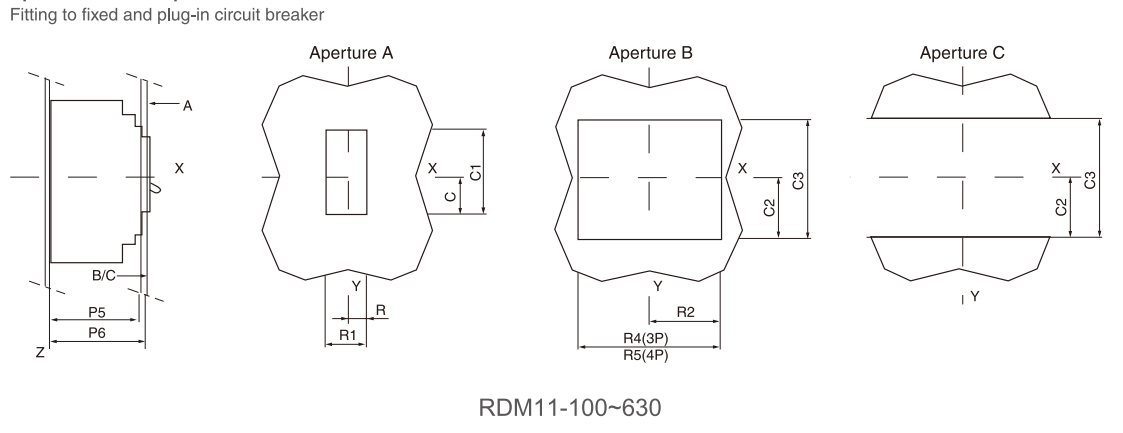

Aperture on a front panel

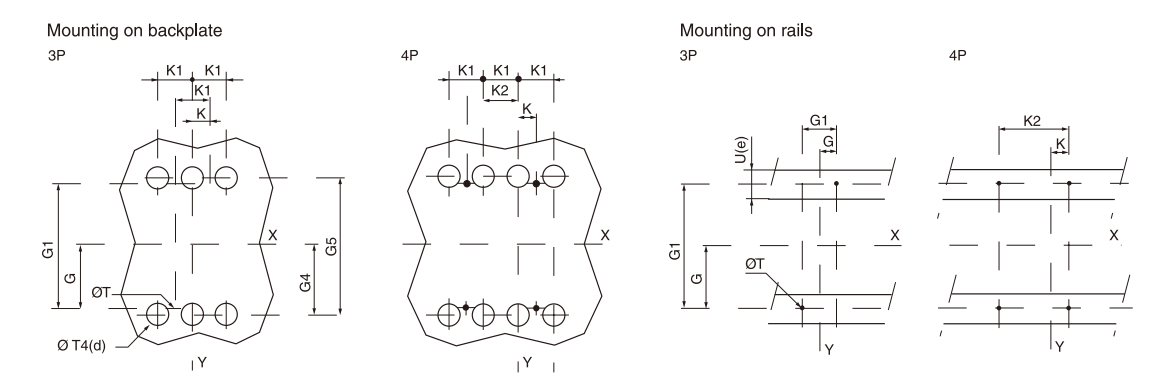

| mm | C | C1 | C2 | C3 | G | G1 | G4 | G5 | H | H1 | H2 |
| RDM11-100/160/250N/H/L | 29 | 76 | 54 | 108 | 62.5 | 125 | 70 | 140 | 80.5 | 161 | 94 |
| RDM11-400/630N/H/L | 41.5 | 116 | 92.5 | 184 | 100 | 200 | 113.5 | 227 | 127.5 | 255 | 142.5 |
| RDM11-1250/1600N | 100 | 255 |
| mm | H3 | H4 | H5 | H6 | H7 | K | K1 | K2 | L | L1 | L2 | P1 | P2 | P4 | P5 |
| RDM11-100/160/250N/H/L | 188 | 160.5 | 321 | 178.5 | 357 | 17.5 | 35 | 70 | 52.5 | 105 | 140 | 81 | 86 | 111* | 83 |
| RDM11-400/630N/H/L | 285 | 240 | 480 | 237 | 474 | 22.5 | 45 | 90 | 70 | 140 | 185 | 95.5 | 110 | 168 | 107 |
| RDM11-1250/1600N | 99.5 | 199 | 209 | 99.5 | 199 | 269 | 107.5 | 205 |
| mm | P6 | R | R1 | R2 | R4 | R5 | ØT | ØT4 | (Ue) |
| RDM11-100/160/250N/H/L | 88 | 14.5 | 29 | 54 | 108 | 143 | 6 | 22 | 32 |
| RDM11-400/630N/H/L | 112 | 31.5 | 63 | 71.5 | 143 | 188 | 6 | 32 | 32 |
| RDM11-1250/1600N | 6.5 |
P4=126 is suitable for=RDM11-250N/H/L
