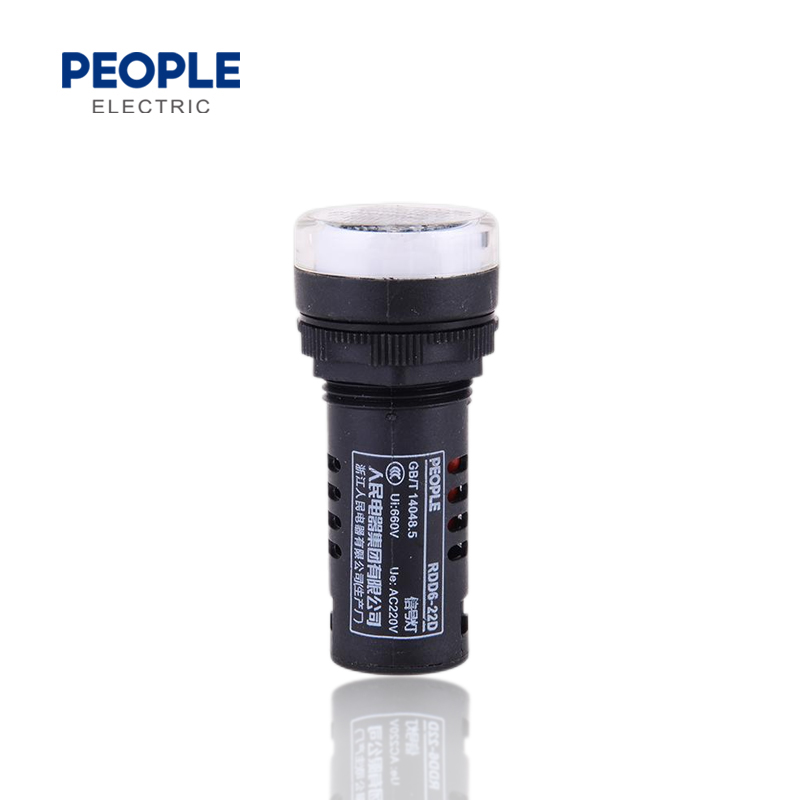

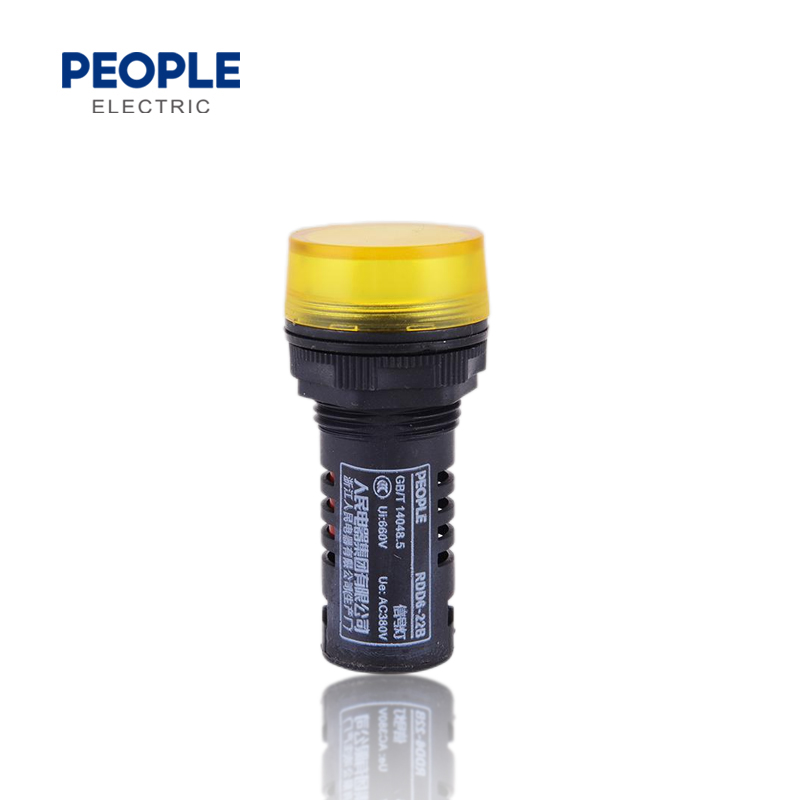

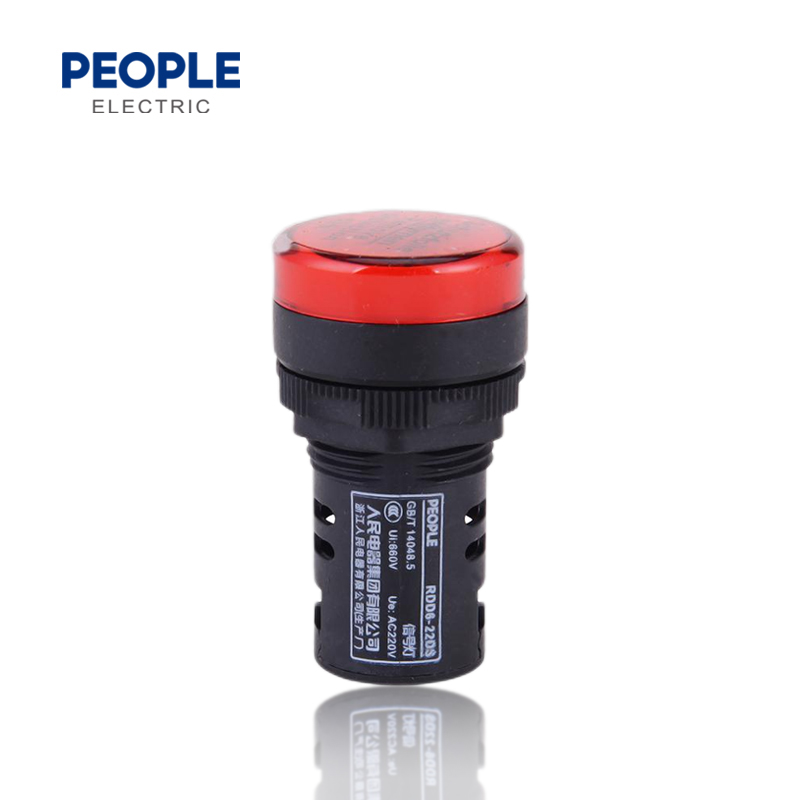

RDD6 Series(Pushbutton)

RDD6/16 Series Signal Lamps adopt high-brightness pure-color LED light-emitting chips as the light source, with long service life, low energy consumption, and small volume. They can work normally under the vibration frequency of 2-80 Hz and acceleration of 0.7G.

The model of RDD6 is signal lamp type;the model of RDD16 is buzzer type.

They are suitable for use as indication signals,pre-warning signals, accident signals, and other indication signals in the circuits of equipment such as electric power,telecommunication machine tools, ships, textiles, printing, and mining machinery.The product complies with the IEC 60947-5 standard.

Send email to us Download as PDF

Product Detail

Parameters

Samples & Structures

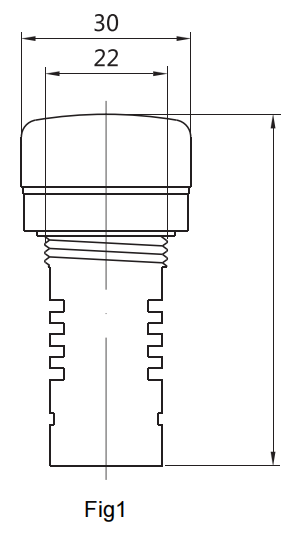

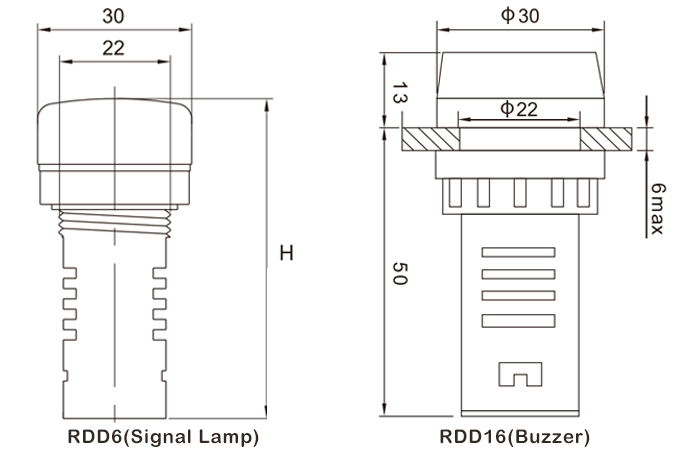

Dimensions

Product Features

1.Mounting Hole Size: φ22mm,φ25mm can be achieved by selecting a reducing ring;

2.Components are made of imported materials, firm and durable, and wear-resistant.Built -in screw-type wiring, safer and more convenient;

3.AC and DC can be used universally;

4.Long service life, no less than 30000 hours.

Normal Operating Condition and Installation Condition

1.Ambient air temperature:-5°C~+40°C,and the average value within 24 hours does not exceed +35°C

2.Altitude:Not exceeding 2000m

3.Atmospheric conditions: When the maximum temperature is+40°C the relative humidity of the air does not exceed 50%. At lower temperatures, a higher relative humidity is allowed, for example.reaching 90% at + 20°C.Special measures should be taken for the condensation occasionally generated due to temperature changes

4.Pollution degree: Grade 3

5.Installation category: Category Ⅲ

6.Places without significant shaking, impact vibration, and without rain and snow invasion

7.In a medium without explosion hazard, and there is no gas and dust in the medium sufficient to corrode metals and damage insulation

Selection Guide

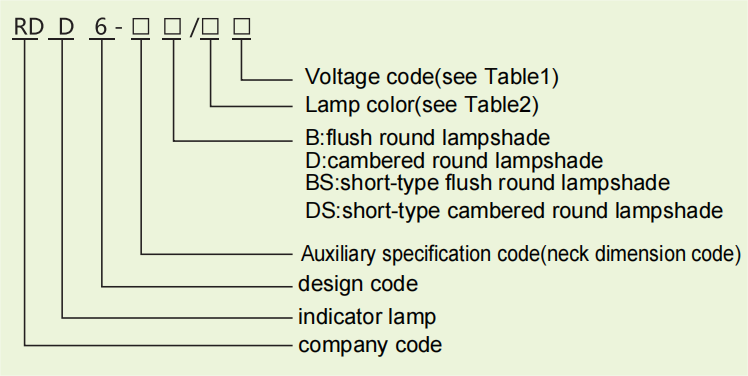

RDD6	22	K+number	M	R	21
Model	Neck Dimension	Function Code(K: Anti-interference)	Derivative Code	Color	Voltage Code
6: Signal Lamp	22	•K2:Anti-interference voltage for 20V •K4:Anti-interference voltage for 40V •K6:Anti-interference voltage for 60V •K15:Anti-interference voltage for 150V	B: Flat Circular Lamp Shade D: Curved Circular Lamp Shade BS:Ultra-short Flat Circular Lamp Shade DS:Ultra-short Curved Circular Lamp Shade	R:Red G:Green Y:Yellow W:White B:Blue	See Table 1
16: Buzzer	22	/	M: Buzzer JM: Intermittent Buzzer S:Flash SM:Flash Buzzer SS:Dual-color Flash	R:Red G:Green Y:Yellow W:White B:Blue	See Table 1

Table 1
Voltage Code	21	22	23	24	25	26	27	28	31	32
Corresponding Voltage/V	6	12	24	36	48	110	127	220	220	380
Power Type	DC/AC								AC

Main Technical Parameter

Table 2
Signal Lamp	AC/DC						AC
Rated Operating Voltage Ue (V)	6	12	24	48	110	220	380
Rated Operating Current Ie (mA)	≤20
Operating Life (h)	≥30000
Luminance (cd/m²)	≥60

Table 3
Buzzer	AC/DC						AC
Rated Operating Voltage Ue (V)	6	12	24	48	110	220	380
Rated Operating Current Ie (mA)	≤20
Buzzer Volume(dB/10cm)	70
Luminance (with lamp )(cd/m²)	≥20
