1.Introduction

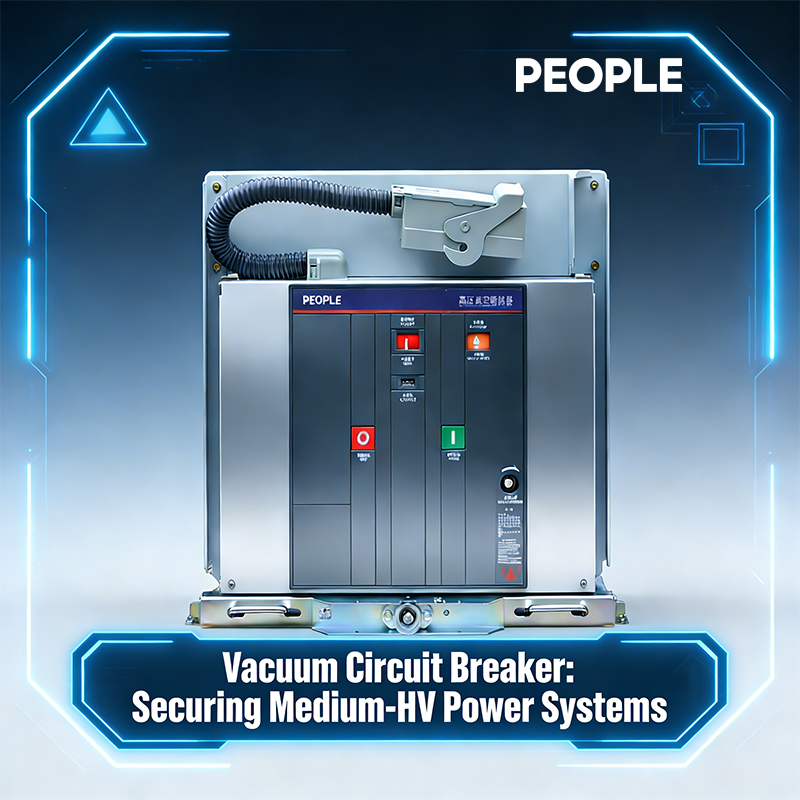

Vacuum Circuit Breaker(VCB) is a core switching device in medium and high-voltage distribution systems.It realizes circuit making, breaking and protection by virtue of the high insulation and strong arc-extinguishing capability of vacuum.
2.Core Functions
①Protective Function (Core): When electrical faults such as short circuit, overload and overvoltage occur in the circuit, it quickly detects fault signals and the contacts separate instantaneously. Utilizing the vacuum environment, it extinguishes the electric arc rapidly and cuts off the fault current within milliseconds to prevent the expansion of faults.
②Control Function: During normal circuit operation, it can switch the circuit on and off manually or automatically, realizing the start-stop control of medium and high-voltage distribution circuits.
3.Application Scenarios
①Power System: Protection of 10kV/35kV distribution lines in substations and distribution stations, as well as switching control of transformers.
②Industrial Sector: Distribution protection for large equipment such as high-voltage motors and fans in metallurgy, chemical industry, machinery manufacturing and other enterprises.
③New Energy and Rail Transit: Medium-voltage distribution circuits in photovoltaic/wind farms, and traction substation systems of subways and high-speed railways.
④Commercial and Infrastructure: Medium and high-voltage distribution systems in high-rise buildings, data centers and other facilities.
