Product Introduction ：

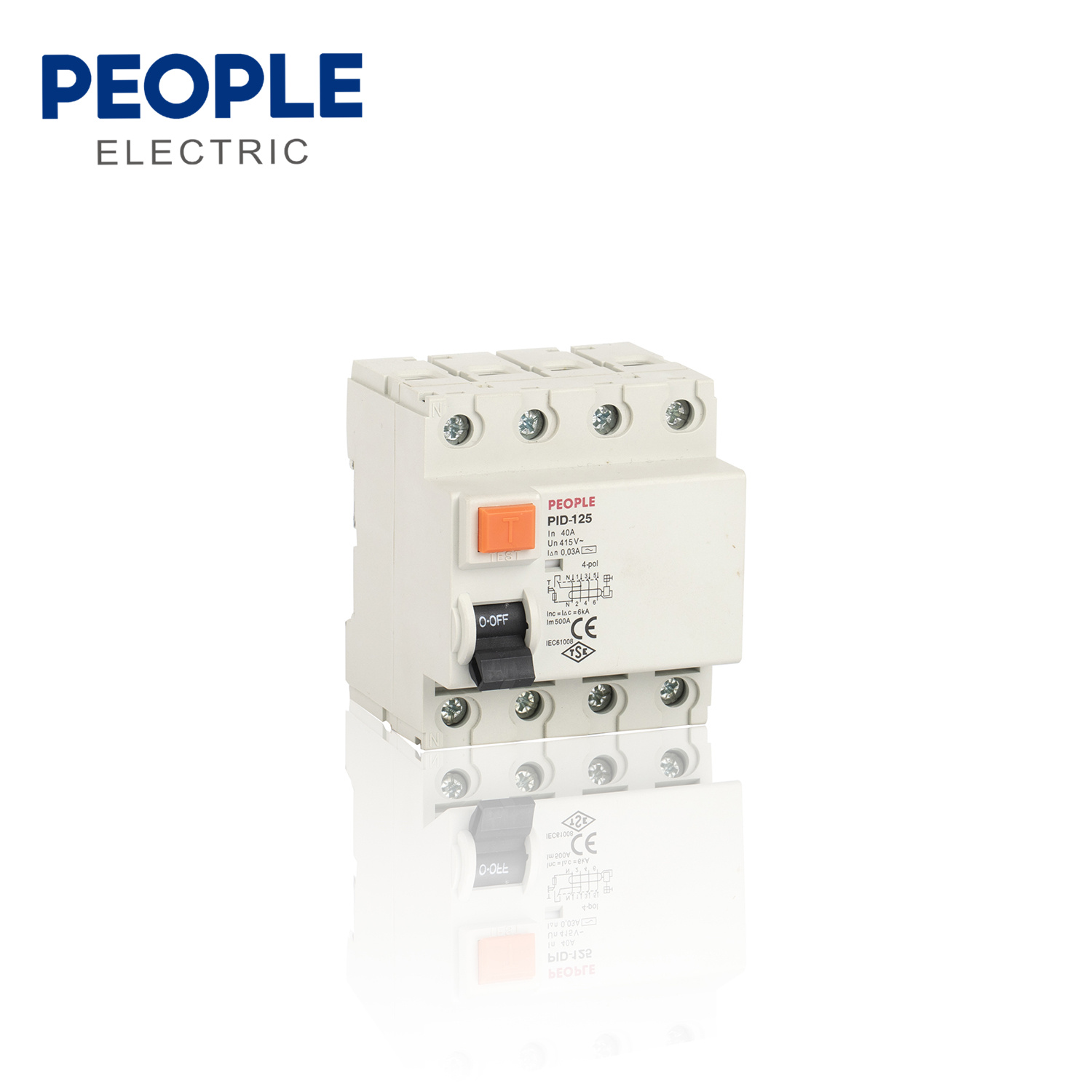

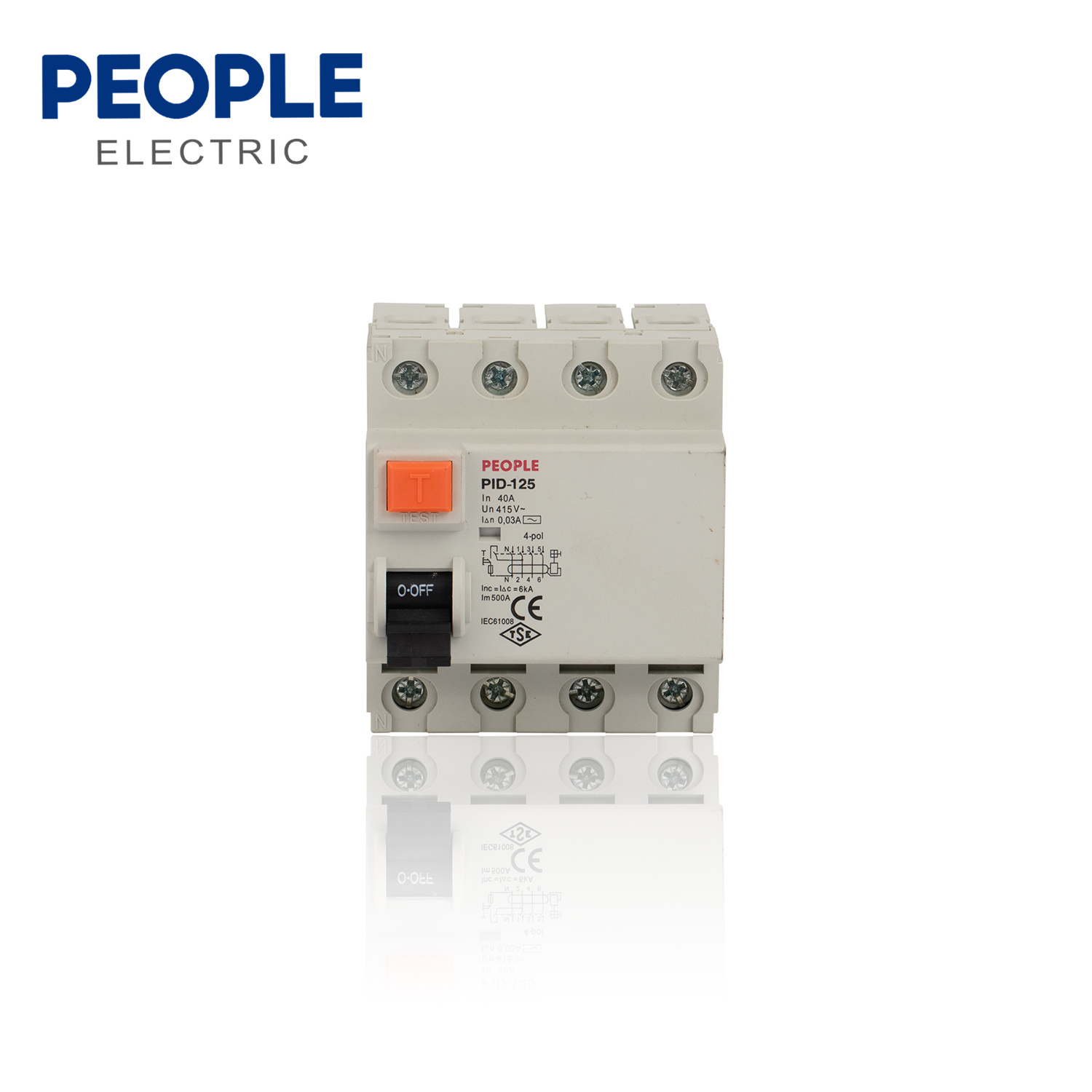

PID-125 can be used to cut off the fault circuit on the occasion of shock hazard or earth leakage of trunk line, It conforms to IEC61008.
Features :
- 1 Prevent leakage accidents at the source
- 2 Quick trip
- 3 Flexible combination, narrow product width, can save distribution box space
- 4 Humanized design and convenient installation
- 5 Simple and elegant appearance
- 6 Product operation is less affected by environmental factors
Application：
The item is precise in structure, less elements, without auxiliary power and high working reliability. The function of the switch won’t be influenced by ambient temperature and lightning. The mutual inductor of the item is used to test vector differential value of passing current, and produces a relevant output power and add it to the tripper in secondary winding, if the current of vector differential value of protected circuit of personal electric shock is up to or over leakage operating current, the tripper will act and cut off so that the item will take effect of protection.
Parameters：
| Independent of line voltage: | Yes |
| Dependent of line voltage: | No |
| Rated voltage Ue:(V) | 230V or240V(1P+N):400V or 415V(3P+N) |
| Rated current in:(A) | 10A;16A;25A;20A;32A;40A;50A;63A;80A;100A;125A |
| Rated frequency:(Hz) | 50/60Hz |
| Rated residual operating current In:(A) | 30mA;100mA;300mA |
| Type: | AC type and A type |
| Temporisation: | Without time-delay |
| Nature of supply: | ~ |
| Total number of poles: | 1P+N and 3P+N(neutral on left |
| Rated insulation voitage Ui:(V) | 415V |
| Rated impulse withstandvoltageUimp:(V) | 4000V |
| Utilisation rangetemperature:(°C) | -5°℃ to +40℃ |
| Rated making and breaking capacityIm:(A) | 10In for 63A:80A:100A:125A500A for 10A:16A:25A:20A:32A40A:50A |
| Rated residual making and breaking capacity Im:(A) | Same as Im |
| Rated conditional short-circuit current Inc:(A) | 6000A |
| Rated conditional residual short-circuit current Ic:(A) | Same as Im |
| Short-circuit protection devices SCPDs used: | Silver wire |
| Grid distance(short-circuit tests): | 50mm |
| Protection against external influences: | Enclosed |
| Protection degree: | IP20 |
| Material group: | llla |
| Method of mounting: | On rail |
| Method of electrical connection | |
| not associated with the mechanical-mounting | Yes |
| associated with the mechanical-mounting | No |
| Type of terminals | Pillar terminal |
| Nominal diameter of thread:(mm) | 5.9mm |
| Operating means | Lever |

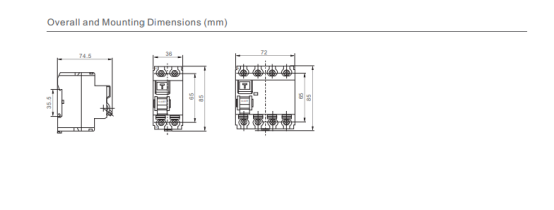

Dimensions ：
