In a power distribution system, circuit breakers serve as core equipment to safeguard circuit safety and guard against overload and short-circuit faults. The coordination between the main circuit breaker and branch circuit breakers directly determines the stability of the distribution system and the rationality of fault handling. This article briefly interprets their core positioning and breaks down their coordination logic, helping relevant practitioners and buyers quickly grasp the key points.
Clarifying the core definitions and positioning of the two is fundamental to understanding the coordination logic:
1.The main circuit breaker, also known as the main breaker, is installed on the trunk line of the power distribution system. It controls the on/off state of the entire distribution circuit and undertakes the responsibility of protecting the whole system from severe overload and short-circuit faults, acting as the "main gate" of the distribution system that can cut off power to the entire system.
2.The branch circuit breaker is installed on each branch line, corresponding to specific power circuits such as lighting, sockets and electrical equipment. It controls the on/off of a single branch and protects the power safety of the branch it belongs to, serving as the "branch gate" of the distribution system.

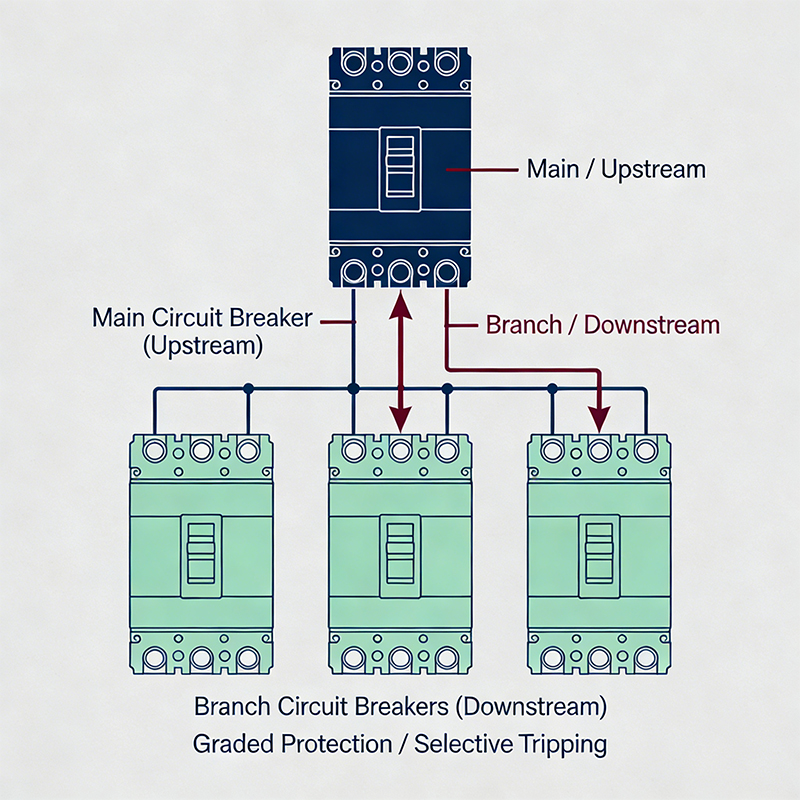

The core of their upper-lower level coordination logic is graded protection and selective tripping, which prevents fault expansion.
●When an overload or short-circuit fault occurs in a branch, the branch circuit breaker will act preferentially to cut off the power supply of the faulty branch in a timely manner, while the main circuit breaker remains in normal operation to ensure that other branches are unaffected and power supply continues, realizing the goal of "only the faulty branch is powered off".
●In the event of a severe fault (such as a short circuit on the trunk line) that cannot be cleared by the branch circuit breaker, the main circuit breaker will activate its protection function to cut off the power supply of the entire distribution system, preventing the fault from spreading to the whole circuit and causing greater losses.
In addition, the coordination logic must meet the requirement of matching operating characteristics: the tripping current and operating time of the main circuit breaker shall be greater than those of the branch circuit breakers, ensuring that the branch breakers act first and the main breaker acts as backup protection in case of a fault, avoiding the unreasonable situation that the main breaker trips first and all branches lose power simultaneously.
In a word,such upper-lower level coordination not only guarantees the power safety of a single branch, but also maintains the stability of the entire power distribution system, which is a key principle in the design and operation of distribution systems.
