1.Altitude: does not exceed 2000m
2.Ambient temperature: +5℃~+40℃, average temperature within 24h does not exceed +35℃
3.Power supply voltage variation range: 85% ~ 110% of the rated voltage
4.It should be at the no explosion danger medium, and the medium without the gas that cannot corrode the metal and damage the insulation as well as the places that without conductive dust
5.installation method:Vertical or horizontal

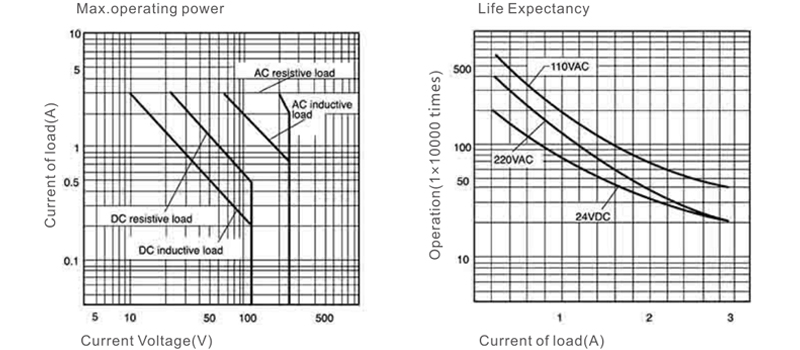

| HH5-P | ||
| Contact Ratings | 2Z,2D;3Z,3H,3D | 4Z,4H,4D |
| Contact Resistance | 50MΩ(1A 6VDC) | |
| Contact Material | Silver Alloy | |
| Contact Capacity | 5V/250VAC 28VDC | 3A,5V/250VAC 28VDC |
| Specification | |
| Insulation Resistance | 500MΩ,500VDC |
| Dielectric Strength | BCC 1500V 1 min |
| BOC 1000V 1 min | |
| COC 1500V 1 min | |
| Operate Time | 20ms/15ms |
| Terminal Type | Socket |
| Norminal Coil Power | 0.9W/1.2VA |
| Nominal Voltage VDC | Pull-in Voltage VDC | Release Voltage VDC | Coil Resistance Ω:±10% | Nominal Voltage VAC | Pull-in Voltage VAC | Release Voltage VAC | Coil Resistance Ω:±10% |
| 5 | 4.8 | 0.50 | 30 | 6 | 4.80 | 1.8 | 12 |
| 6 | 4.8 | 0.60 | 40 | 12 | 9.60 | 3.6 | 42 |
| 12 | 9.6 | 1.20 | 160 | 24 | 19.2 | 7.2 | 168 |
| 24 | 19.2 | 2.40 | 640 | 48 | 38.4 | 14.4 | 675 |
| 48 | 38.4 | 4.80 | 2560 | 110 | 96.0 | 36.0 | 3500 |
| 110 | 88.0 | 11.0 | 12100 | 220/240 | 176.0 | 66.0 | 14000 |
